ADDERLink X-DVIPRO-US XDVI USB & Single Link DVI KVMA CATx Extender - 164 feet/50 Meters

X-DVIPRO-US - Overview

• Features:

  • Pixel-perfect digital video with real time control: using uncompressed video extension; no visible artefacts or latency are introduced allowing you to be certain of quality and control
  • Analog audio Stereo CD quality: Stereo channel 16bit sampled at 44.1kHz to transfer audio from local to remote for line out
  • Distribution up to 164 feet/50m over a single CATx cable: video, USB 2.0 (Low and Full speed) and audio all pass along a single cable, providing up to 50m of extension (distance dependent upon video resolution, CATx cable type, and number of connection intervals)
  • Connect any USB interface device: utilising a unique method of USB communication, the ADDERLink X-DVIPRO extenders deliver the highest possible levels of USB compatibility. All USB 1.1 and 2.0 low/full speed devices are supported.
  • HDMI video and audio extension capabilities: Digital audio for 8 channels of HDMI audio, supported simultaneously to analog audio
  • Stereo analog audio: Stereo channel 16bit sampled at 44.1kHz to transfer audio from local to remote for line out
  • Power efficiency: transmitter unit can be powered solely from the host computer's USB connection
  • EDID management: Extended Display Deification Data (EDID) enables the remote system to exactly mirror the date coming from the source monitor
  • Plug and Play: ADDERLink X-DVI PRO extenders are delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
  • Robust yet lightweight: small form factor, rack mountable device


• Specifications:

  • Important extension distance details
    Recommended cables are CAT7 shielded foiled twisted pairs: Daetwyler 7702 Flexible patch cable Daetwyler 7120 Bulk cable Category 5 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.
  • Res (@60Hz) 1920 x 1200 Cable CAT7 Patches 0 Dist 50m
  • Res (@60Hz) 1920 x 1200 Cable CAT6a* Patches 0 Dist 50m
  • Res (@60Hz) 1680 x 1200 Cable CAT5e* Patches 0 Dist 50m
  • Res (@60Hz) 1920 x 1200 Cable CAT7 Patches 2 Dist 40m
  • * Shielded


  • Notes: Distances are achieved using single lengths of trunk/ bulk cable. For each break/patch connection, reduce distance by 5m. Preferably patch cables should be of type CAT7a and less than 2m. Patch cables over 2m must be CAT7a. CAT5e is not recommended for use with this system. The maximum extension distance for USB is 50m including connections to and from the X-DVI PRO independent of cable type. If a USB hub is connected to the RX unit, this is seen as 5m of cable length. This needs to be taken into consideration when planning your system.


  • Hardware compatibility
  • All computers with DVI-D, USB and audio - requirement dependent.


  • DVI-D Interface - digital only
  • The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz.


  • USB 2.0 Low and Full speed
  • Transparent USB 2.0 (Low and Full speed) that supports HID and mass storage devices to a maximum of 50 meters. You may need to reduce maximum cable length by 5 meters if a USB hub is connected to the receiver unit.


  • Audio
  • The system delivers analog stereo audio (Line Out). 8 channels of HDMI audio are supported with sample sizes of 16, 20 or 24 bits at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz (simultaneously with the jack audio).


  • Software compatibility
  • All known operating systems

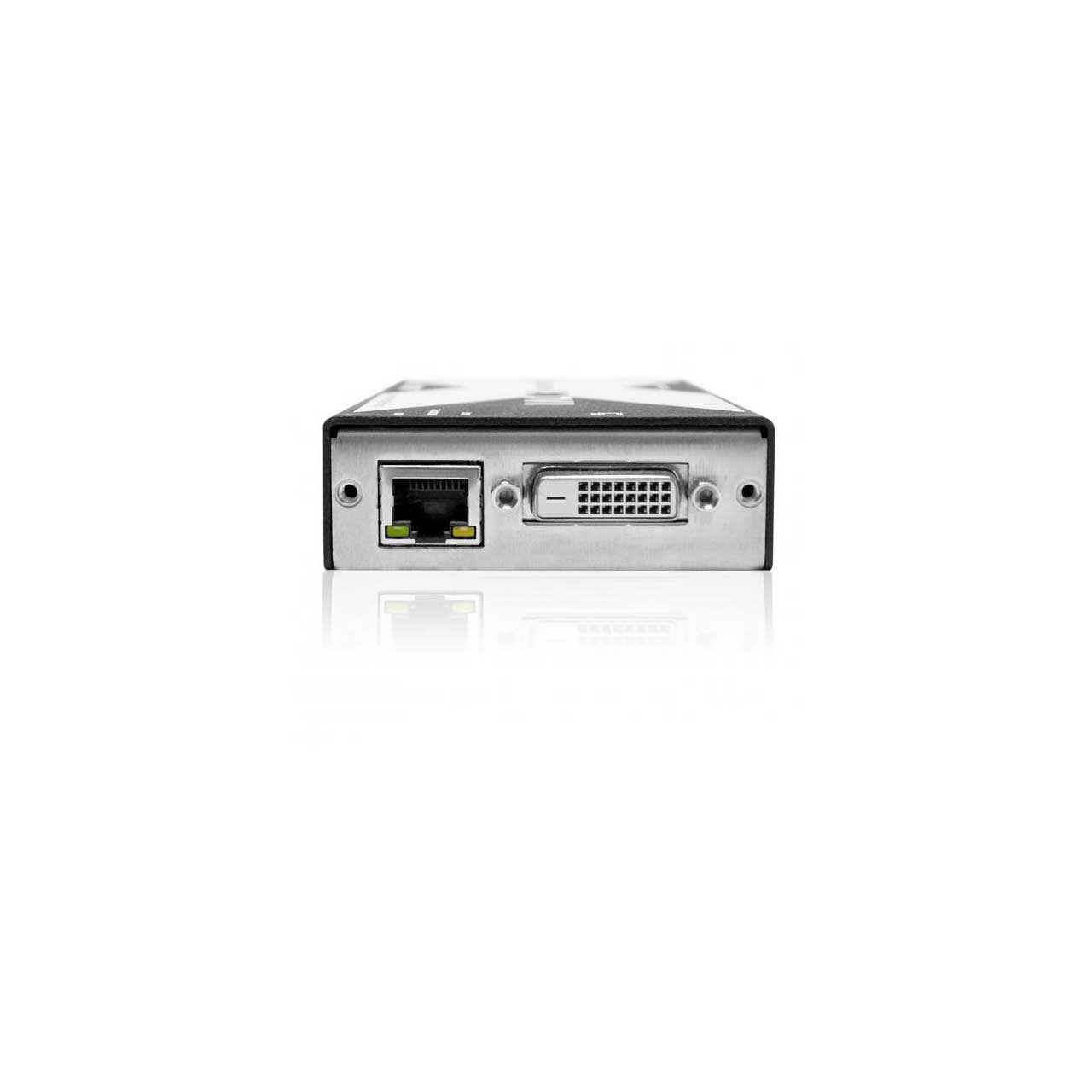

  • Computer connections Transmitter (TX)
  • DVI-D, audio 3.5mm in, USB type B

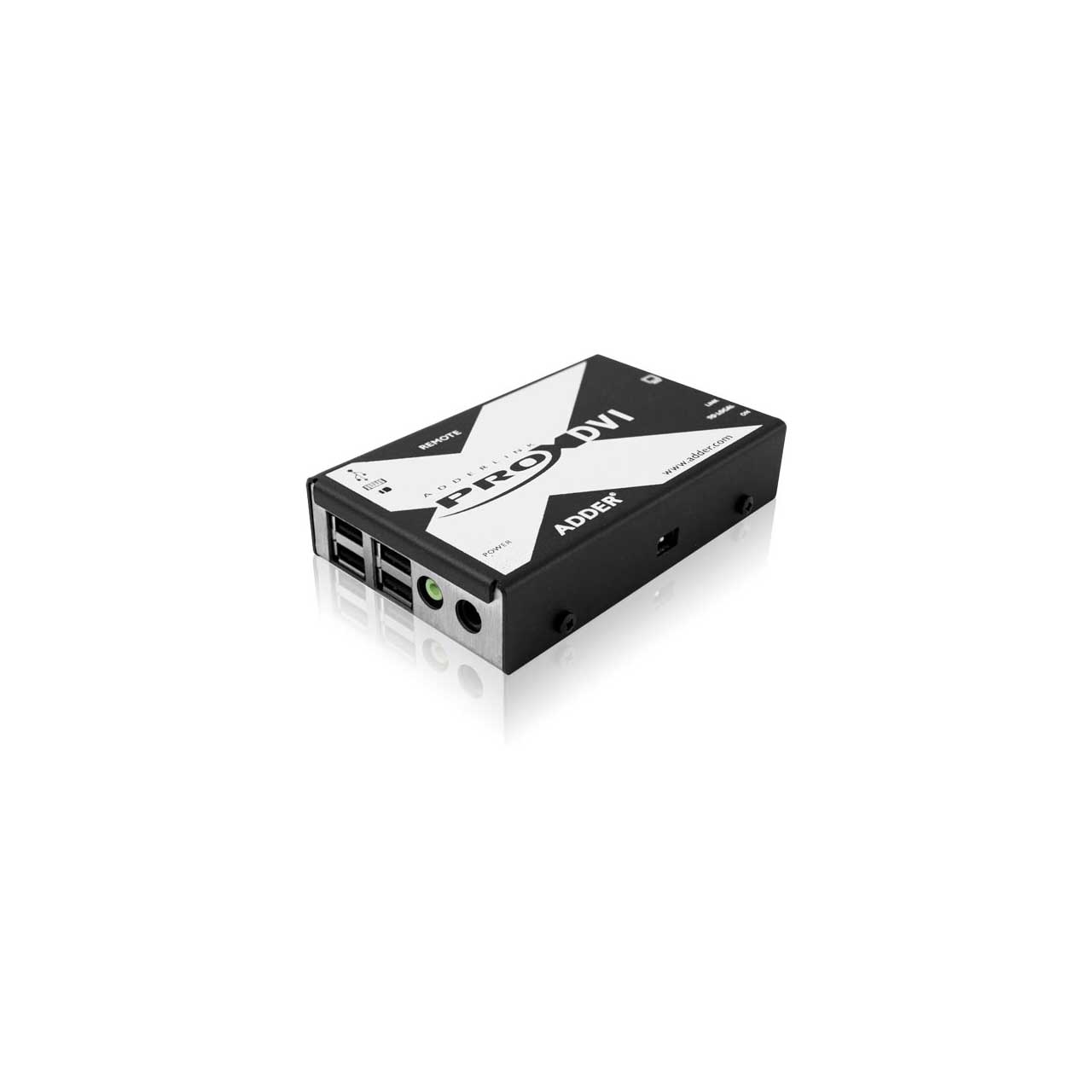

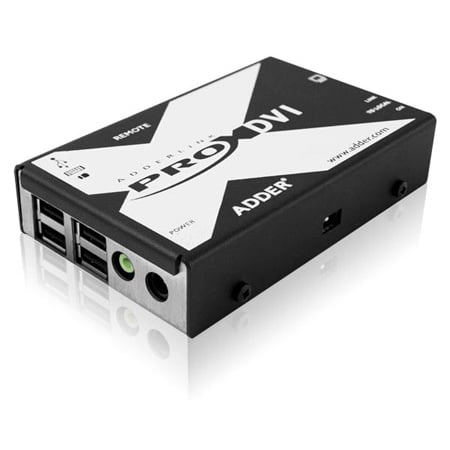

  • Computer connections Receiver (RX)
  • DVI-D, audio 3.5mm out, USB type A x 4


  • Physical design
  • Case: Compact
  • Material: Robust Metal Construction
  • Dimensions: 4.7 x 3 x 1" (120 x 75 x 26mm)
  • Weight: 320g / 0.7 lb


  • Power
  • Rx: 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.4A, input to power adapter, 5VDC 12.5W output from power adapter.
  • Tx: Powered from single USB connection.
  • Optional: 2.5mm DC jack (power adapter not included)


  • Operating temperature
  • 0° to 40°C / 32° to 104°F


  • Approvals
  • CE, FCC


• Item Includes:

  • 1x DVIPRO local module
  • 1x DVIPRO remote module
  • 1 x 12.5W power supply
  • 1x Video cable DVI-D to DVI-D
  • 1x USB cable 2m (a to B)
  • 1x 3.5mm stereo audio cable


• Warranty:

  • 2 Year Limited


• GTIN:

  0641125311390
