ADDER X200R-US X200 2 -Port KVM Receiver for CATx

X200R-US - Overview

• Features:

  • Video performance: Industry leading resolution of:1600 x 1200 to 200 m (650 ft.)
  • Video compensation: The ADDERLink X200 applies 128 steps of signal compensation enabling fine picture adjustments.
  • Brightness control: The ADDERLink X200 offers its own brightness correction to ensure images are crisp, clear and bright.
  • Two port integrated KVM switch: Each receiver is fitted with two ports to enable connection to a local and remote computer, or two remote computers. The user can quickly select between these ports using keyboard hotkeys or mouse control. Individual video brightness, compensation and skew settings can be applied to each connection.

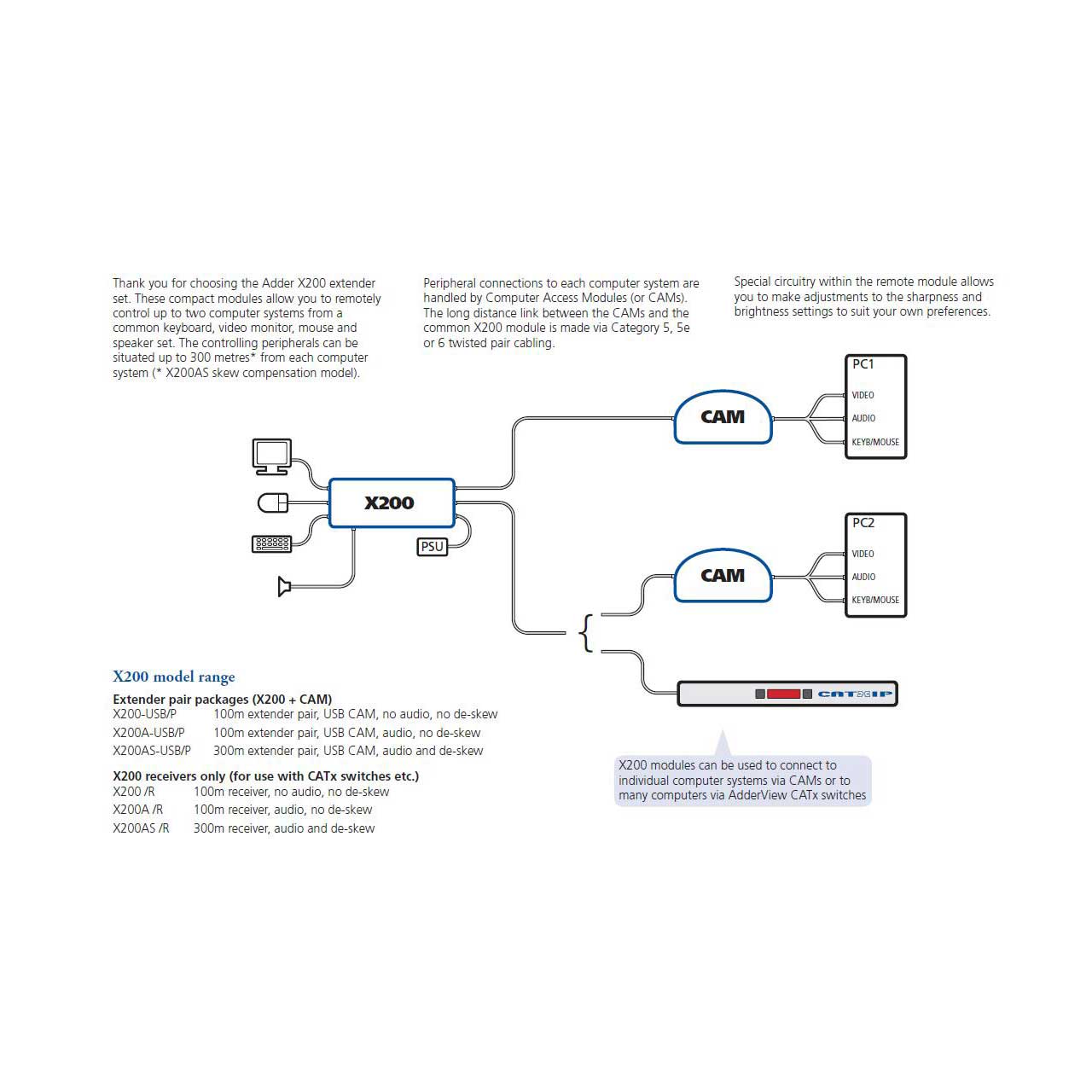

  • Flexible system configuration: Each receiver may be connected to one or two USB, PS/2 or Sun style computer access modules. Furthermore, the X200 receiver unit may be used as the remote user station for any ADDER CATx KVM switch.
  • Emulated DDC: Unless an extender actively supports DDC some wellknown high performance video cards cannot be used at high resolutions. The ADDERLink X200 fully supports DDC.
  • Digital audio: 44.1kHz digital stereo audio delivers high fidelity audio for speakers.


• Specifications:

  • Video Resolution
  • 1600 x 1200 at distances up to 200 m/650 ft


  • Extension Distance
  • Up to 200 m/650 ft. using CATx cable (x=5,5e,6)


  • Devices Supported
  • Supports computers with USB style keyboard and mice, flat-screen and CRT style monitors with standard HDD-15 video connectors and optional audio through 3.5 mm audio jack.


  • O/S Compatability
  • All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

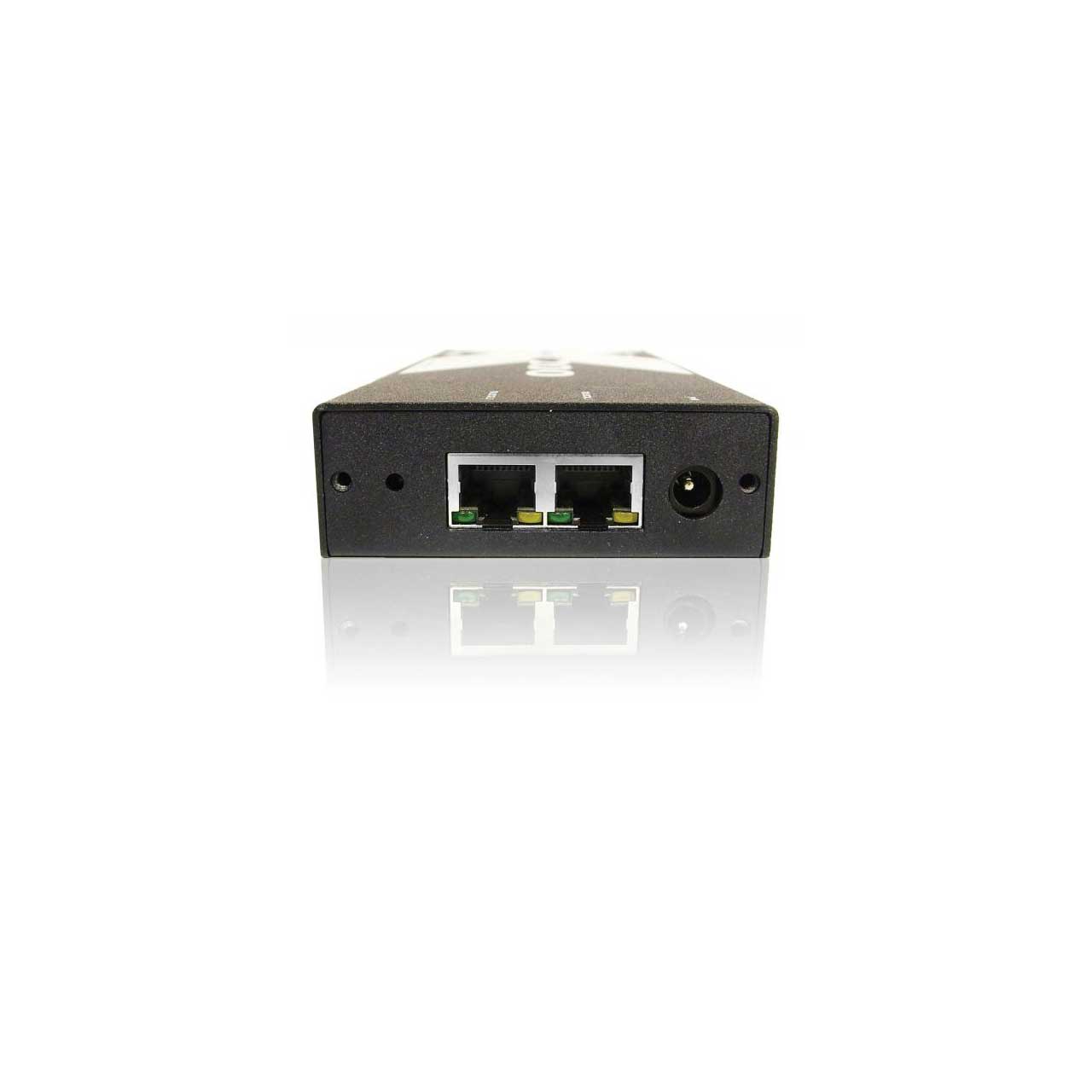

  • Connectors (X200 remote unit)
  • Video: HDD-15 Optional audio: 3.5 mm jack
  • Keyboard, Mouse: USB Type A CATx: 2 x RJ45 connector
  • Power: 2.5 mm DC jack


  • Physical (X200 remote unit)
  • All metal case, 172 mm/6.8 in. x 26 mm/1 in. x 75 mm/3 in. 430 g/1 lb.


  • Power Supply
  • 100 - 240VAC 50/60Hz (X200 remote unit only)


  • Additional Computer Access Modules (for second computer sold separately)
  • CATX-USB (USB computer access module)
  • CATX-USBA (USB computer access module with audio)
  • CATX-PS2 (PS2 computer access module)
  • CATX-PS2A (PS2 computer access module with audio)
  • CATX-SUNA (Computer access module with audio for Sun)


  • Approvals
  • CE, FCC


• Item Includes:

  • 1x X200R receiver
  • 1x Power adapter with US cord


• Warranty:

  • 2 Year Limited


• GTIN:

  0686068159197
