ADDERLink X50-MS2-US X50 Transparent USB2.0 Dual Head VGA KVMA CATx Extender System - TX/RX - 164 feet/50 Meters

X50-MS2-US - Overview

X50 MultiScreen Local and Remote Modules

• Features:

  • Fully transparent Low/Full speed USB: Delivers the highest possible levels of USB compatibility through a unique USB communication method. Integrated 4 port hub to support all USB 1.1 and 2.0 Low/Full speed devices.
  • High-performance video: industry leading video quality at high resolutions of 1920 x 1200 @ 60Hz over 50m (164ft)
  • Video compensation: broad range of ultra smooth, fine adjustments to video picture
  • True DDC Emulation: full supports 2-page Display Data Channel (DDC) ensuring all possible resolutions are supported
  • Fully platform independent: support for all common hardware platforms, and their associated peripherals, through fully transparent USB connections


• Specifications:

  • Video Resolution
  • 1920x1200 x 60Hz at distances up to 50m / 164ft


  • Software
  • Compatible with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare


  • Approvals / Compliance
  • CE
  • FCC


  • Standards
  • Supports all computers with USB style keyboards and mice, HDD15 video connectors and audio through 3.5mm audio jack. Supports all USB devices.


  • Cable Guidelines

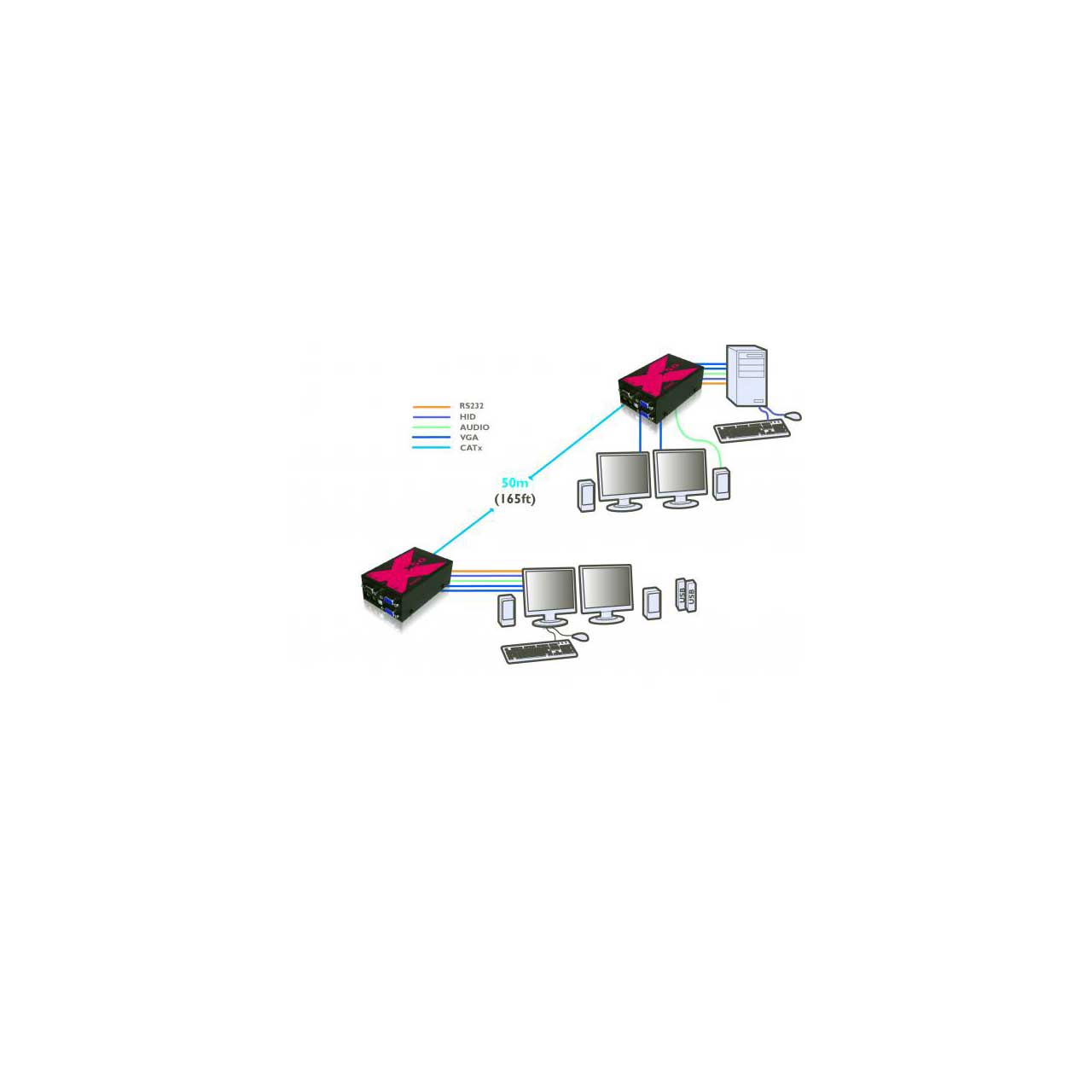

  • Up to 50m / 164 ft using CATx cable (x=5,5e,6)
  • The maximum extension distance for USB is 50m including connections to and from the X50 independent of cable type. If a USB hub is connected to the RX unit, this is seen as 5m of cable length. This needs to be taken into consideration when planning your system


  • Environmental
  • 0 to 40°C / 32 to 104°F

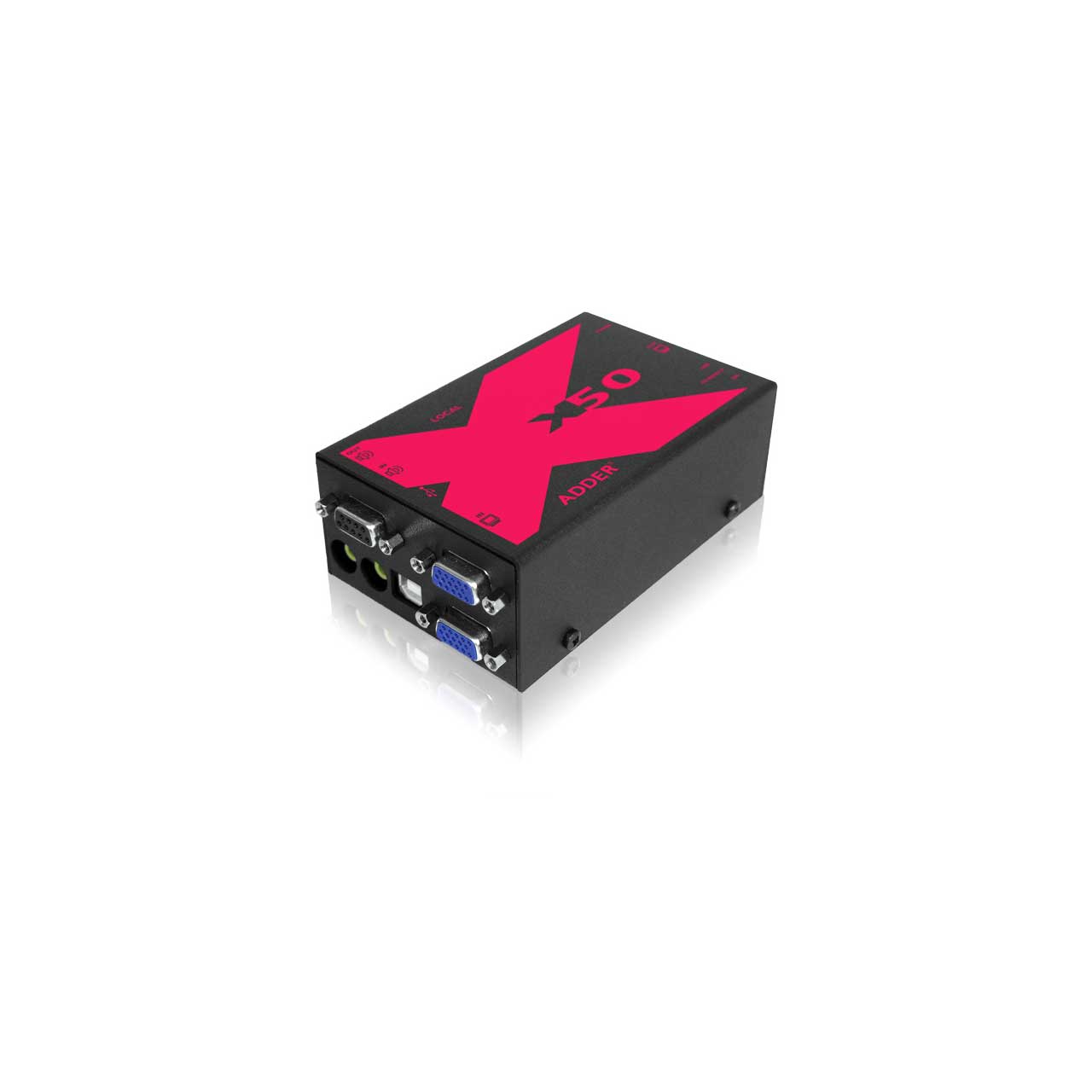

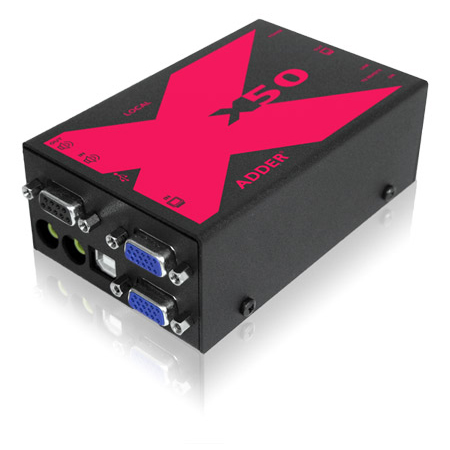

  • Connectors - Local Unit
  • ADDERLink X50: Video input/output: HDD15, Keyboard/Mouse/USB devices: USB type B, Audio input/output: 3.5mm jack, CATx: RJ45 connector, Power: 2.5mm DC jack

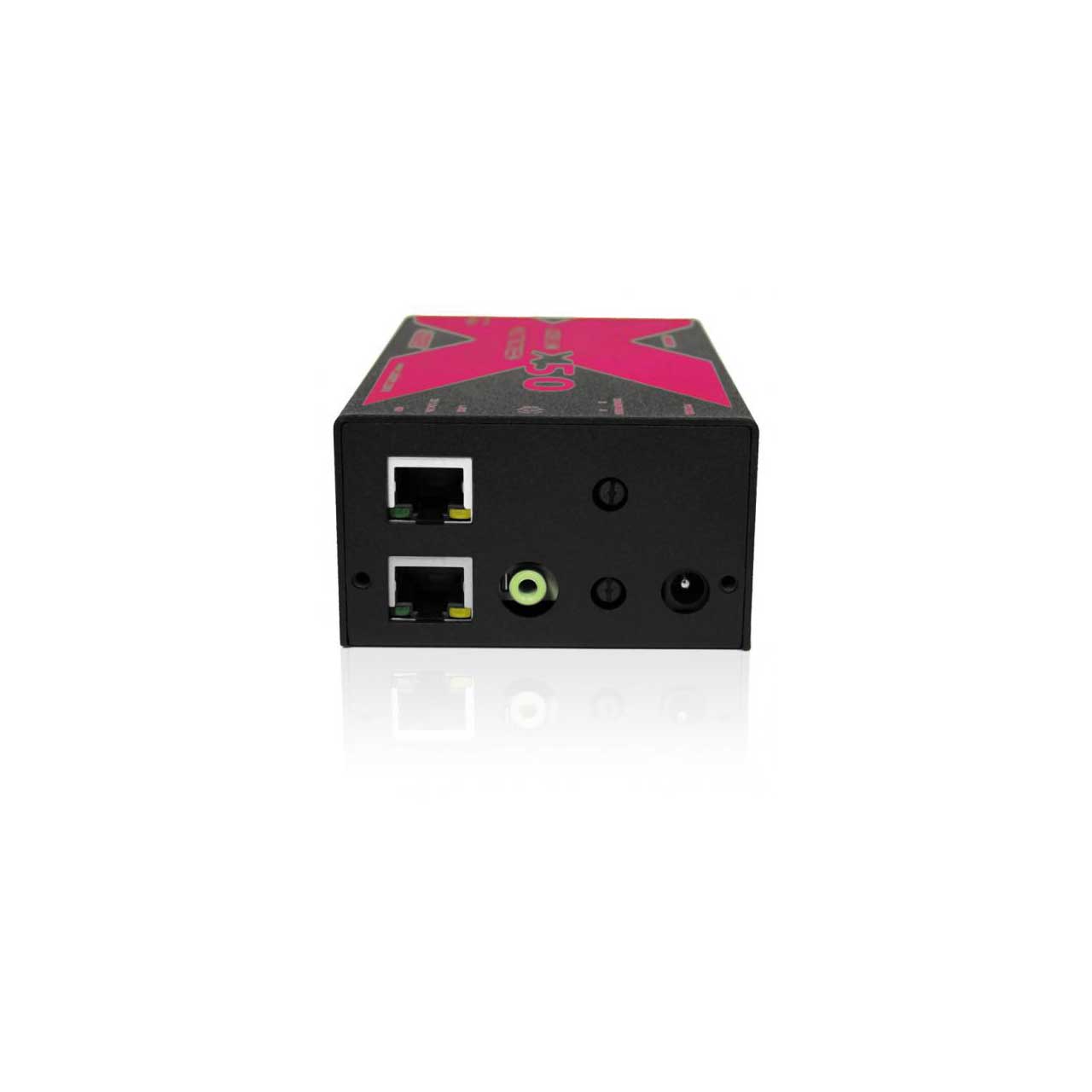

  • Connectors - Remote Unit
  • ADDERLink X50: Video: HDD15, Keyboard/Mouse/USB devices: USB Type A hub, Audio: 3.5mm jack, CATx: RJ45 connector, Power: 2.5mm DC jack


  • Mechanical
  • Local Unit:
  • ADDERLink X50: All metal case, 120mm / 4.7'' (w) x 75mm / 3''(d) x 26mm / 1'' (h) 430g / 1lb
  • Remote Unit:
  • ADDERLink X50: All metal case, 120mm / 4.7'' (w) x 75mm / 3''(d) x 26mm / 1'' (h) 430g / 1lb


  • Power
  • 100 - 240V AC, 10W, 50-60Hz (Remote unit only)


• Item Includes:

  • 1x X50 MultiScreen local and remote modules
  • 1x USB (A to B) lead
  • 2x Video lead (15 pin, male to male)
  • 1x Power adapter and US power lead
  • 1x Audio lead (3.5mm jacks)
  • 1x R232 serial lead (9 pin male to female)


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385906114
