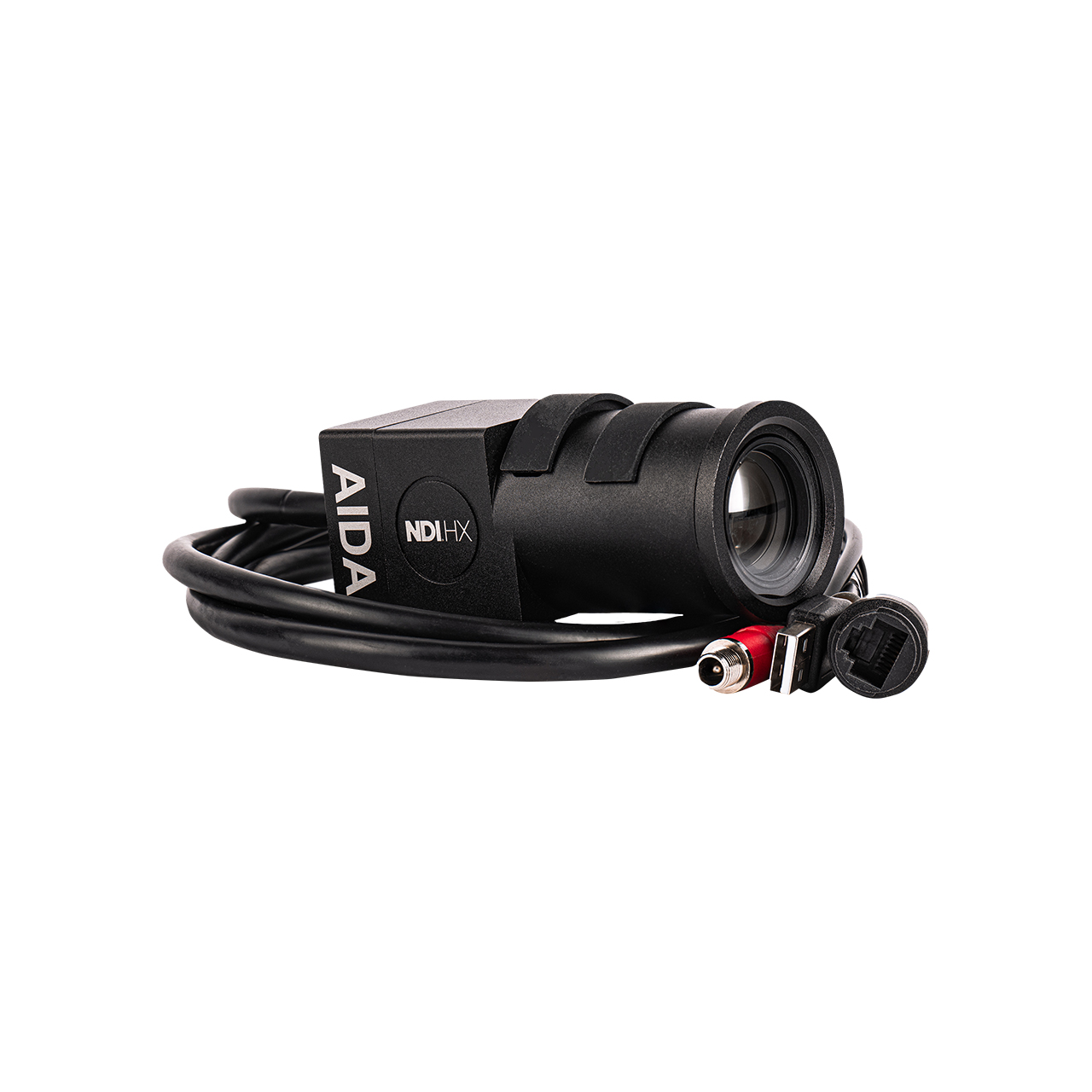

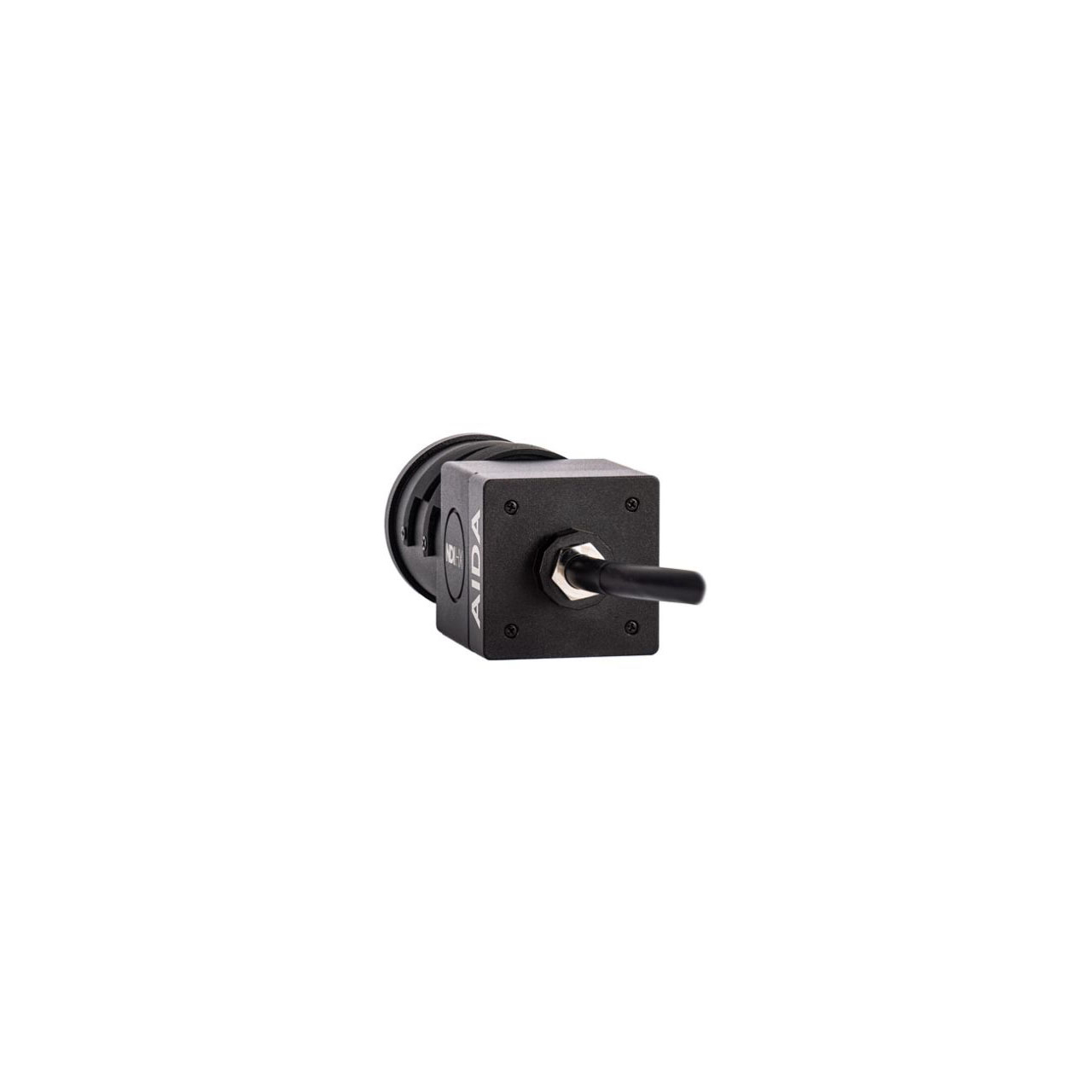

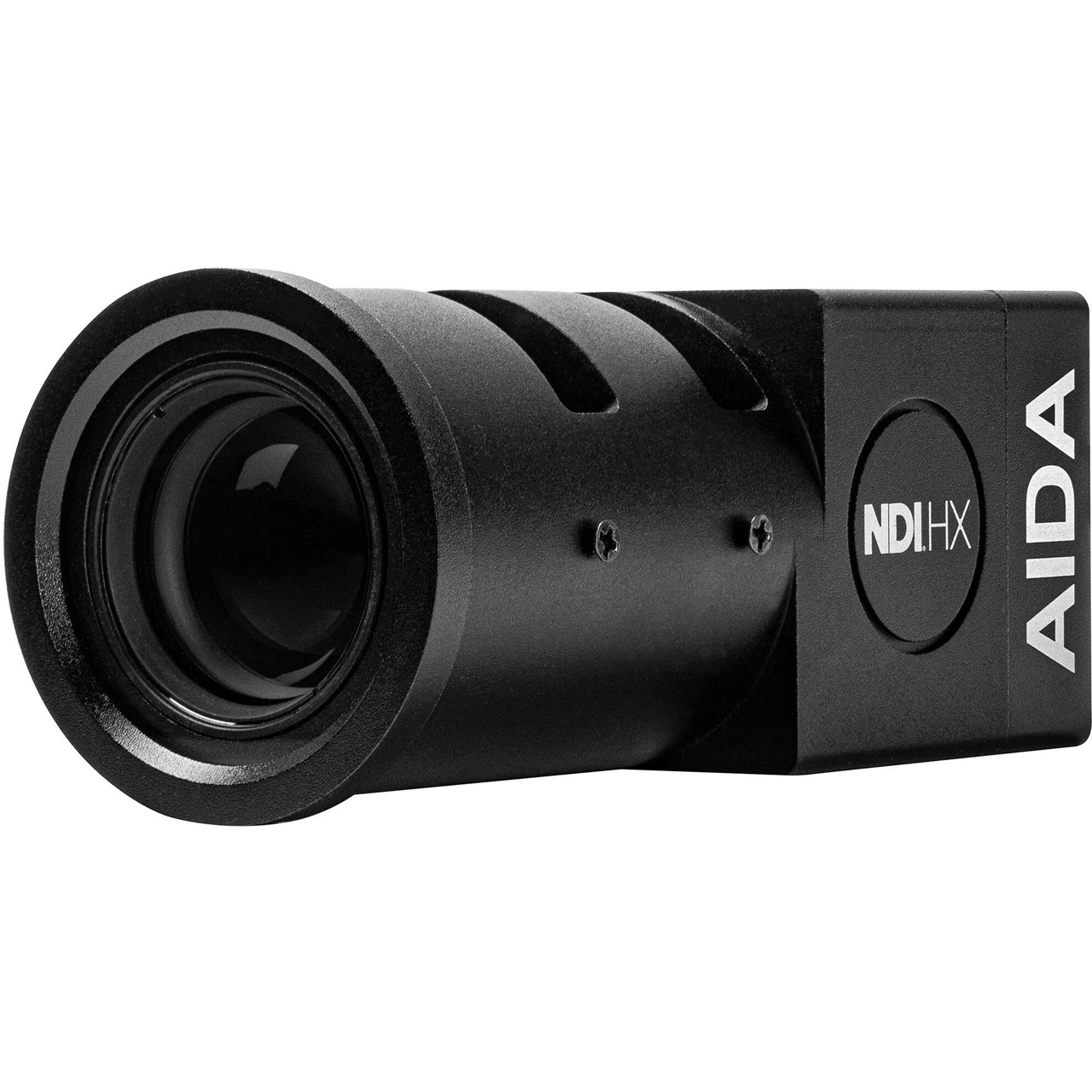

AIDA Imaging HD-NDI-TF FHD NDIHX/SRT/IP PoE Weatherproof IP54 POV Box Camera with 05-50mm Varifocal Lens

ITEM #: AIDA-HD-NDI-TF MFG #: AIDA-HD-NDI-TF

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$475.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AIDA-HD-NDI-TF - Overview

    The AIDA Imaging HD-NDI-VF has found itself a rival, and that's the HD-NDI-TF! Formulated with the same NDI® HX formula that you love, the HD-NDI-TF brings forth a IP54 rated Telephoto lens, used to capture safely from afar. Uniquely hand-crafted from AIDA's factory, you can expect to cover distances up to 60-80ft with our 5m-50mm telephoto lens with ease!

    The HD-NDI-TF will surpass all your expectations being a versatile POV camera at distance - covering your workflow no matter the distance!

    Always Packed!
    The HD-NDI-TF is always prepared with its NDI® HX key built in!

    Loaded out with IP54 Gear
    The camera's rated IP54 rating and silicon lens protectant keeps the camera dust and moisture free! Just dont submerge this guy.. he wouldn't make it!

    NDI HX never looked better
    The HD-NDI-TF uses a FULL-HD hands crafted 5MP lens, ensuring perfectly crisp 1080p video over NDI® and IP!

    Multitasker of the Century
    Whether you need NDI® HX, SRT, RTSP, RTMP, or all at the same time, this little guy does it all!

    Precision

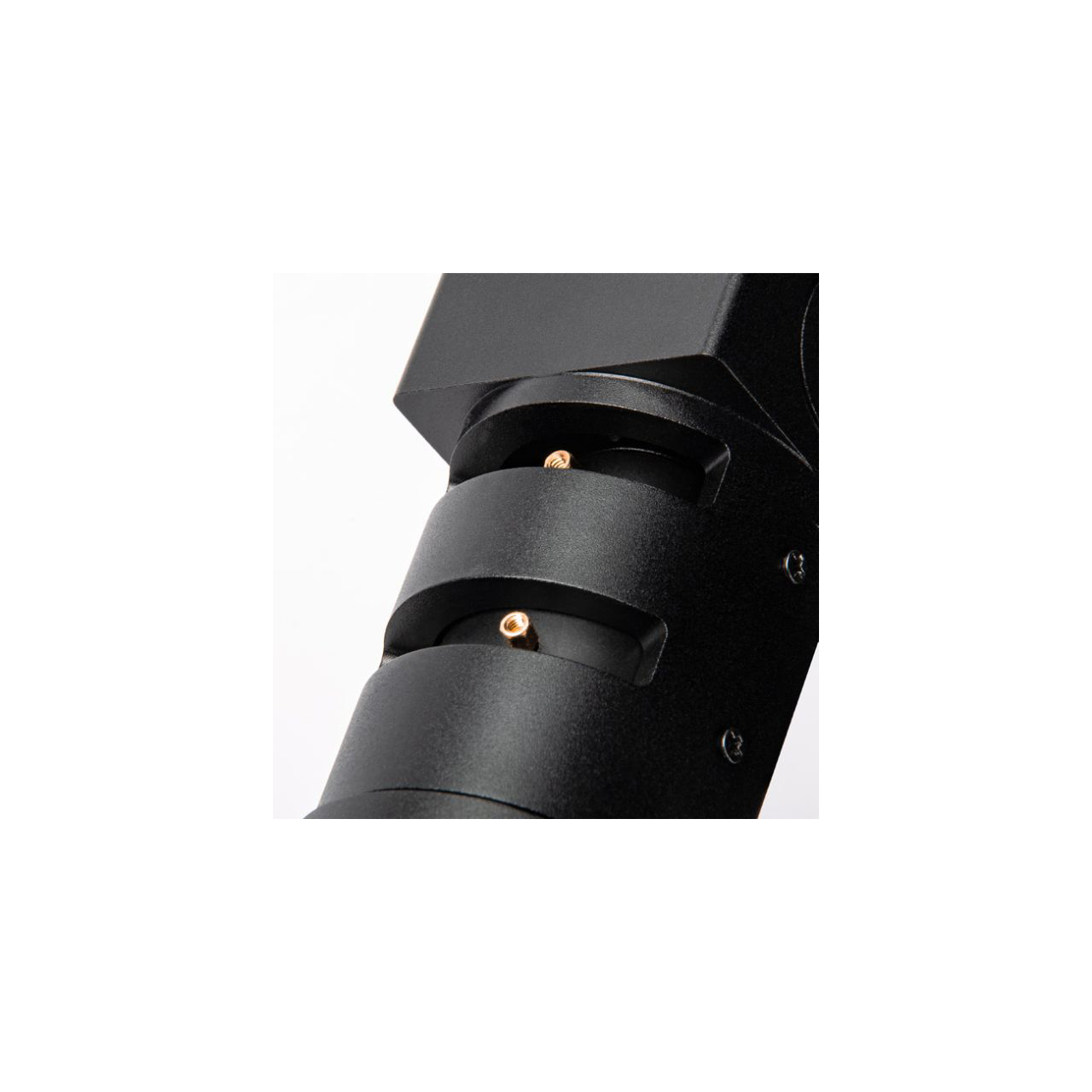

    AIDA's new and improved hands-crafted lens formula allows you to adjust the focus / tele with a hex wrench, making it hold the focus better than without a lock!

    No Translation Required
    Gotta admit - VISCA over IP really simplifies the use of serial communication. Enjoy that and NDI® control on the fly!

    AIDA Strong
    The HD-NDI-TF is no stranger to our exceptional build quality. Protected by the hardened aluminum casing, WP resistant silicon stubs - the HD-NDI-TF is built to last!

    Yes, of course PoE+!
    Theres no escaping PoE+! So enjoy a free adapter with every purchase to make this non-native PoE+ camera, PoE+ capable!

    Applications:
    Livestream Events
    Sporting Events
    Indoor Venues
    Surveillance
    Existing Workflows

    • Features:

      • Full-HD 1/3" Progressive Scan CMOS sensor capable of 1080 60p NDIr HX Video.
      • Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
      • Versatile design with top and bottom tripod mounts for uniques shot creation.
      • PoE+ adaptable with adapter (comes with purchase of the camera)
      • Custom IP54 rated Varifocal lens providing a FOV of 51° wide, and 6.1° tele to help get that perfect shot.
      • Weatherproof rating allows for extra protection against enviromental elements
      • Small form-factor and rugged designed makes all video streaming applications possible
      • Perfectly suited for outdoor shots any new or existing NDI HX setup.

    • Specifications:

      • Image Sensor: 1/3" Progressive CMOS
      • Sensor Size: 5.346mm x 3.003mm (16.9)
      • Effective Pixels: Horizontal: 1920, Vertical: 1080
      • Pixel Size: a2.75 µm (H) x 2.75 µm (V)
      • Resolution: 1080p, 1080i, 720p
      • Resolution Rate:
        - 1080 60p/59.94/50p/30p/29.97p/25p/24p
        - 1080 60i/59.94i/50i
        - 720 60p/59.94p/50p
      • Output: IP (NDI|HX/SRT/RTMP/RTSP)
      • Color Space: 4:2:2 (YCbCr) 10bit
      • Min Illumination: 0.2Lux (day), 0.1Lux (Night)
      • White Balance: Auto & Manual (9000 - 11,000 K)
      • Lens: 5mm ~ 50mm Custom Lens / FOV Wide: 51° Tele'd: 6.1°
      • IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX
      • Camera Control Protocol: VISCA Over IP
      • Operation Temp: 32°F - 104°F (0°C - 40°C)
      • Dimensions: 2.86" x 1.61" x 1.61" (With added lens)
      • Weight: 1lb (454g)
      • Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)

    • Item Includes:

      • 1x PoE Dongle Adapter
      • 1x DC 12v Power Supply & Sockets Adapter
      • 1x Lens Hex Adapter

    • GTIN:

      0783970765154
