When Old Tech Meets New!
Against all odds, SDI infrastructure has remained prevalent in todays broadcasting industry. With the reliability of 3G-SDI wiring, uncompressed video quality, and low latency video processing, SDI has come a long way to where it is now. So why not show it some love with an update? The AIDA Imaging HD3G-IPC-100A SDI-IPC series aims to help upgrade existing POV SDI dedicated workflows with quality Sony CMOS Imaging Sensors, versatile form factors, and ease-of-use VISCA over IP communication. With the simple addition of VISCA over IP, you can say goodbye serial wiring, meaning you can get video, control and power over just 2 cables!.. (but don't worry, it still has RS485 if you need it!)
Sometimes the older generations get it right - just need to add some millennial spice to it!
Versatile Form Factors
Each SDI-IPC series cameras achieves different purposes and form factors - so choosing the right one is key to streaming excellence!
PoE+ Injectable

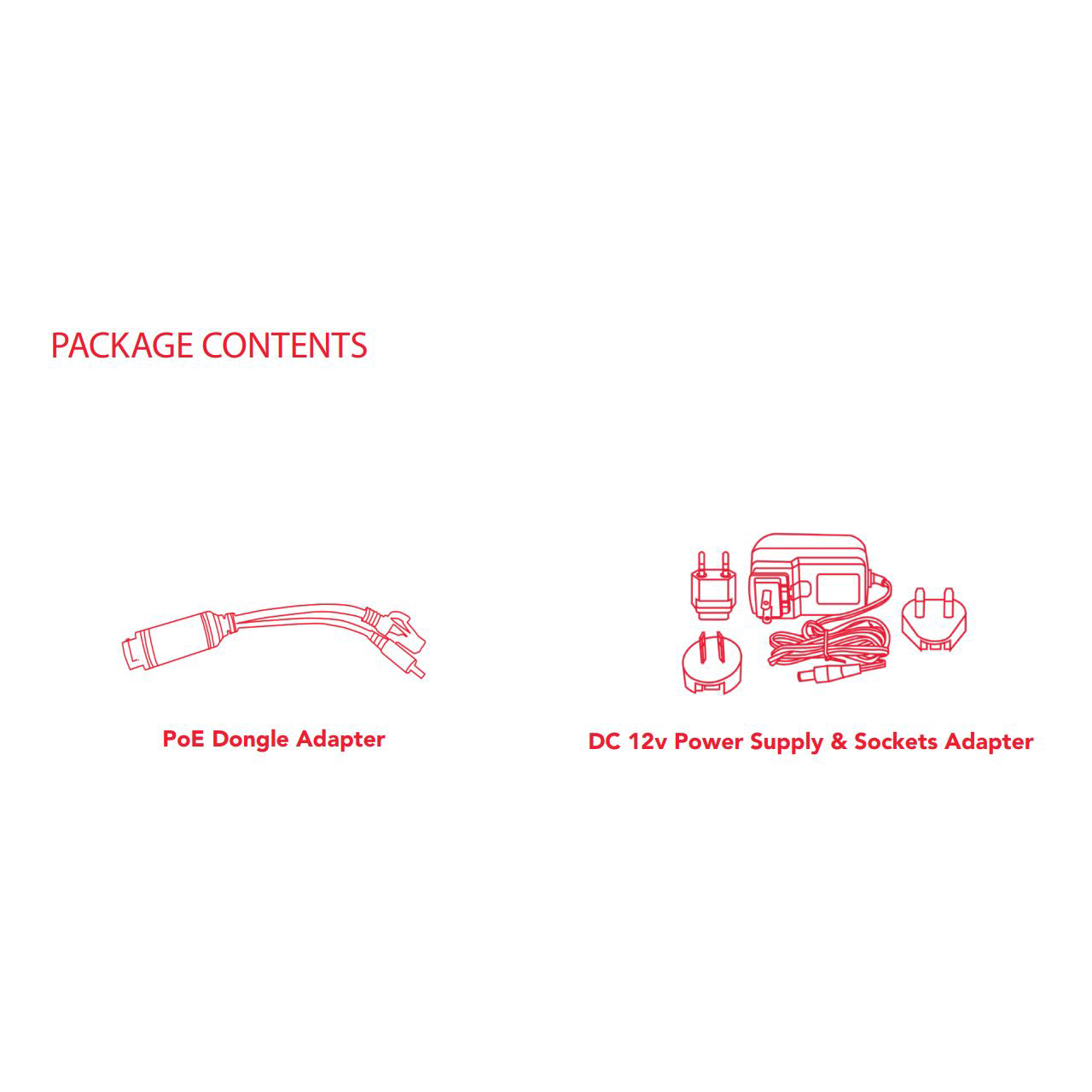

Each purchase of a SDI-IPC model comes with a PoE+ injector dongle, allowing you to inject power and control over through a PoE+ router.
The Gold Standard
Each SDI-IPC camera comes with a 3G-SDI output. With full and drop frames accessible, each camera fulfills the SMPTE 292M and SMPTE 424M requirements with ease.
Leading the New Generation
With an IP address, each camera is capable of speaking VISCA over IP. No need to run serial cables anymore! (unless you really want to.)
Also available is our free software to control these cameras (as well as other AIDA products). It is only available on the Microsoft store for now - search for AIDA CCS-IPC!
Almost Endless Optics Possibilities!

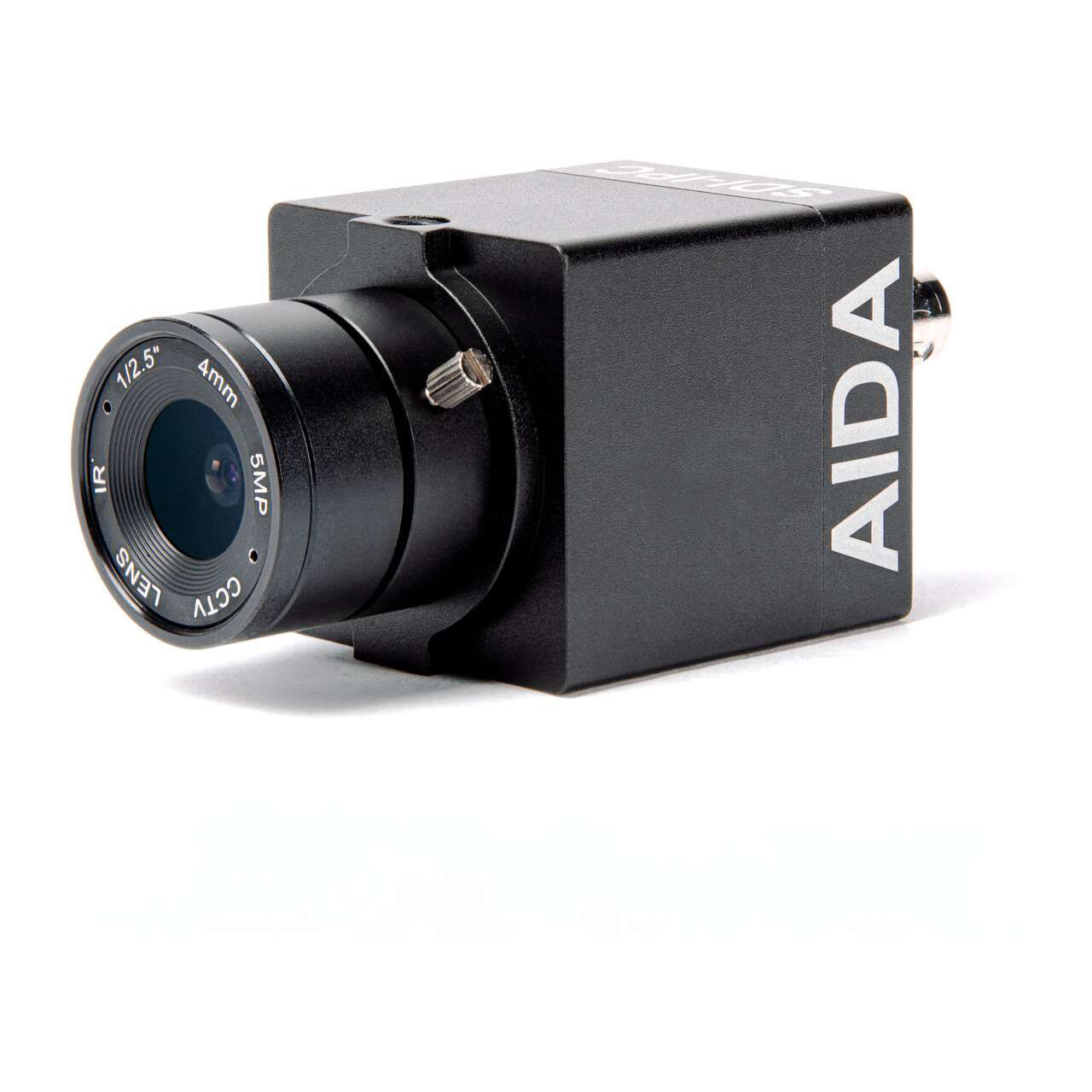

All cameras besides the HD3G-IPC-TF have interchangeable optics, whether it be CS or M12 mount! The HD3G-IPC-100A has unlimited freedom in terms of CS-mount lenses, while the MINI and IP67 model are limited by the WP Cap!
Flexible Mounting Options

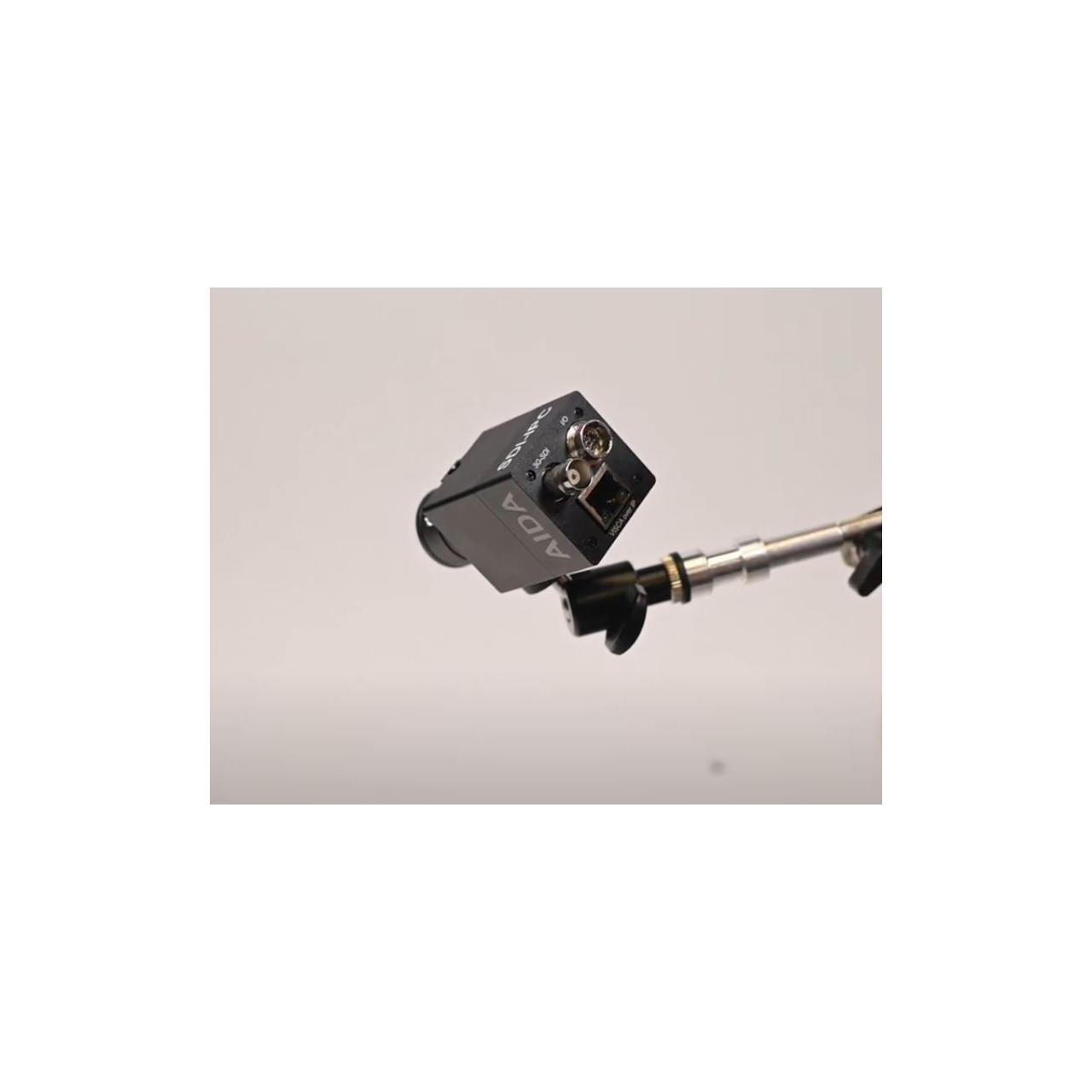

The SDI-IPC series can easily be hangable by a top or bottom 1/4 20" mounting hole - allowing for ease of placement wherever you need it.
Applications:
Livestream Events
Sporting Events
Indoor Venues
Surveillance
Existing Workflows
