AJA GEN10 HD-SD Sync Generator10 Blackburst & Tri-level Sync Generator - Bstock (Missing inside packaging)

ITEM #: AJA-GEN10-BS MFG #: AJA-GEN10-BS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-GEN10-BS

AJA-GEN10-BS - Overview

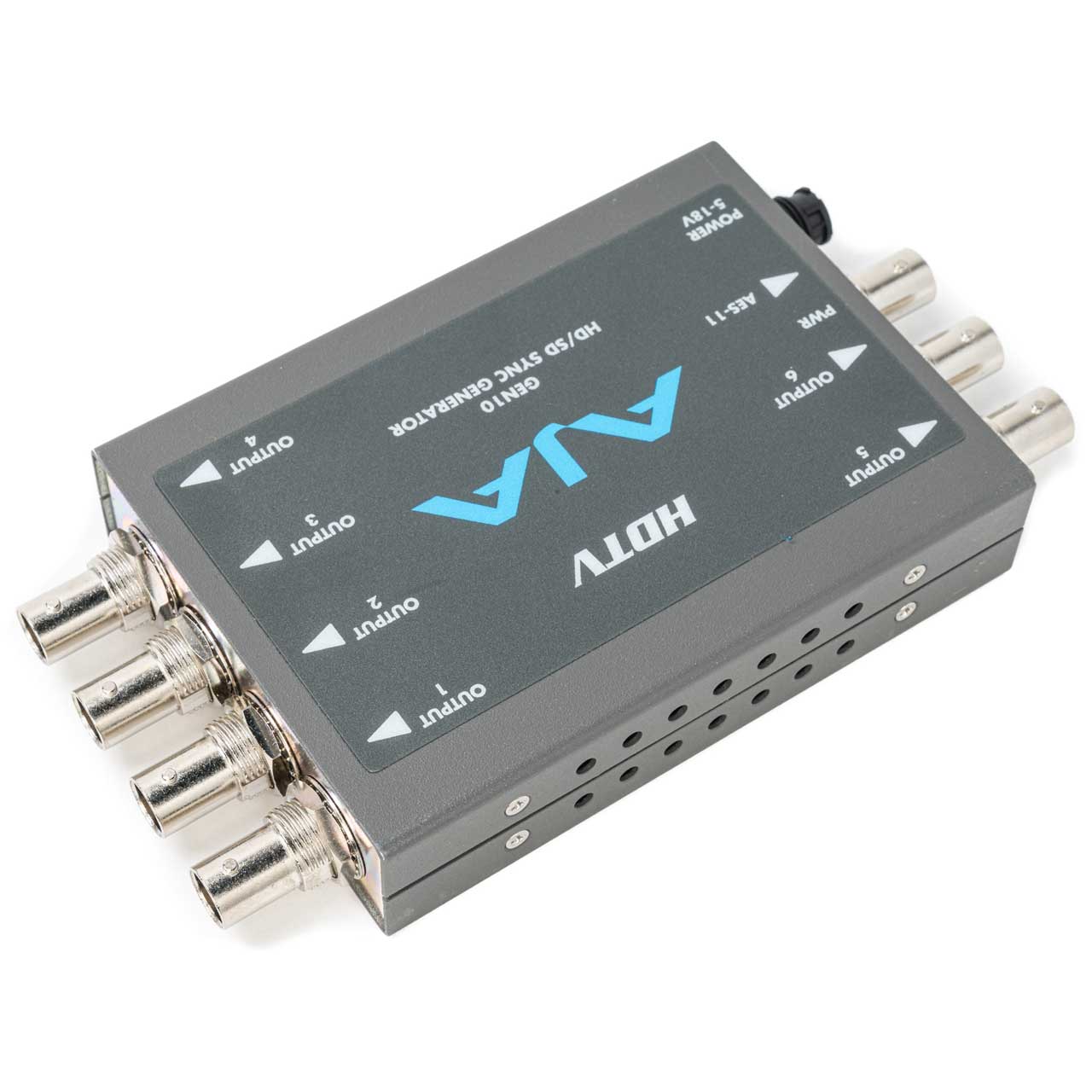

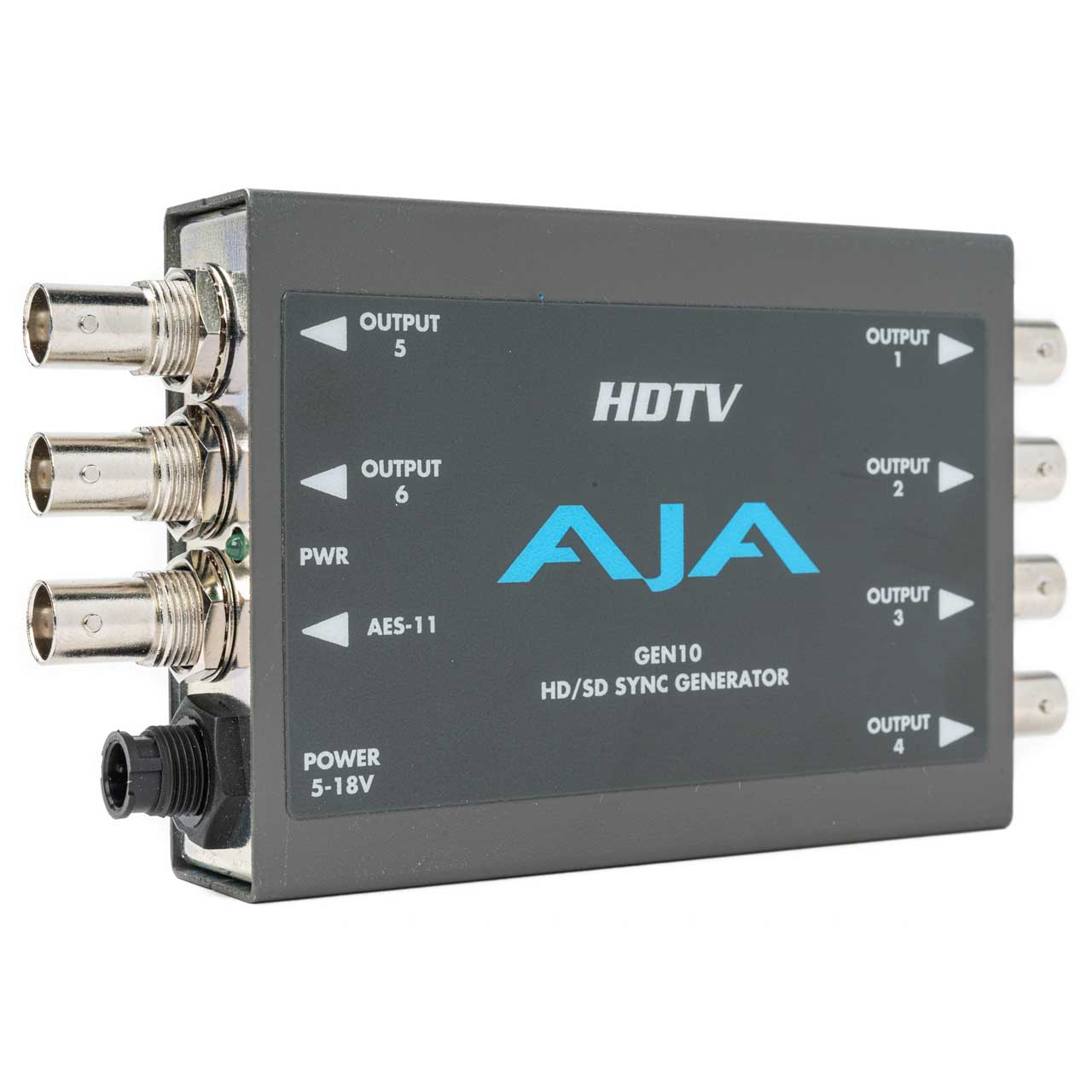

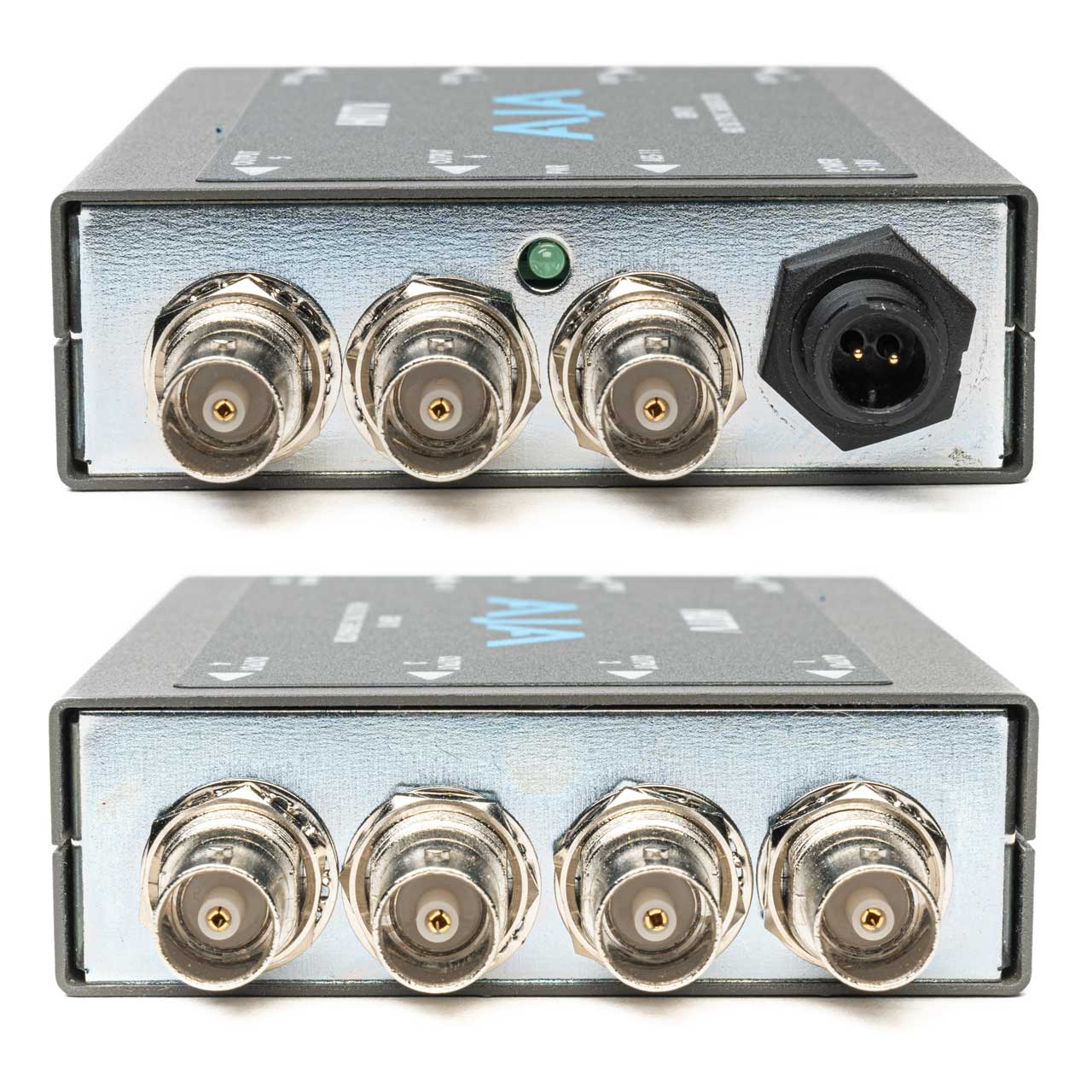

The AJA GEN10 is a cost effective and flexible SD/HD/AES sync generator. The GEN10 features 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between SILENCE and TONE. All outputs are in sync with each-other and are sourced from an accurate master time base.

Please Note The unit is used and is missing the inside packaging but is in working condition.

  • Features:

    • HD Tri-level sync generation
    • SD Color Black or Color Bars
    • Two groups of independently switchable outputs allows simultaneous HD and SD sync generation
    • AES-11 output switchable between silence and tone
    • Multiple outputs can synchronize entire systems without requiring a Sync DA
    • 5-18VDC Power
    • External Dip Switch Configuration

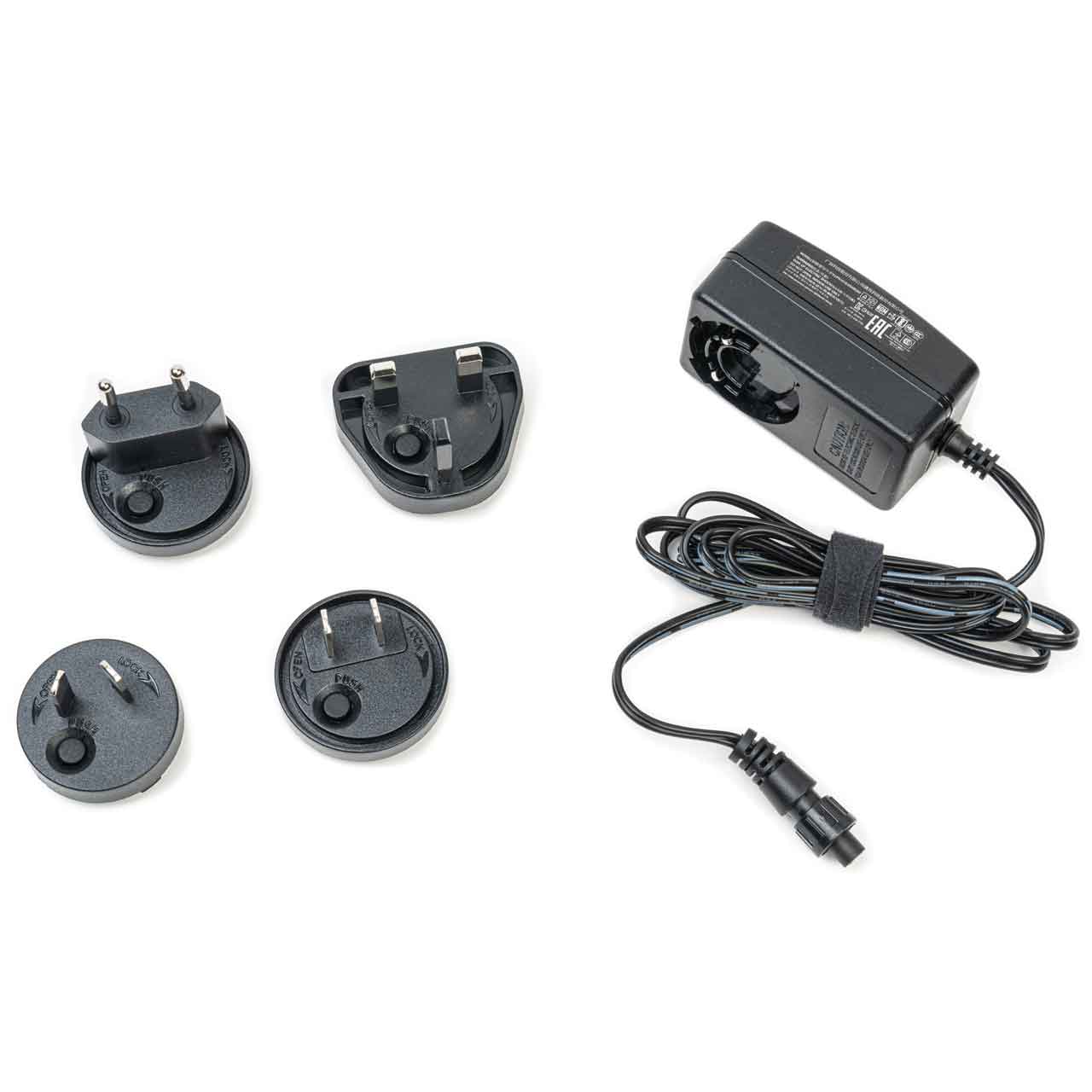

    • Power Supply Included.
      Please Note The unit is used and is missing the inside packaging but is in working condition.


  • Specifications:

    • HD Sync: Trilevel
    • SD Sync: Color Black, 75% Color Bars
    • AES: AES-11, 48KHz, Silent or 1KHz Tone (-20db FSD)
    • Accuracy: 3 ppm
    • User Controls: (External Dipswitch)
    • Power: +5-18VDC, 2 watts, Power Supply Required (included with purchase)
    • Dimensions: 5.8 x 3.1 x 1" (147 x 79 x 25mm)
    • Formats
      525i, 625i
      720p23.98/24/25/29.97/30/50/59.94/60
      1080i50/59.94/60
      1080psF23.98/24/25/29.97/30
      1080p23.98/24/25/29.97/30


  • GTIN:

    0089244800041
