AJA HA5 HDMI to SD/HD-SDI Video and Audio Converter

ITEM #: AJA-HA5 MFG #: HA5

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-HA5

HA5 - Overview

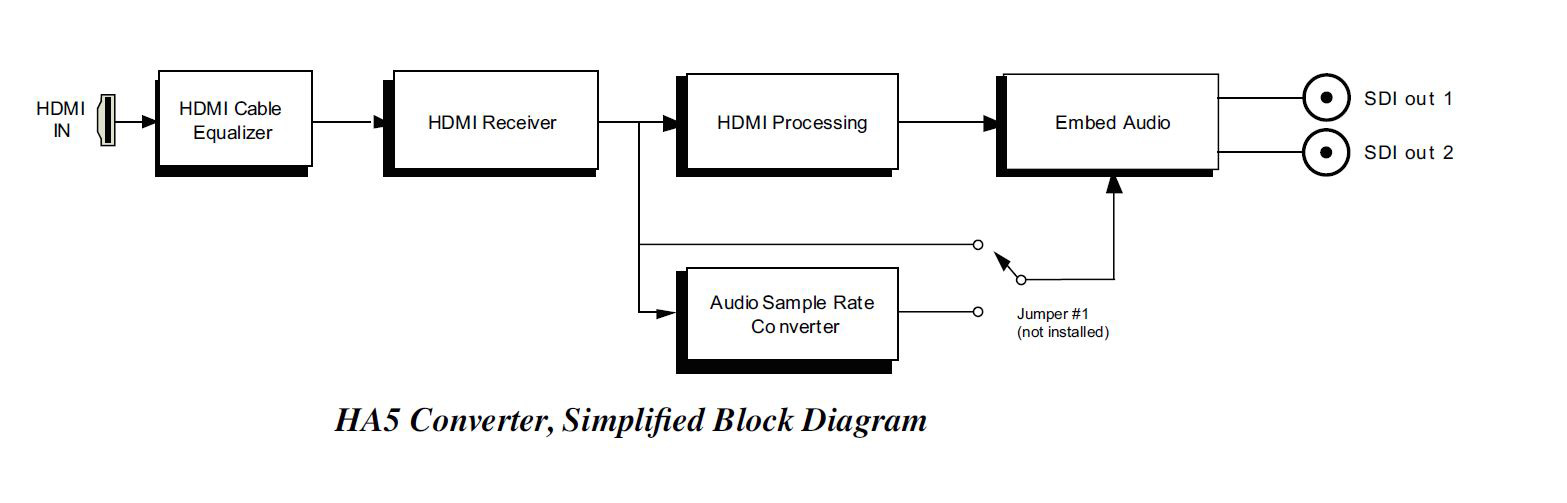

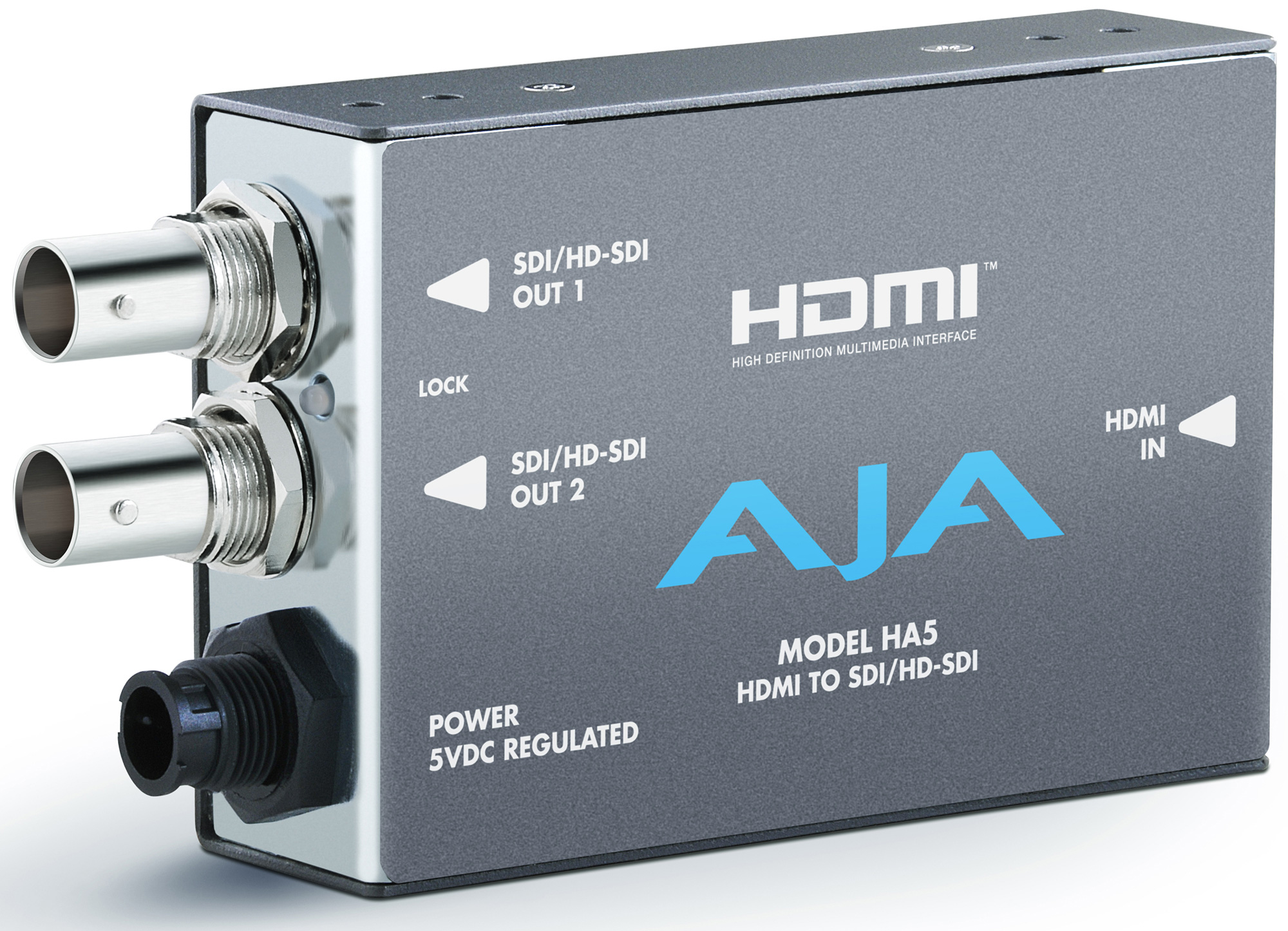

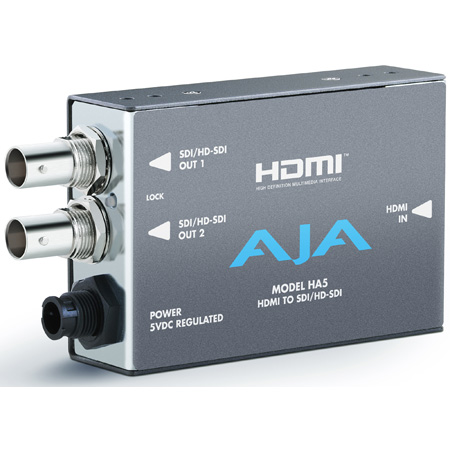

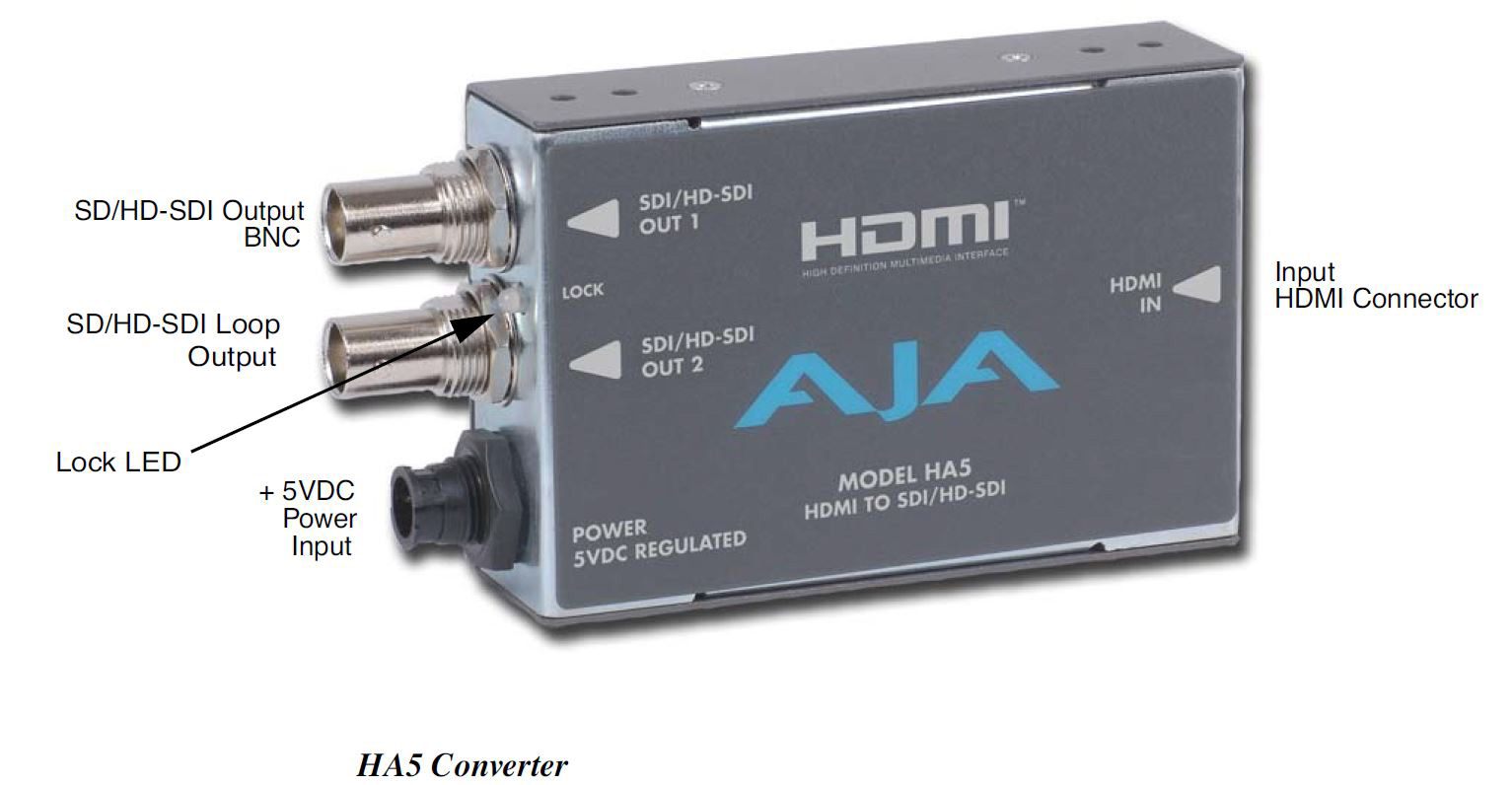

The AJA HA5 converts HDMI to SDI or HD-SDI. Up to eight channels of HDMI audio are embedded into the SD/HD-SDI output allowing a convenient single cable audio/video connection. The HA5 provides two SD/HD-SDI outputs and supports long HDMI cables on the input. The HA5 is useful for connecting HDMI cameras to SD/HD-SDI equipment.

AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world. AJA Mini-Converters are compact and portable, small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig and feature a locking power connector that can't accidentally pull loose!

Power Supply Included.

  • Features:

    • Full HDMI support including embedded audio
    • Equalized HDMI input supports long HDMI cables up to 40m
    • PLL clock filtering for low jitter SD/HD-SDI outputs
    • Lock LED shows type of input source, SD (green) or HD (red)
    • HDMI cable and Power Supply included
    • Five year warranty


  • Specifications:

    • Video Formats
    • (HD) 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i, 525i

      Input
    • HDMI with embedded audio

      Outputs
    • SMPTE-259/292/296 SDI/HD-SDI, 2 x BNC

      Dimensions (WxDxH)
    • 4.6 x 2.4 x 1" (117 x 61 x 25mm)

      Power
    • +5VDC Regulated, 4 watts, power supply required (included with purchase)

      Environment
    • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
    • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
    • Operating Relative Humidity: 10 to 90% non-condensing
    • Operating Altitude: <3,000 meters (<10,000 feet)


  • Warranty:

    • Five year warranty


  • GTIN:

    0892448000403
