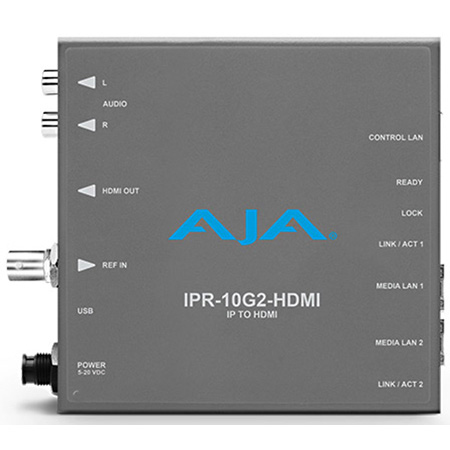

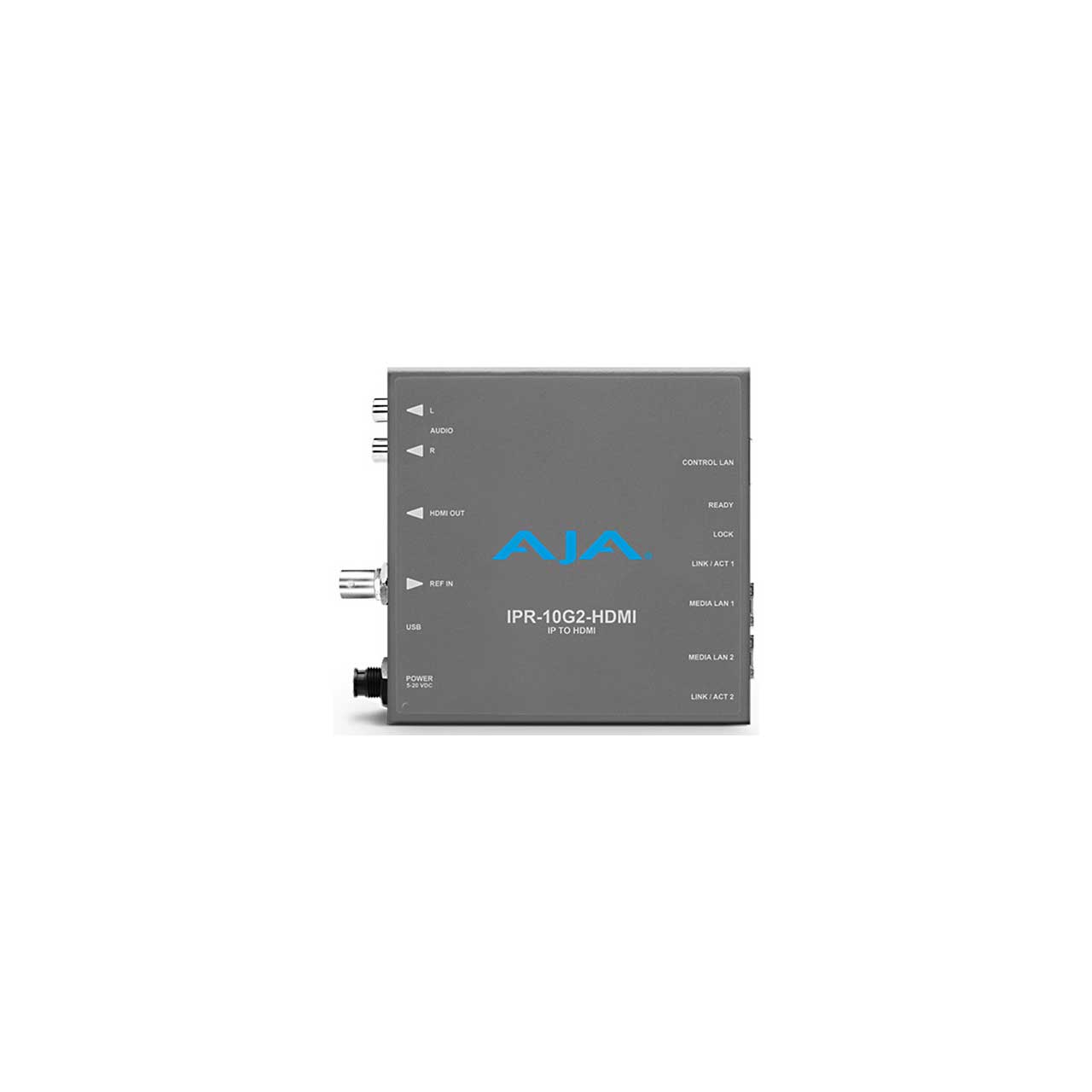

AJA IPR-10G2-HDMI UltraHD/HD SMPTE ST 2110 Video and Audio to HDMI Converter

IPR-10G2-HDMI - Overview

• Features:

  • SMPTE 2110 audio, video receiver
  • Rugged, quiet, fanless design

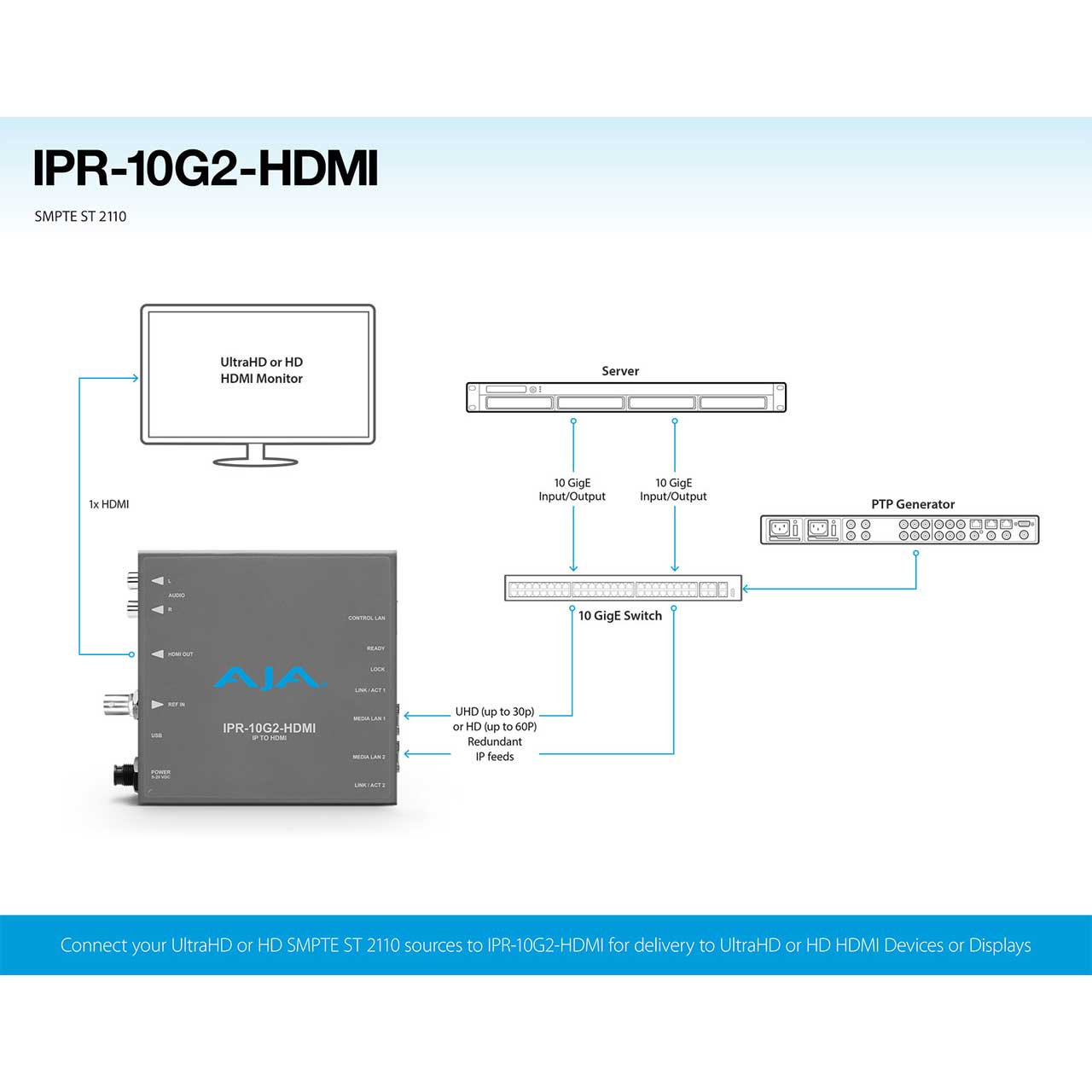

  • 2x 10 GigE SFP+ cages for media LAN (providing support for "hitless switching" up to 1080 60p) with status light
  • 1x 1 GigE RJ-45 socket for control LAN with status light
  • Dedicated HDMI receiver with full size (standard type A) HDMI 1.4b (24/30-bits per pixel) output up to HD 60p, 4:2:2, 10-bit, YCbCr/RGB, or UltraHD 30p, 4:2:2, 8-bit, YCbCr, or UltraHD 50p, 4:2:0, 8-bit, YCbCr
  • Embedded HDMI audio output (up to eight channels)
  • 2x RCA analog audio output (simultaneous with HDMI audio)
  • Reference In connector to enable locking sync of baseband output for local environment
  • System Modes to enable quick setup for lowest latency / highest protection, etc.
  • Web browser accessible setup and control interface, via built-in webserver
  • 1x mini-USB port providing an alternate method of initial network configuration with AJA eMini-Setup software
  • NMOS and Ember+ support
  • USB keyboard control for quick and easy preset recalls
  • Customizable control with AJA REST API


• Specifications:

  • Video Formats
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94

    Video Quality
  • Up to 1080 60p, 4:2:2, 10-bit, YCbCr/RGB uncompressed
  • Up to UltraHD 30p, 4:2:2, 8-bit, YCbCr uncompressed
  • Up to UltraHD 50p, 4:2:0, 8-bit, YCbCr uncompressed

    Discovery, Registration and Control
  • NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1
  • Ember+ control (no discovery, control only)
  • AJA REST API control (discovery via SSDP or MDNS)
  • LLDP (Link Layer Discovery Protocol)
  • Supported over dedicated management Ethernet port and in-band over media ports

    Media Transport Interfaces
  • SMPTE ST 2110 (-10, -20, -21, -30)
  • 2x SFP+ Cages - SFPs not included
  • Recommended 10 GigE SFP+ modules:
  • Arista Networks SFP-10G-SR Compatible 10GBASE-SR
  • Fiberstore SFP-10GSR-85 10G SFP+ 850nm
  • Finisar FTLX1471D3BCL (for single mode 1310nm)
  • Mellanox MFM1T02A-SR 850nm 10G
  • Note: Maximum supported SFP+ power is 500 mW per SFP+ cage

    Video Input IP
  • SMPTE ST 2110
  • Single channel video input up to UltraHD
  • SMPTE ST 2022-7 dual stream input for hitless switching*
  • Rx support for Narrow/Wide, Gapped/Linear Modes
  • *Hitless switching via ST 2022-7 is supported up to 1080p 60 (UltraHD is not supported)

    Audio Input IP
  • SMPTE ST 2110
  • Up to 16-channels* audio, 24-bit per channel, 48 kHz synchronous
  • 1 ms or 125 æs packet interval
  • *Streams with up to 16-channels are received but only the first 8 are output


  • Video Output Digital
  • 1x HDMI Standard Type A connector
  • HDMI v1.4b 24/30-bits per pixel
  • Frame syncing to facility clock*
  • Concealment of errors due to packet loss*
  • *Frame syncing and error concealment functionality supported up to 1080p 60 (UltraHD is not supported)

    Audio Output Digital
  • Up to 8-channel, HDMI embedded audio, 24-bit per channel, 48 kHz synchronous

    Audio Output Analog
  • 2x RCA analog audio
  • Levels at -10 dBu (nominal)

    Reference
  • 1x BNC
  • Analog/tri-level reference input
  • Allows baseband output of IPR-10G2-HDMI to be locked to the facility baseband clock
  • *Reference functionality support is up to 1080p 60 (UltraHD is not supported)


• Warranty:

  • 5 Year


• GTIN:

  0812321031744
