AJA UDC Up/Down/Cross Converter SD/HD/3G

Name: AJA UDC Up/Down/Cross Converter SD/HD/3G
Brand: AJA Video
SKU: AJA-UDC
Price: 879.00 USD
Availability: InStock

ITEM #: AJA-UDC MFG #: UDC

AJA Video

Our Price:

$879.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

UDC - Overview

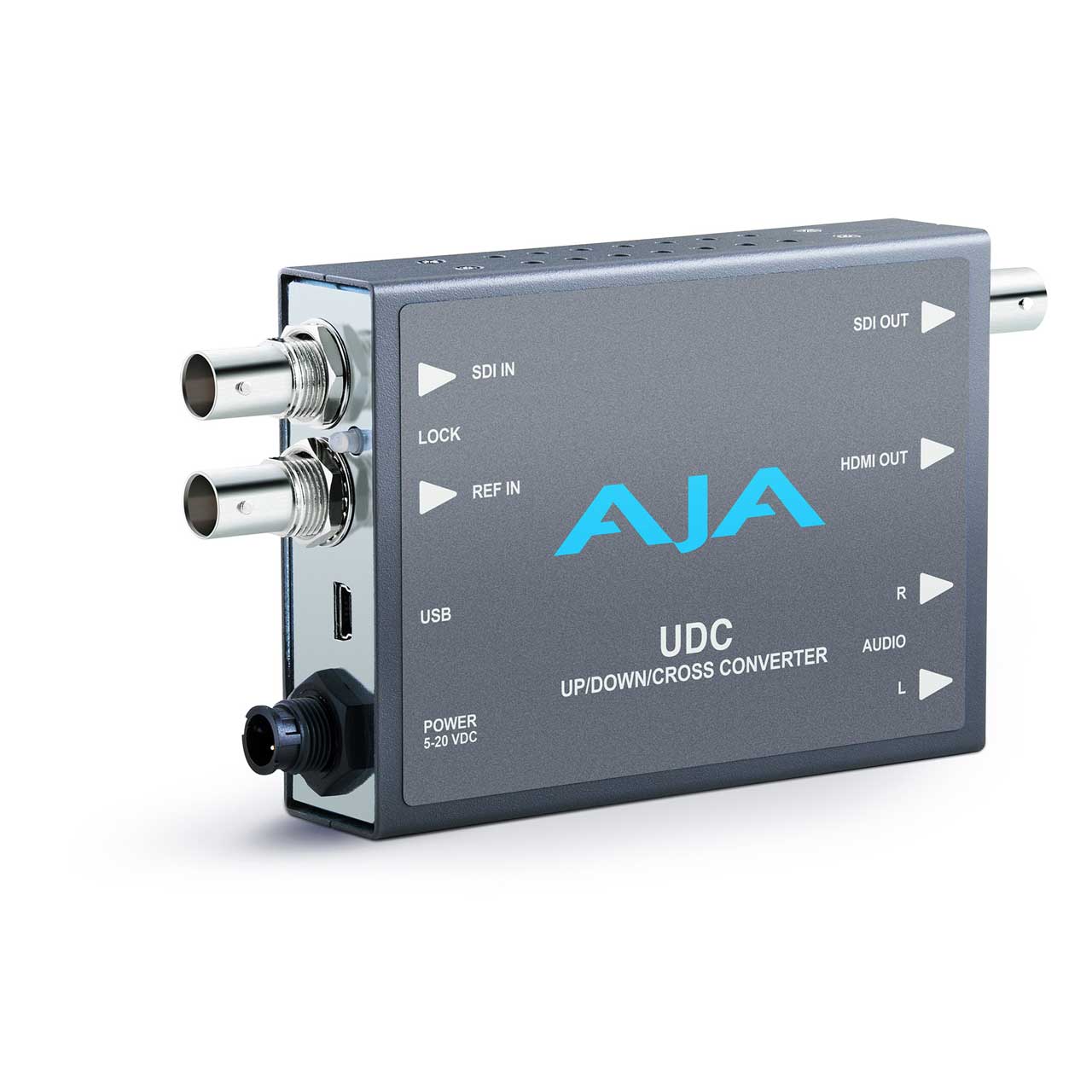

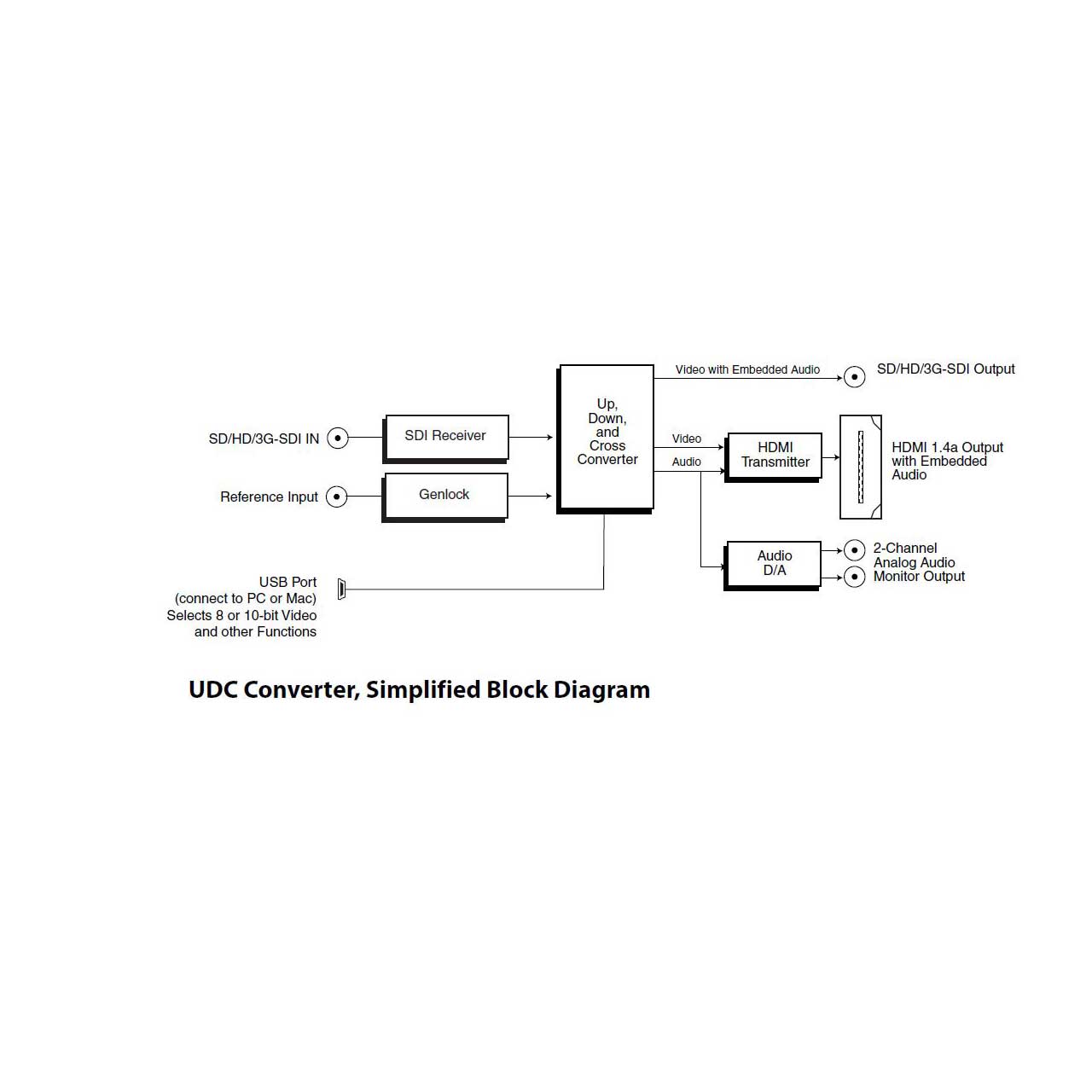

The AJA UDC is a broadcast quality Up/Down/Cross Mini-Converter which can convert between SD, HD, and 3G* video formats. Using the same AJA industry leading conversion technology as the FS2, the UDC provides high quality conversions at a low price. I/Os include SD/HD/3G SDI* Input and Output, an HDMI output, and a 2-channel RCA style audio output. The UDC can be controlled by local dipswitches with additional control available via USB and AJA's MiniConfig application. A Reference Input allows the UDC to be locked to a local reference.

*Please Note: UDC supports 3G-SDI Level A only. 3G-SDI Level B is not supported. UDC passes-through embedded audio ancillary data only. It does not pass through other types of embedded ancillary data.

Features:
- Converts between SD, HD, and 3G HD formats
- Supports 1080p50/60
- Very high quality conversions
- 16-channel embedded SDI audio input
- 16-channel embedded SDI audio output
- 8-channel HDMI audio output
- 2 RCA-style analog outputs at -10dBV (nominal)
- Reference Input
- Configure via Dipswitch or USB port and supplied MiniConfig software
- Uses 5-20V power supply (included with purchase)
Specifications:
- Video Formats
- (HD) 1920 x 1080p
- (HD) 1920 x 1080PsF
- (HD) 1920 x 1080i
- (HD) 1280 x 720p
- (SD) 720 x 625i
- (SD) 720 x 576i
- (SD) 720 x 480i

  Video Input Digital
- 1x 3G-SDI BNC, SMPTE-259/292/372/424
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 720x576i 50, 59.94, 60

  Video Output Digital
- 1x 3G-SDI BNC, SMPTE-259/292/372/424
- (HD) 1080p 23.98 (for 23.98 video inputs)
- (HD) 1080p 24 (for 24 video inputs)
- (HD) 1080p 25 (for 50 video inputs)
- (HD) 1080p 29.97 (for 59.94 video inputs)
- (HD) 1080p 30 (for 60 video inputs)
- (HD) 1080p 50 (for 50 video inputs)
- (HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 1080p 60 (for 24, 30 or 60 video inputs)
- (HD) 1080PsF 23.98 (for 23.98 video inputs)
- (HD) 1080PsF 24 (for 24 video inputs)
- (HD) 1080PsF 25 (for 50 video inputs)
- (HD) 1080PsF 29.97 (for 59.94 video inputs)
- (HD) 1080PsF 30 (for 30 or 60 video inputs)
- (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
- (HD) 1080i 60 (for 24, 30, or 60 video inputs)
- (HD) 1080i 50 (for 25 or 50 video inputs)
- (HD) 720p 50 (for 50 video inputs)
- (HD) 720p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 720p 60 (for 24, 30, or 60 video inputs)
- (SD) 625i 50 (for 25 or 50 fps video inputs)
- (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)

  Reference Source
- Free Run
- Ext Ref

  Reference Input
- Supported reference video inputs include
- 1080i tri-level sync
- 1080p tri-level sync
- 720p tri-level sync
- 625i Color Black
- 525i Color Black
- 75-ohm terminating

  HDMI Output
- 10-bit HDMI v1.4a

  Audio I/O
- 16-channel embedded SDI audio input
- 16-channel embedded SDI audio output
- 8-channel HDMI audio output
- 2x RCA style analog outputs at -10 dBu (nominal)

  Ancillary Data
- Supports pass-through of PCM embedded audio
- Supports pass-through of non-PCM audio when source is in time with the selected ref (SDI In or Ext Ref). Non-PCM audio is not supported during frame sync operation.
- All other ANC data is stripped

  HDCP
- The UDC does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the UDC are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.

  User Controls
- USB port used with supplied cable and Mini-Config software application to configure device via PC or Mac

  Dimensions (WxDxH)
- 5.8 x 3.1 x 1.0" (147.32 x 78.74 x 25.4 mm)

  Power
- +5VDC Regulated, 7 Watts, Power Supply Required (included with purchase)
Item Includes:
- AJA Up/Down/Cross Converter
- +5VDC Regulated, 3 Watts Power Supply
- 5-Year Warranty
- USB Cable
Warranty:
- Five year warranty
GTIN:
0892448000281
