ADJ Stage PAK 1 Stage Lighting System With DMX Control

ITEM #: AMDJ-STAGEPAK1 MFG #: STAGE PAK 1

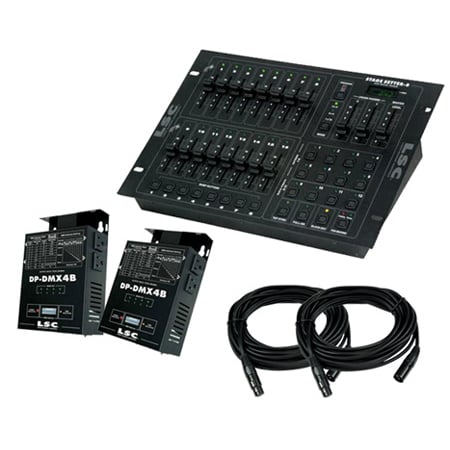

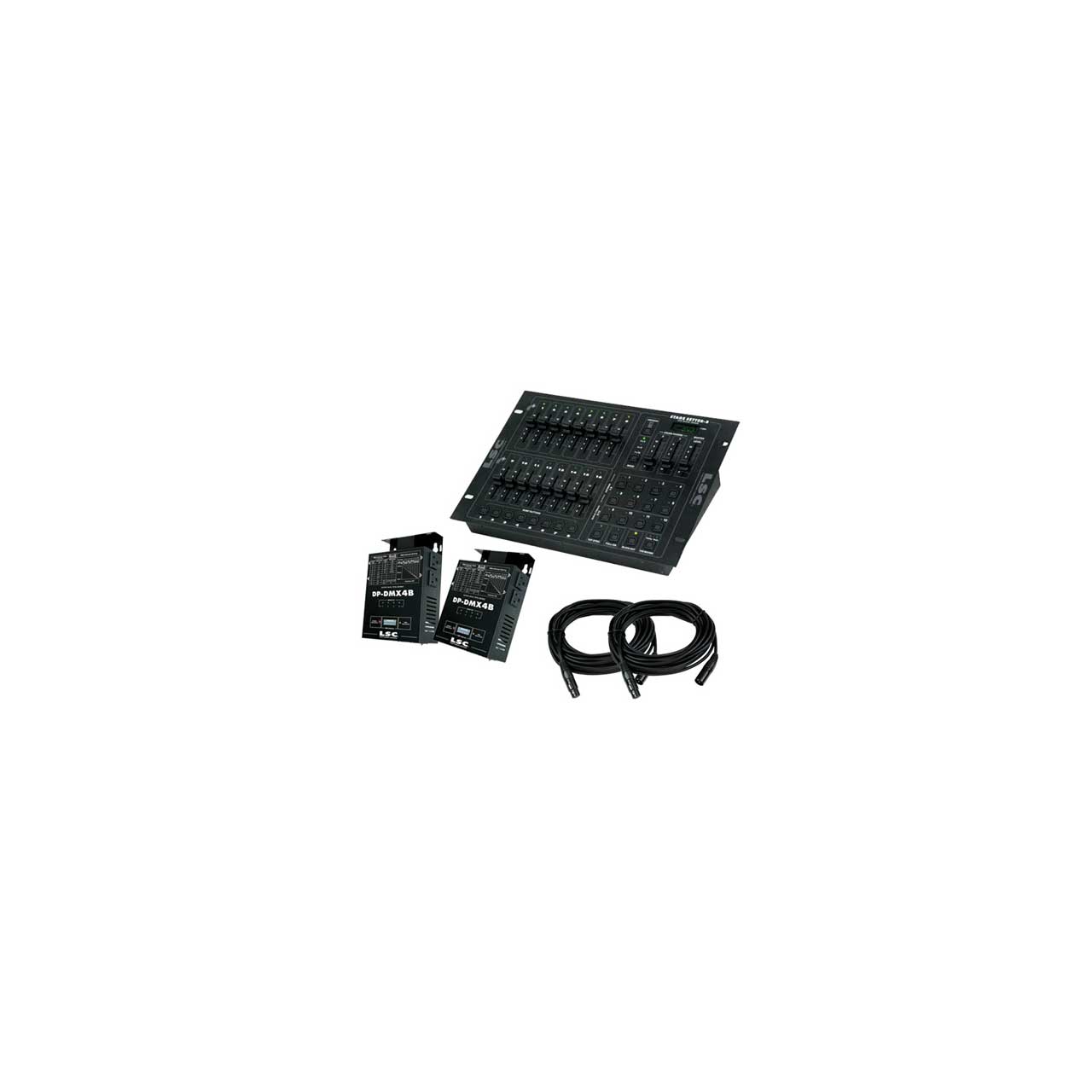

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$549.95

Our Price:

$399.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


STAGE PAK 1 - Overview

Complete your par can setup with by tying it all together with the Stage Pak 1 from ADJ. This package includes a quality constructed Stage Setter 8 DMX controller that offers you the ability to fully control the dimming and on/off of your par can setup via the two DP-415R dimmer switches/packs that are also included. The controller operates in 3 separate modes and offers a range of customization and built-in programs. The Dimmer Switches are 4-channel compact units offering the ability to plug in eight separate light fixtures each, for a total of 16 using both DP-415Rs. The Stage Setter 8 and two DP-415Rs are essential components to any par can lighting production. Functioning on standard DMX-512 protocol as well as MIDI compatible and including fog machine output control, the Stage Pak 1 can be tied into your entire production system with ease. These portable devices are perfect for any size stage production, permanent or mobile.

  • Features:

    • Stage Setter 8T is an Easy to use 16 Channel DMX Controller
    • Three different operating modes; 2 x 8 (two banks of 8 channels), 8 x 8 (eight channels), 1 x 16 (one bank - 16 channels)
    • 8 or 16 channel DMX operation
    • Four built-in programs
    • Eight user programmable programs
    • Fog machine output control (compatible with ADJ Vaporizer, Stallion, MB-700, and others)
    • XLR polarity switch
    • Standard DMX-512 protocol
    • MIDI compatible
      DP-DMX4B
    • Compact 4 Channel DMX Dimmer
    • 1x 3-prong Edison plug per channel
    • On/off power switch
    • XLR In/Out
    • 10 position dip switch setting
    • Hanging bracket to hang on truss
    • LED "ON" indicators
    • Max Power: 500W per channel
    • Dimensions: 7.75" L x 5" W x 2.5" D
    • Weight: 3 lbs.

  • Item Includes:

    • 1 x Stage Setter-8
    • 2 x XLR cables
    • 2 x DP-415

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0819730012227
