Amphenol 034-1118-12G Right Angle Crimp 12G HD-BNC Connector for Belden 4855R/1855A Cable - 75 Ohm

ITEM #: AMPH-034-111812G MFG #: 034-1118-12G

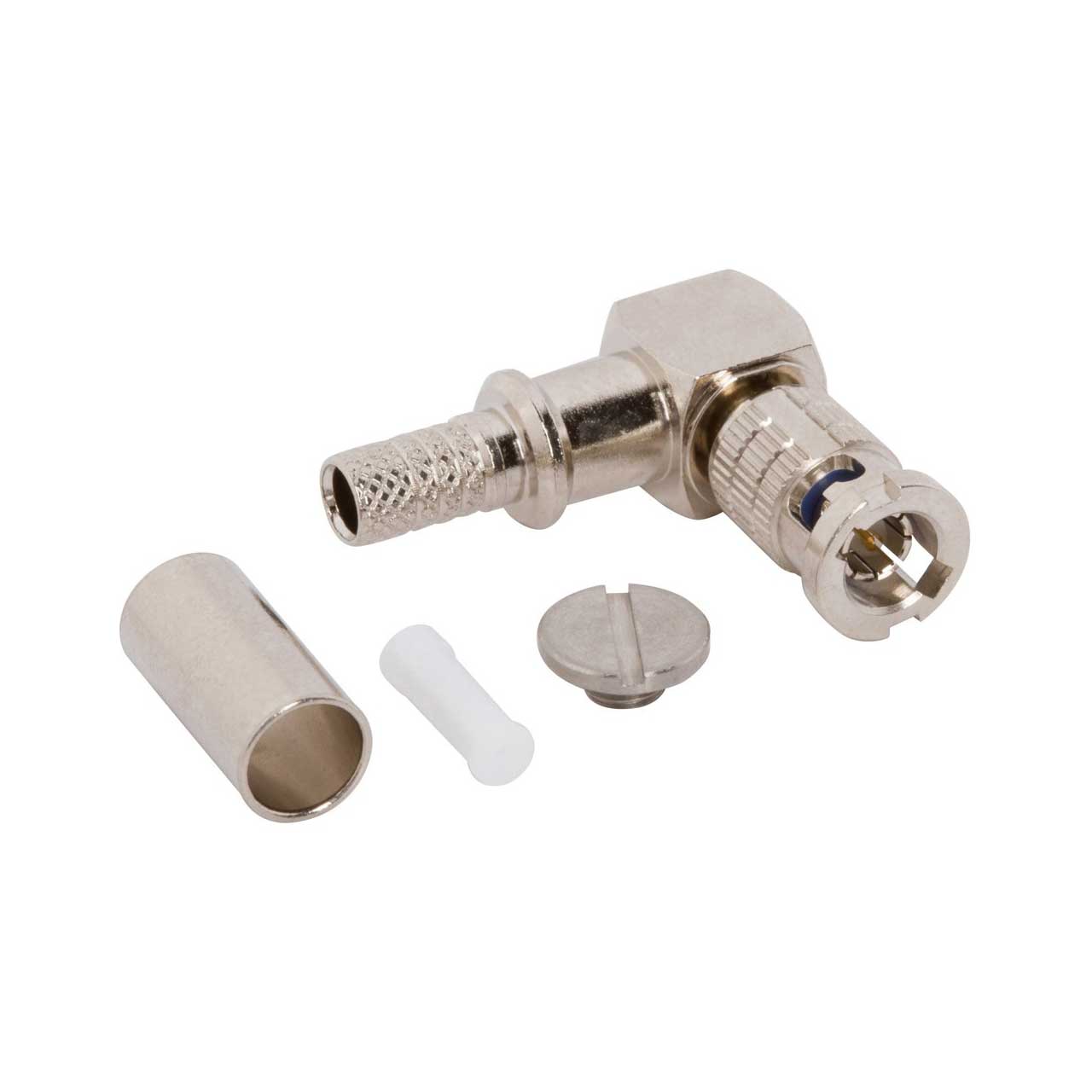

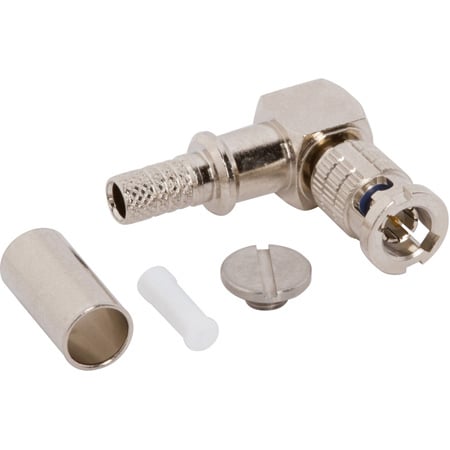

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$14.00

Our Price:

$13.30

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

034-1118-12G - Overview

The 034-1118-12G is a 12G Optimized, 75 Ohm RF Connector, HD-BNC Right-Angle Crimp Plug for the Belden 4855R and 1855A Cables,

  • Specifications:

    • Orientation: Right Angle
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: K3
    • Cable Type: Belden 1855A, Belden 4855P, Belden 4855R
    • Crimp Tool: 47-10110
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 18
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
