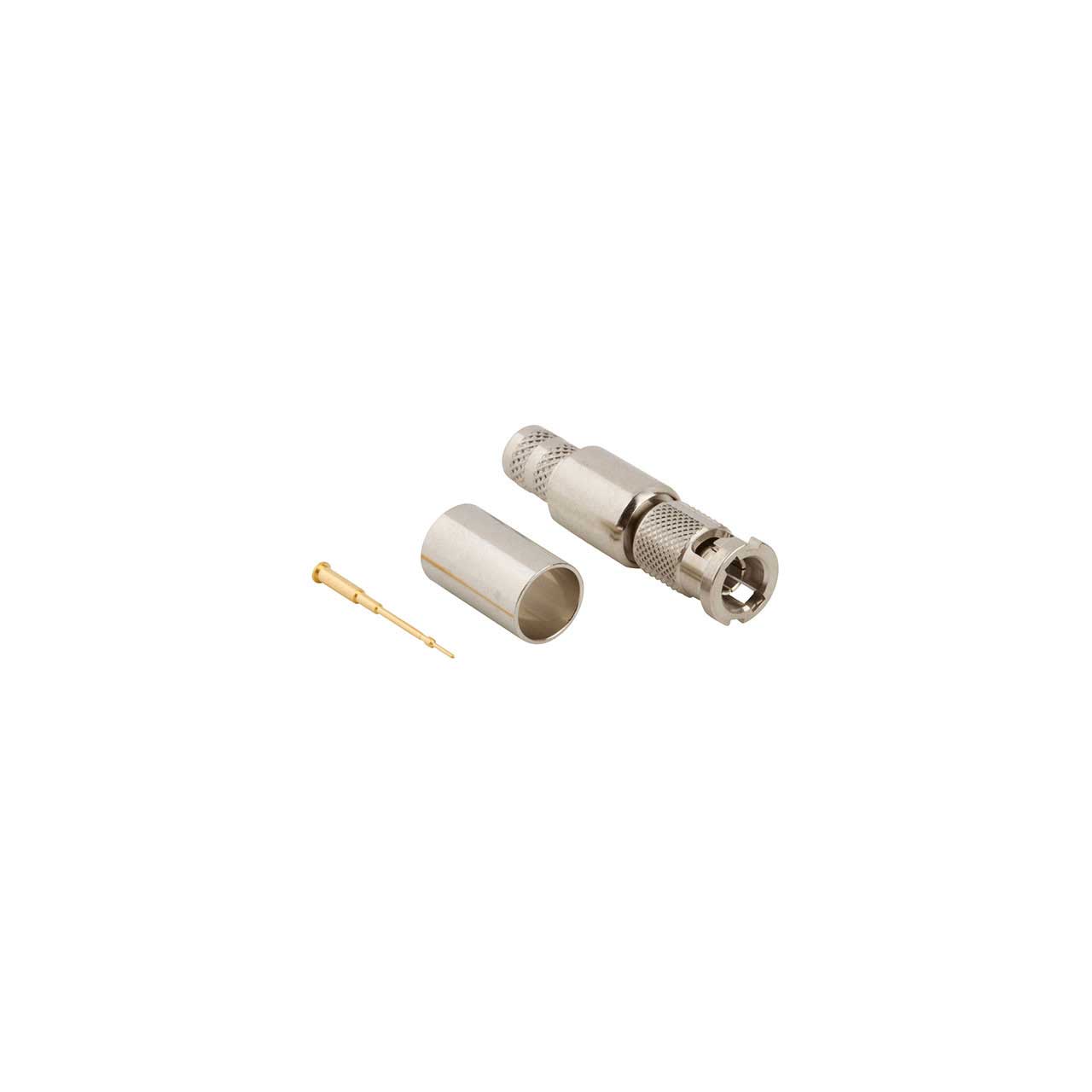

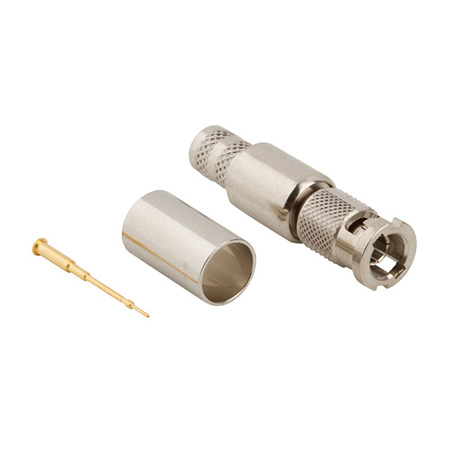

Amphenol 034-1025-12G Straight Crimp Plug 12G HD-BNC Connector for Belden 1505A Cable - 75 Ohm

ITEM #: AMPH-034102512G MFG #: 034-1025-12G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$14.00

Our Price:

$13.40

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

034-1025-12G - Overview

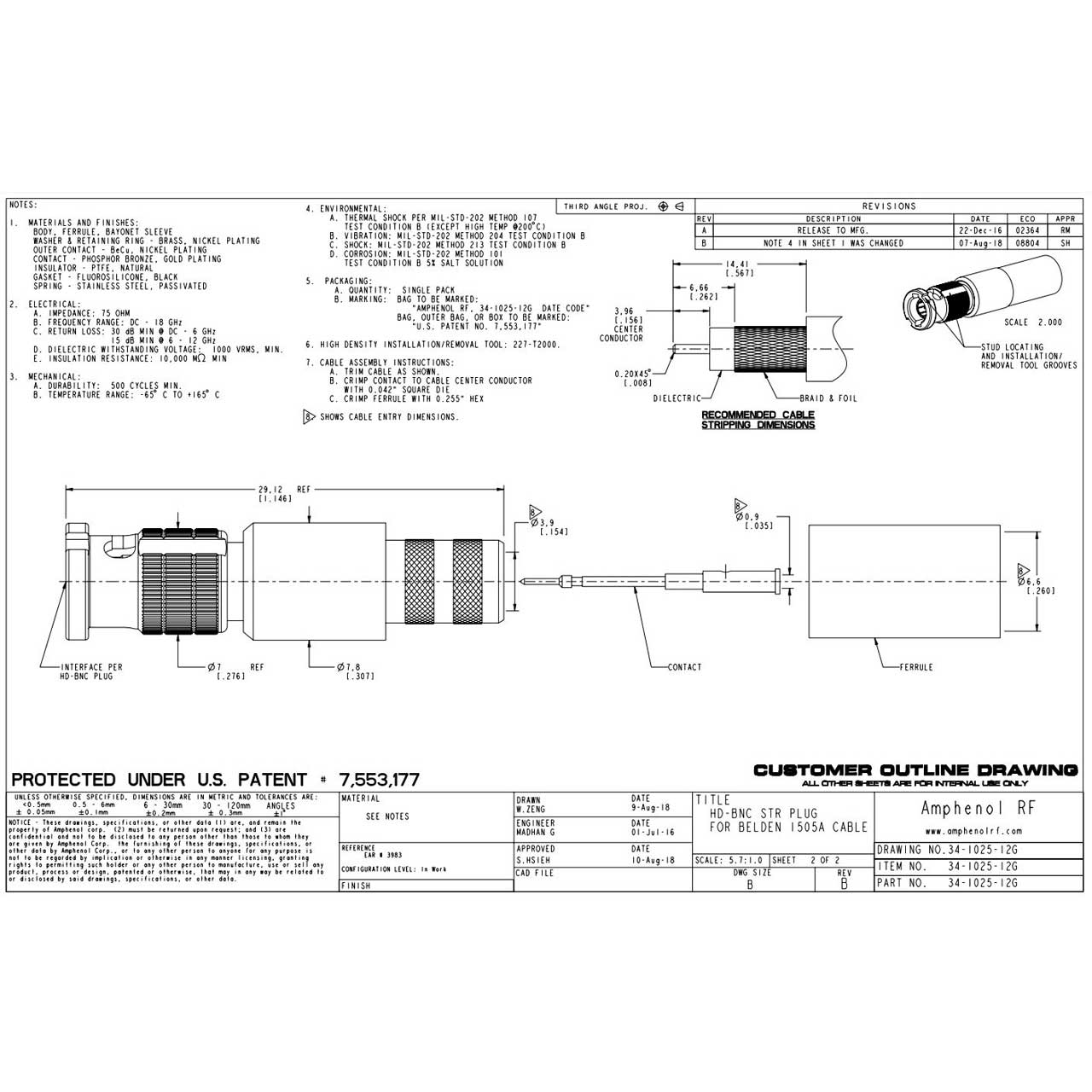

The 034-1025-12G is an RF Connector, HD-BNC Straight Crimp Plug for Belden 1505A Cable, 12G Optimized, 75 Ohm. Crimp contact t cable center conductor with 0.042" square die & crimp ferrule with 0.255" hex die. (See illustration for full dimensions)

  • Specifications:

    • Gender: Plug
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: I
    • Cable Type: AT&T 734, AT&T 734A, Belden 1505A
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 18
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Weight (Grams): 3.62
    • Package Type: BAG
