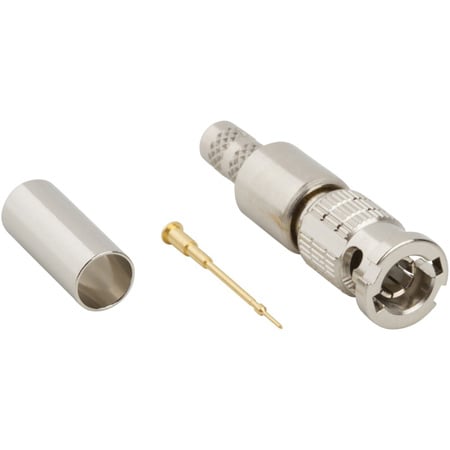

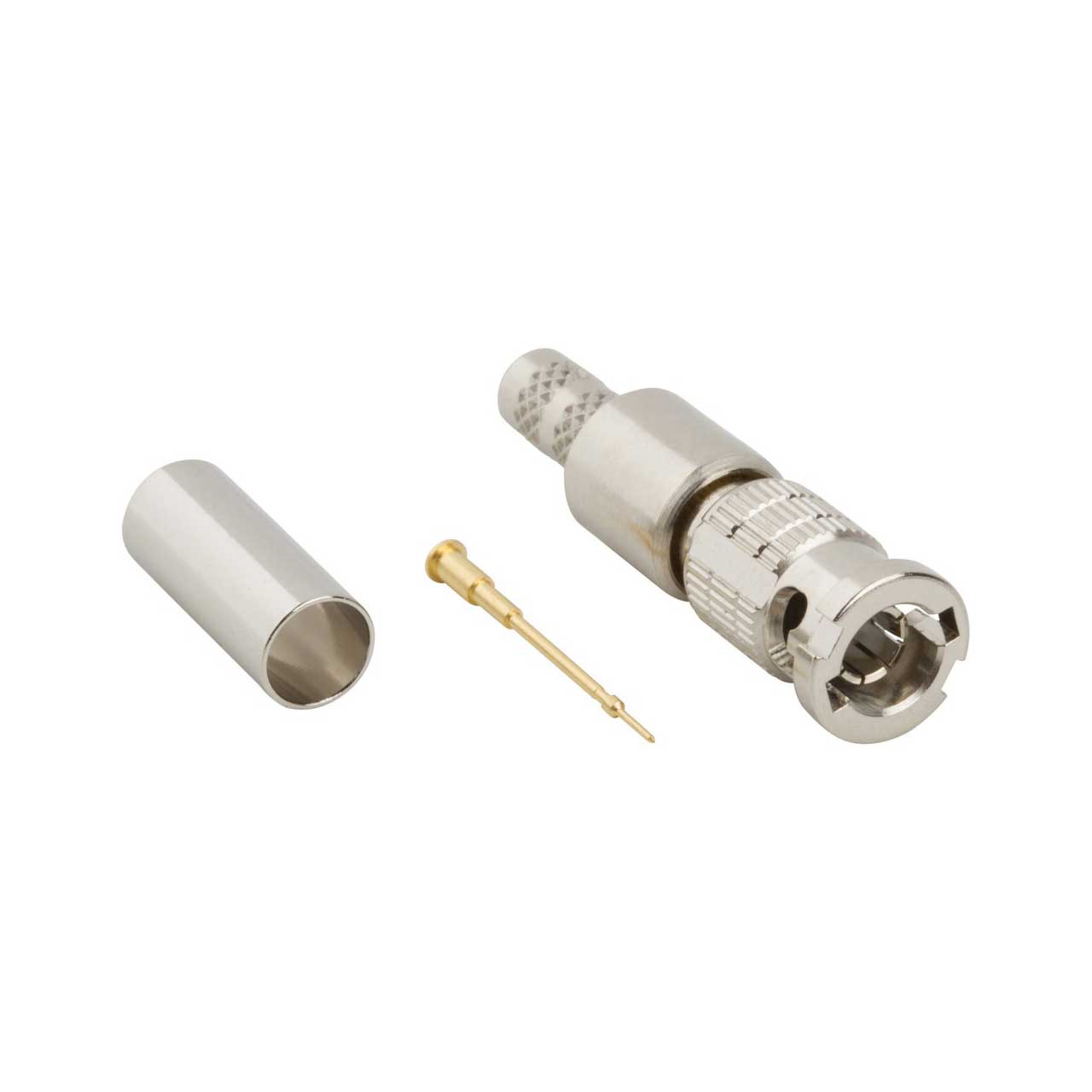

Amphenol 034-1026-12G Straight Crimp Plug 12G HD-BNC Connector for Belden 1855A Cable - 75 Ohm

ITEM #: AMPH-034102612G MFG #: 034-1026-12G

Primary Image
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$16.39

Our Price:

$12.86

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

034-1026-12G - Overview

RF Connector, HD-BNC Straight Crimp Plug for Belden 1855A and 1865A Cable, 12G Optimized, 75 Ohm

  • Specifications:

    • Cable Type: Belden 1855A, Belden 1865A, RG-122, RG-180, RG-180A, RG-180B, RG-195
    • Crimp Contact Die: 0.042" Square
    • Crimp Ferrule Die: 0.187" Hex
    • Gender: Plug
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: K3
    • Coupling Mechanism :Bayonet
    • Max Frequency (GHz): 18
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Weight (Grams): 4.04
    • Package Type: BAG
