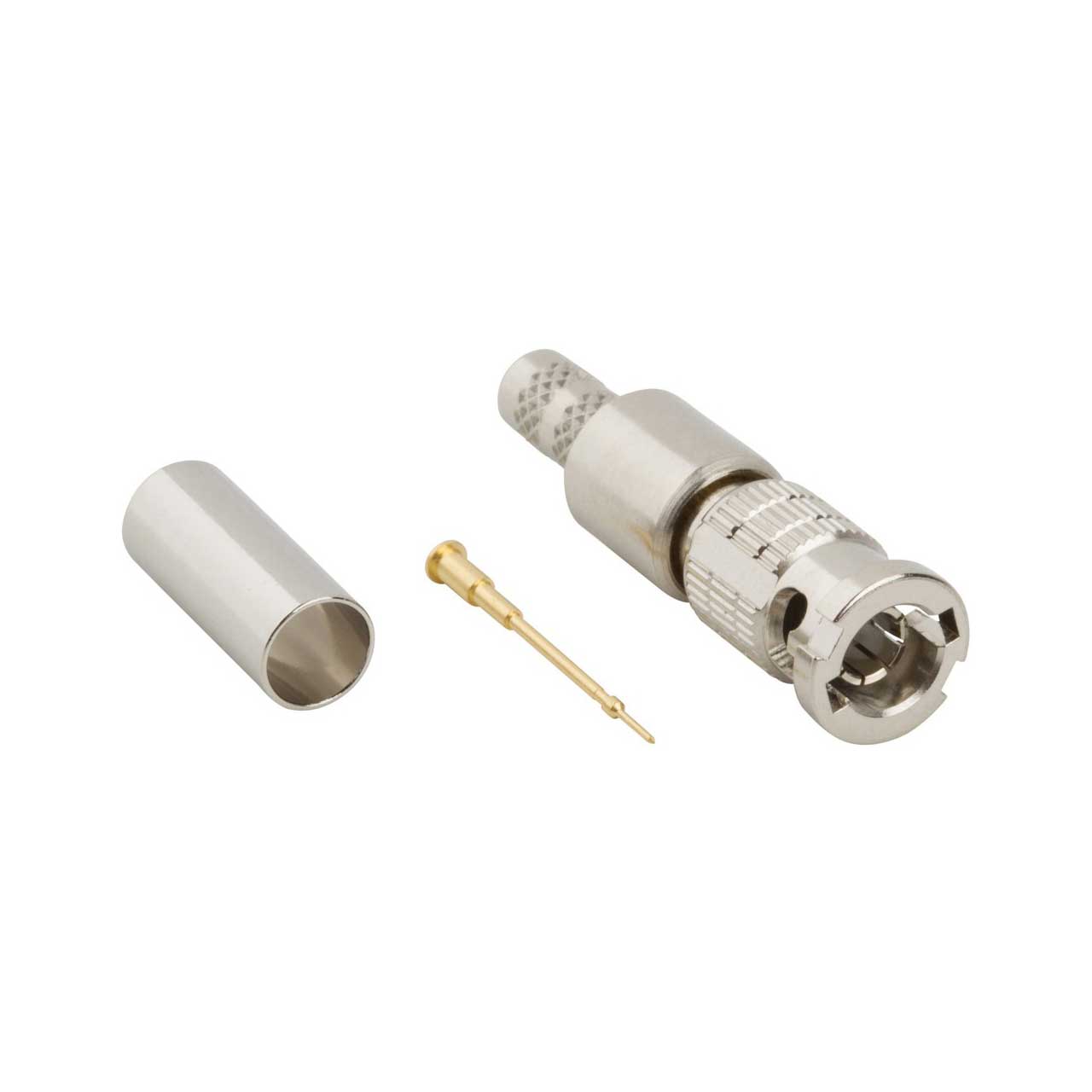

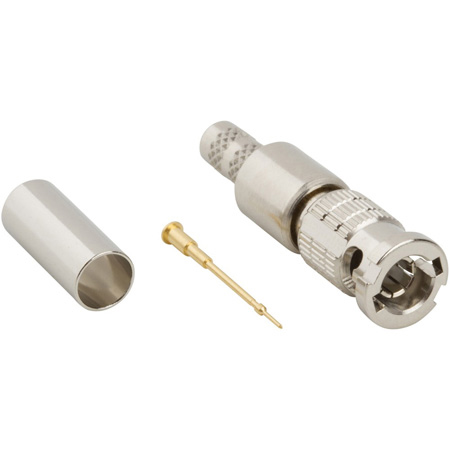

Amphenol 034-1107-12G Straight Crimp Plug 12G HD-BNC Connector for Belden 4855R or 1855A Cable - 75 Ohm

ITEM #: AMPH-034-110712G MFG #: 034-1107-12G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$15.00

Our Price:

$14.15

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

034-1107-12G - Overview

The Amphenol 034-1107-12G is an RF Connector, High Density HD-BNC Straight Crimp Plug for Belden 4855R and 1855A Cables, 12G Optimized, 75 Ohm. Compatible with Belden 1855A, Belden 4855P & Belden 4855R

  • Specifications:

    • Brand: Amphenol RF
    • Gender: Plug
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: K3
    • Cable Type: Belden 1855A, Belden 4855P, Belden 4855R
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 18
    • Polarity: Standard
    • Min. Temp. (Celsius) : -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
