Anchor Audio CM-6 CouncilMAN 6 person Conference System Package

CM-6 - Overview

• Features:

  • The AN-100CM+ powers up to ten microphones.
  • Reach crowds up to 100+.
  • Conference microphones daisy chain with standard XLR cables.
  • Cardioid microphones have excellent "pick-up".
  • Each microphone has adjustable volume control.
  • 16 channel UHF wireless mic option for audience Q&A.
  • Chairman microphone can mute all delegate microphones.
  • Immunity from mobile telephone interference.
  • 1/4 inch and XLR balanced line output for recording
  • Connection to house audio system or Assistive Listening System
  • 3.5mm Line In for music player device


• Specifications:

  • Microphone Specs
  • Transducer Type: Condenser
  • Polar Pattern: Cardioid
  • Phantom Power: 9 - 52V Phantom Power
  • Controls: CHM-100 Base - Push-to-Talk, Volume & Mute
  • DEL-100: Controls - Push-to-Talk and Volume
  • Dimensions: 5.8 x 6.5 x 1.75" (14.73 x 16.51 x 4.45cm)

    Speaker Specs
  • Rated Power Output: 30 Watts
  • Frequency Response: 65Hz to 18kHz +/-3dB
  • Max Input Sound Level (SPL): 106dB @ 1m
  • Connections: 1/8" (3.5mm), 1/4" Phone and XLR
  • Dimensions: 5.25 x 8.4 x 9" (13 x 21 x 23cm)
  • Weight: 8.5 lbs (3.8kg)

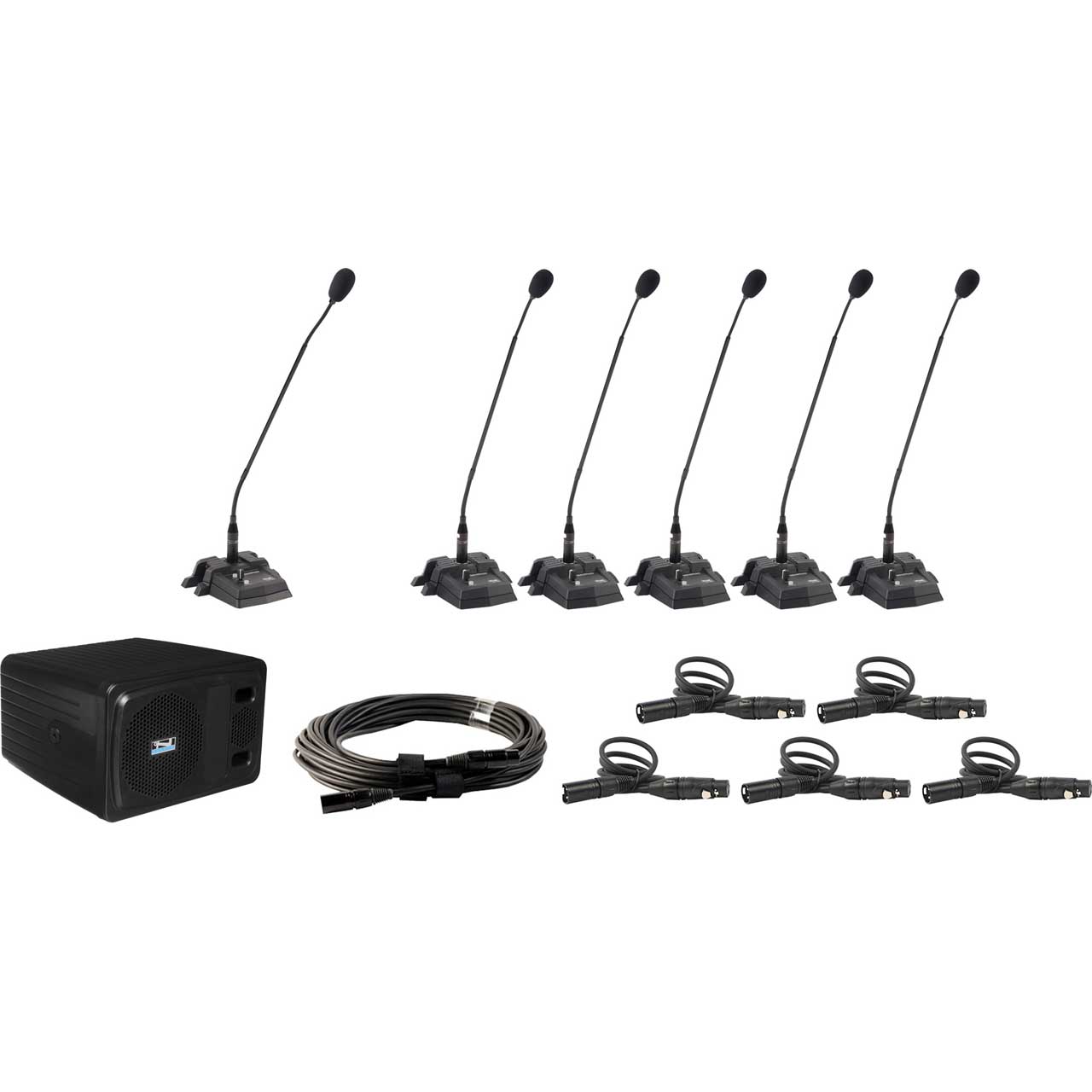

• Item Includes:

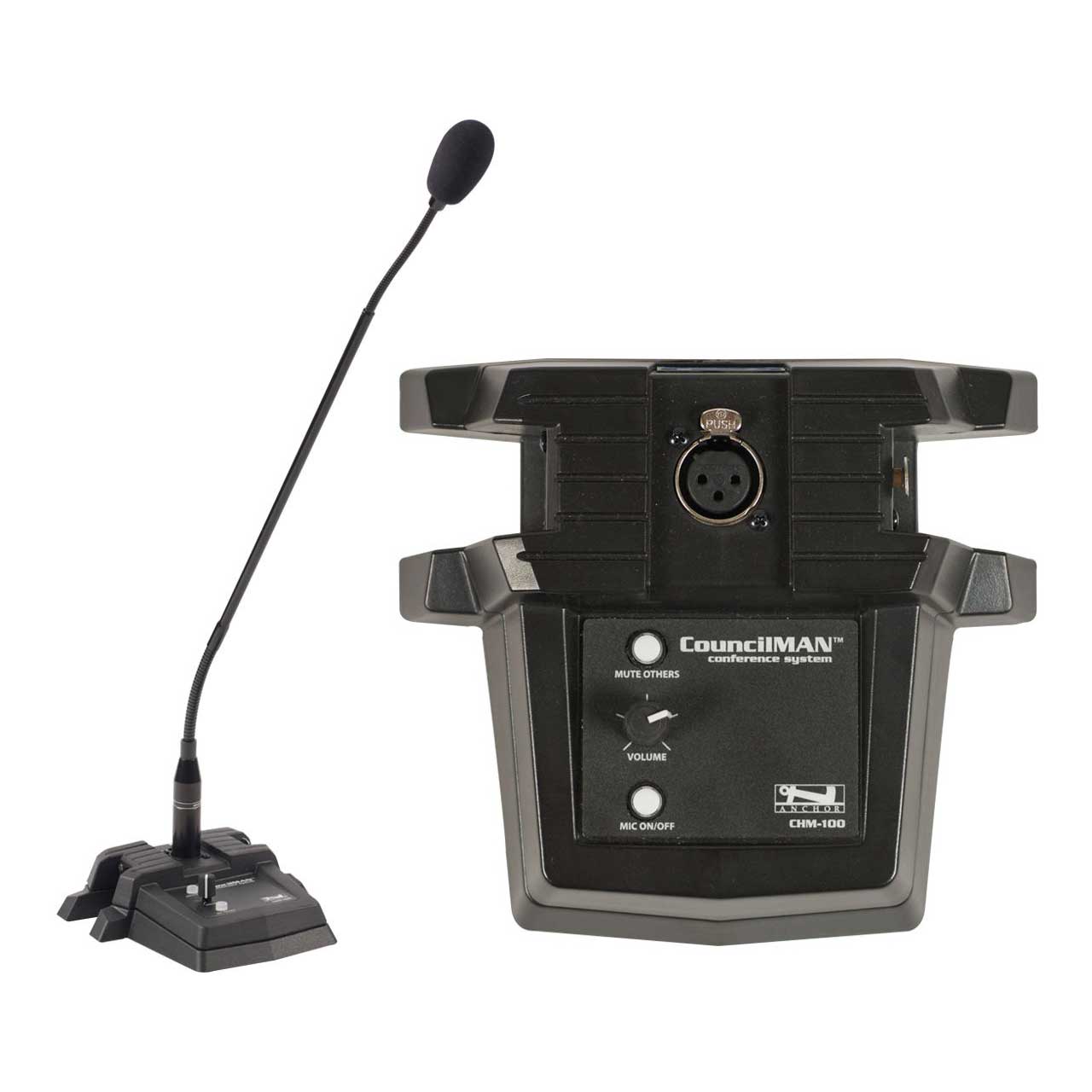

  • One CHM-100 (Chairman Mic)
  • Five DEL-100 (Delegate Mics)

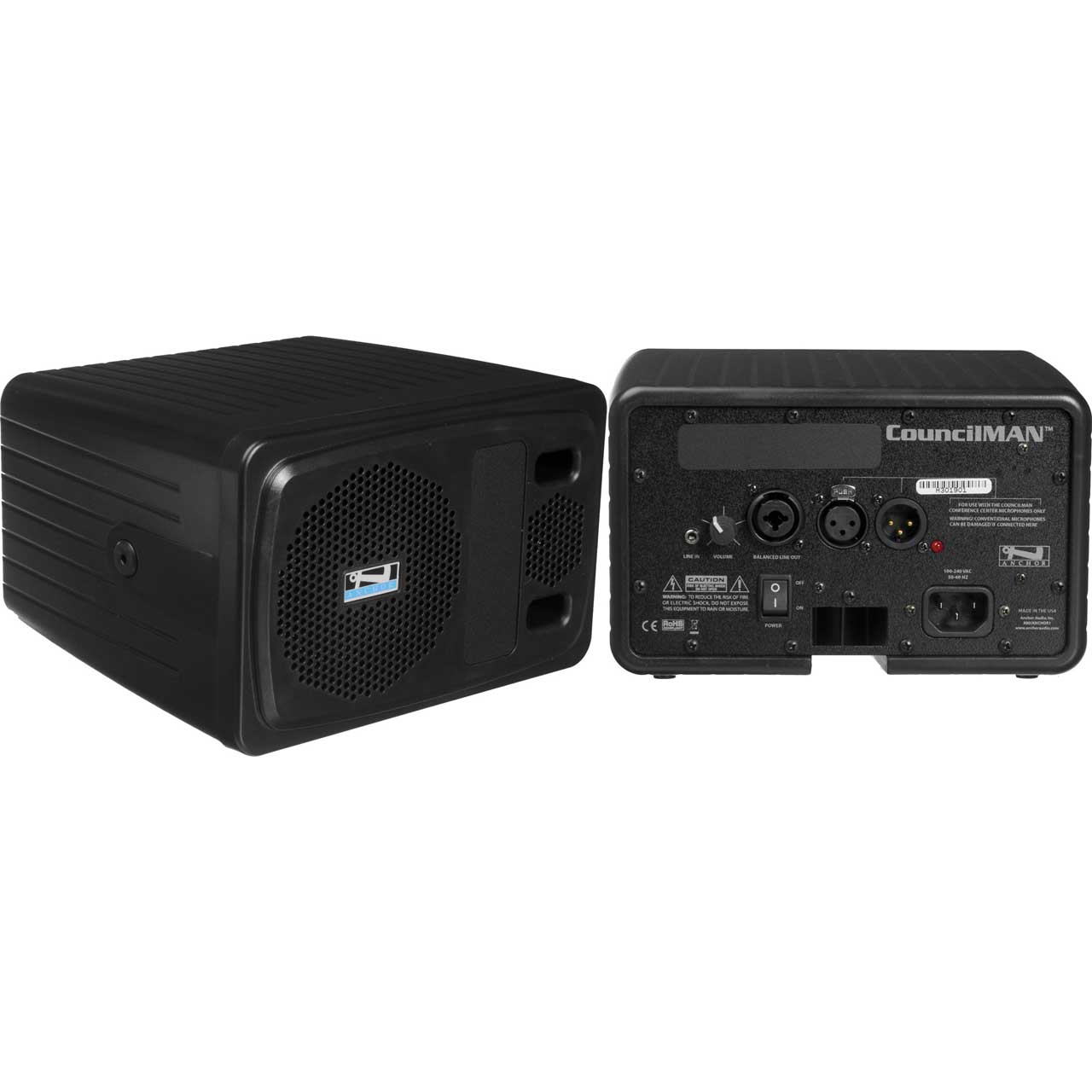

  • One AN-100CM (Speaker amplifier)

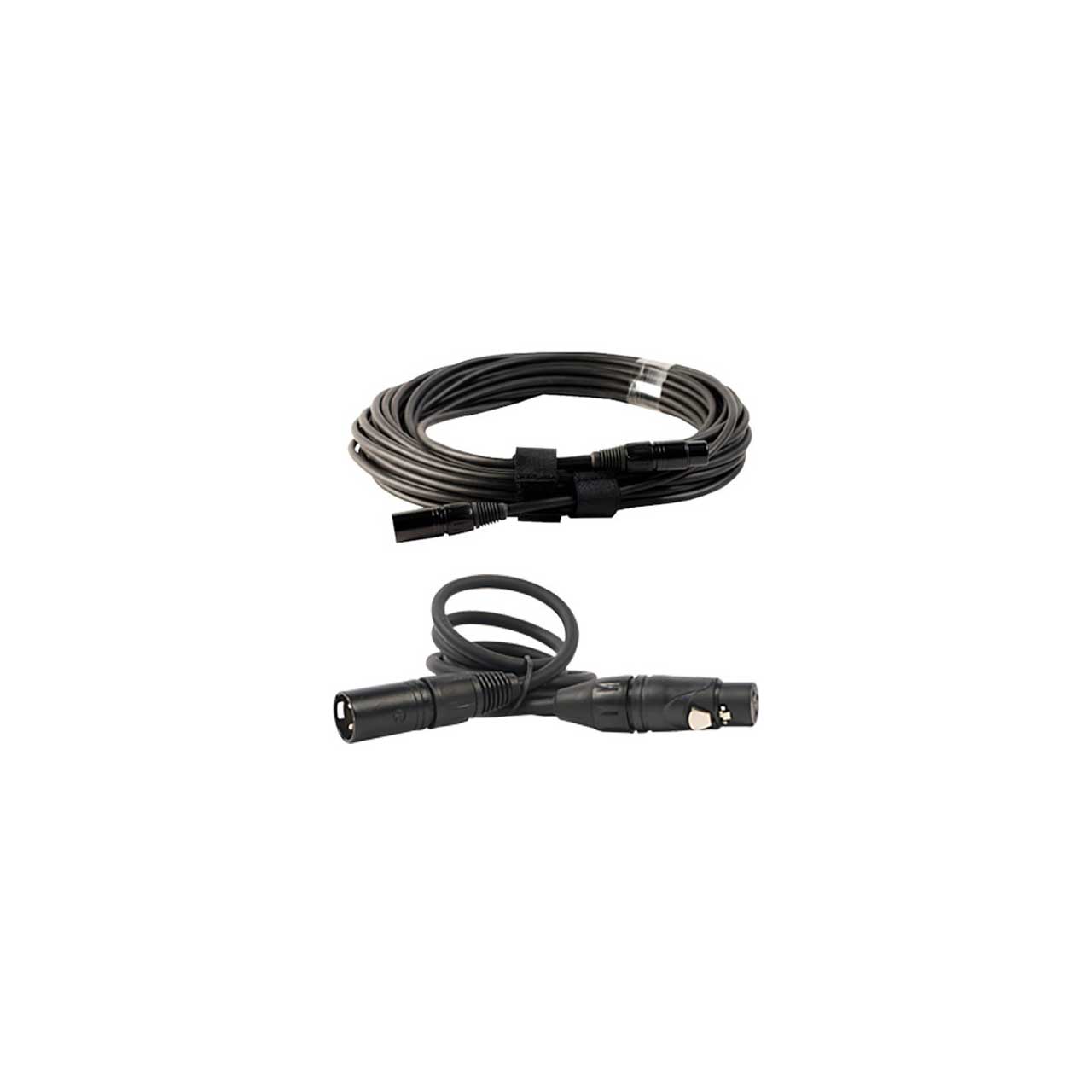

  • Five EX-4M (4 ft. XLR cables)
  • One EX-25M (25 ft. XLR cable)
  • Sturdy cardboard carrying case


• GTIN:

  0819941012122
