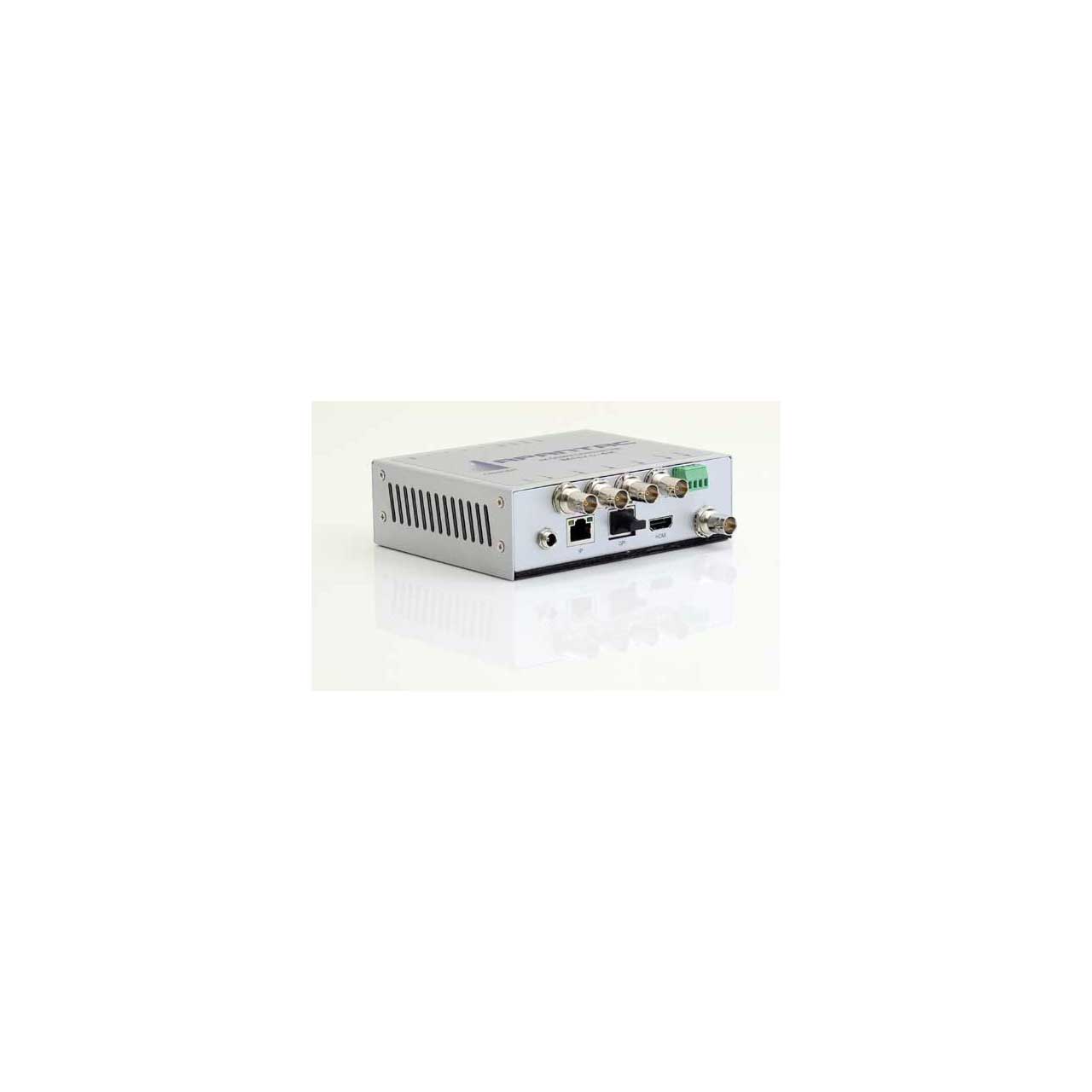

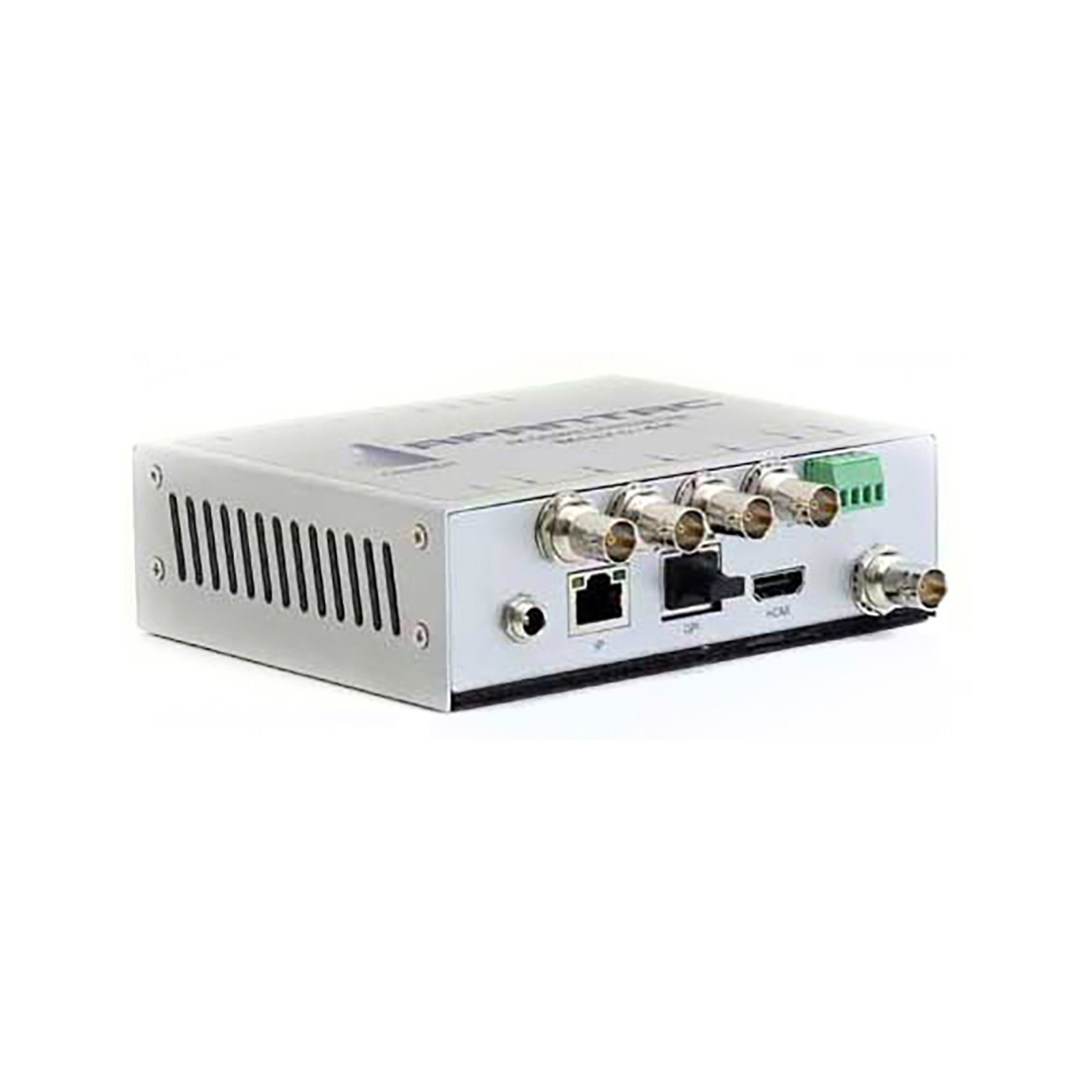

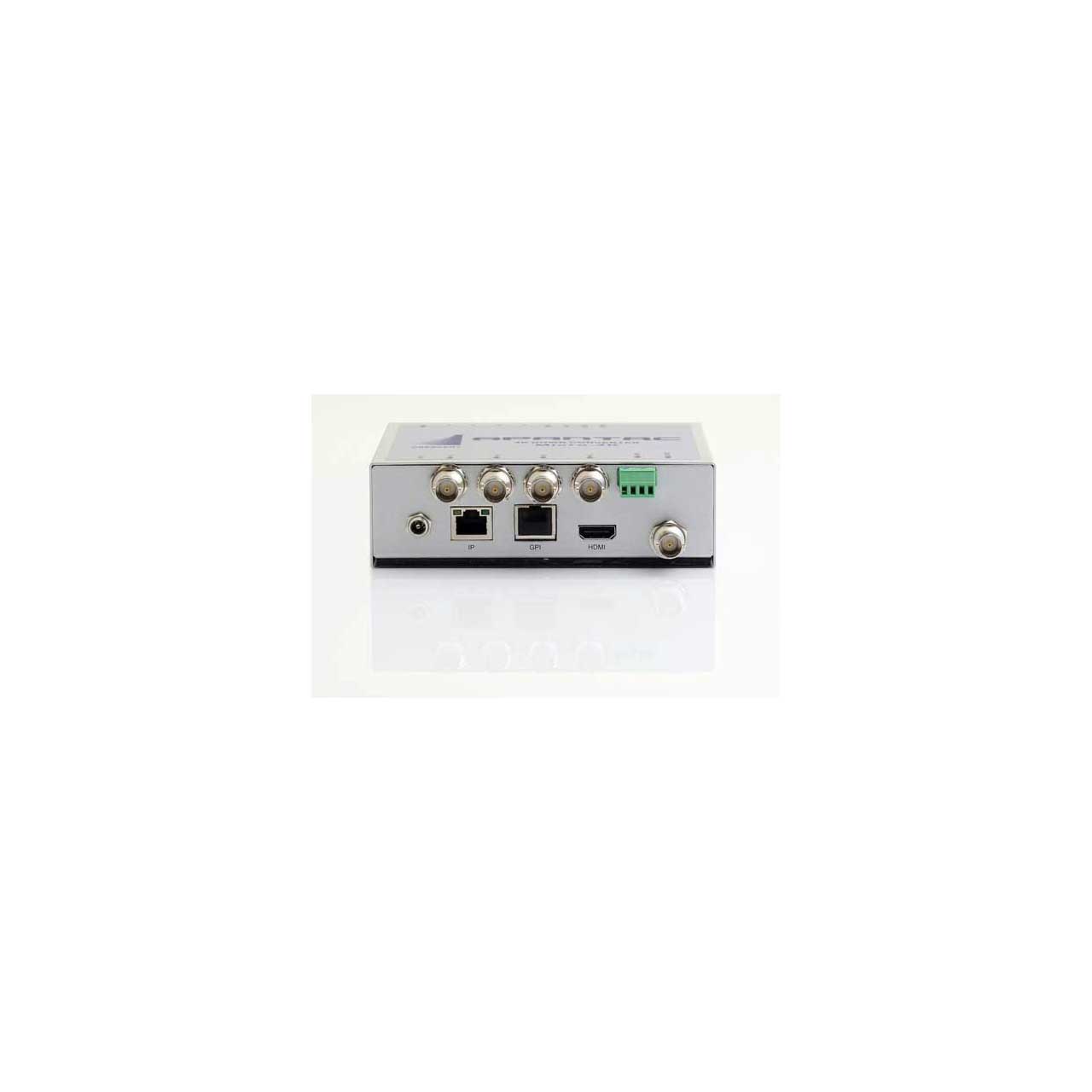

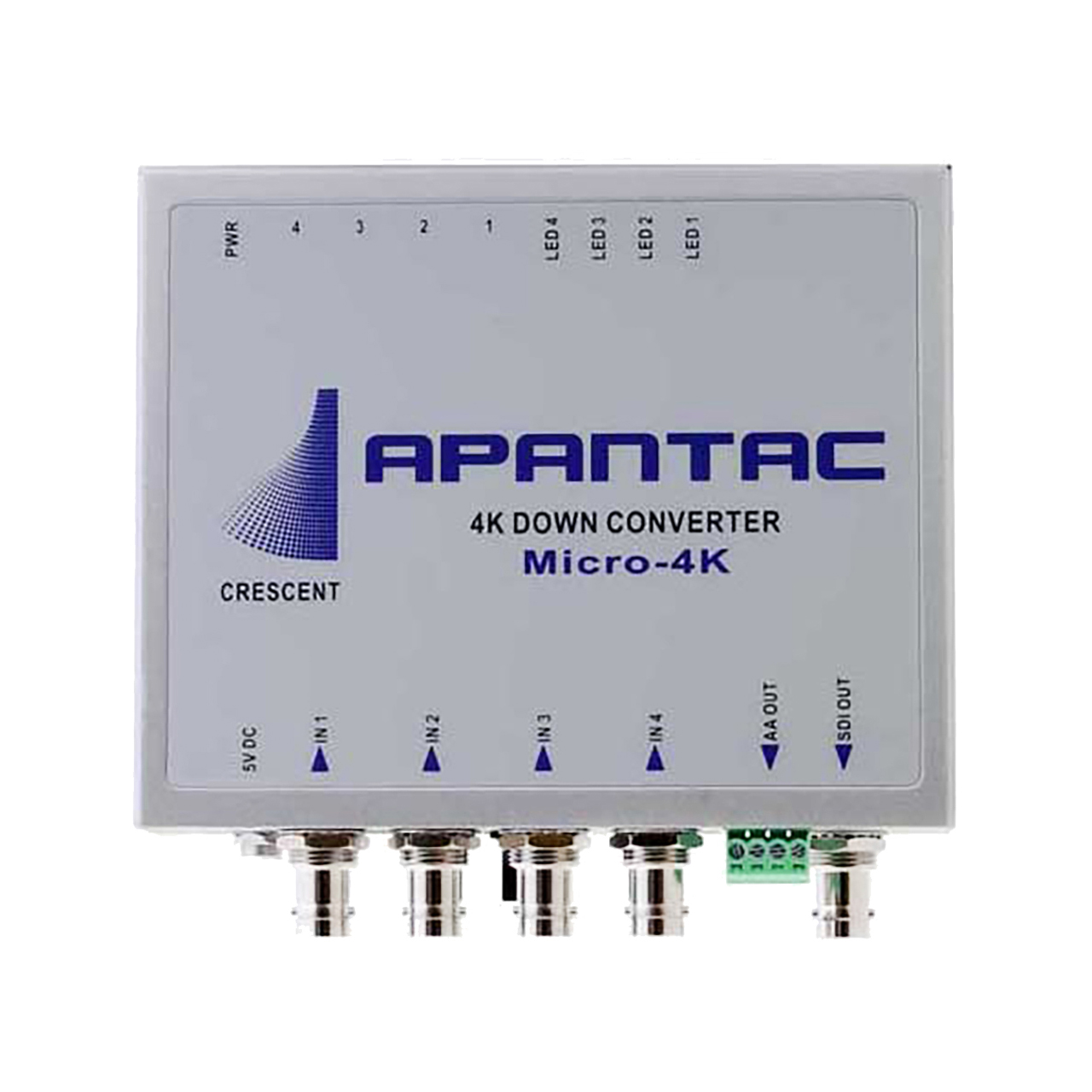

Apantac Micro-4K 4K to HD Down Converter

ITEM #: APA-MICRO-4K MFG #: MICRO-4K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Apantac
Free Shipping with $49 Minimum Order

List Price:

$1,045.00

Our Price:

$979.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

MICRO-4K - Overview

4K (in the form of 4 x 3G SDI inputs) to 3G / HD / SD SDI converter. Can alternatively be used as a simple quad split. SDI output up to 1080p 50/60Hz. HDMI Output for monitoring. 8 GPI for presets.

  • Features:

    • Supports 4K input
    • HDMI and SDI outputs up to 1080P
    • Supports up to 8 channels of embedded audio
    • Stereo Analog Audio Output
    • HDMI and Embedded SDI Audio Output


  • Specifications:

    • VIDEO INPUTS: 4 x 3G-SDI
    • OUTPUTS: 1 x HDMI, 1 SDI
    • TOTAL WINDOWS: 1
    • HDMI: 800x480 to 1920x1200 (1080p) 50/60 Hz
    • SERIAL DIGITAL: SMPTE 424M, 292M, 259M
    • SDI: Matching HDMI output resolution up to 3G
    • EQUALIZATION: 120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at 270 Mbps with Belden 1694A
    • ON SCREEN DISPLAY: Border, Label, Tally, Safe Area Indicators, Alarms, and Audio Meters
    • RETURN LOSS: > 15db up to 1.485 Gbps< > 10db up to 3G
    • GPI: 8 for Tally, preset recall, or ASCII
    • EMBEDDED AUDIO: SMPTE-272M-A
    • IP: 100 BaseTx, TSL, AXP
    • ELECTRICAL: 12 W, 90-250V 50/60Hz
    • EMI/RFI: Complies with FCC Part 15, Class A, CE, EU, EMC, C-tick
    • POWER: 5 DC 3A DIMENSIONS 171 mm W x 120 mm D x 44.45 mm H
    • MOUNT: Magnetic
