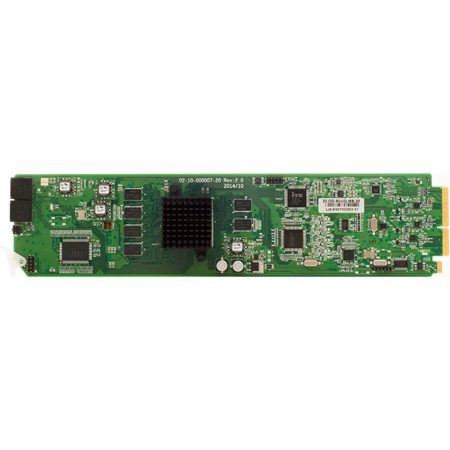

Apantac OG-MiniQ-SET-1 BUNDLE: OG-MiniQ-MB & OG-MiniQ-RM - Occupies 2 slots in openGear frame

OG-MINIQ-SET-1 - Overview

• Features:

  • openGear 3.0 card-based form factor
  • Dashboard control enabled - for simple configuration
  • 4 auto-detect 3G/HD/SD-SDI, PAL/NTSC inputs
  • Low power consumption - 15W
  • Up to 10 modules can be cascaded together
  • Up to 40 inputs (windows) on a single openGear frame
  • Single frame processing delay
  • Decode up to 16 embedded audio per SDI input
  • Ethernet for configuration
  • Dynamic UMD/labels & Tallies (TSL)
  • Simultaneous HDMI/DVI and SDI outputs
  • 2 GPI tallies per window
  • 8 GPI contacts, can be configured for tally or ASCII protocol
  • Built-in digital clocks can sync with LTC or NTP
  • Borders can be turned on or off
  • Text and background colors have adjustable transparency
  • Safe area markers
  • Visual Alarm tags for video/audio alarm detection - no audio, audio high/low, no video, video black, video frozen
  • Stereo analog audio monitoring output

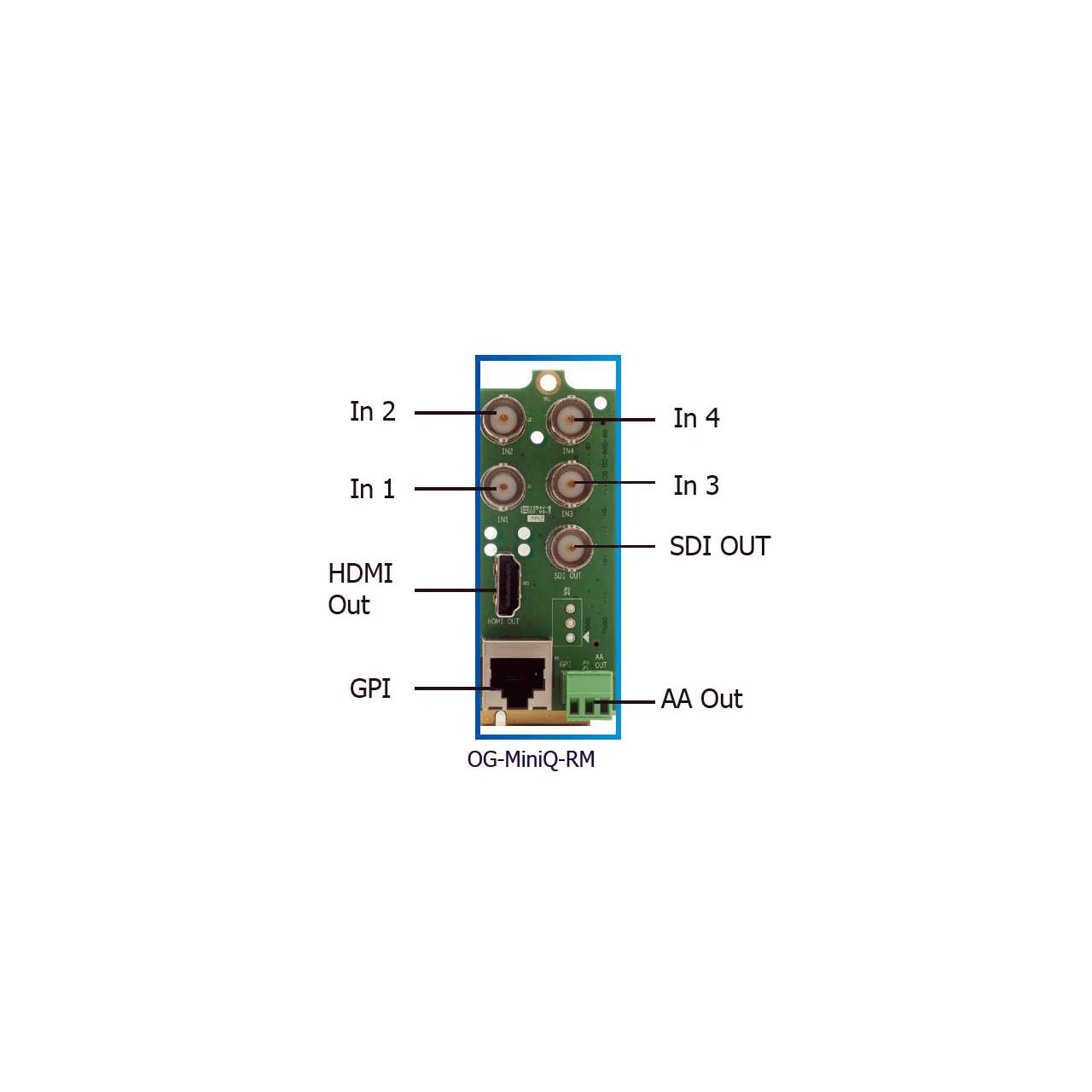

  • OG-MiniQ-RM
  • 4 x BNC Input
  • 1 x BNC Output
  • 1 x HDMI Output
  • 1 x RJ50 for GPI/Tally
  • 1 x 3-pin Connector for AA Out


• Specifications:

  • VIDEO INPUTS: 3G/HD/SD-SDI, Composite
  • VIDEO OUTPUTS: 1 x HDMI, 1 SDI
  • TOTAL WINDOWS: 4
  • HDMI (OG-MiniQ-RM): 800x480 to 1920x1200 (1080p) 50/59.94/60Hz
  • SERIAL DIGITAL: SMPTE 424M, 292M, 259M
  • RJ45 (OG-MiniQ-RMx): Up to 35 feet with passive receiver, Up to 115 feet with active receiver (option)
  • Equalization:
  • 120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at
  • 270 Mbps with Belden 1694A
  • SDI: Matching HDMI output resolution up to 3G
  • Return Loss: > 15db up to 1.485 Gbps< > 10db up to 3G
  • ON-SCREEN DISPLAY: Borders, Labels, Tallies, Audio meters, Alarm tags, Safe area markers
  • Embedded Audio: SMPTE-272M-A
  • GPI: 8 for tally or AXP (ASCII command)
  • COMPOSITE: NTSC (SMPTE-170M), PAL (ITU624-2)
  • IP: 100 Base-T, TSL, AXP_Lite protocol
  • Signal Level: 1V nominal
  • POWER: 15W
  • DC Offset: 0V, + - 0.1V
  • Impedance: 75 ohm
  • Return Loss: 40db up to 5MHz


• Warranty:

  • 5 year limited warranty
