Imagine XHD6801plusUCDT HD/SD Up/Down/Cross/Aspect Ratio Converter with Enhanced Aspect Ratio Processing

ITEM #: XHD6801PLUSUCDT MFG #: XHD6801+UCDT

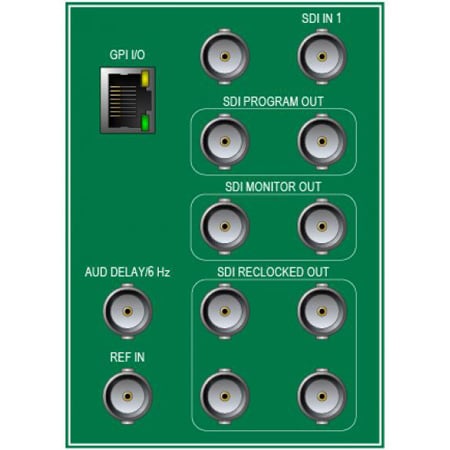

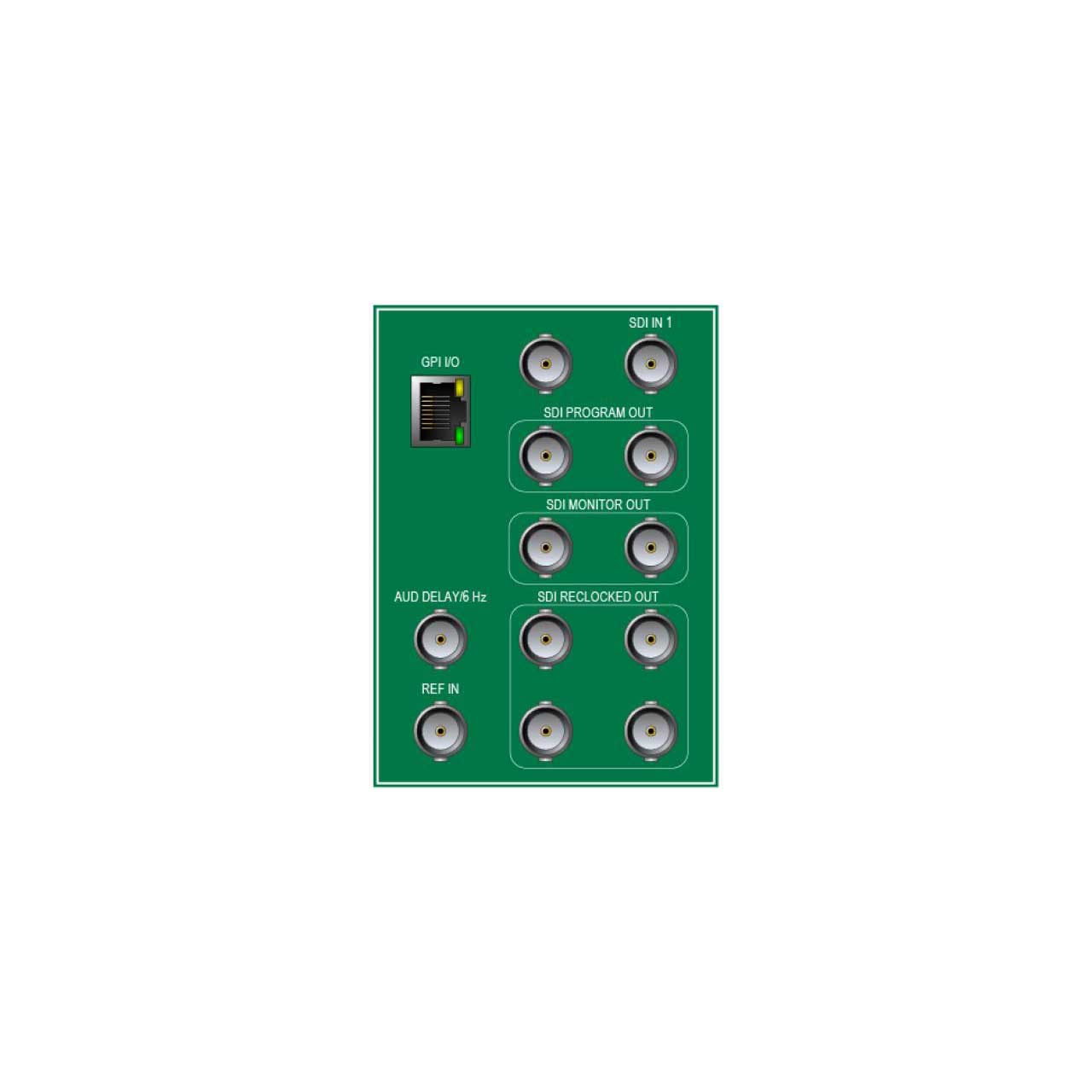

Primary Image
Imagine Communications
Free Shipping with $49 Minimum Order

List Price:

$3,355.20

Our Price:

$2,809.98

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

XHD6801+UCDT - Overview

The XHD6801+ series features broadcast-quality, motion-adaptive HD conversion with block artifact and mosquito noise reduction.

Offered as a 3-slot solution for the 6800+™ core processing platform, it is equivalent to providing three format converters in a single RU. Additionally, the XHD6801+ features reclocked outputs that can be reconfigured for frame synchronization. This minimizes the requirement downstream for additional signal distribution or synchronization. The XHD6801+ also features Q-SEE™ enhanced monitoring and thumbnail streaming.

The XHD6801+ can be controlled manually via card-edge controls, or controlled and monitored via the CCS Navigator™ software application, HTTP web browser, NUCLEUS™ hardware control panels or third-party SNMP-based control applications. The module is Q-SEE™-compliant, allowing for direct thumbnail monitoring when installed in an Ethernet-equipped 6800+ frame.

  • Features:

    • HD/SD-capable up/down/cross converter with motion-adaptive de-interlacing, mosquito noise and block artifact noise reduction, and edge interpolation for superior image quality
    • User-selectable detail enhancement settings (edge sharpening/softening)
    • Integrated video and audio frame sync with audio tracking and delay capabilities to guarantee lip sync
    • User-adjustable video delay of up to eight frames in HD
    • Embedded audio support with channel routing and sample rate conversion capability


  • Specifications:

    • Regulatory Compliance: Q-SEE
    • Certifications: SMPTE
    • Input Signal Types: NTSC/PAL-B, SD/HD-SDI
    • Output (Converted) Signal Type: HD-SDI
    • Genlock Input
    • Connector: BNC (IEC 169-8)
    • Impedance: 75 ohms
    • Return Loss: >40 dB 25 Hz to 10 MHz (SMPTE 318M-1999)
    • Common Mode Range: 5.5 V pk-pk
    • CMRR: 60 dB @ 60 Hz, 5 V pk-pk
    • 1080i: 59.94/50
    • 1080p: 29.97/25/23.98
    • 1080psf: 23.98
    • 720p: 59.94/50
    • Locking Range: +/-6 ppm (sync lock only, no burst lock)
    • Signal Type: NTSC/PAL-B analog composite, ±300 mV tri-level sync
    • Standard: SMPTE 170M (NTSC), ITU-R BT.470-6 (PAL-B), SMPTE 274M (1080i, 1080p), SMPTE 296M (720p)
    • Number of Inputs: 1
    • Standard: SMPTE 292M (1.485, 1.485/1.001 Gb/s)
    • Connector: BNC (IEC 169-8)
    • Impedance: 75 ohms
    • Return Loss: >15 dB, typical, from 5 MHz to 1485 MHz
    • Equalisation: Adaptive cable equalisation for up to 328 ft (100 m), typical, of Belden 8281 coaxial cable
      or 492 ft (150 m) typical, of Belden 1694A coaxial cable
    • Number of Inputs: 1
    • Standard: SMPTE 259M-C (270 Mb/s, 525/625 component video)
    • Connector: BNC (IEC 169-8)
    • Impedance: 75 ohms
    • Return Loss: >15 dB, typical, from 5 to 270 MHz
    • Equalisation: Adaptive cable equalisation for up to 700 ft (230 m), typical, of Belden 8281 coaxial cable
    • Number of Outputs: 8
    • Standard: SMPTE 292M (1.485, 1.485/1.001 Gb/s)
    • Connector: BNC (IEC 169-8)
    • Impedance: 75 ohms
    • Return Loss: >15 dB, typical, from 5 to 1485 MHz
    • Signal Level: 800 mV ±10%
    • DC Offset: 0 V ±0.5 V
    • Rise and Fall Time: <270 ps (20% to 80%)
    • Overshoot: <10% of amplitude (all outputs terminated)
    • Jitter: Timing jitter: <1 UI pk-pk, Alignment jitter: <0.2 UI pk-pk
