P008-IW-EX - Overview

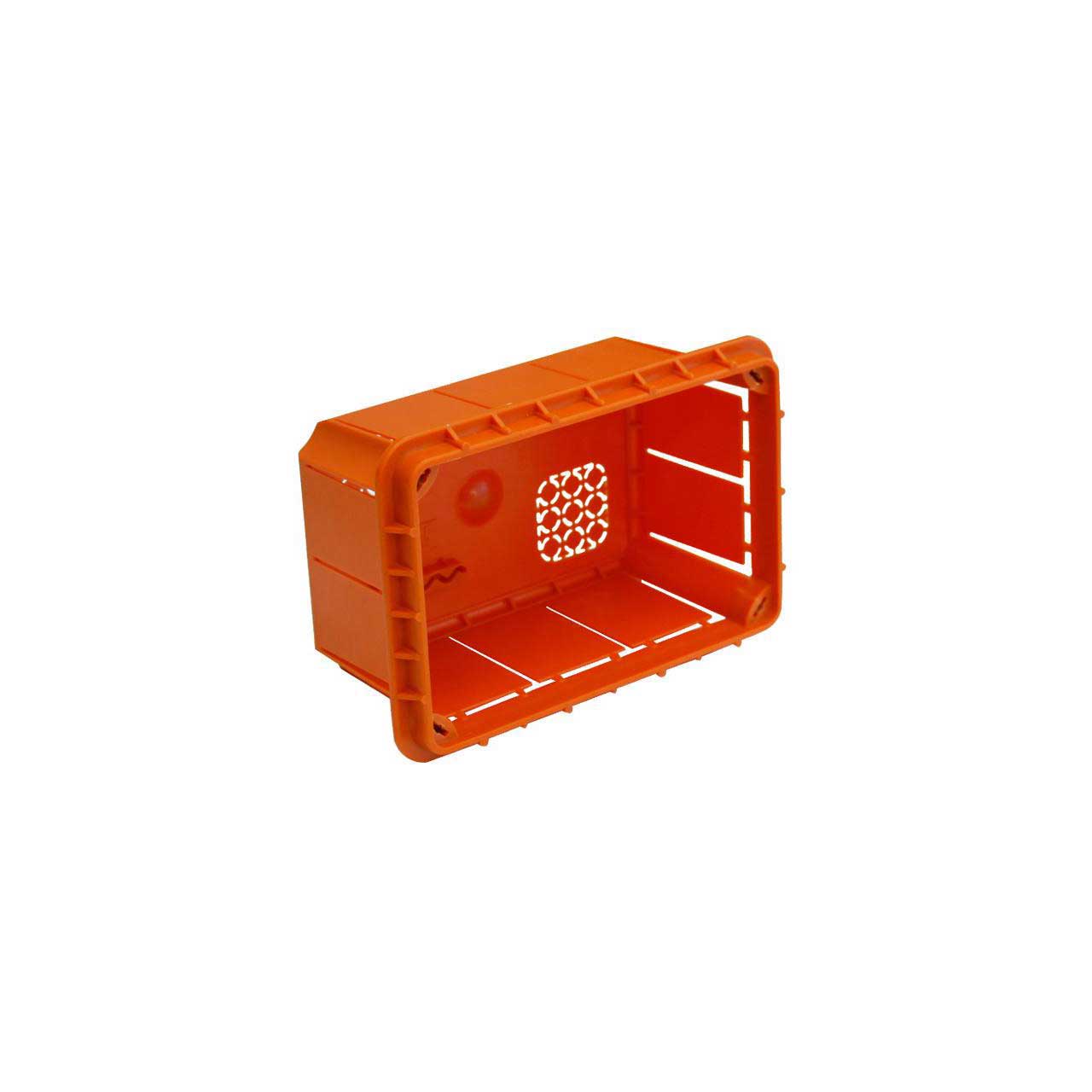

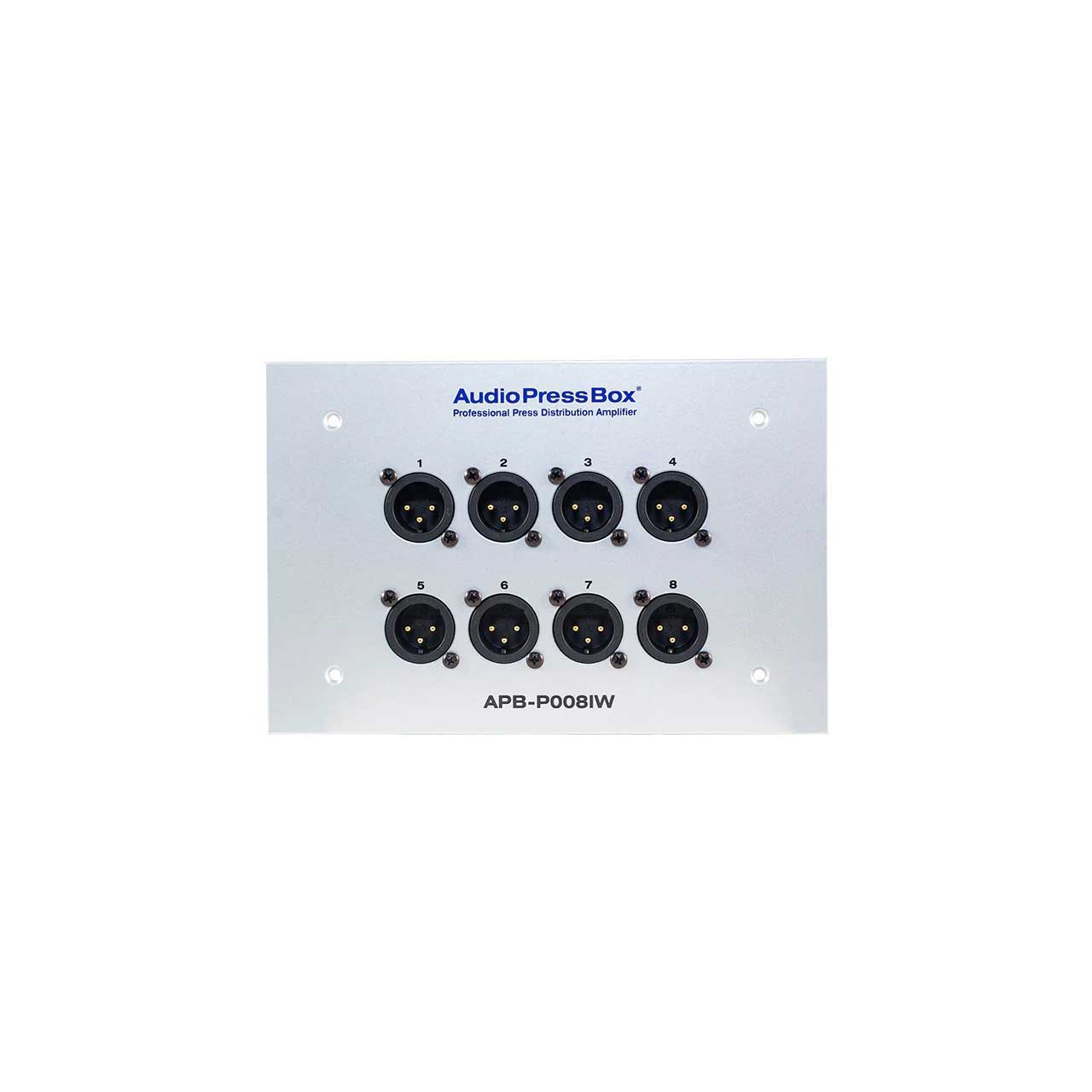

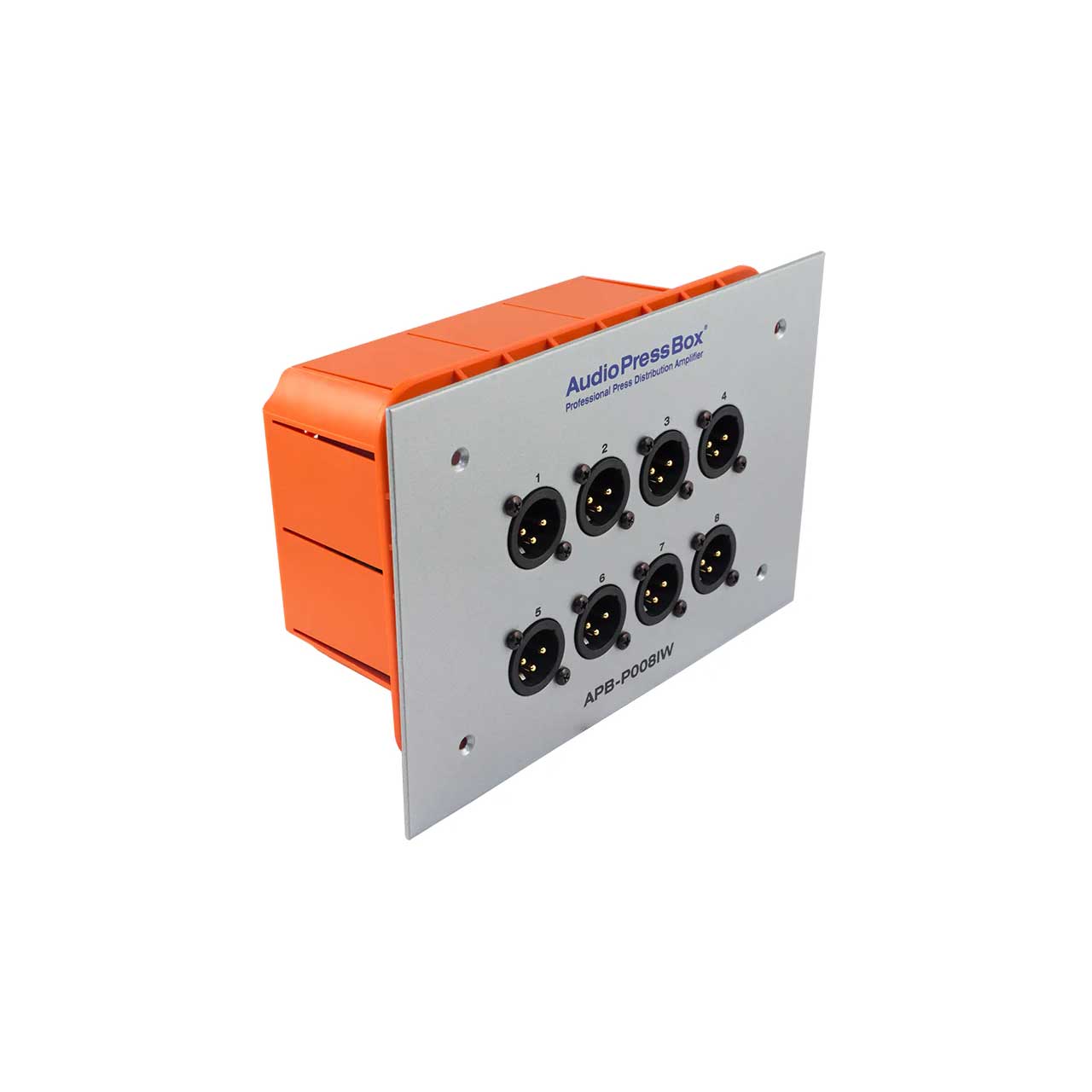

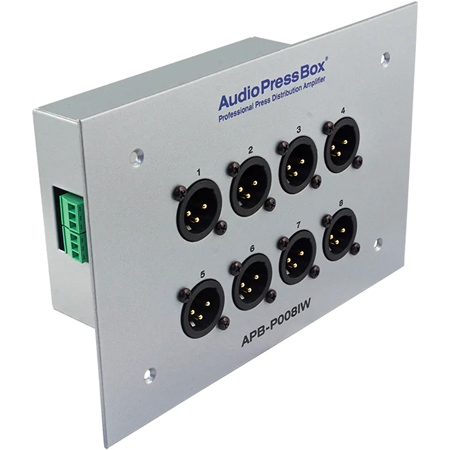

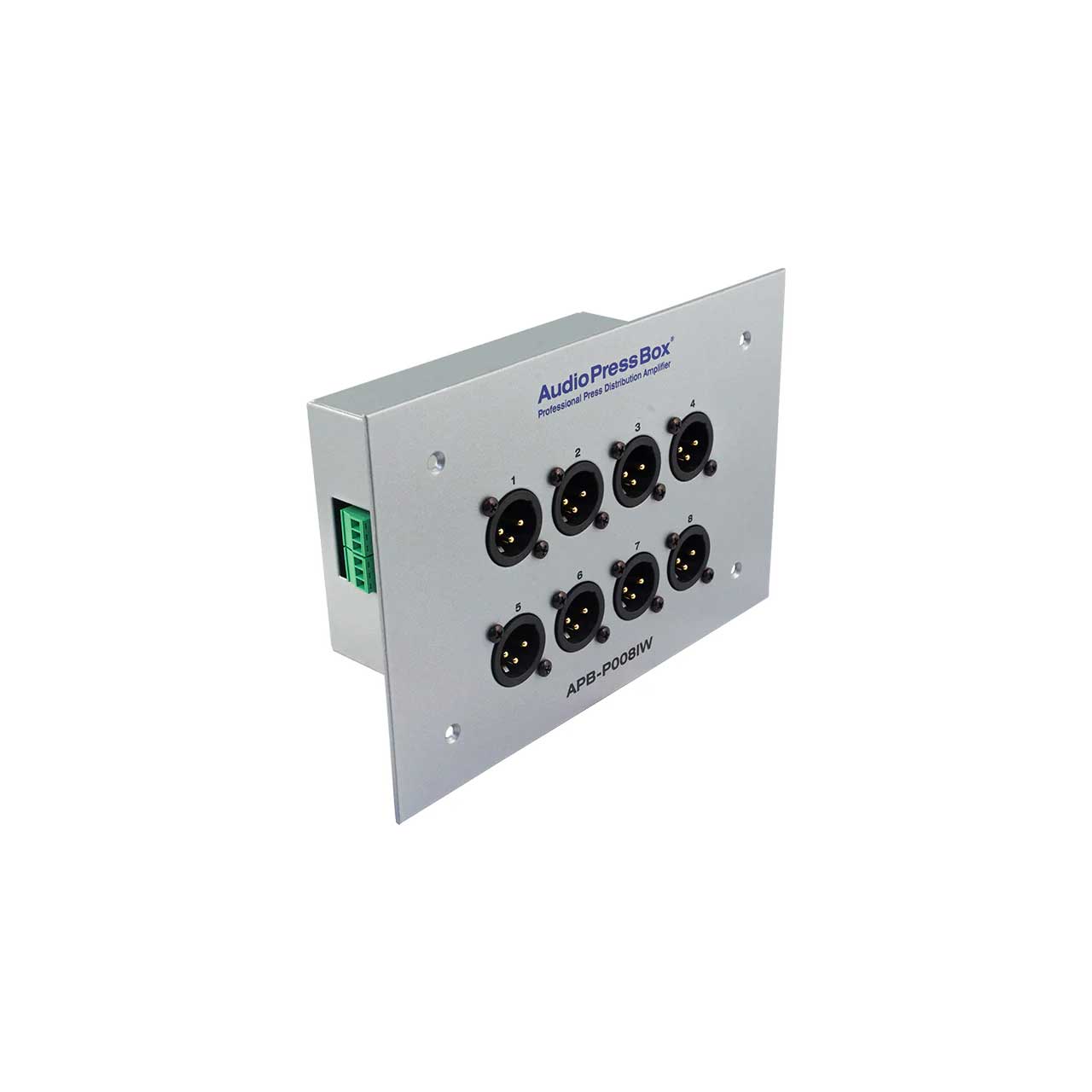

The AudioPressBox APB-P008 IW-EX is a professional passive in wall Press Box (Audio Splitter) expander featuring 8 mic outputs is perfect for integrators and installers. IW stands for in-wall as it's for flush mounting. Each Output is independent transformer balanced and isolated. It features 1 LINE input (3-pin phoenix connector) and has 1 Link output (3-pin phoenix connector) to connect more APB-P008 OW/IW in a daisy chain and can be fed directly from a mixing console.

  • Features:

    • 8 High quality balanced Outputs, each Output is independent transformer isolated
    • Each Output is switchable between LINE or MIC Output level.
    • 2 internal Output Groups: 4x Output A and 4x Output B


  • Specifications:

    • Type: Expander
    • Groups: 2
    • Inputs: 1x Bus A / 1x Bus B
    • Input Connectors: ballanced, 3-pin phoenix connector
    • Ouputs: 4x Bus A, Line/Mic level / 4x Bus B, Line/Mic level
    • Output Connectors: Ballanced, XLR-M connector
    • Transfomer Isolated Outputs: Yes (each output)
    • Nominal Output Level: Mic: -20dBu / Line: +6 dBu
    • Output Impedance: Mic - 220Ω / Line - 600Ω
    • Dimensions (WxHxD): 180x120x63mm
    • Weight: 970g


  • Item Includes:

    • 1x AudioPressBox APB-P008-IW-EX Passive In-wall AudioPressBox with 1 Line Input and 8 Mic Outputs


  • Warranty:

    • 2 Year
