Appsys Pro Audio SRC-64 64 Channel Bidirectional Sample Rate Addon for MVR-64 Multiverter

SRC-64 - Overview

• Features:

  • Top-notch performance: THD+N = -133dB typ, -120dB max.
  • True asynchronous, bi-directional conversion of 64×64 channels
  • Supports arbitrary sample rates in the range from 32 - 192kHz
  • Special aggregation modes exist to handle 64ch@96k by using two inputs and/or outputs together
  • Handles up to 64ch@48k, 64ch@96k, 32ch@192k

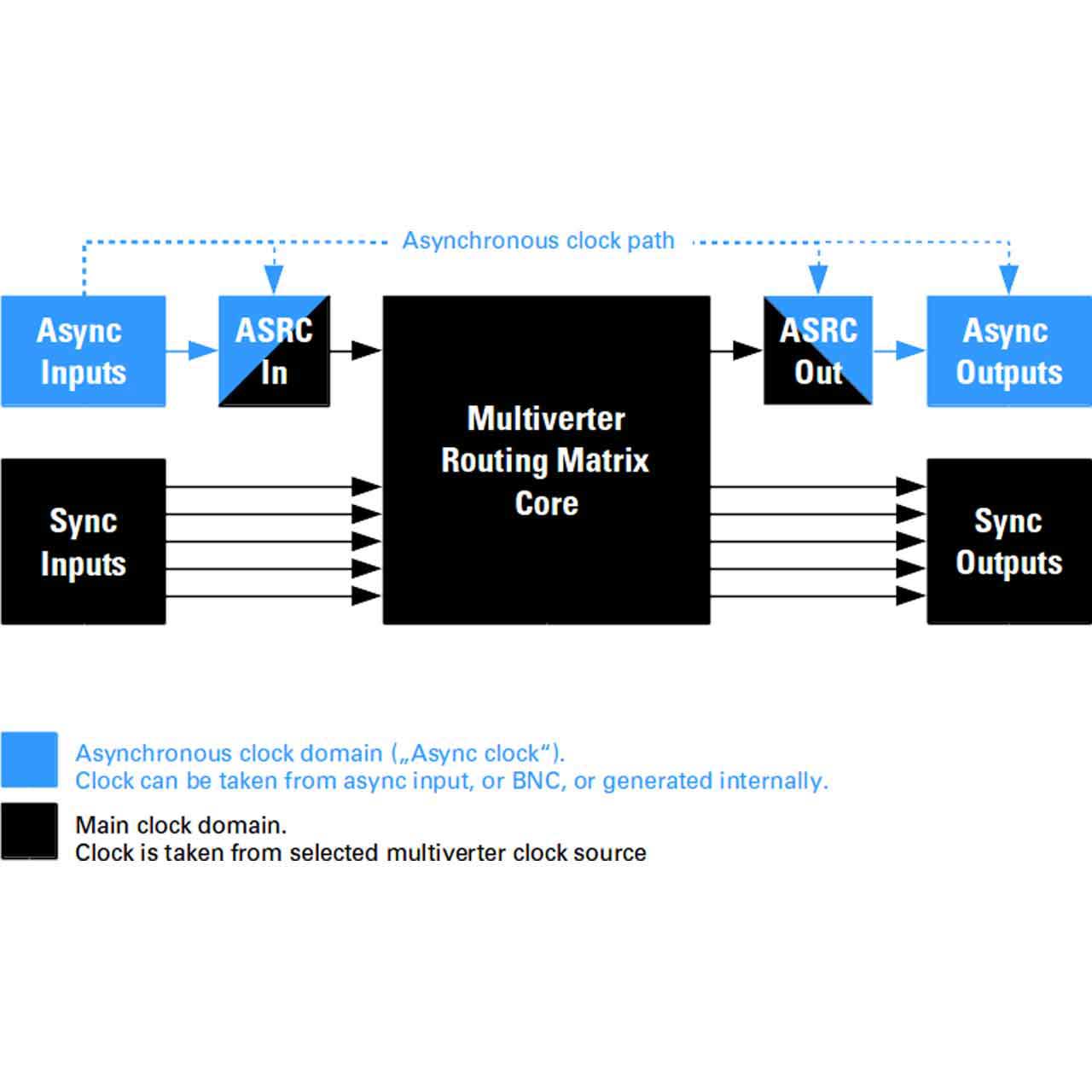

  • Free selection of any multiverter interface as asynchronous input and/or asynchronous output


• Specifications:

  • Dimensions: 115x9x27mm (WxHxD)
  • Weight: 65g
  • Operating Temperature: 0 - 70°C, non-condensing
  • Storage Temperature: -40 - +85°C, non-condensing
  • Power Consumption: 7W max.
  • Channel Count:
    Up to 64 per direction in x1 modes (44.1 / 48 kHz)
    Up to 64 per interface in x2 modes (88.2 / 96 kHz)
    Up to 32 per interface in x4 modes (176.4 / 192 kHz)
  • Sample Rates: Arbitrary sample rates between 32kHz and 192kHz
  • Analog Performance: THD+N: -133 dB typ. / -120dB max. Dynamic range (A-weighted, 20 Hz to 20 kHz): 139 dB


• Item Includes:

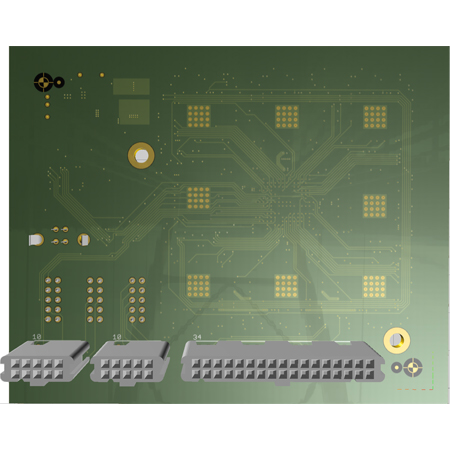

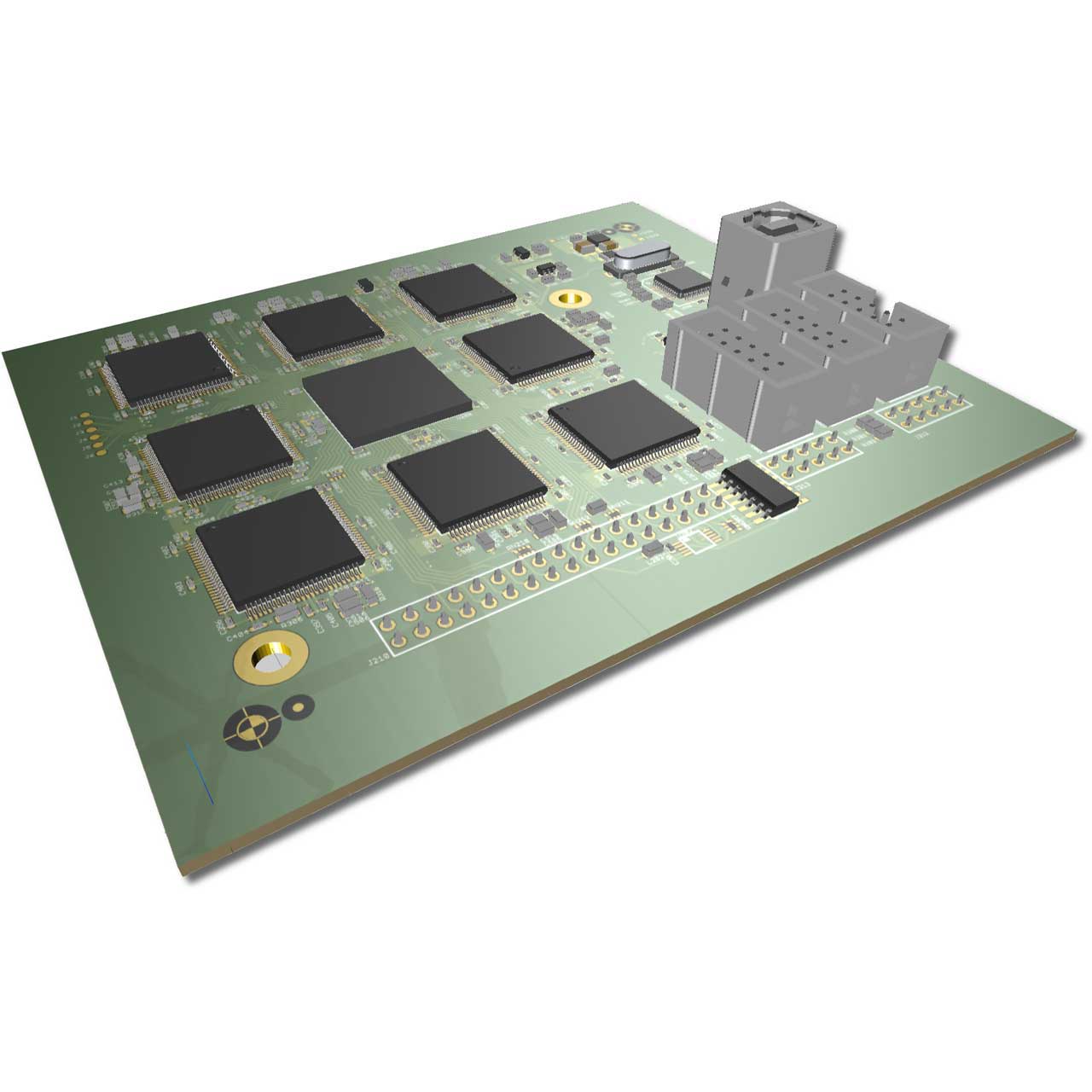

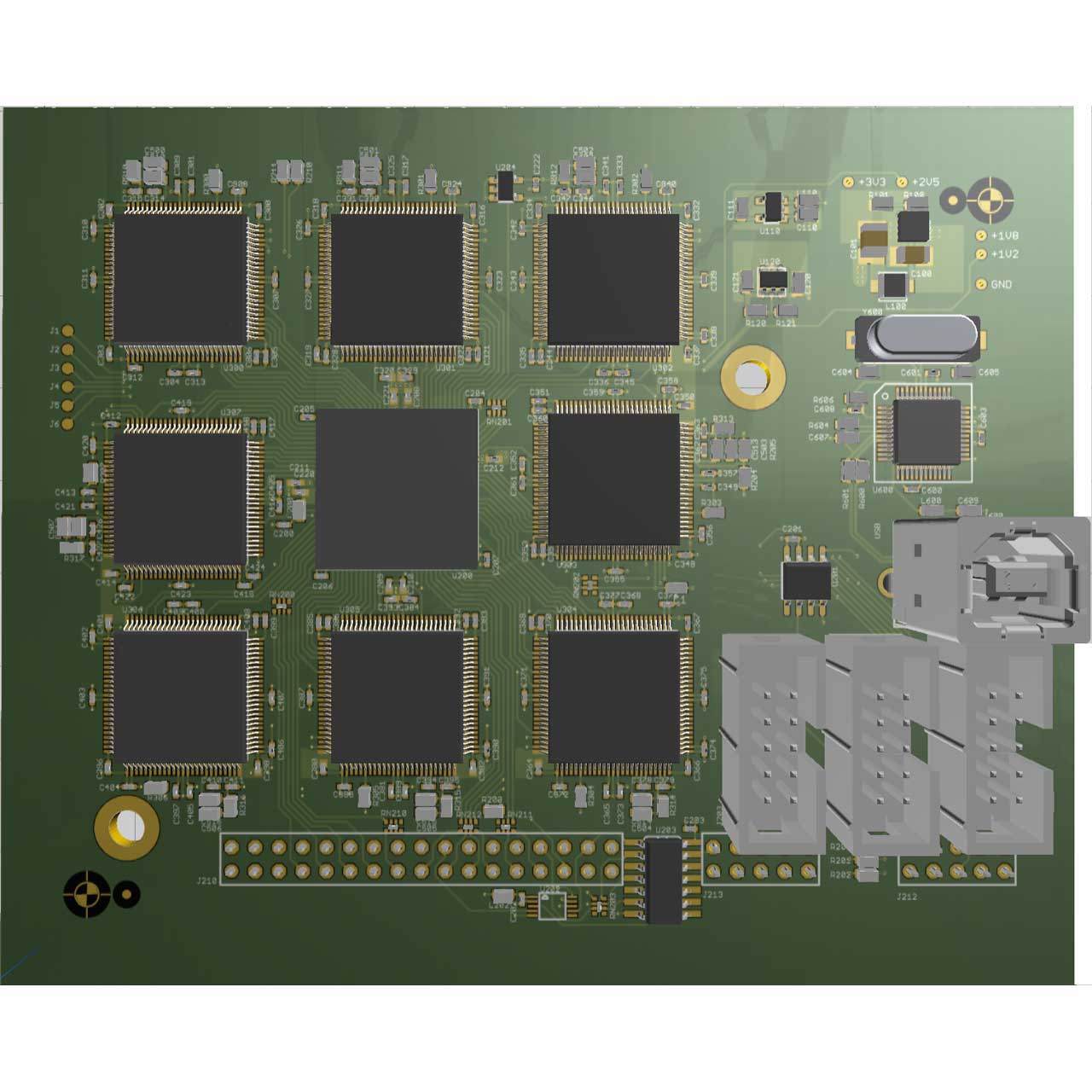

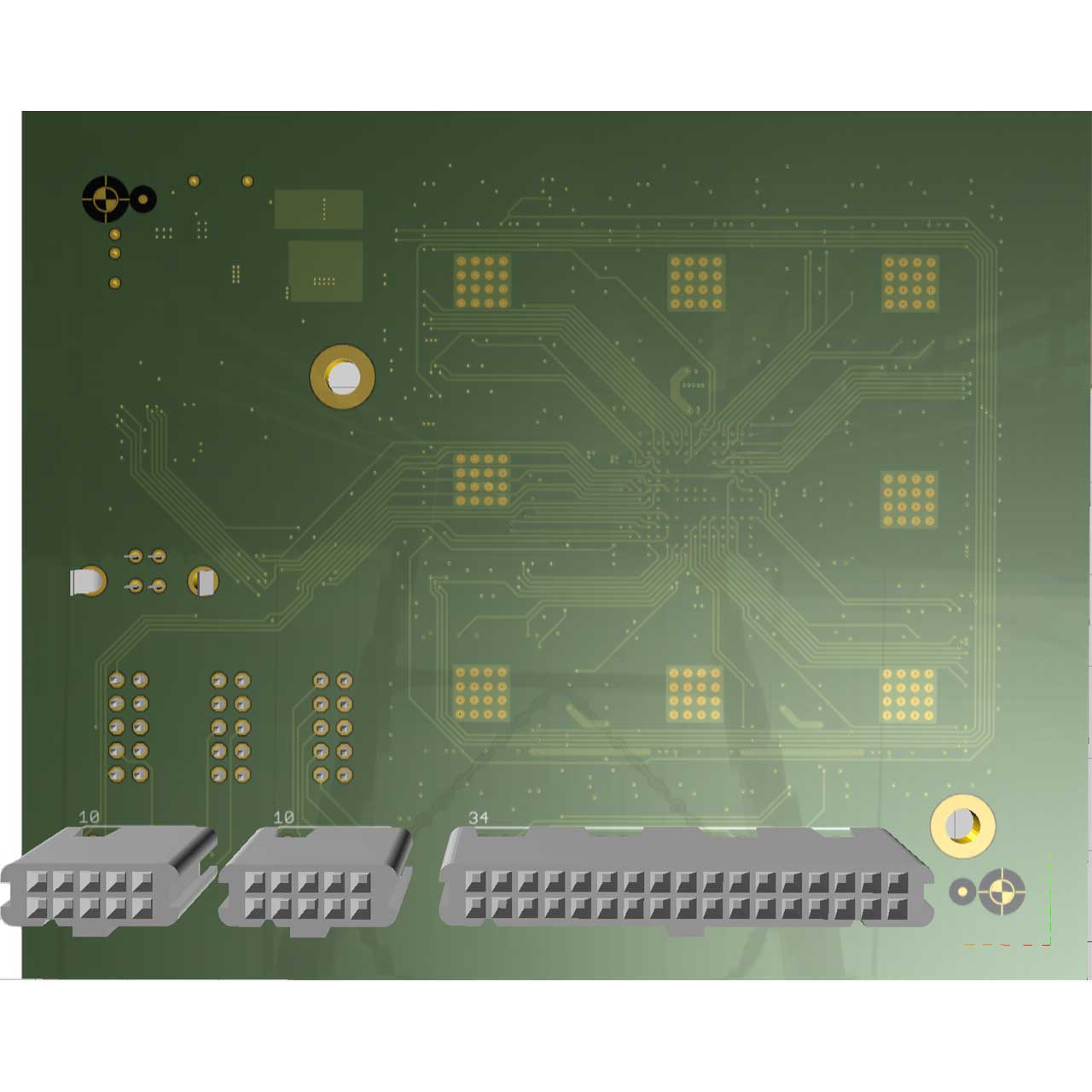

  • 1x 1 SRC-64 PCB Module
  • 2x Screws M3x20 T10
  • 2x Spacers
  • 1x User Manual


• Warranty:

  • 2 Year Manufacturer's Warranty
