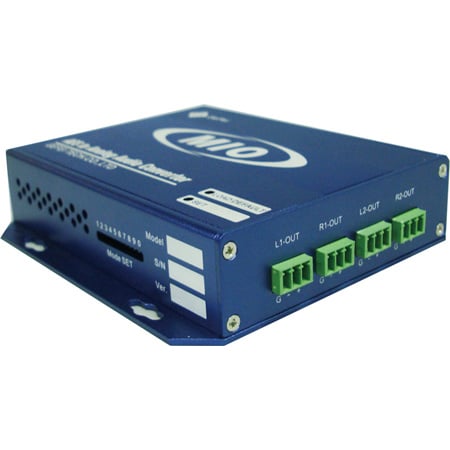

Gra-Vue MIO-DA-AUD AES to Analog audio converter

MIO DA-AUD - Overview

• Features:

  • Converts two groups of AES digital audio to four ch. balanced analog audio
  • Broadcast quality with 24 bit processing and 48KHz audio sampling
  • Adjustable output gain control
  • selectable output audio channel
  • Sampling rates from 32 to 96kHz
  • Automatic De-emphasis filtering
  • LEDs show Signal source and power


• Specifications:

  • Digital audio input:
  • 2 x BNC, 75 Ohm, unbalanced Audio
    Analog audio output:
  • 4 x 3 pin phoenix, 110 Ohm (balanced)
  • Frequency response: <±0.25dB(20Hz~20kHz)
  • Max level: +24dBu
    LED Status Indication:
  • Power & Input locking
  • Dimension: 124.5 x116.5 x30mm
  • Power: 12VDC 1.0A
  • Working Temp.: 5 °C - 25 °C


• Item Includes:

  • 12VDC power adapter, 4 x 3 pin pheonix male connectors
