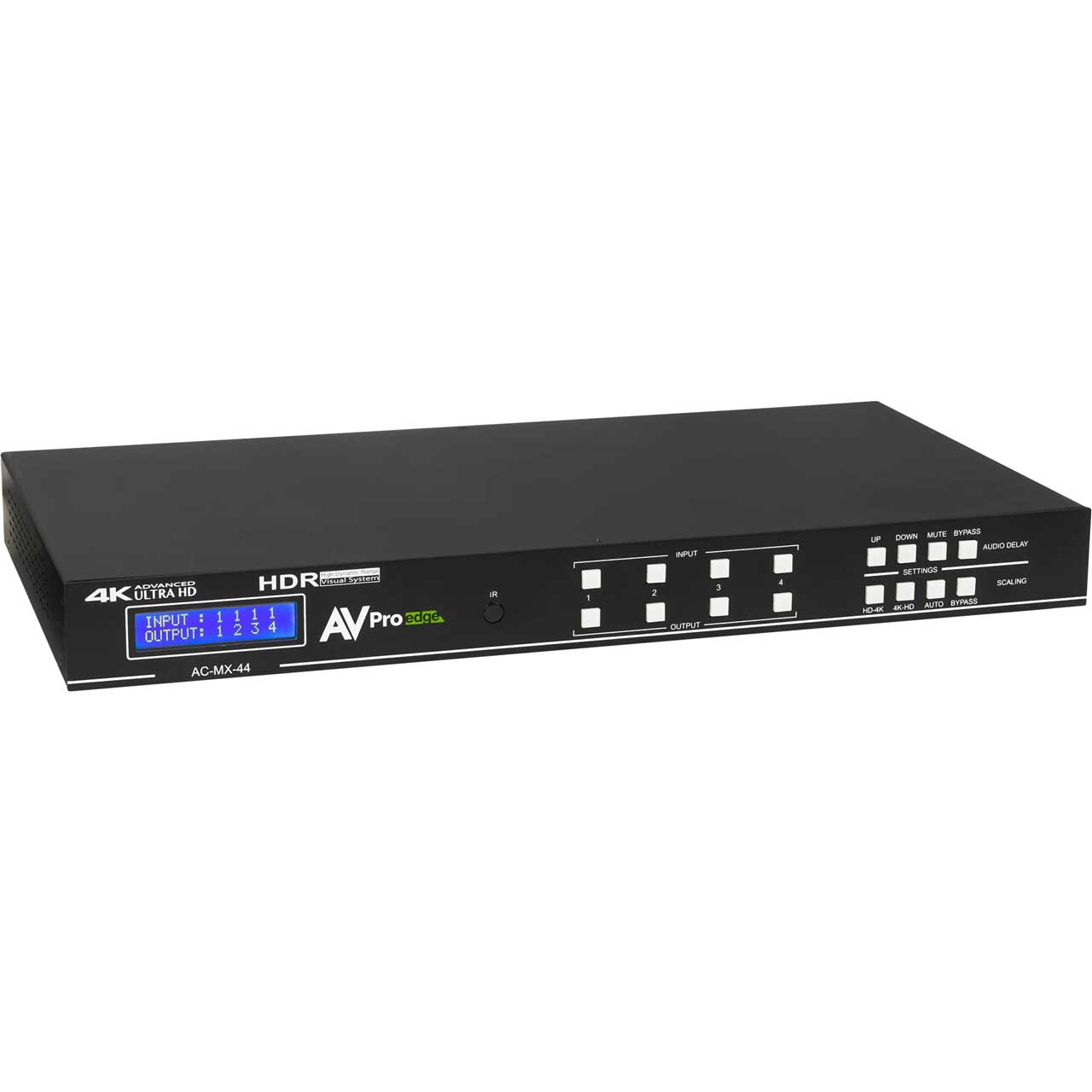

AVPro Edge AC-MX-44 18Gbps 4x4 HDMI/HDCP 2.0 Matrix Switch with HDBaseT Compatibility & Up/Down Scaling

ITEM #: APR-AC-MX-44 MFG #: AC-MX-44

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    AC-MX-44 - Overview

    The AVPro Edge AC-MX-44 is a 4x4 HDMI matrix switch that supports HDMI 2.0(a/b), HDCP 2.3, up to 4K video resolution, and up to 18 Gbps bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc ... ) to show on any connected displays. This matrix equalizes and amplifies the output to ensure the HDMI signal transmits through long HDMI cables without losing quality.

    Solve common issues, such as audio arriving before video, EDID issues, and mixed systems with lower capability displays with this matrix switcher. Audio delay is "on-board," so you can manage lip-sync issues before they become problematic, and with built-in HDMI scalers, you don't have to forfeit that 4K signal because you have a couple of older displays. Finally, EDID management allows maximum flexibility with today's broad mixture of sources and displays.

    HDBaseT Compatibility Mode (HDBT-C)
    This AVPro Edge technology converts high bandwidth signals from 18Gbps to 10.2Gbps. The conversion uses a proprietary algorithm that impacts the original image as little as possible so you can transmit high bandwidth signals over long distances to displays that don't support 18Gbps. HDBT-C is managed on a per-output basis, so you have complete control over what individual runs are "down-clocked."

    4K Up/Down Scaling
    Like other AVPro Edge Matrix Switchers, this unit has scalers built-in on each of its outputs. With this scaler, you can upscale an HDMI output from 1080p to 4K. With the HDBaseT outputs, you can scale from 4K >1080p for HDBaseT compatibility when using 3rd party HDMI extenders. There is a limitation to scaling with this unit: you cannot downscale on the HDMI outputs, and you cannot upscale on the HDBaseT outputs.

    Extreme EDID Management
    With 29 onboard EDIDs, including HDR EDIDs, not getting a picture is simply a thing of the past. You can manage the input side of the switch by selecting a preloaded EDID. We can INSTANTLY read an EDID from any connected display and apply it to the desired input, all with the push of a button. Goodbye, EDID problems...

    Audio Delay

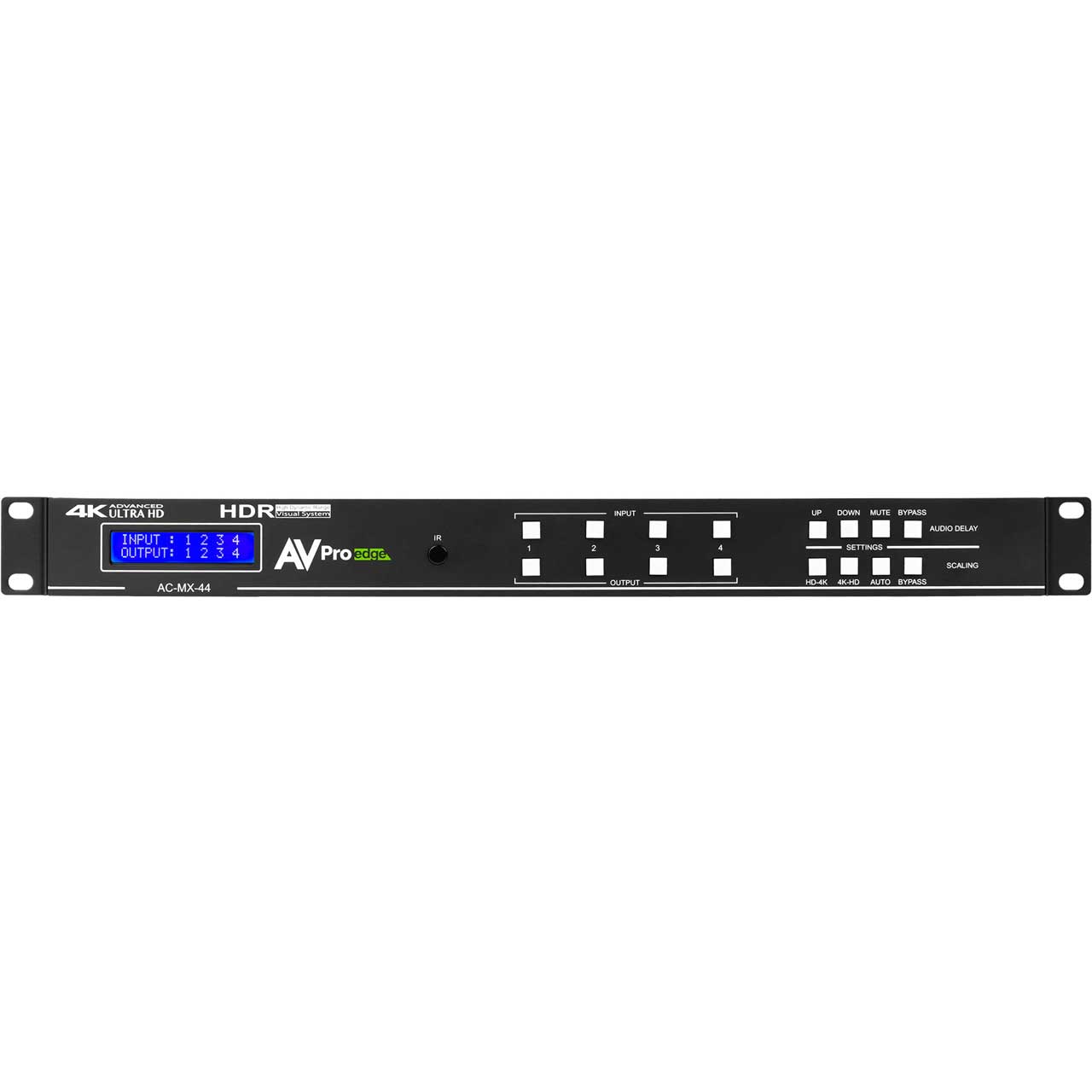

    With the AC-MX-44, you can manage audio delay on the balanced or digital outputs per output. The audio delay features up to 630ms, so your lip sync problems vanish. Audio delay can be managed directly from the front panel for ease of use and simple setup with the push of a button.

    Built-in Test Pattern
    The unit features an internal test pattern per output that can be initialized to verify that the infrastructure after the Matrix is intact. Test patterns save hours of painful troubleshooting and allow you to identify problems before they become problems.

    Easier Installation
    With the AVPro Edge User Interface, many easily accessible tools are available inside our web-based user interface. Installers of all experience levels can fully deploy large video distribution systems more effortlessly than ever before. Companies will do more jobs and increase profits by finishing installs quicker and saving experienced technicians time and energy to direct towards new installations.

    Identify Issues Before Leaving the Job Site
    The AVPro Edge User Interface allows integrators to follow up and check each video signal's health. If there is an issue, integrators can use the HDMI and HDBaseT diagnosis tools to narrow down if there is an issue with the cabling, EDID, or resolutions. Integrators can leave a site confident that they won't have to be back while conveying an expert installation to their clients and earning more money. Ensure integrator technicians are working on new installs and not just fixing systems that should already be wrapped up.

    • Features:

      • HDMI 2.0 (a/b)
      • 18Gbps Bandwidth for up to 4K60 4:4:4 Support
      • Full HDR Support (HDR 10 & 12 Bit) Including Dolby Vision, HDR10+ and HLG Support
      • 4K to 1080p Downscaler on each output
      • Advanced EDID Management

    • Specifications:

      • Video
      • Video Resolutions: Up to 4k 60HZ 4:4:4
      • VESA Resolutions: Up to DCI 4k (4096x2160)
      • HDR Formats/Resolutions: 420, 422, 444 (10 and 12 Deep Color) HDR10, HDR10+, Dolby Vision, HLG
      • Color Space: YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported
      • Deep Color: Up to 16 bit (1080), up to 12 BIT (4k)
      • Scalers (HDMI) Per OUTPUT Optional: 4k to 1080P Down-Scaling (Resolutions Only, Framerate Stays the same), and 4:4:4 to 4:2:0 (See manual for more info)

        Audio
      • Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
      • Audio Formats Supported Extracted (TOSLINK): PCM 2.0 Ch, LPCM 6 CH, LPCM 7 CH, Dolby Digital, Dolby Digital Plus
      • Audio Formats Supported Extracted (2CH Port): PCM 2 CH
      • Audio Extraction Location: Bind to INPUT, Bind to OUTPUT, or Matrix (Independent)
      • Audio Delay (Per OUTPUT, Extracted): Up To 630ms

        Distance
      • HDMI IN/OUT (4K60 4:4:4): Up to 50 Feet (Using Bullet Train HDMI)
      • HDMI IN/OUT (W/ AOC Cable) (4k60 4:4:4): Up to 130 Feet (Using Bullet Train AOC)

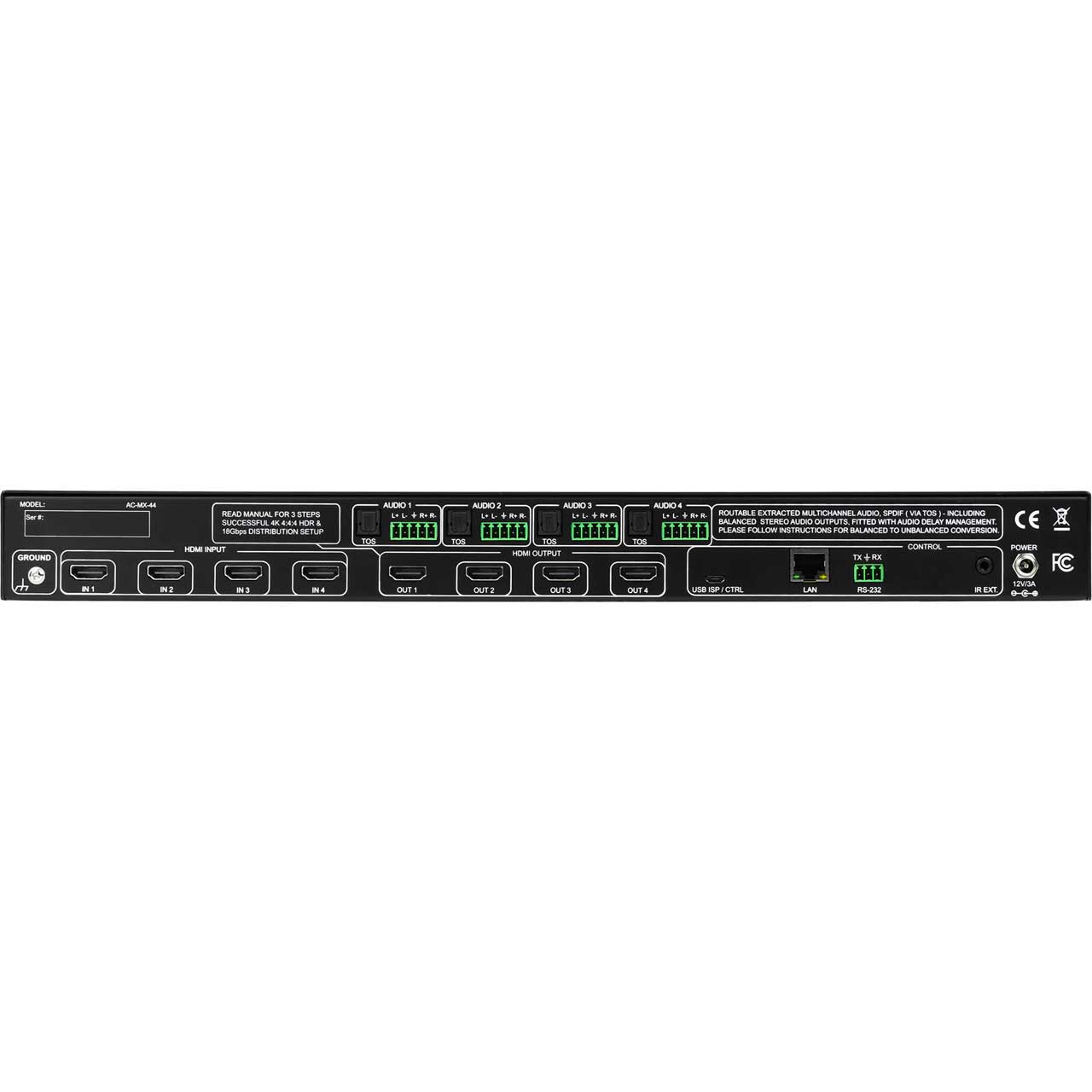

        Ports
      • HDMI: Type A
      • LAN: RJ45 w/ Web Interface/Control
      • Audio (Extracted Digital): Toslink
      • Audio (Extracted Analog): 5 PIN Terminal Block (Balanced)
      • IR Extension RX: 3.5MM Stereo (3 Conductor)
      • RS232: 3 Pin Terminal Block

        Environmental
      • Operating Temperature: 23°F - 125°F (-5°C - 51°C)
      • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
      • Humidity Range: 5% - 90% RH (No Condensation)

        Power:
      • Power Consumption (Total): 38 Watts Max
      • Power Supply - Matrix: Input: AC 100V - 240V ~ 50/60Hz, Output: DC 12V 4A

        Dimensions and Weight:
      • Dimensions (HxDxW): 1.75" x 8.87" x 17.25"
      • Rack Units: 1RU
      • Weight (Unit): 6.2lbs (2.81kg)

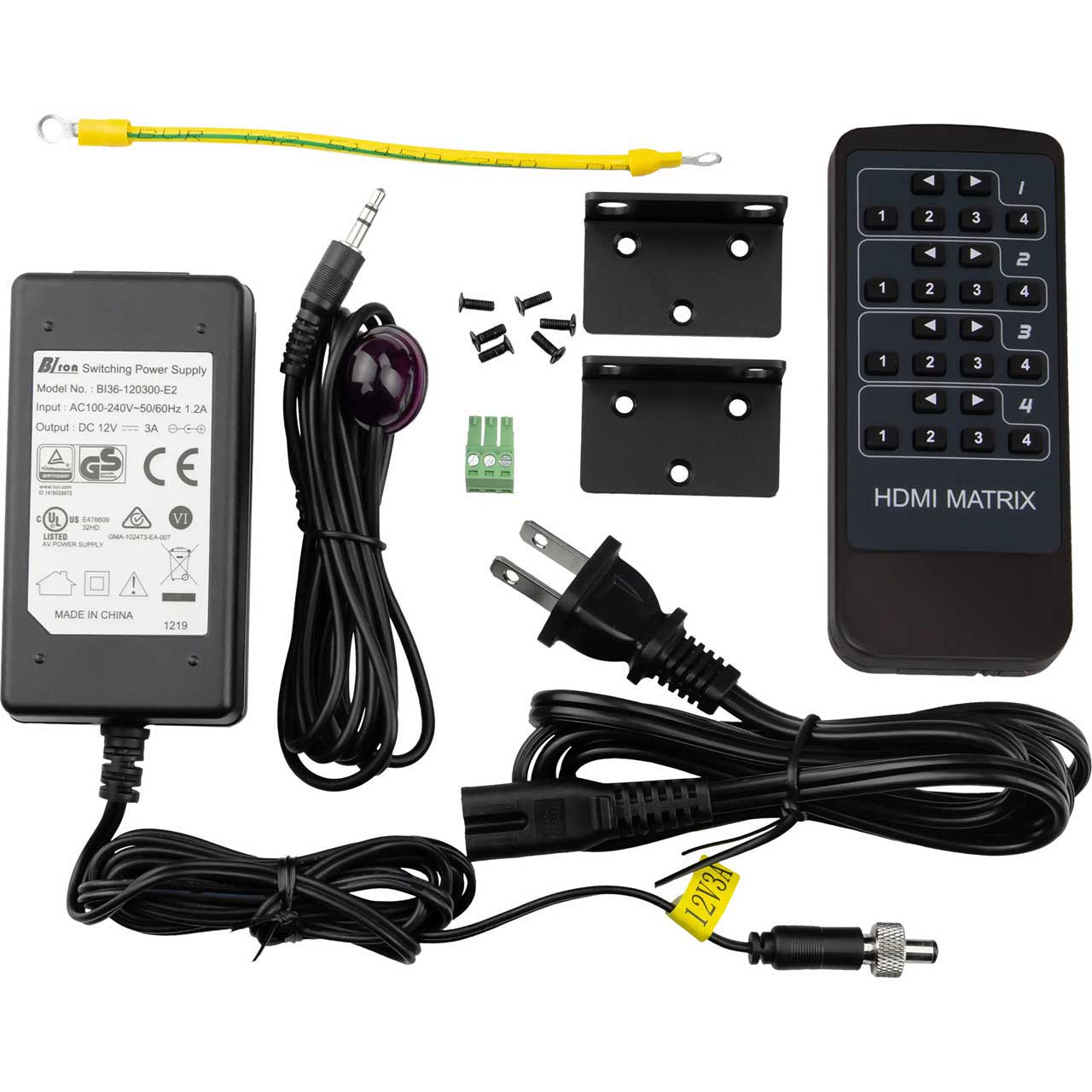

    • Item Includes:

      • 1x AVPro AC-MX-44 18Gbps 4x4 HDMI Matrix Switch
      • 1x 12V/3A Locking Power Supply
      • 1x IR Remote Control
      • 1x IR Extension Cable
      • 4x 5-Pin 2 Channel Audio Extraction Cables
      • 1x Three Pin Terminal Block
      • 2x Mounting Brackets

    • Warranty:

      • 10 Year Warranty

    • GTIN:

      0859762007235
