Blustream SW41AB-V2 4x1 4K HDMI 2.0 HDCP 2.2 Switcher

SW41AB-V2 - Overview

• Features:

  • Features 4 x HDMI inputs which can be switched to single HDMI output
  • Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)
  • HDCP2.2 compliant
  • Supports 3D signal display
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently

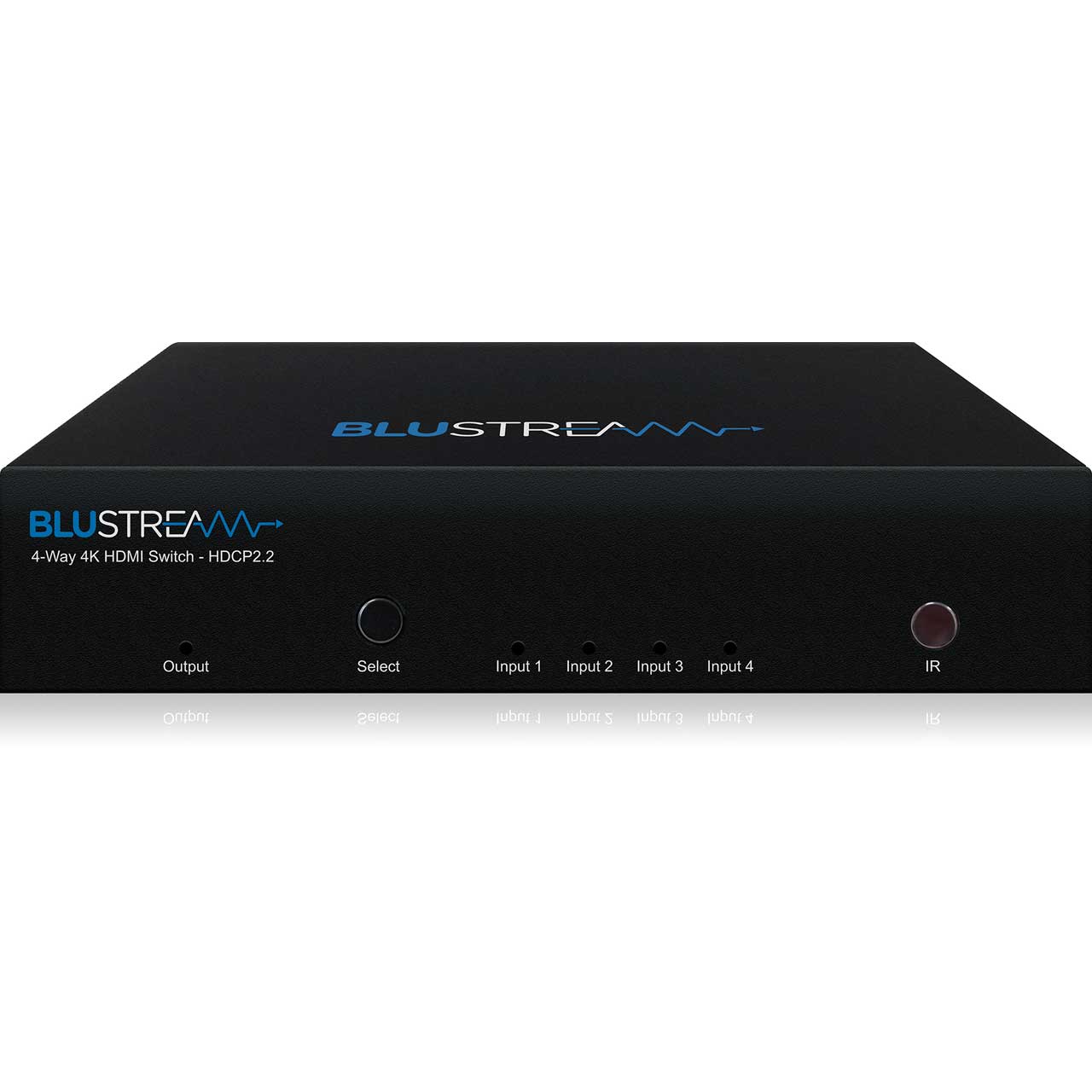

  • Control via front panel, RS-232 and IR
  • Advanced EDID management


• Specifications:

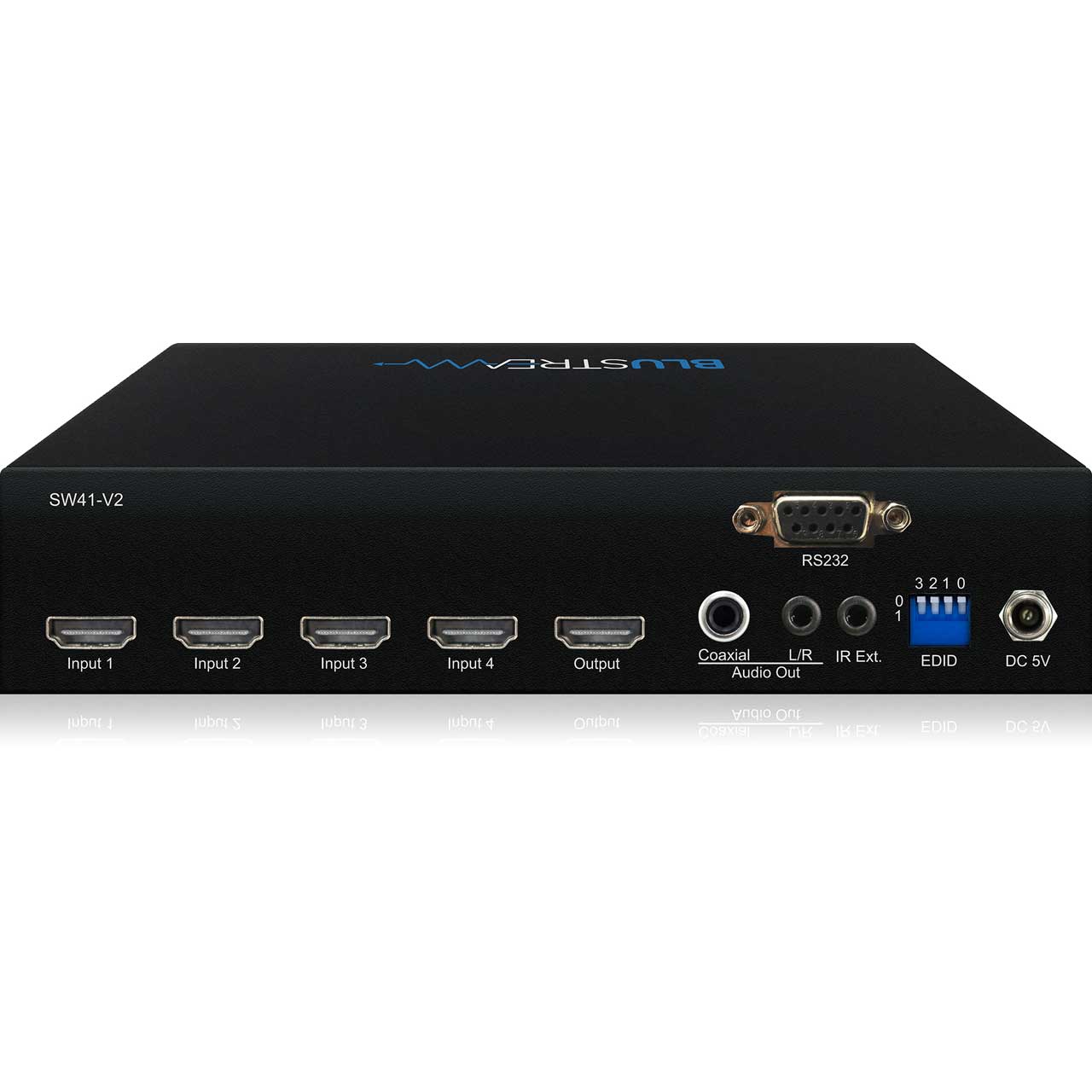

  • Video Input Connectors: 4 x HDMI Type A
  • Video Output Connectors: 1 x HDMI Type A
  • Audio Output Connectors:1 x RCA (S/PDIF) & 1 x Analog audio L/R (3.5mm stereo Jack)
  • IR Input Ports: 1 x 3.5mm stereo Jack
  • RS-232 serial port: 1 x DB-9, female
  • Casing Dimensions (W x H x D): 196mm x 41mm x 94mm
  • Dimensions including connections (W x H x D): 196mm x 41mm x 104mm
  • Shipping Weight: 0.9kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/2A DC


• Item Includes:

  • 1x SW41AB-V2
  • 1x SW41-REMOTE
  • 1x 5V/2A DC power supply
  • 1x User manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242001665
