BZBGEAR BZB-SW-41A 4x1 4K60Hz UHD Ultra Slim HDMI Switcher with IR Remote Control

ITEM #: BZB-SW-41A MFG #: BZB-SW-41A

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
BZBGEAR
Free Shipping with $49 Minimum Order

List Price:

$59.00

Our Price:

$47.20

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BZB-SW-41A - Overview

The BZBGEAR BZB-SW-41A is a 4X1 HDMI switcher that allows users to connect up to four HDMI sources to a single HDMI display. This HDMI 2.0 and HDCP 2.2 compliant device supports signals up to 4K@60Hz at 18Gbps.Extract HDMI audio (LPCM only) via the 3.5mm output without any loss of quality. This unit also supports HDMI High Bit Rate (HBR) audio pass through with audio sample rates up to 192kHz. Switching between sources is simple when using the front panel push button or the IR remote, and its compact design makes installation easy. The BZB-SW-41A also supports automatic switching when a new source is connected, or to the last connected source when a source is disconnected.

  • Features:

    • HDCP 2.2 High-Bandwidth Digital Content Protection supported
    • Crystal Clear Images - Capable of video resolutions up to 4K2K@50/60Hz (YUV444)
    • 3.5mm Audio Out - Extracts HDMI audio (LPCM only)
    • Simple to Use - Compact design is easy to install and use
    • HDR 10 bit HDR (High Dynamic Range) pass through
    • Reliable, built to last
    • Supports four HDMI inputs and one HDMI output
    • Built-in retiming and cable driver Supports HDCP, 3D and CEC bypass


  • Specifications:

    • Technical
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2 and HDCP 1.4
    • Video Bandwidth: 18 Gbps
    • Video Resolutions: Up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • Color Depth: 10-bit, 12-bit
    • HDMI Audio Formats: (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD: Master Audio, Dolby Atmos, DTS:X
    • L/R Audio Formats: Analog Stereo 2CH

      Connections

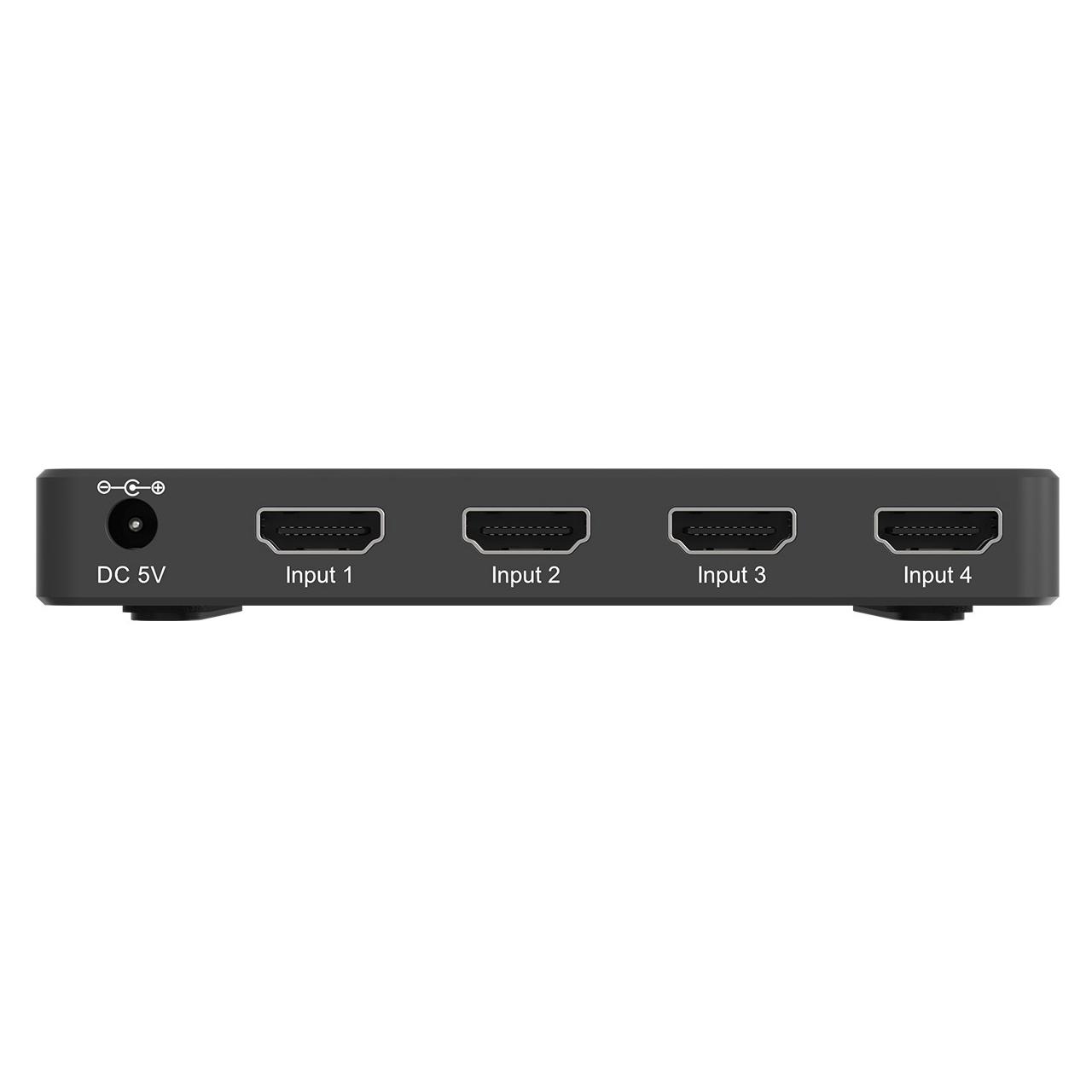

    • Inputs: 4x HDMI Type A (19-pin female)

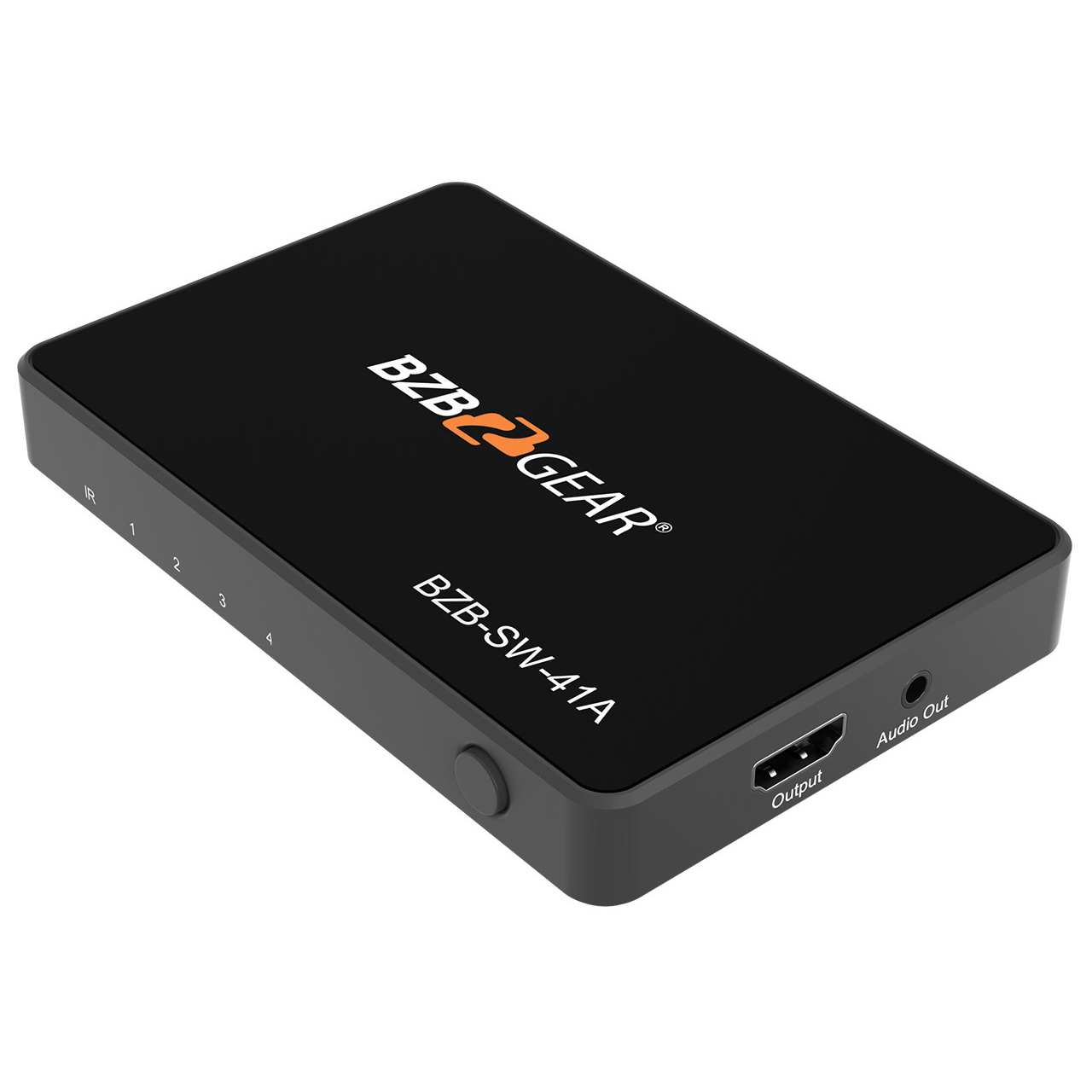

    • Outputs:
      - 1x HDMI Type A (19-pin female)
      - 1x L/R Audio Out (3.5mm Stereo Mini-jack)

      Mechanical
    • Housing: Plastic Enclosure
    • Color: Gray
    • Dimensions (WxDxH): 4.76" x 3.12" x 0.63" (120.97mm x 79.17mm x 16mm )
    • Weight: 0.43lbs (195g)
    • Power Supply Input: AC 100V - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 1W (Max)
    • Operation Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensation)


  • Item Includes:

    • 1x BZBGEAR BZB-SW-41A HDMI 4X1 Switcher
    • 1x 5V/1A Power Adaptor
    • 1x Remote Control unit
    • 1x User Manual


  • Warranty:

    • 3 Year Limited Warranty


  • GTIN:

    0850009357038
