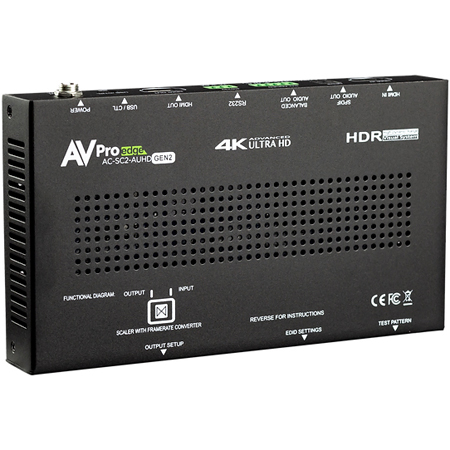

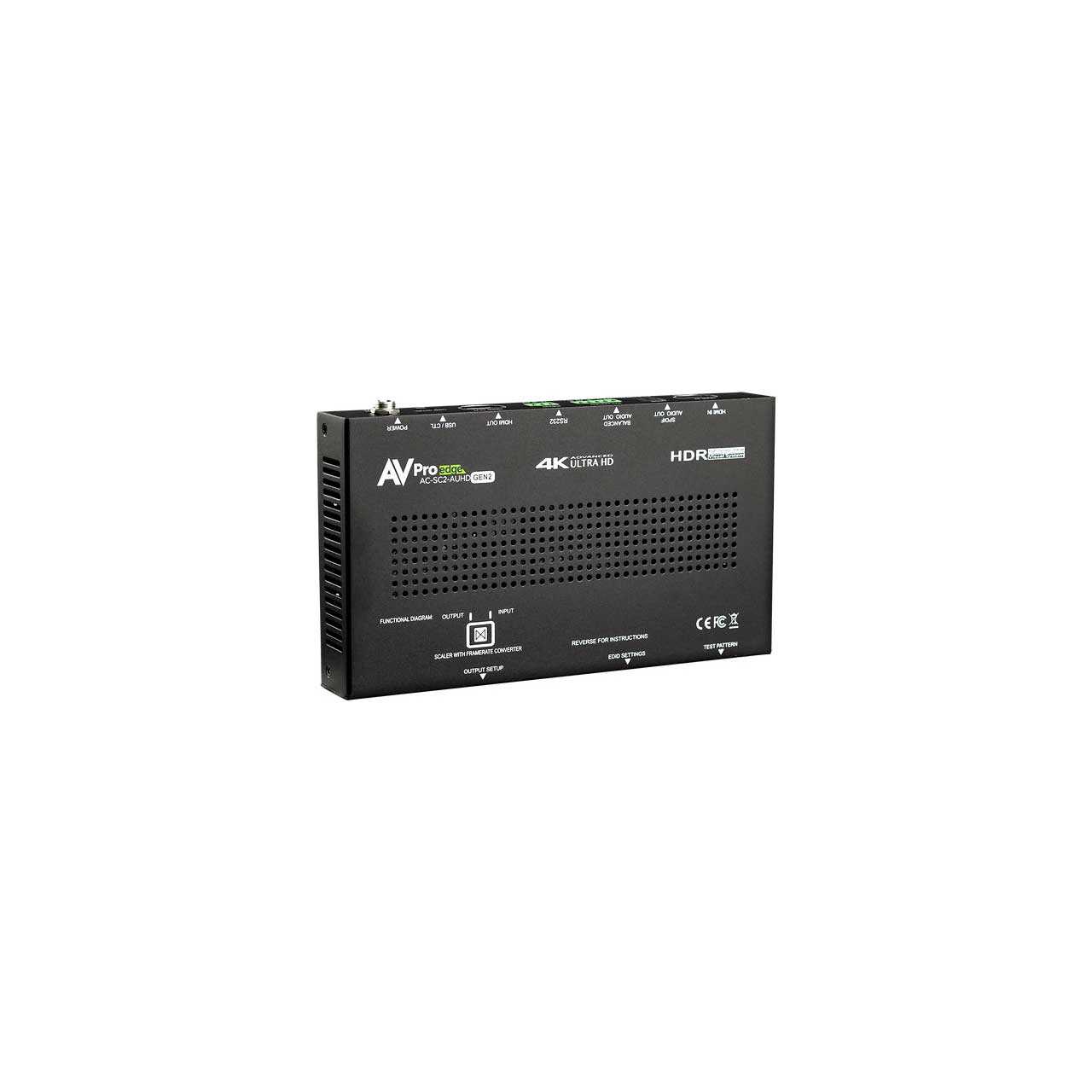

AVPro Edge AC-SC2-AUHD-GEN2 18Gbps HDMI Full Scaler/Interlaced/Progressive Frame Rate/Chroma EDID Manager

ITEM #: APR-ACSC2AUHDGEN MFG #: AC-SC2-AUHD-GEN2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the APR-ACSC2AUHDGEN

AC-SC2-AUHD-GEN2 - Overview

AVPro Edge's AC-SC2-AUHD-GEN2 is the ideal solution for integrators that need to distribute a signal to a variety of displays and keep an optimal picture. Integrators will enjoy the versatility of not only being able to control up/down scaling but han-dling EDID issues (including 4K HDR EDID's) and being able to access audio from the stream. This scaler is ready for future content as it can distribute 18Gbps signaling. Yet if you have 480, 720, or 1080 displays the AC-SC2-AUHD-GEN2 will make sure it's getting the right picture.

This product works great alongside one of the AVPro Edge's Matrix's allowing yourself to give the customer the best resolution possible.

  • Features:

    • HDMI 2.0(a/b)
    • Fixed Output Options 480P, 720P, 1080P & 4K
    • Adaptive Scaling Mode
    • Plug & Play Match Display Preference Mode
    • 16 EDID Options (Including Auto & HDR EDID Options)
    • L/R Audio De-embedding (PCM only, does not downmix)
    • Test Pattern Generation

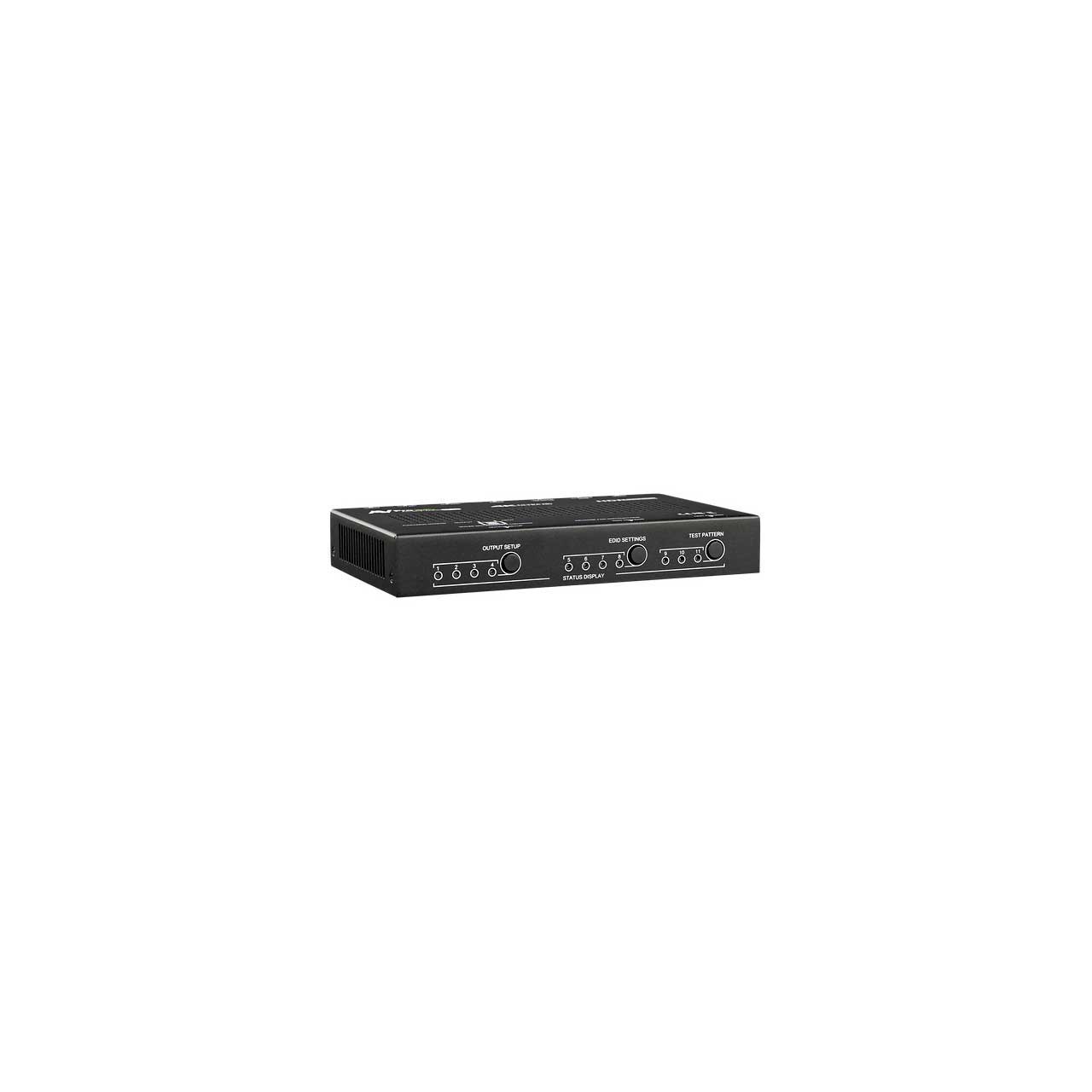

    • Simple, easy to use. 3-Button Operation
    • 18Gbps Bandwidth Support
    • Up to 4K60 4:4:4 Support
    • Full HDR Support (HDR 10 & 12 Bit)
    • HDR, HDR10+ and HLG Support
    • EDID Management and EDID emulate
    • 720P, 1080P & 4K Test Patterns built in for troubleshooting
    • HDCP 2.2 (and all earlier versions supported)
    • CEC Pass Through
    • 3D Support
    • LED Status, Link, Power indication lights
    • Micro USB port for control
    • Supports uncompressed PCM 2- Ch., LPCM 5.1 & 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos on HDMI
    • Can Cascade


  • Specifications:

    • Video
    • Video Resolutions: Up to 4K 60Hz 4:4:4
    • VESA Resolutions: Up to DCI 4K (4096X2160)
    • HDR Formats/Resolutions: 420, 422, 444 (10 AND 12 DEEP COLOR)
    • HDR10, HDR10+, DOLBY VISION, HLG
    • Color Space: YUV (Component), RGB
    • (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
    • Chroma Subsampeling: 4:4:4, 4:2:2, 4:2:0 Supported
    • Deep Color: Up to 16 bit (1080P) UP TO 12 BIT (4K)

      Audio
    • Audio Formats Supported HDMI: PCM 2 CH (No Downmix)
    • Audio Formats Supported Extracted (2 CH Port): PCM 2 CH (No Downmix)
    • Audio Formats Supported Extracted (Digital Toslink): PCM 2 CH (No Downmix)

      Scaling
    • Fixed Output Options
    • (Scales all input formats to the Same): 480P 60Hz, 720P 60Hz, 1080P 60Hz, 1920x1200 (Vesa), 4k 30Hz, 4k60Hz YUV 4:2:0, 4k60Hz, AUto (sink Device EDID) *See manual for more info
    • Framerate Conversion: Yes
    • Interlaced-> Progressive COnversion: Yes
    • Test Pattern Generator: Yes

      Distance
    • HDMI In/Out (4k60 4:4:4): UP TO 50 FEET (USING BULLET TRAIN HDMI)
    • HDMI In/Out (W/ AOC Cable) (4k60 4:4:4): UP TO 130 FEET (USING BULLET TRAIN AOC)

      Other
    • Bandwidth: 18 Gbps
    • HDCP: HDCP 2.2 and Earlier

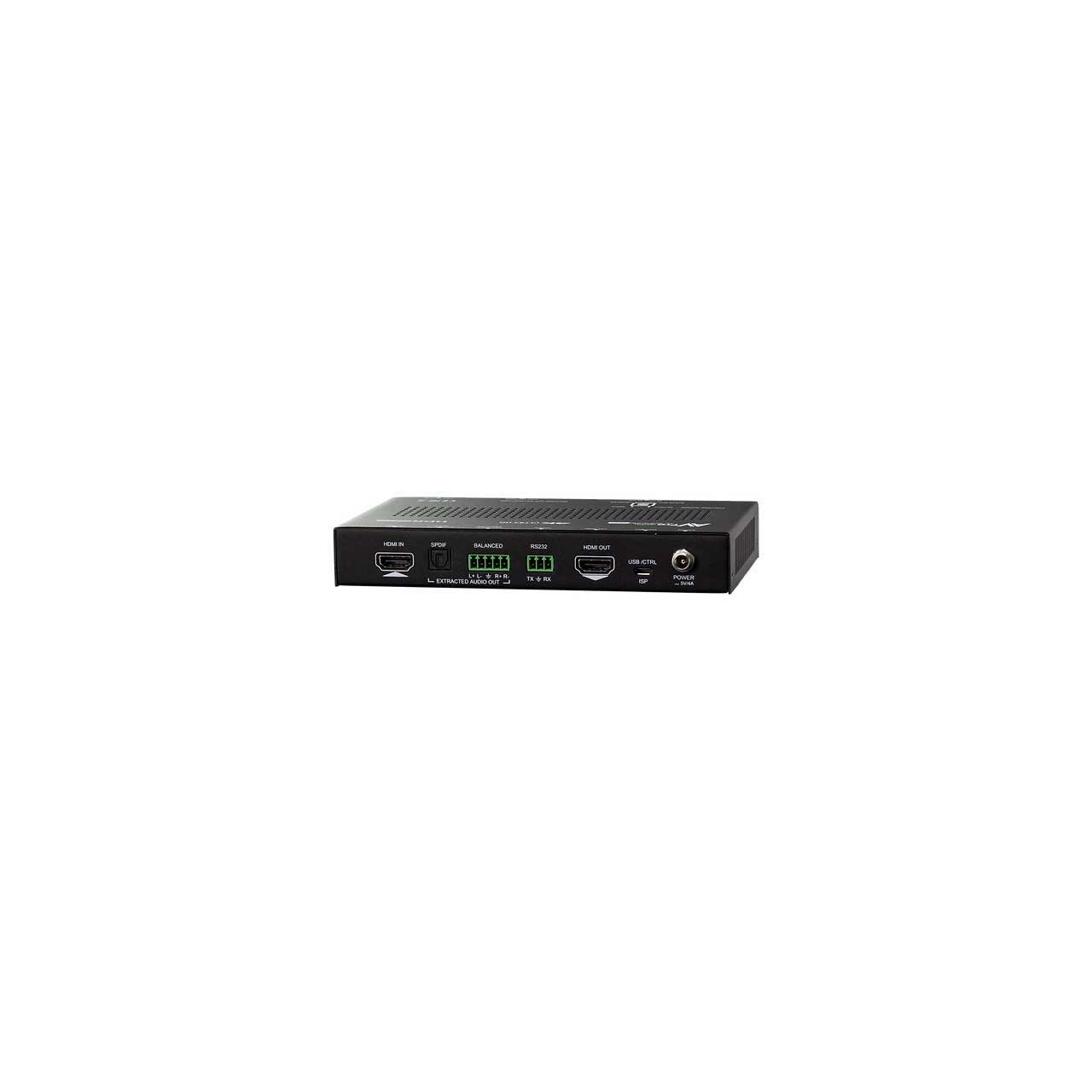

      Ports
    • HDMI: Type A
    • Audio (Extracted Analog): 5 Pin Terminal Block (balanced)
    • Audio (Extracted Digital): Optical Toslink
    • Firmware/Control: Micro USB AND RS232 (3 pin terminal block)
    • Power: Barrell Type 5V, 4A

      Environmental
    • Operating Temprature: 23 to 125°F (-5 to 51°C)
    • Storage Temperature: -4 to 140°F (-20 to 60°C)
    • Humidity Range: 5-90% RH (No Condensation)

      Power:
    • Power Consumption (Total): 10 watts max
    • Power Supply: Input: AC 100-240V ~ 50/60Hz
    • Output: DC 5V 4A

      Dimensions
    • Dimensions (Unit Only LxWxH): 4.25 X 7.25 X 1.11" (107.92 X 184.15 X 28.1mm)
    • Dimensions (Packaged LxWxH): 7.25 X 12.44 X 3.13" (184.2 X 316 X 79.5mm)
    • Weight (Unit): 0.7 LBS (0.32 KG)
    • Weight (Packaged): 1.4 LBS (0.64 KG)

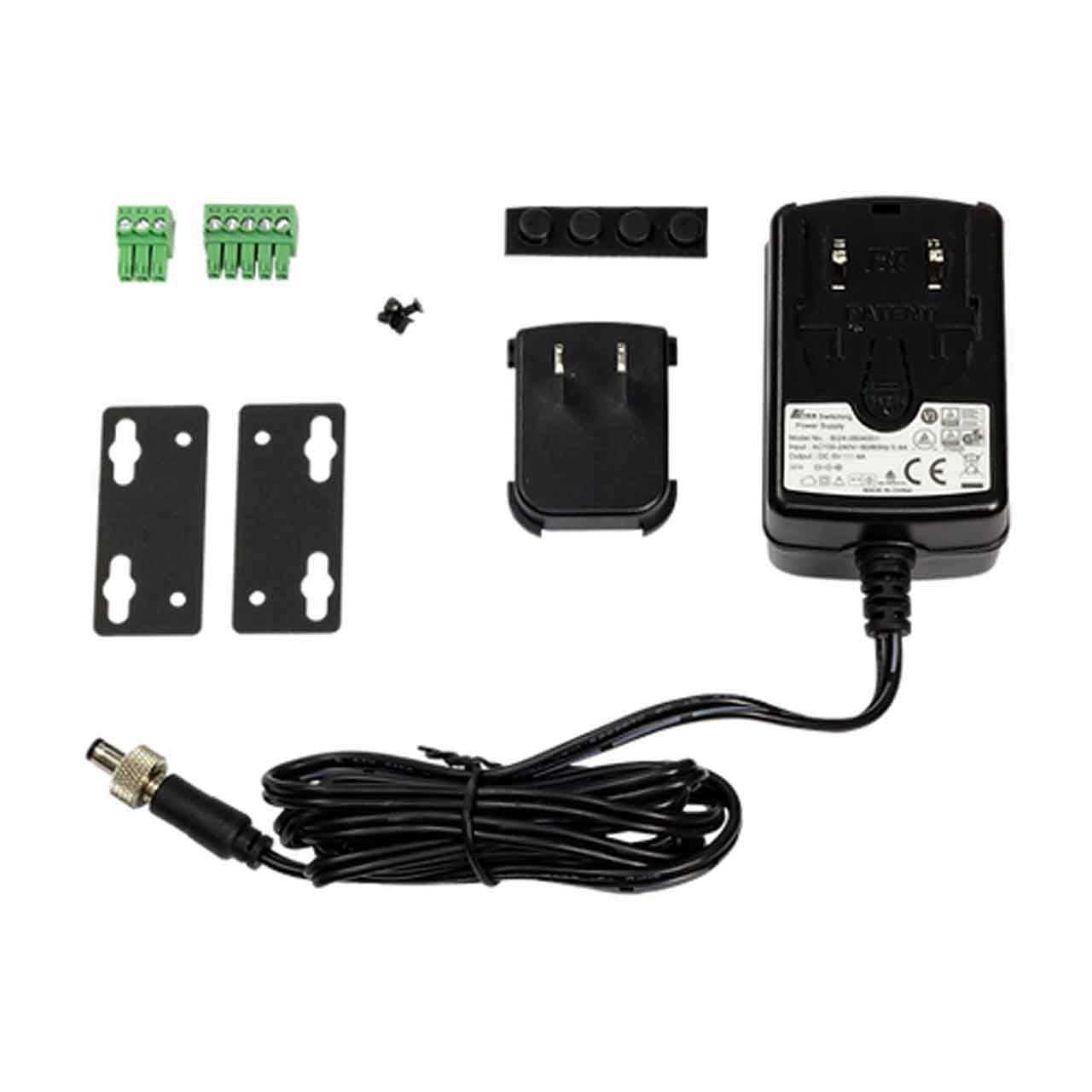

  • Item Includes:

    • 1x AC-SC2-AUHD-GEN2
    • 1x 5V 4A Power Supply
    • 1x Mounting Ears
