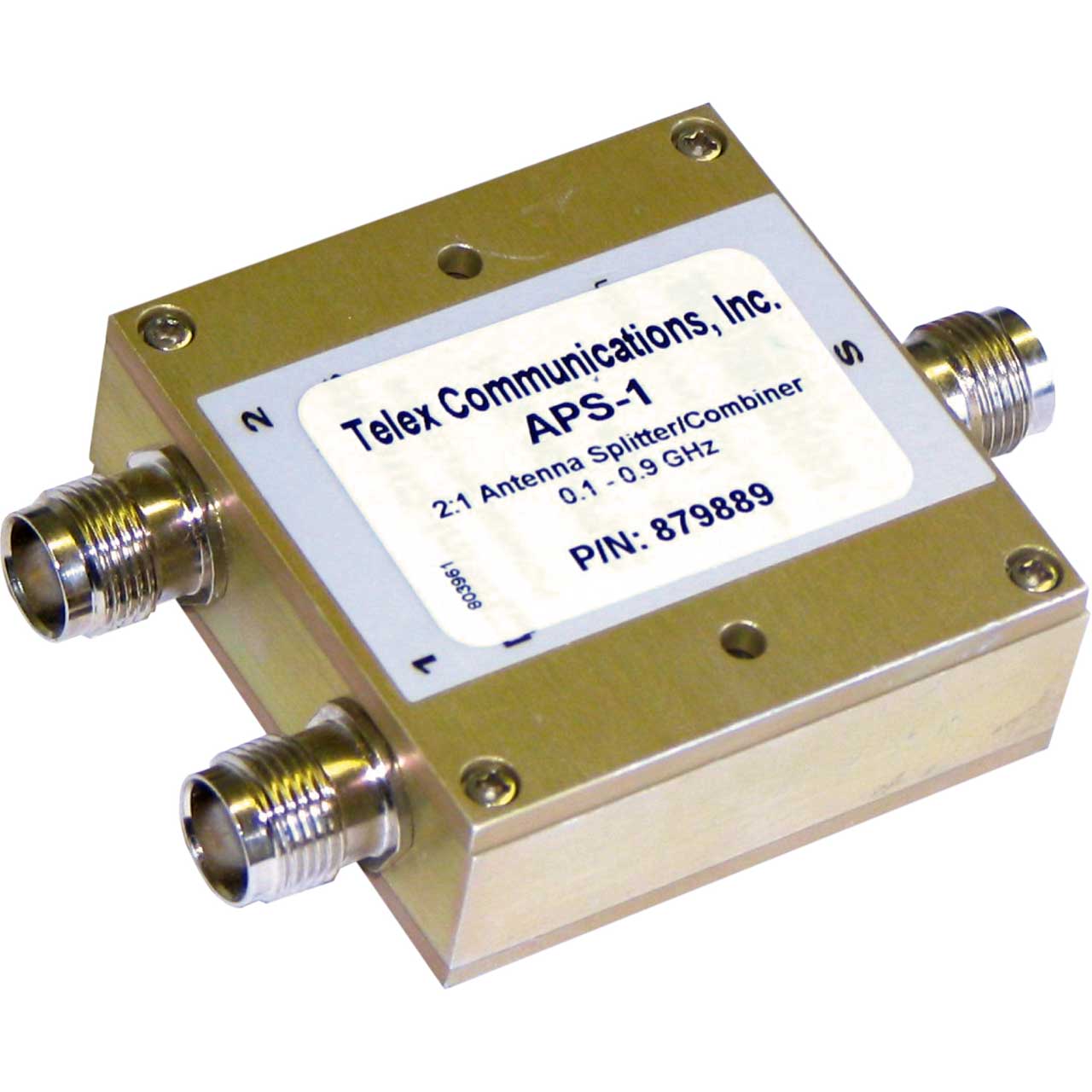

RTS APS-1 Antenna Combiner-Splitter For 2-1 Input-Output

APS-1 - Overview

• Features:

  • Small Size, approximately 2" x 2"
  • Convenient TNC connectors (No coaxial adapters required)
  • Signal Loss: -3.5dB, typical
  • Frequency Range: 100MHz to 900MHz
  • Low insertion loss, 0.3dB, typical (loss above 3dB)
  • Good UHF isolation, 26dB, typical
  • Up to 5W power input as splitter
  • Excellent amplitude unbalance, 0.1dB, typical
  • Excellent phase unbalance, 1 degree, typical
  • Rugged shielded case


• Specifications:

  • Operating Temperature................-55°C to 100°C (-67°F to 212°F)
  • StorageTemperature....................-55°C to 100°C (-67°F to 212°F)
  • Power Input matched on all parts (as a splitter)...........5W max.
  • Internal Dissipation.........................1W max.
  • Frequency Range..........................100MHz to 900MHz.
  • Isolation..........................................23dB typ, 18dB min.
  • Insertion Loss Above 3.0dB............0.3dB typ, 1.0dB max.
  • Phase Unbalance (degrees)...........3 max.
  • Amplitude Unbalance.....................0.3dB max.
  • VSWR...........................................1.5:1 max.
  • RoHS.............................................Compliant
  • Product Dimensions/Weight.......... 4" D x 3" W x 3" H, 1lb.


• GTIN:

  0800549424943
