ARRI L0.0038047 Orbiter 60 Degree LED Light Set w/ Manual Yoke - Lens - Control Panel - Cables - Blue/Silver

L0.0038047 - Overview

• Features:

  • Orbiter with Manual Yoke & 30° Lens
  • Control Panel with 16.4' Remote Cable
  • Power Cord with Switch, 4-Way Barndoors
  • RGB Mode: 2000-20,000K, CRI/TLCI: 98/95


• Specifications:

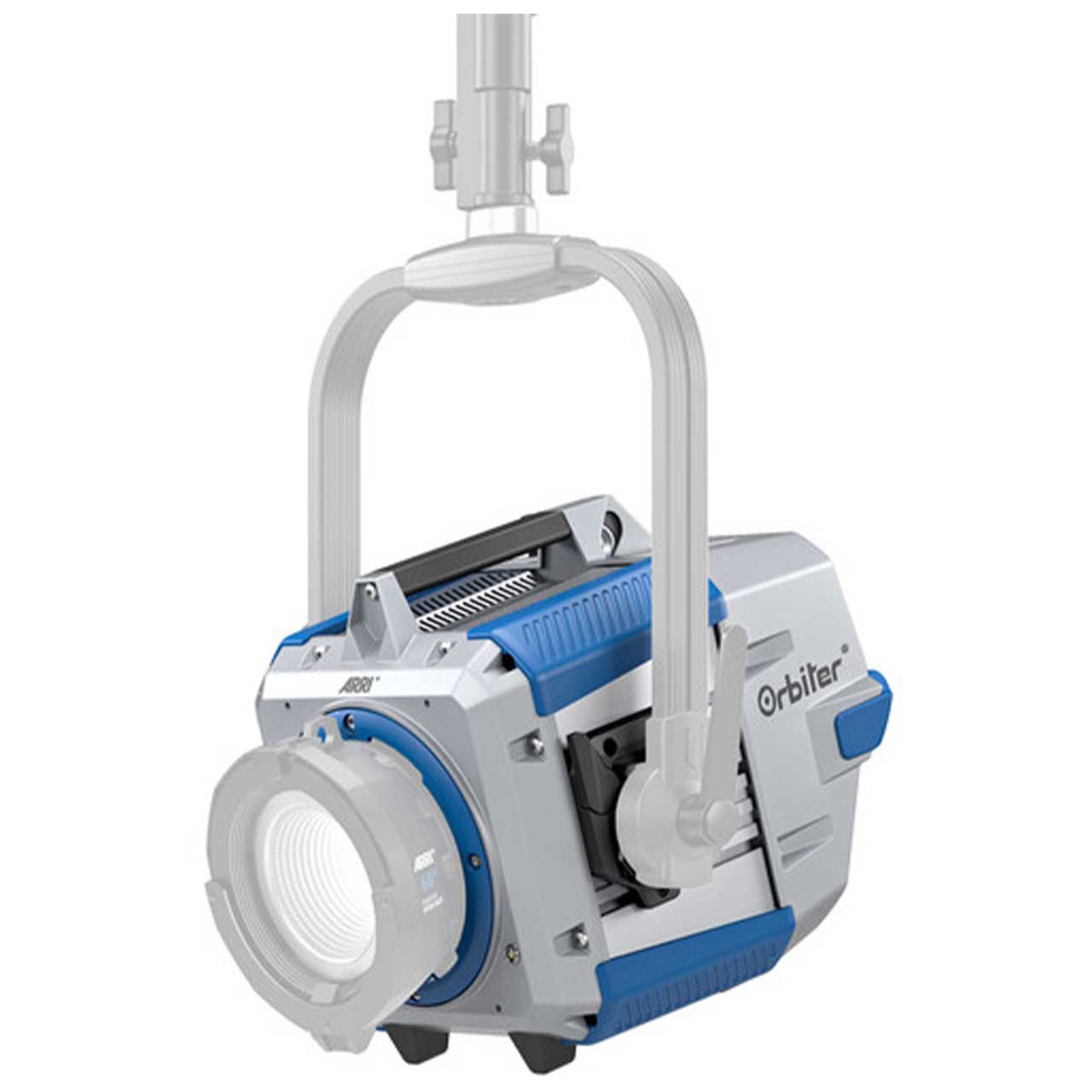

  • ARRI Orbiter LED Light With Open Face
  • Photometrics: 30° at 3200K: 4152 fc / 44,700 Lux at 3.3' / 1m (with Reflector)*, 461 fc / 4970 Lux at 9.8' / 3m (with Reflector), 166 fc / 1790 Lux at 16.4' / 5m (with Reflector). 30° at 5600K: 5388 fc / 58,000 Lux at 3.3' / 1m (with Reflector)*, 598 fc / 6445 Lux at 9.8' / 3m (with Reflector), 215 fc / 2320 Lux at 16.4' / 5m (with Reflector)
  • Color Modes: RGB
  • Color Accuracy Standard: CRI 98, TLCI: 95
  • Dimming: Yes, 0 to 100% (Continuous)
  • Display: LCD
  • Housing Material: Aluminum
  • Number of LEDs: 190 (RGB)
  • Expected Lamp Life: 50,000 Hours (L70)
  • Power Input Connection: XLR 3-Pin, powerCON
  • DMX Connection: XLR 5-Pin, RJ45
  • Service Connection: USB Type-A
  • Lens: Reflector Mount, ARRI QLM
  • Mounting: Yoke Mount, ARRI Quick Release
  • Remote Type: DMX, Wired Remote
  • AC Input Power: 100 to 260 VAC, 50 / 60 Hz
  • Power Source: AC Adapter, External Battery
  • Max Power Consumption: 500 W
  • Power: Pass-Thru
  • Operating Temperature: -4 to 113°F (-20 to 45°C)
  • Package Weight: 29.44 lb
  • Box Dimensions (L x W x H): 18.2 x 15.1 x 14.5"

    Manual Yoke With Spigot For Orbiter
  • Package Weight: 8.245 lb
  • Box Dimensions (L x W x H): 25.3 x 18.5 x 6.2"

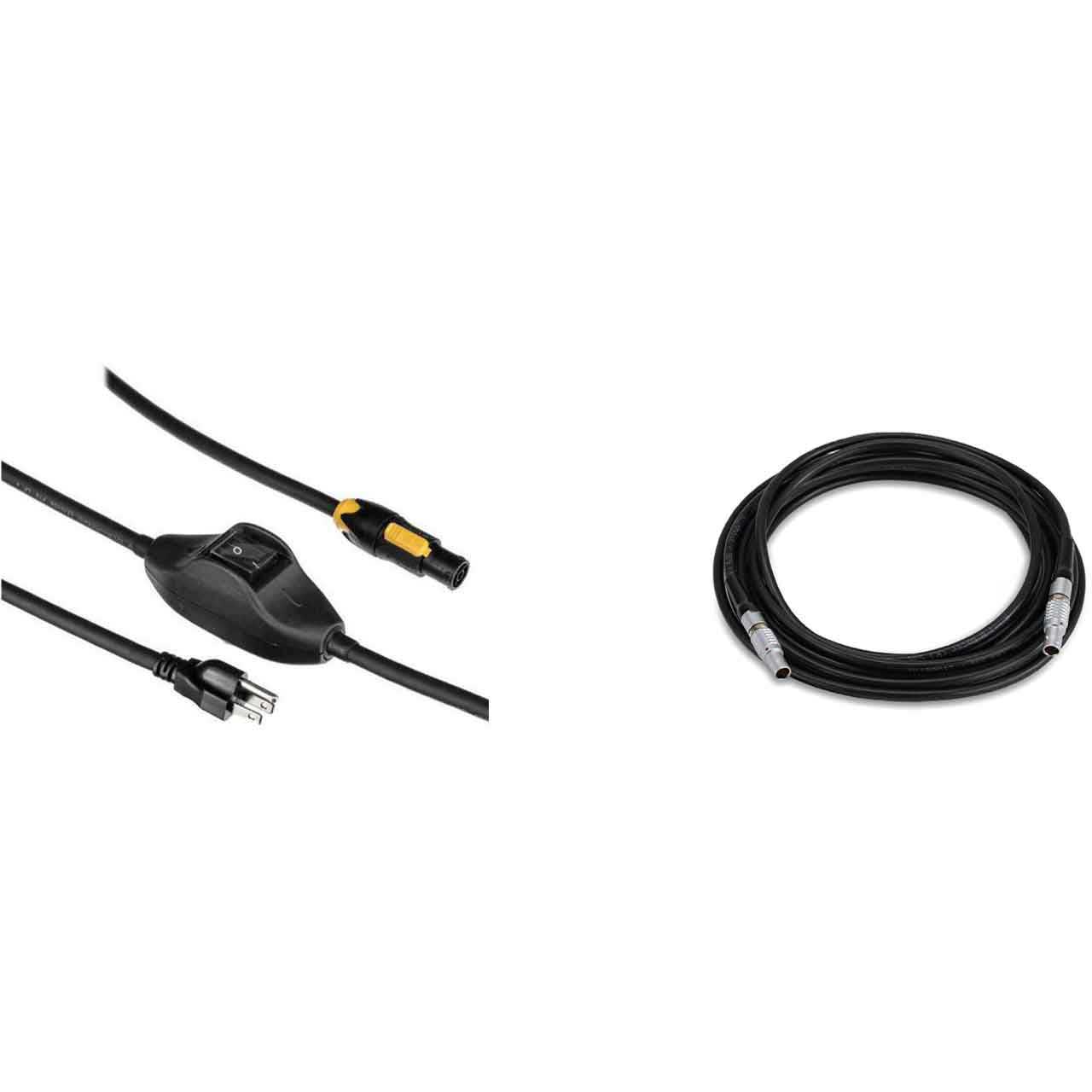

    Power Cord With Switch (23')
  • Connector 1: NEMA 5-15 Male
  • Connector 2: PowerCon Female
  • Cable Length: 22.97' / 7 m
  • Package Weight: 2.75 lb
  • Box Dimensions (L x W x H): 9.5 x 8 x 3.3"

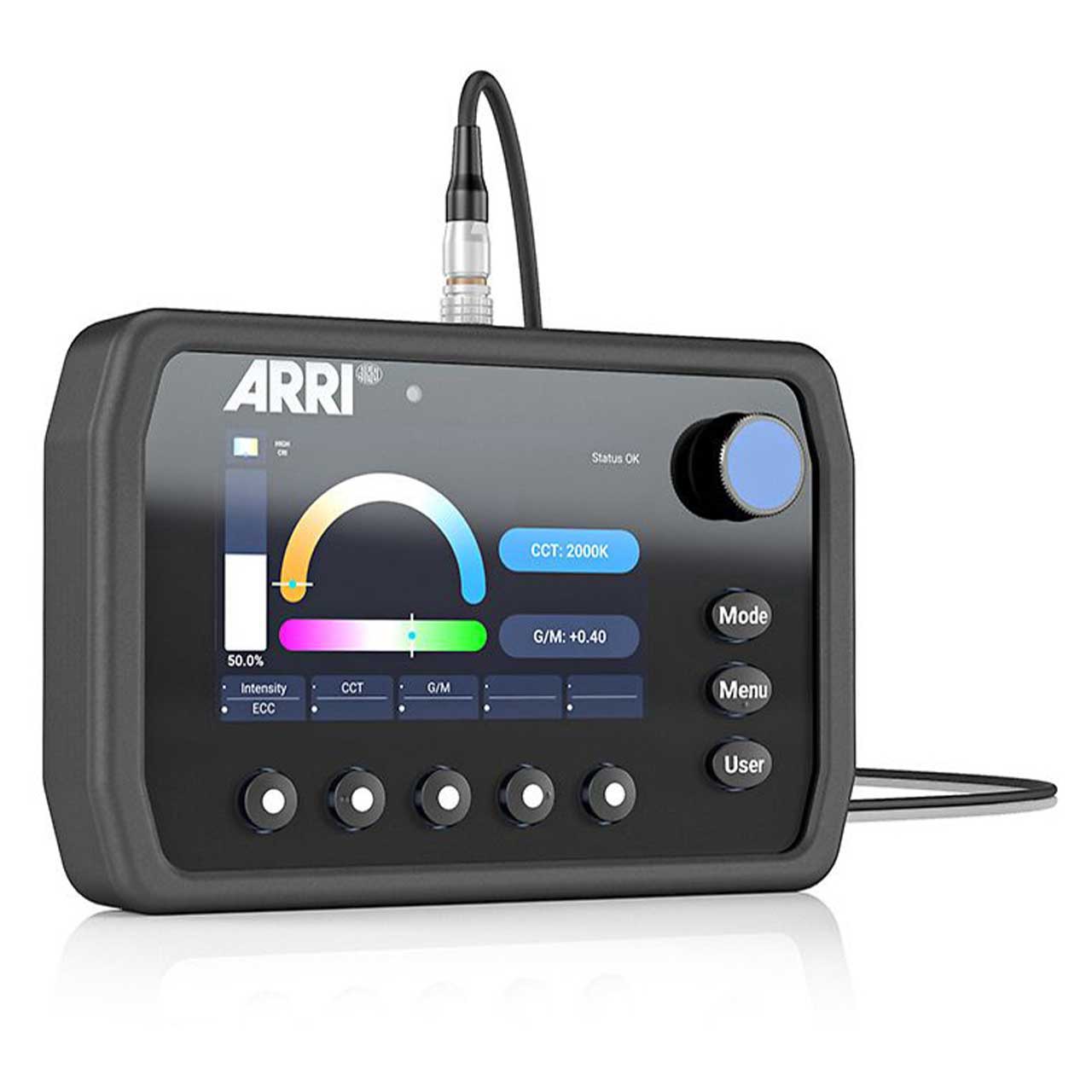

    Control Panel For Orbiter Specs
  • Display: 4.0" (10.2 cm) Full Color
  • Package Weight: 1.6 lb
  • Box Dimensions (L x W x H): 11 x 7.5 x 4.75"

    Cable For Orbiter Control Panel (16.4')
  • Length: 16.4' (5.0 m)
  • Package Weight: 0.65 lb
  • Box Dimensions (L x W x H): 10.4 x 8.2 x 2.95"

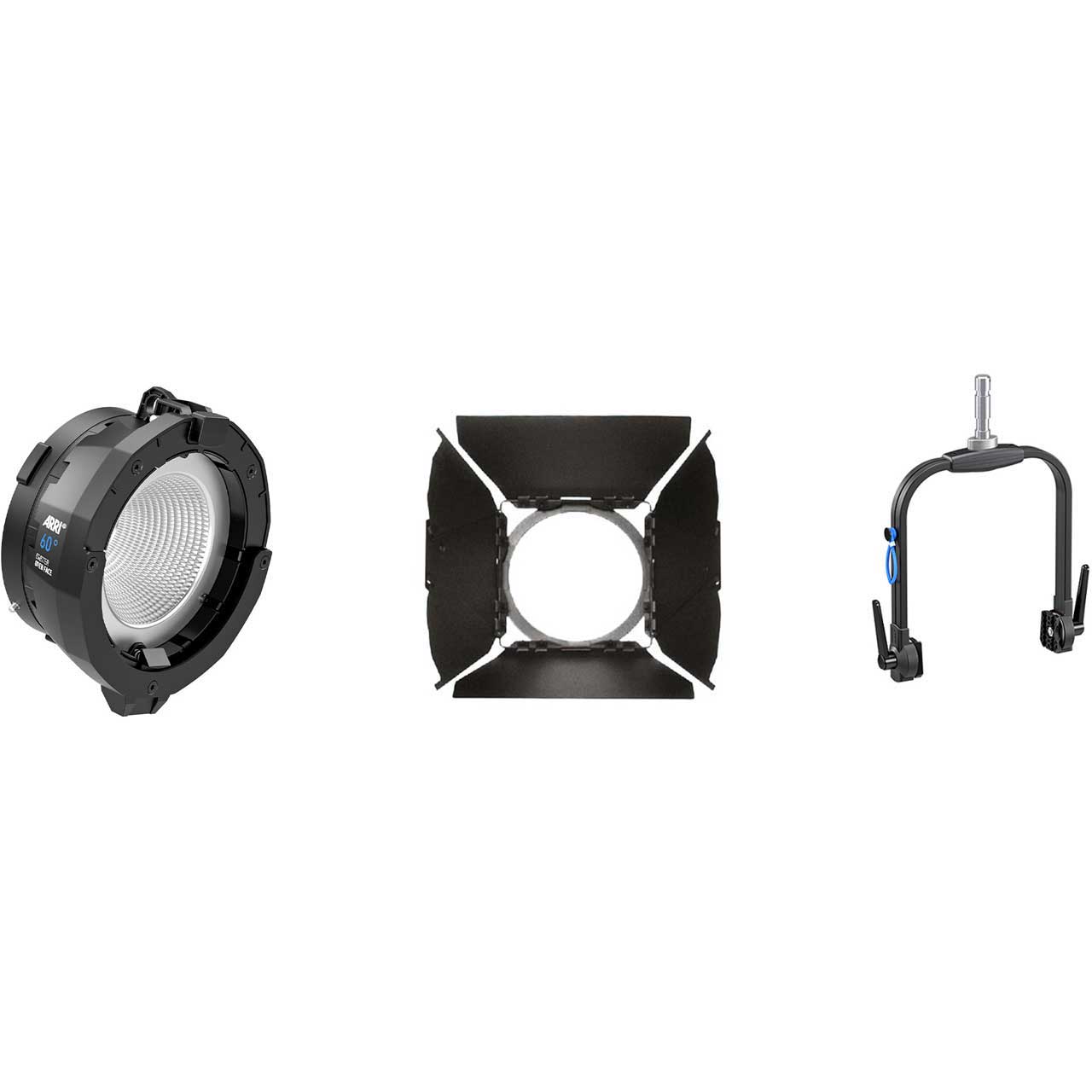

    Open Face Optic For Orbiter LED Light (30-Degree)
  • Item Type: Open Face Reflector
  • Light Compatibility: Direct Attachment (Requires No Bracket/Speed Ring) with ARRI QLM Mount: For ARRI Orbiter LED
  • Accepts Grids: No
  • Beam Angle: 30°
  • Package Weight: 3.22 lb
  • Box Dimensions (L x W x H): 15.5 x 10.6 x 9.65"

    4-Leaf Barndoor Set
  • Item Type: 4-Leaf Barndoors
  • Light Compatibility: 6-5/8" Diameter Mount: For ARRI Orbiter Open Face 60° / ARRI Orbiter Open Face 30° / ARRI L5 / ARRI ARRILITE 750 Plus / ARRI 650 Plus
  • Materials: Metal
  • Dimensions: Ø6.6"
  • Package Weight: 2.44 lbs
  • Box Dimensions (L x W x H): 12.6 x 9.65 x 6.8"

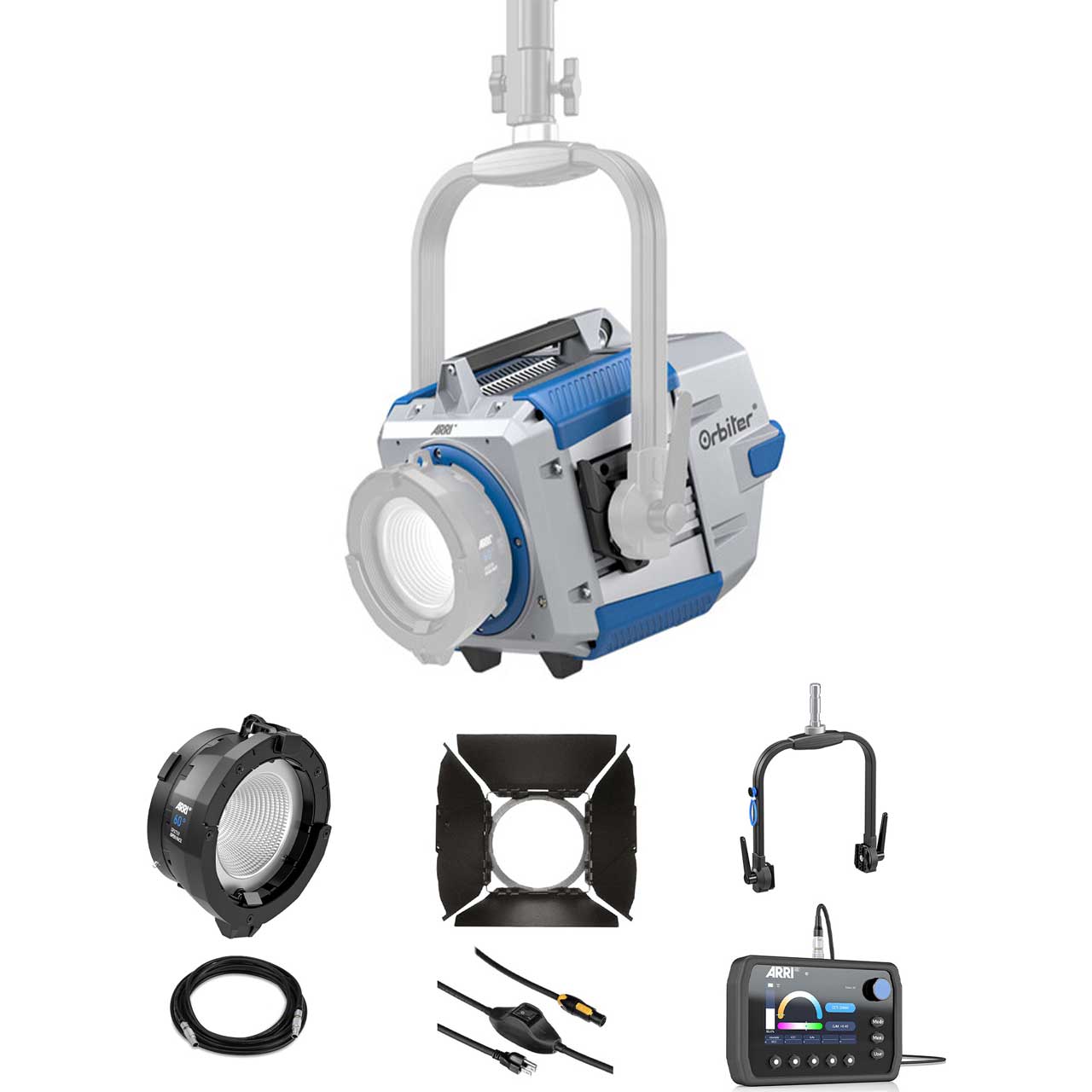

• Item Includes:

  • 1x Orbiter without yoke and cable
  • 1x Orbiter manual yoke with spigot
  • 1x Mains cable, 7m, powerCON TRUE1 TOP Edison, with line switch
  • 1x Control Panel for Orbiter - incl. Carrying pouch, D-Ring, & Lanyard
  • 1x Cable for Control Panel
  • 1x Open Face Optic 60° Single for Orbiter
  • 1x 4-Leaf Barndoor (6.6'/168mm) for 30° and 60°
