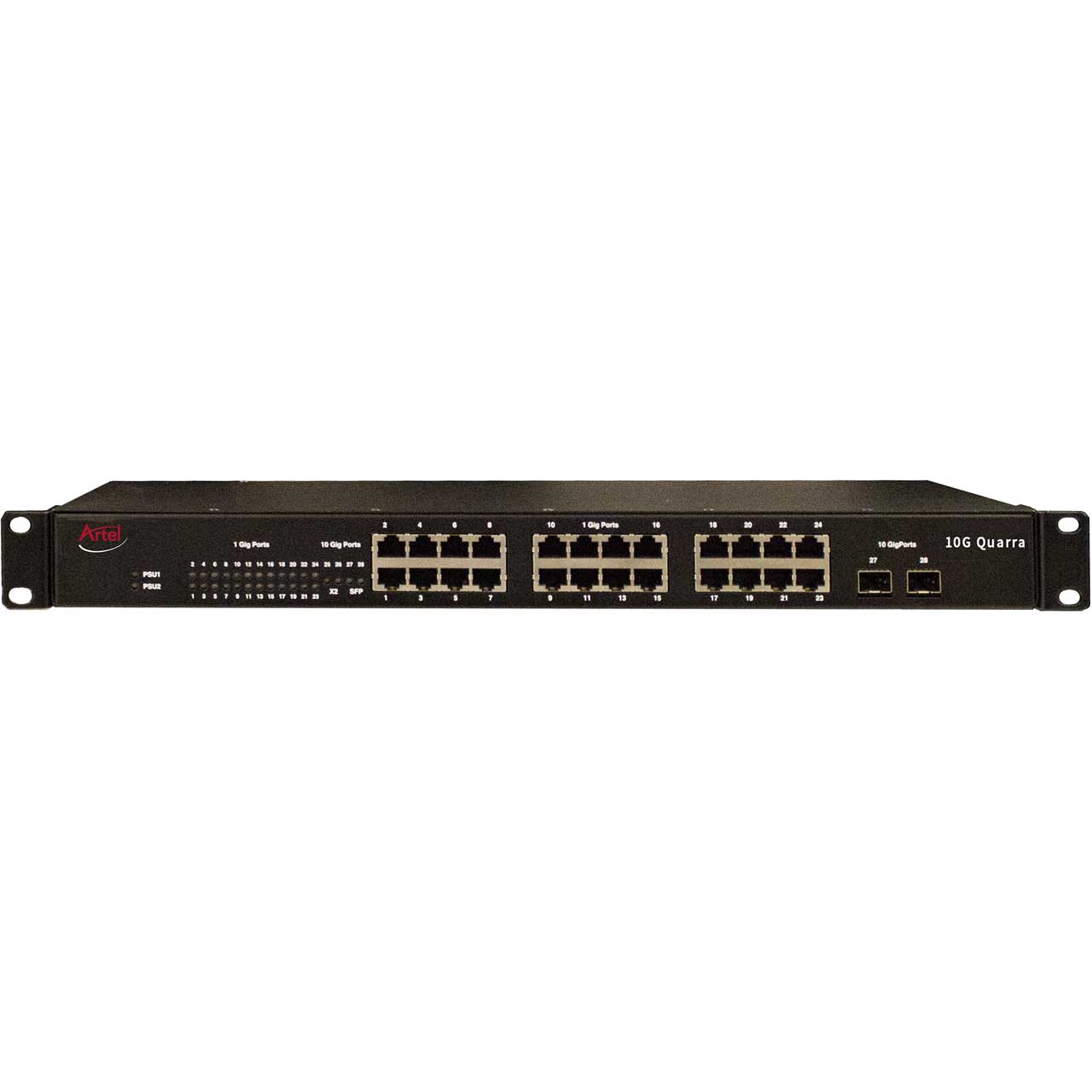

Artel 10000-EQ001-BOM 10G Ethernet Switch QUARRA PTP Switch

390-100001-00 - Overview

• Features:

  • SMPTE ST 2059-2 & ST 2110-10 Ethernet Switching
  • RAVENNA AES67 Ethernet Switching
  • Industry's most Accurate IEEE 1588 Timing & Synchronization for nanosecond accurate timing
  • Synchronous (L1) Ethernet, Master, and Slave. Precision clock timing using DSPLL technology
  • 1pps reference. Network wide synchronization using IEEE1588 or SyncE
  • SMPTE Standards-based Timing: ST 2110-10 System Timing and Definition; ST 2059-2 SMPTE Profile for Use of IEEE-1588 Precision Time Protocol in Professional Broadcast Applications
  • IEEE802.1 AVB
  • Full management from Web GUI or command line interface. No training required-units can be quickly and easily configured

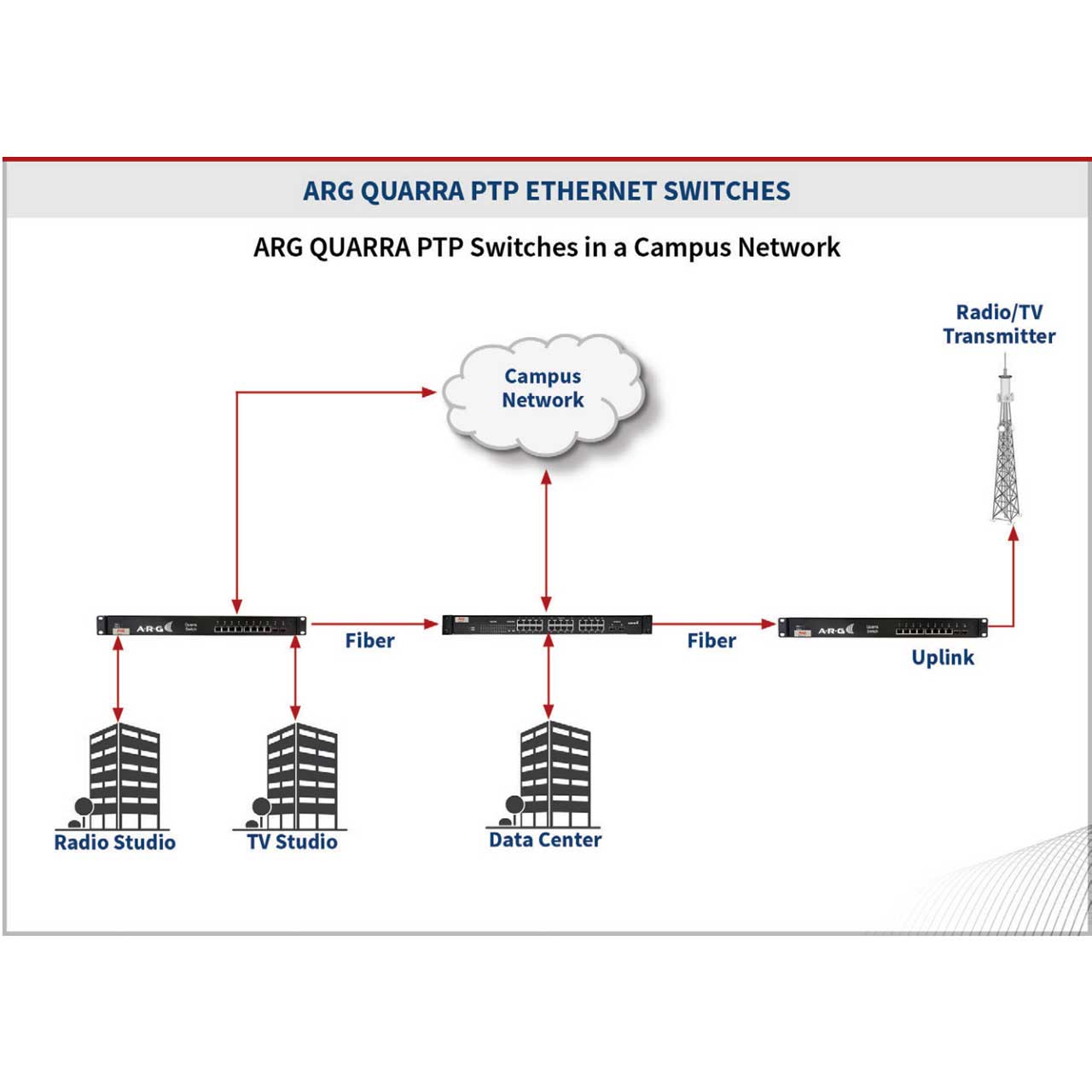

  • Live Video/Audio broadcast/production over IP utilizing IEEE 1588 timing, QoS, and Multicast filtering
  • Broadcast DTT/DTV IP distribution, utilizing IEEE 1588 and SyncE timing to replace or backup GPS timing at base stations
  • Telecoms networks, providing high level of network timing
  • Financial/trading networks, utilizing our IEEE1588 precise nanosecond time synchronization


• Specifications:

  • Carrier Ethernet
  • Layer-2 IEEE 1588v2 : Precision Time Protocol (PTP) timing and synchronization
  • IEEE 802.1ad : Provider bridging (VLAN Q-in-Q) switch - 8 MACs, 4K VLANs
  • Per queue MEF E-LINE or per port MEF E-LAN, E-TREEService Points
    - Per port per queue Dual Leaky Bucket Service Policers with PCP or DSCP remarking per Service port
    - Static tagging options per Service Point
  • OAM Hardware for generating CCM messages, CCM checking is done by software
    - Software of OAM and protection switching

    Quality of Service
  • EPS and ERPS Protection Switching
  • TCAM-based VLAN classification and translation with pattern matching against Layer-2 through Layer-4 information
  • Up to 256 QoS and VLAN TCAM entries
  • Eight QoS queues per port with strict or deficit weighted round-robin scheduling (DWRR)
  • DSCP translation, both ingress and/or egress
  • DSCP remarking based on QoS and VLAN TCAM entries
  • VLAN (PCP, DEI and VID) translation, both ingress and egress
  • Per-queue, per-port policing and shaping, programmable in steps of 100 kbps
  • Per-flow policing through TCAM-based pattern matching, Up to 256 policers
  • Full-duplex flow control (IEEE 802.3x) and half-duplex backpressure, symmetric and asymmetric

    Layer 2 Switch
  • Port mirroring
  • Port-based access control
  • IEEE 802.3ad: Link aggregation
  • IEEE 802.1x: Network Access Control
  • IEEE 802.1w: Rapid Spanning Tree Protocol
  • IEEE 802.1s: Multiple Spanning Tree Protocol
  • Simple Network Management Protocol (SNMP)
  • Independent and shared VLAN learning
  • 256 VLAN egress tagging TCAM entries
  • Link aggregation traffic distribution is programmable and based on Layer-2 through Layer-4 information
  • Basic Switching - Forwarding, address learning and address aging
  • VLAN IEEE 802.1Q (4,096 VLAN's) - Push / pop / translate up to two VLAN tags; translation in ingress and / or egress
  • 8,192 MAC addresses. Including Generic Attribute Registration Protocol (GARP)
  • Wire-speed hardware-based learning and CPU-based learning configurable per port

    Multicast
  • 8K Layer-2 Multicast group addresses with 64 port masks
  • 8K IPv4/IPv6 multicast groups
  • Internet Group Management Protocol v2 & v3
  • Multicast Listener Discovery (MLDv1)
  • Multicast Listener Discovery (MLDv2) with source specific multicast forwarding
