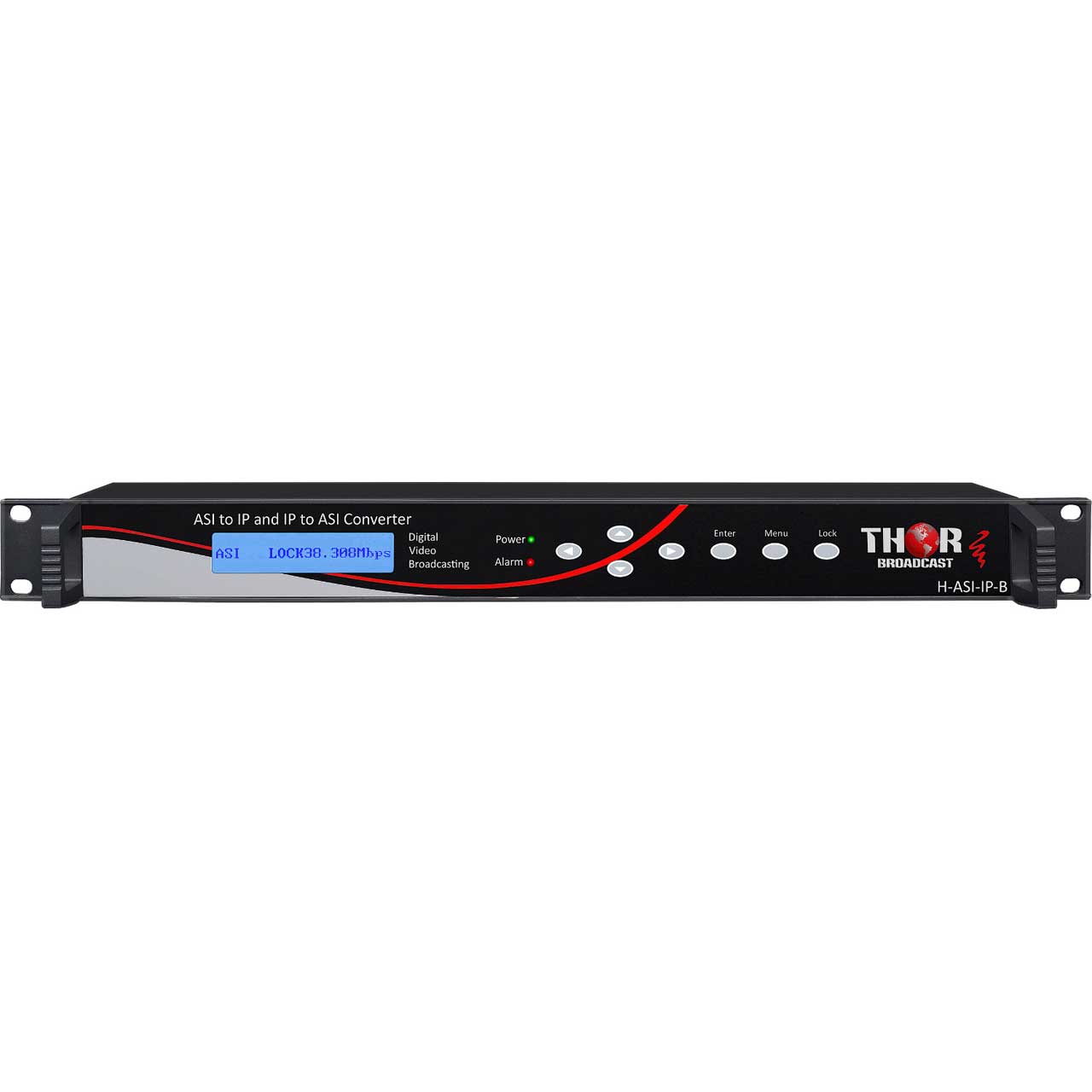

Thor H-ASI-IP-B ASI over IP Network Gateway for Ethernet Transport

ITEM #: THR-ASI-IP-B MFG #: H-ASI-IP-B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,994.00

Our Price:

$2,495.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


H-ASI-IP-B - Overview

IP to ASI and ASI to IP technology from Thor Broadcast allows for the highest performance in the distribution of digital video streams, satisfying all needs in terms of MPEG transport stream distribution in SFN networks. With our IP to ASI and ASI to IP technologies, Thor Broadcast is able to help our customers transfer an MPEG transport stream through an IP network with maximum efficiency.

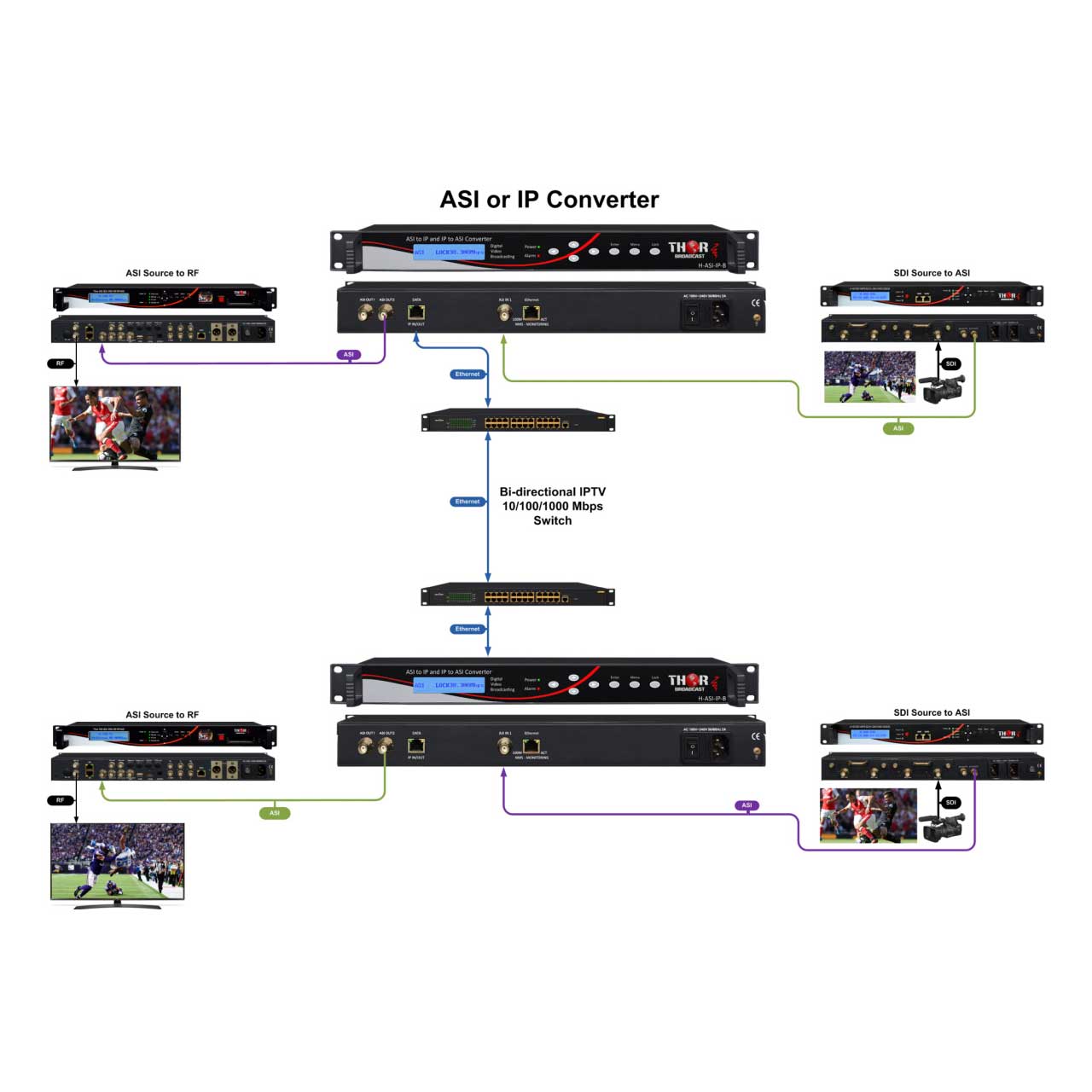

The H-1 ASI to IP system from Thor Broadcast is an ASI over IP video gateway for Digital Video Broadcast systems. DVB-ASI video transport links between two broadcasting locations can be both difficult and expensive to set up but fortunately, ASI to IP gateways from Thor Broadcast provide a much simpler and more reliable method for MPEG 2 transport of ASI video through IP Ethernet networks. The H-1 ASI to IP acts as an ASI over IP encapsulator, in which the MPEG transport streams are carried through the packet based network, with wireless network equipment such as wireless bridges often being used as a means to increase flexibility. Our units are capable of bi-directional transport, including products, which are able to carry multiple SDVB ASI Transport Streams within the same IP Pipe. ASI to IP video gateways offer an ideal solution for your MPEG 2 transport over IP needs, so call us today at (650) 479-5485 and our expert staff will be glad to help you with all issues relating to our IP to ASI and ASI to IP services. ASI to IP Management software also available.

  • Features:

    • Transport up to 80 Mbps MPTS ASI Over Ethernet
    • Highly reliable error correction and packet buffer
    • Works well with dedicated Ethernet connections
    • Strips null packets to reduce bandwidth over IP
    • Full duplex transport in both directions over IP

  • Specifications:

    • Ethernet Interface: 100BaseT, RJ45 interface or 100/1000M Basset, RJ45 interface
    • Configuration: Remote Management Software, Front Panel

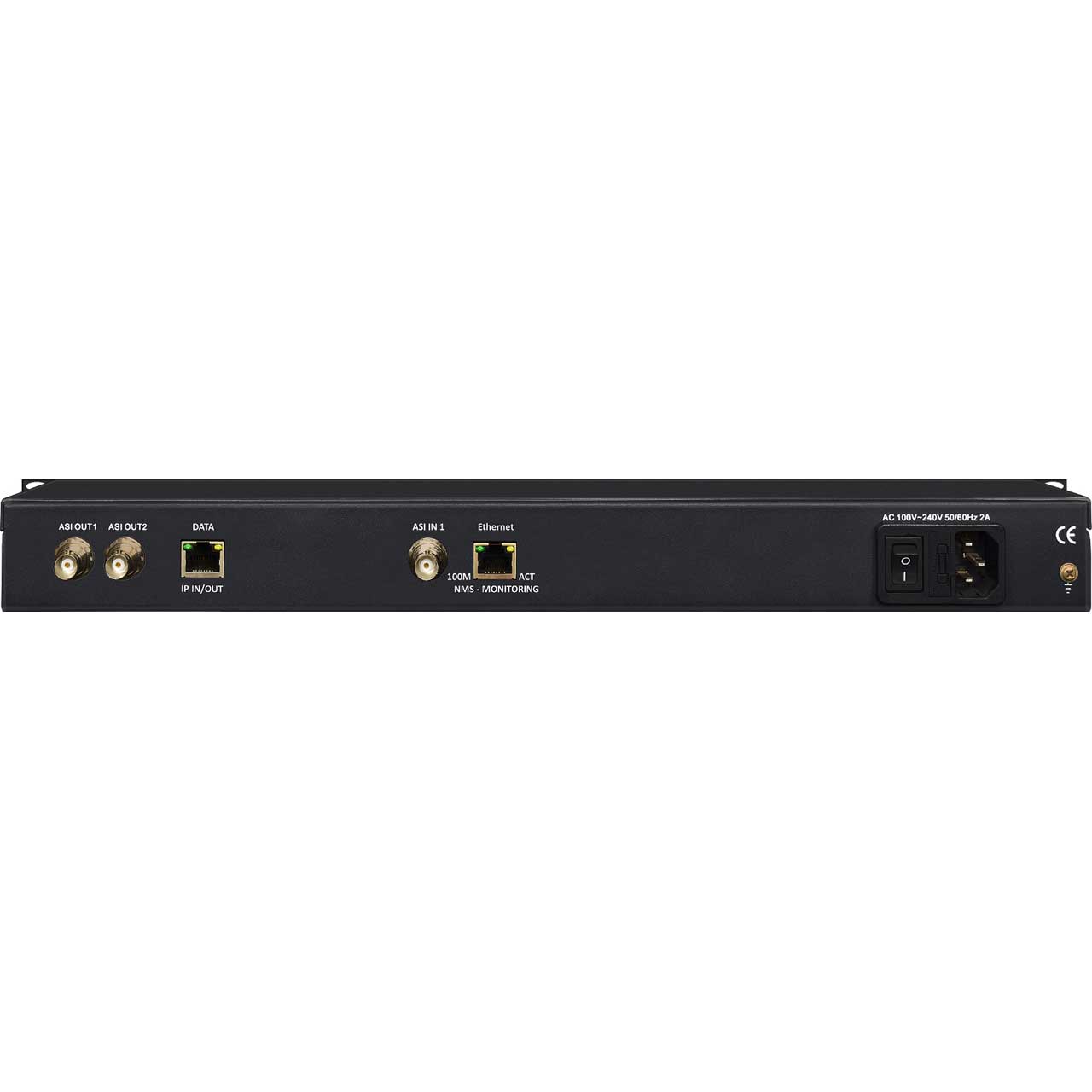

    • ASI input Interface: BNC, 75 Ohm
    • ASI Output Interface: BNC, 75 Ohm
    • Max ASI Input: 70 Mbps
    • IP Wrapper: Standard UDP encapsulation of MPEG-TS
    • Power Input: 100 - 240 VAC Auto Switching PSU
    • Dimensions: 480mm x 225mm x 88mm
    • Weight: 8 lb
    • Temperature Range: Operating: -10C to + 55C, Storage: -30C to + 70C
    • Humidity Range: 0 to 95%, non-condensing
    • Power Consumption: 23 W

  • Item Includes:

    • ASI Network Gateway
    • US Power Cable
    • User Manual

  • GTIN:

    0799599222176
