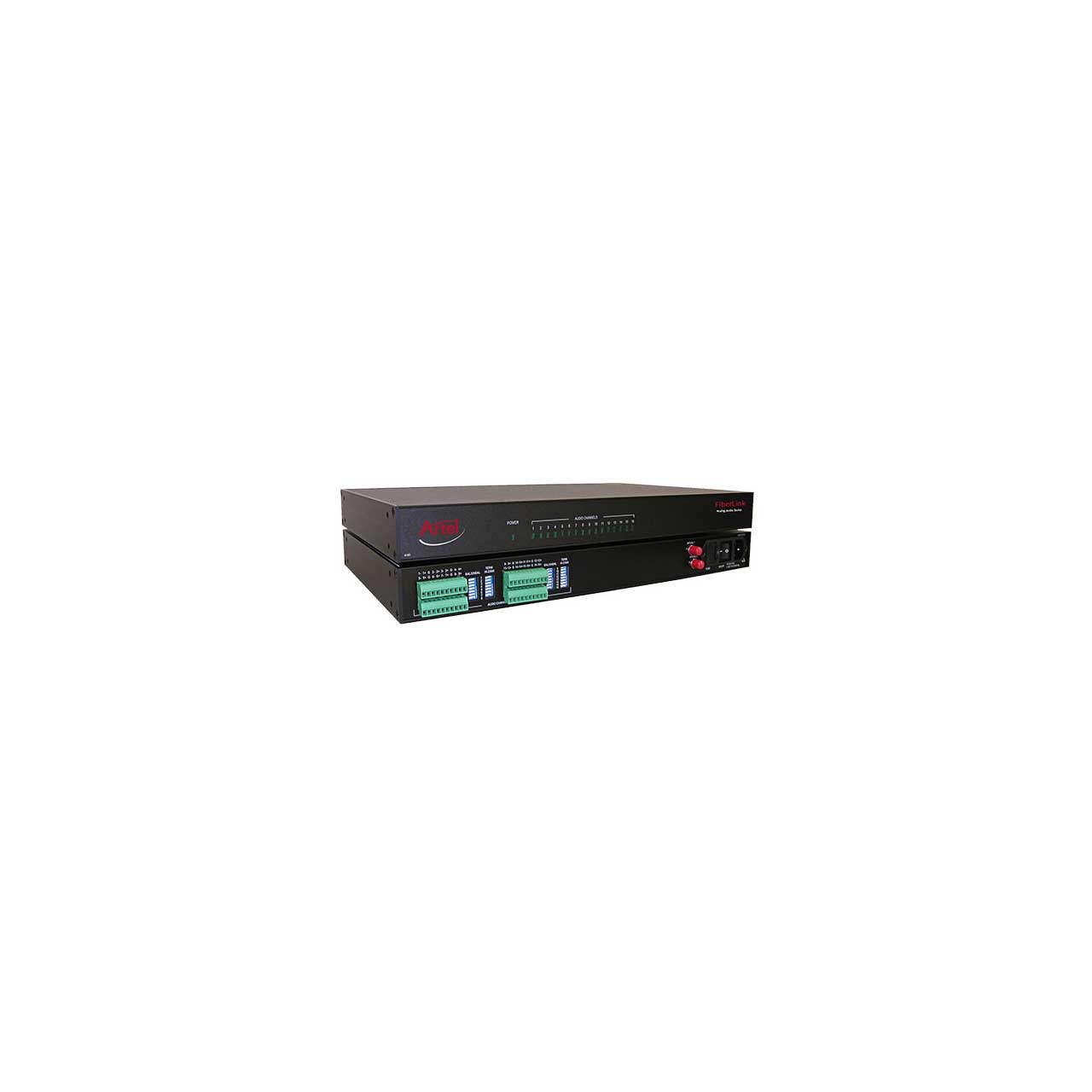

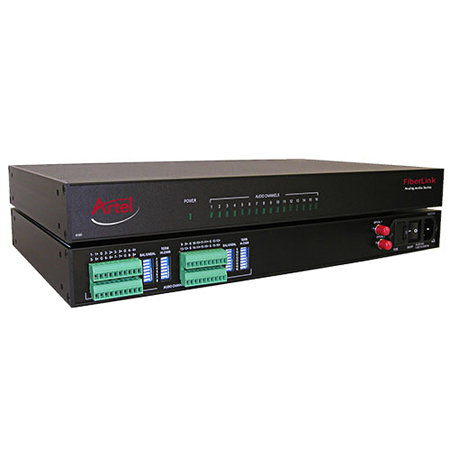

Artel 4160-SN90-NA Fiberlink 16-Channel Audio Transmitter - 1550nm SingleMode - Single Output - ST Connector

4160-SN90NA - Overview

• Features:

  • Multiple Audio Channels - This product supports multiple channels of audio. Refer to the datasheet for more information.
  • Single Mode and Multimode Fiber - This product supports both Single Mode and Multimode fiber types in the same unit with no special ordering, configuration or tweaks.
  • Optional redundant optical input/output
  • System consists of transmitter and receiver unit
  • No adjustments; pure digital processing and transmission
  • 24 bit/96 kHz sampling; maximum audio level +24 dBu
  • 20 Hz to 20 kHz frequency response
  • Line level, balanced or unbalanced audio operation
  • Indicator LEDs monitor audio signals and power
  • Wide range internal power supply
  • Unit stands 1 RU high
  • Rackmount ears are included


• Specifications:

  • General Specifications
  • LED Indicators: Power; Audio Present (per channel)
  • Power Requirements: 95-250 volts AC, 47-63 Hz
  • Operating Temperature Range: -35°C to +55°C
  • Relative Humidity: 10%-90% (non-condensing)
  • Optical Connectors: ST
  • Operating Wavelength: 1550 nm
  • Physical Size: 1.75 H x 16.75 W x 10 D (inches) (44 H x 425 W x 254 D mm)
  • Weight: Approximately 5 lbs.; 2.25 kg

    Audio Specifications
  • Number of Audio Channels: 16, balanced or unbalanced
  • Frequency Response: 20 Hz - 20 kHz, +0/-0.5 dB
  • Bits-per-Sample/Sampling Rate: 24 bits; 96 kHz
  • Maximum Audio Level: +24 dBu
  • SNR (A-Weighted): 95 dB
  • THD+N: 0.002%; 20 Hz - 20 kHz
  • Channel Phase Differential: 0.1°
  • System Latency: 200 uS + fiber cable propagation delay
  • Input Impedance: 600 Ohms terminated; 24 k Ohms unterminated
  • Output Impedance: 50 Ohms
  • Audio Connectors Removable: screw terminal
  • Switches: Dip switches to select input termination, balanced or unbalanced input/output. Selectable on a per-channel basis

    Operating Loss Budget & Maximum Usable Distance
  • Wavelength: 1550
  • Loss(dB): 0-25
  • Distance (KM): 0-80


• Warranty:

  • 3 Year Warranty
