Thor Fiber F-2A-XLR-T/RX 2 XLR Balanced Audio over Fiber Transmitter/Receiver kit - up to 20KM Singlemode/3000feet Multi

ITEM #: THR-F-2A-XLR-TRX MFG #: F-2A-XLR-T/RX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$834.00

Our Price:

$695.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


F-2A-XLR-T/RX - Overview

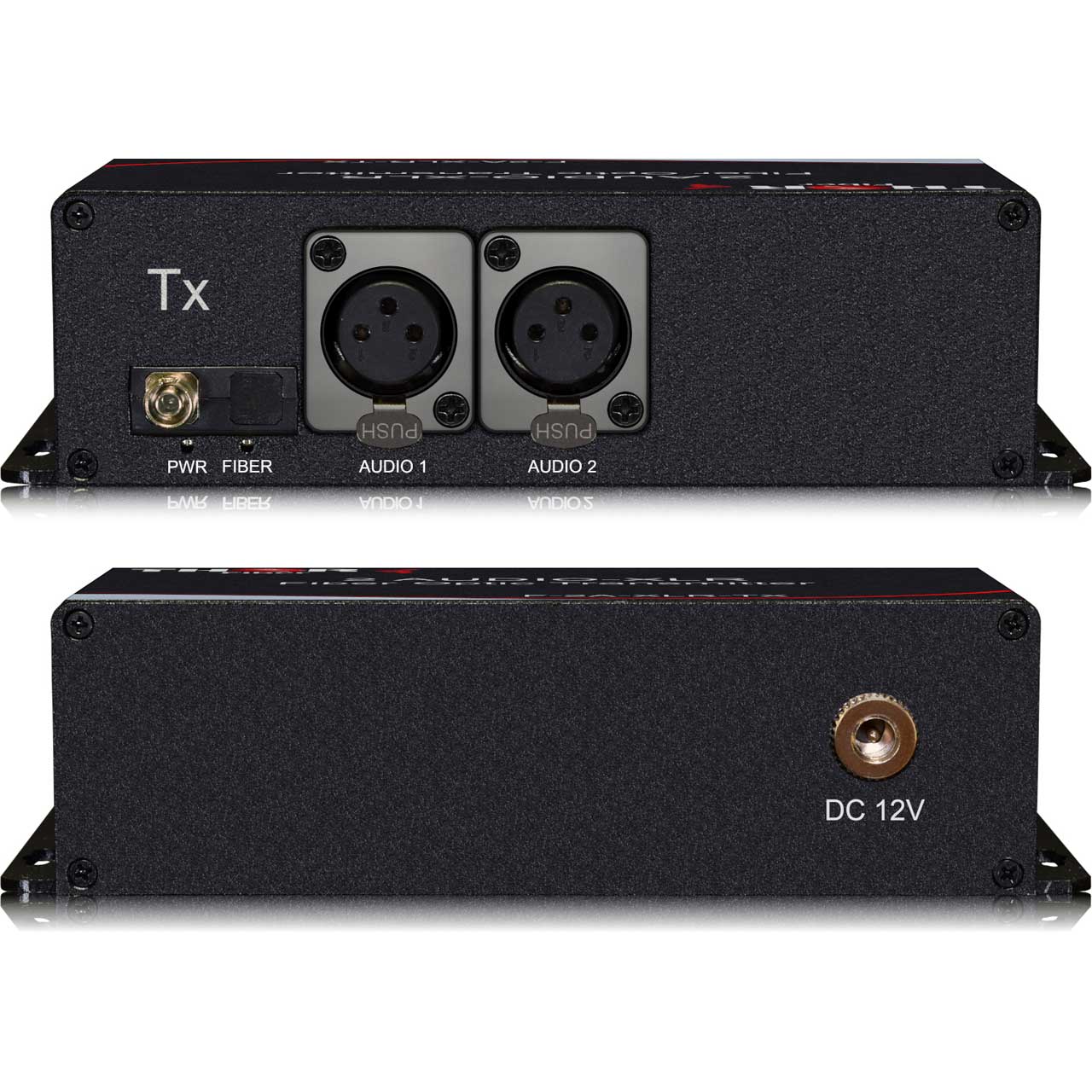

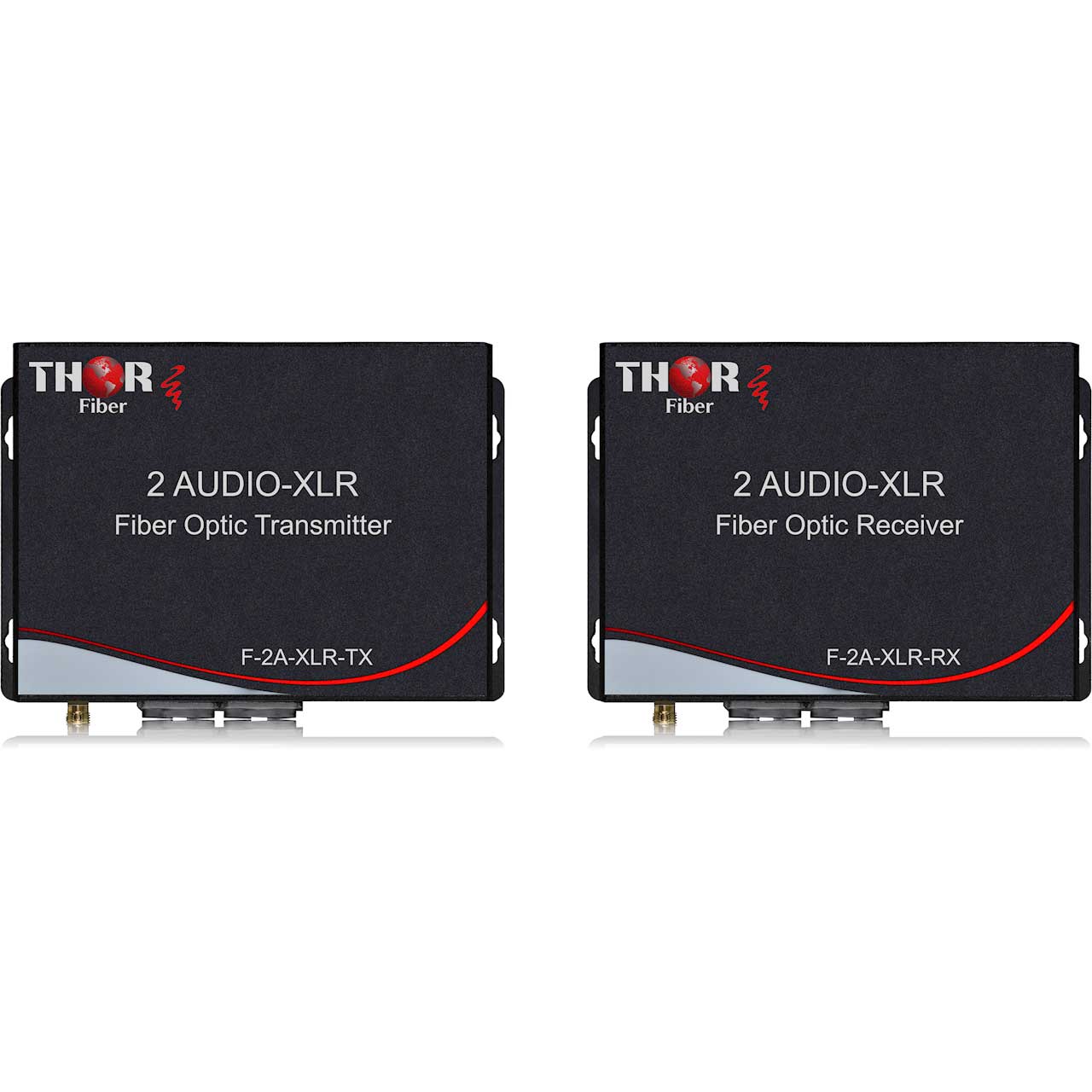

The Thor Fiber F-2A-XLR-T/RX XLR audio over fiber units are able to send balanced audio over fiber much further than traditional copper. Our Audio Interface with XLR kit has both a transmitter and receiver unit. The 2 XLR inputs/outputs can be used on a single transmitter unit and sent over fiber to the receiver unit that also has an equal number of XLR outputs. The fiber allows the signal to be sent over a long distance without losing any quality in the signal. The kit is 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. Thor XLR Audio Splitters are typically used in applications for Rental, Staging, Concerts, Theater, Churches, Stadiums, Theme Parks, Broadcast/Studio, Intercom, CCTV audio and Professional AV applications. Popular devices to use in conjunction with the XLR transmitter and receiver are: XLR Audio Mixers, Digital Audio Recorders with XLR IN/OUT and Audio siganl Splitter with XLR. They are available for stand-alone or rack-mount installations. Our standard fiber connectors are ST/PC, but it could also be ordered as SC/PC or FC/PC. Basic units support up to 20KM singlemode / 3000 feet multimode.

  • Features:

    • 3-Pin Balanced XLR Audio input/output
    • Uni-directional 2 or 4 or 8 or 16 or 32 Channel
    • Bi-directional over single fiber available on 2 and 4 Channel model
    • 12V DC Power input
    • Single mode fiber up to 20km, Multimode fiber up to 3000feet
    • Easy to Use, Plug and Play Untis

  • Specifications:

    • Optical
    • Wavelength: 1310nm or 1310/1550 for bi-directional models
    • Output Power: -8dBm (+-2db)
    • Optic fiber: 50/125u multimode, 62.5/125u multimode, 9/125u single mode
    • Rx sensitivity: -25dBm
    • Optical connector: ST/PC (optional FC/PC, SC-PC)
    • Distance: 20Km for singlemode and 0~2KM (MM), 40, 80 120Km - model specific

      Balanced Audio
    • Number of Channels: 2 Input +2 Output
    • Input Connector: XLR (female)
    • Output Connector: XLR (male)
    • Input / Output Impedance: 10K Ohm
    • Input capacitance LINE inputs : 10 pF
    • Max input/output voltage: 2.0Vp-p (6db)
    • Frequency Response: 10 Hz - 20kHz @±3dB
    • Sample Rates From: 48kHz
    • SNR: > 80dB

      Electrical & Mechanical
    • Input Power Requirements: DC 5V@2A
    • Power Adapter: AC 90V~240V
    • Power Consumption: < 5W
    • Stand-Alone Dimensions: 168mm x 154mm x 45mm ( L: 6 3/4" D 4 1/2" H: 1 3/4" for the mounting holes)
    • Shipping Weight: (Transmitter & Receiver ) 2.5kg

      Environmental
    • Operating Temperature: -20°C ~ +75°C
    • Storage Temperature: -40°C ~ +85°C
    • Relative Humidity: 0% ~ 95% (non-condensing)
    • MTBF: >100,000 hours

  • Item Includes:

    • 1x 2 XLR Balanced Audio over Fiber Transmitter / Receiver kit up to 20KM singlemode / 3000feet multimode
