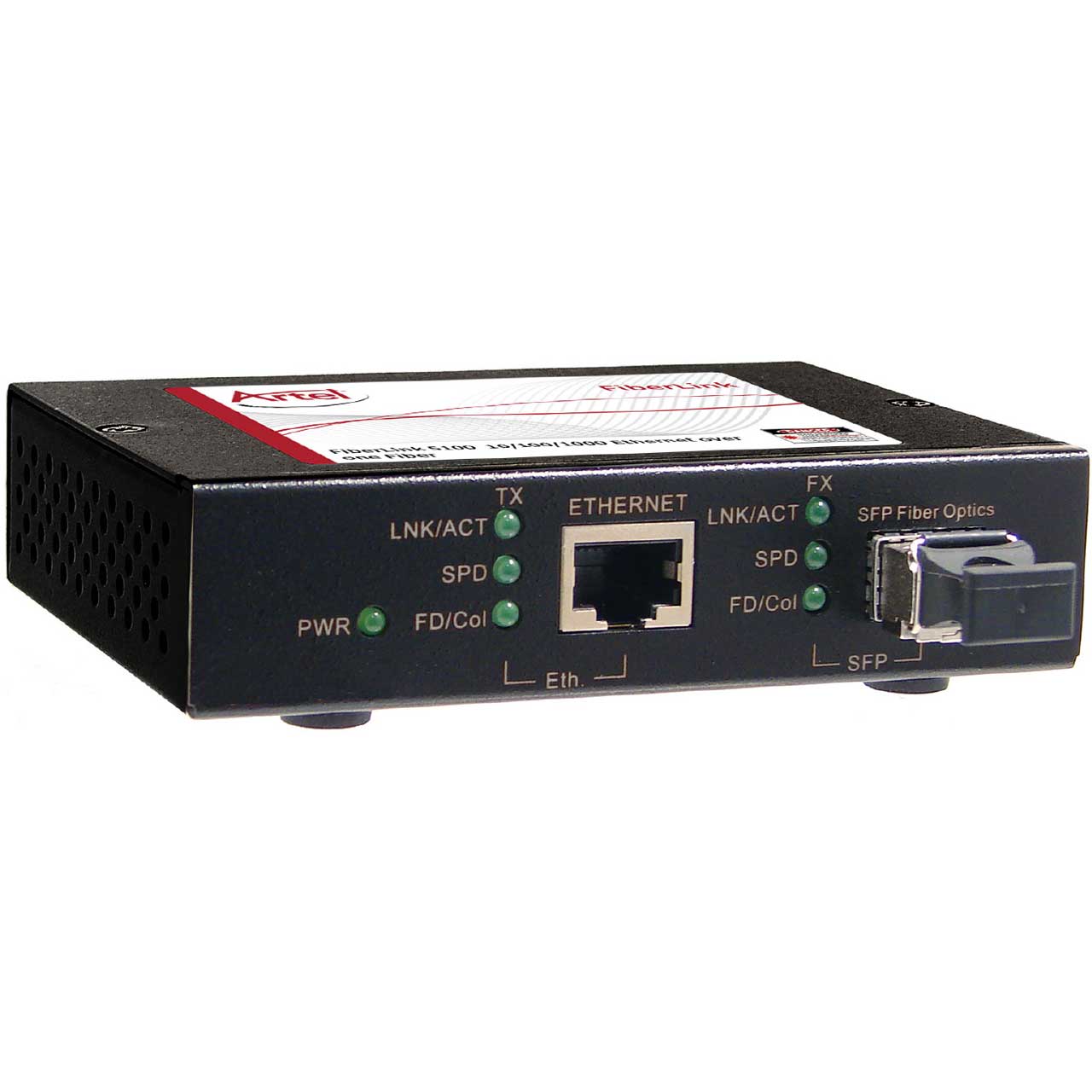

Artel 5102A-B7L FiberLink Ethernet Transceiver - SM or MM 1310nm SFP - Power Supply

5102A-B7L - Overview

• Features:

  • Auto-sensing 10/100/1000 Mbps Ethernet port with Auto MDIX
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3az & IEEE 802.3z
  • Full-duplex and half-duplex
  • Supports Jumbo frames to 9K Bytes
  • LEDs indicate Link Activity, SPD, Fault Detection/ Collisions, and Power
  • Single mode & multimode versions available
  • One or two fiber versions available
  • To 1km on Multimode
  • To 40km+ on Single mode*
  • Compact design, wall mountable
  • Ideal for IT, broadcast, pro A/V and any application that requires reliable transmission of 10/100/1000 Ethernet data


• Specifications:

  • Maximum Speed (1000Base-Tx/Rx)
  • Full Duplex: 2000Mbps
  • Half Duplex: 1000Mbps

    Packet Forwarding Rate
  • 14,880 pps@10Mbps
  • 148,800 pps@100Mbps
  • 1,488,000 pps@1000Mbps

    Connectors Copper
  • RJ-45(Auto-MDI / MDI-X)
  • Fiber Optic: LC type
  • Power: Coaxial 5.5 x 2.5 mm, center (+)

    LEDs
  • Power, Full/Half Duplex,
  • Speed 1 Gb/s, 100 Mb/s,
  • SFP Link, RJ-45 Link

    Power
  • Input: 5V @ 500ma, 2.5
  • 8.5 BTU/Hr

    Operating Temperature Range
  • 0 to +50 C

    Operating and Storage Humidity
  • 10% to 90% relative humidity (non-condensing)

    Weight
  • 1 pound, 0.5 kg

    Dimensions
  • 3.7" x 2.7" x 1" (93mm x 68mm x 25mm)

    PDPS-USB-5V1A Power Supply
  • Voltage 100 - 250 VAC 50/60 Hz
  • Current 0.2 Amps
  • Compliance Level VI, CoC Tier 2, UL, FCC, CE
  • Mains Connection interchangeable blades (North America, Europe, UK, Australia, China)
  • Output Connector USB type A, 5V @ 1Amp maximum (DC Output Cable included)
