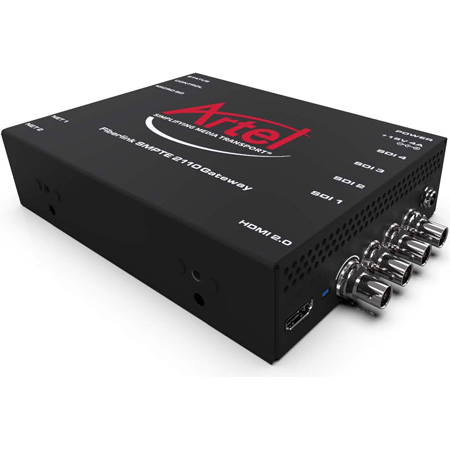

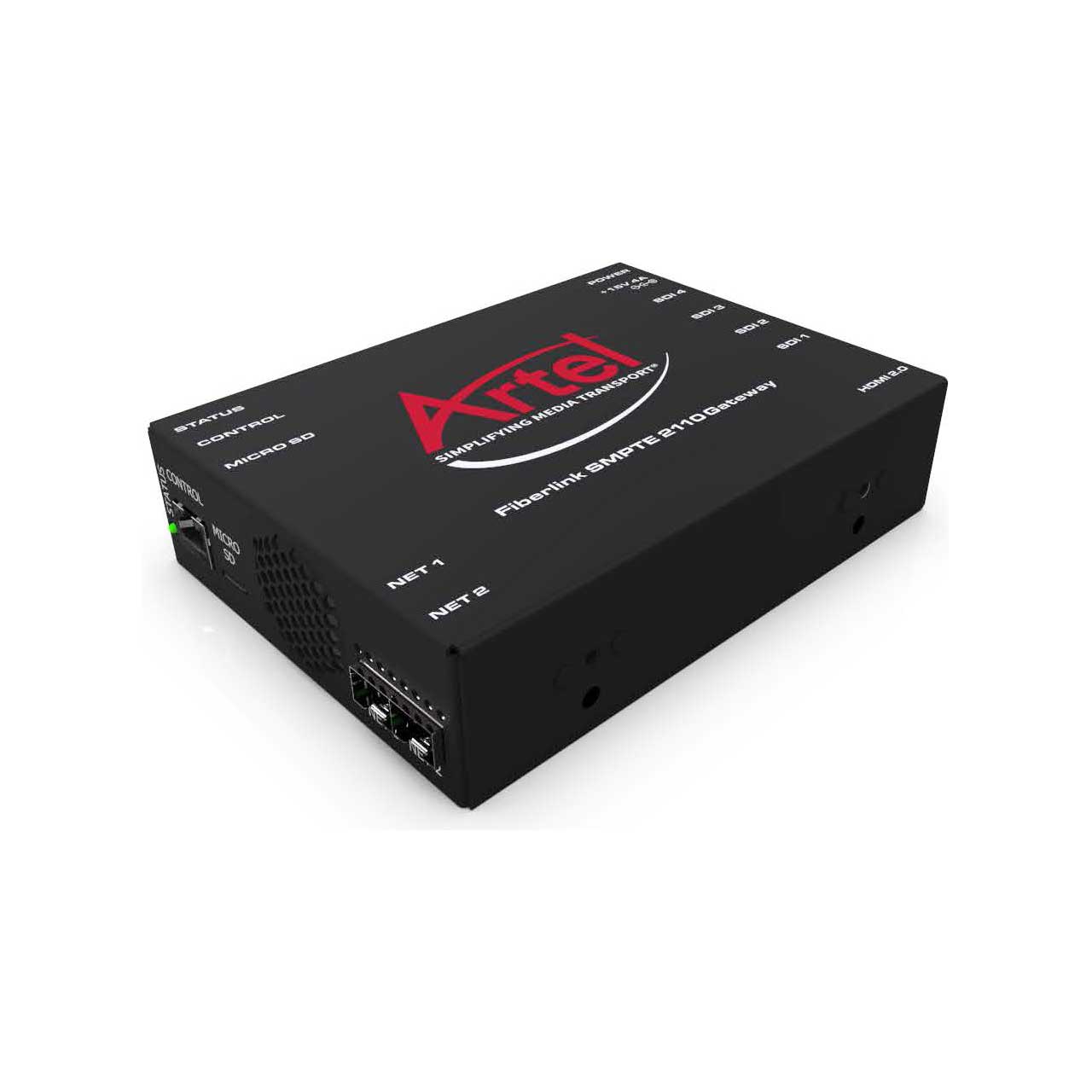

Artel FL-ST2110 FiberLink 2-Channel SDI SMPTE 2110 Video Over IP Gateway

ITEM #: ARTL-FL-ST2110G MFG #: FL-ST2110G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ARTL-FL-ST2110G

FL-ST2110G - Overview

The FiberLink FL ST2110 series supports 2 channels (2 In/2 Out) of independent 3G/HD-SDI signals and provides a gateway function using ST2110 into dual 10GE media port.

The FL ST2110 Gateway adapts to rapidly changing IP environments, quietly bridging SDI interfaces to JT-NM Tested ST2110 media streams.

It can be managed using open control protocols such as NMOS, EmBER+, and DashBoard, etc., thus providing flexibility to be used in different environments.

  • Features:

    • -10, System Timing and Definitions
    • -20, Uncompressed Active Video
    • -21, narrow sender & wide receiver
    • -30, PCM Digital Audio, Conformance Level A & B & C
    • SMPTE ST 2022-7 – Seamless Protection Switching 2 video streams up to 1080p
    • 32+32audio streams with WAN buffering
    • 16 audio channels embed/extract per SDI interface, with shuffle
    • Open Control gives you the freedom to run from our control system, and/or seamlessly from many 3rd-party control systems (e.g. VSM, Convergent, Magellan, etc.)
    • 1 RJ-45 control port (10/100/1000BASE-T)


  • Specifications:

    • Transmitter Optical Output
    • Connector: LC
    • Port Type: 10GBASE-LR
    • Output Power: -5.2 dBm for single mode, -5dBm for multimode
    • Link Length (Max.): 10km for single mode
    • Wavelength: 1310nm for single mode, 850nm for multimode

      Transmitter: Serial Video BNC Input
    • Data Rate Range: 1.485 Gbps to 2.97 Gbps
    • Number OF Inputs: 2
    • Supported Formats: 720p 50Hz,720p 59.94Hz, 720p 60Hz, 1080i 50, 1080i 59.94, 1080i 60, 1080p 50, 1080p 59.94, 1080p 60

      Receiver BNC Outputs
    • Alignment Jitter:
      1.485Gbps: <1.0UI jitter measured 10Hz-100kHz, <0.2UI above 100kHz
      2.97Gbps: <1.0UI jitter measured 10Hz-100kHz, <0.3UI above 100kHz
    • DC Offset: 0V ± 0.5V
    • Number of Outputs: 2
    • Overshoot: < 10% of amplitude
    • Rise/Fall Time:
    • 1.485Gbps: <270ps, <100ps difference
      2.97Gbps: <135ps,<50ps difference
    • Signal Level: 800mV ± 10%
    • Timing Jitter:
      < 0.2 UI at 270 Mbps
      < 1.0 UI at 1.485 Gbps
      < 2.0 UI at 2.97 Gbps with color bar signal

      Receiver Fiber Optic Input
    • Connector: LC
    • Minimum Input Sensitivity:
      -12.6dBm for single mode
      -11 dBm for Multimode
    • Wavelength: 1310nm for single mode, 850nm for multimode

      General Specifications
    • Box Version Dimensions: 4.98 x 6.75 x 1.63" (126.49 x 171.45 x 41.40mm)
    • Operating Temperature: 32° to 104°F (0° to +40°C)
    • Power: 15 volts, 15-40W (application dependent)
    • Weight: 1.8Lbs (815g)
