Ashly Audio 24.24M Output - 4-Output Expansion Module for Protea 24.24M Matrix Processor

ITEM #: ASH-2424M-OUT MFG #: NE24.24M OUPUT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$499.00

Our Price:

$399.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


NE24.24M OUPUT - Overview

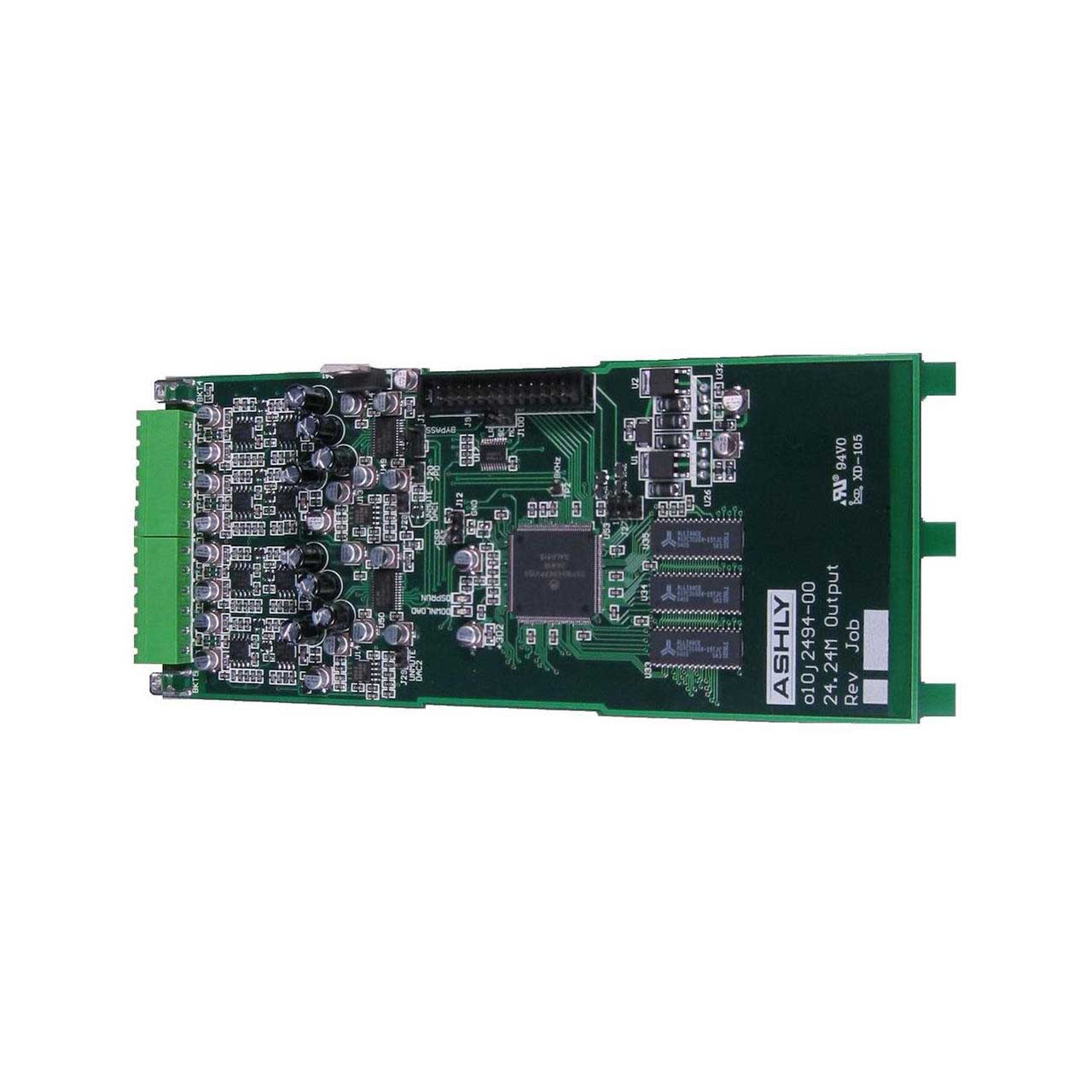

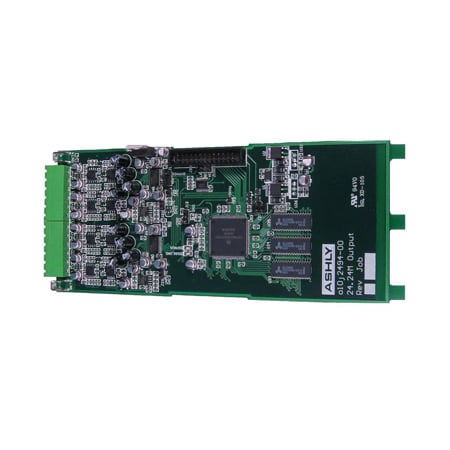

The 24.24M Output from Ashley is a four-output expansion module for the Protea 24.24M Matrix Processor base unit. Each card provides an additional four channels of output and brings with it dedicated DSP and digital-to-analog converters.


The card is field installable and require no additional programming from the base unit. Up to five output cards can be installed for a total of twenty-four outputs. Because of the on-board DSP, the base unit's processing is not impacted by the addition of the cards.

Four-channel output expansion card for Protea 24.24M Matrix Processor Includes its own dedicated DSP and digital-to-analog converters Output channel processing blocks consist of a cross point mixer, crossover (Hi-/Low-pass filter), delay, fifteen EQ filters, gain and limiter The Hi-/Low-pass filter block offers Bessel, Butterworth and Linkwitz-Riley filters with 12, 18, 24 and 48dB/octave slopes User installable Base unit automatically recognizing presence of the card without requiring additional programming Euroblock connectors

  • Specifications:

    • Frequency Response: 20Hz to 20kHz, +/-0.25dB
    • Dynamic Range: >110dB unweighted, 20Hz to 20kHz B/W
    • Output Connections: Euroblock
    • Input Impedance: 18kO
    • Output Impedance: 112O
    • Maximum Input Level: +20dBu
    • Maximum Output Level: +20dBu
    • Sample Rate: 48kHz
    • RTA Mic Phantom Voltage: Not applicable
    • THD & Noise: <0.01% @1kHz, +20dBu
    • Package Weight: 0.7 lb
    • Box Dimensions (LxWxH): 10.2 x 6.5 x 3.3"

  • GTIN:

    0694970702219
