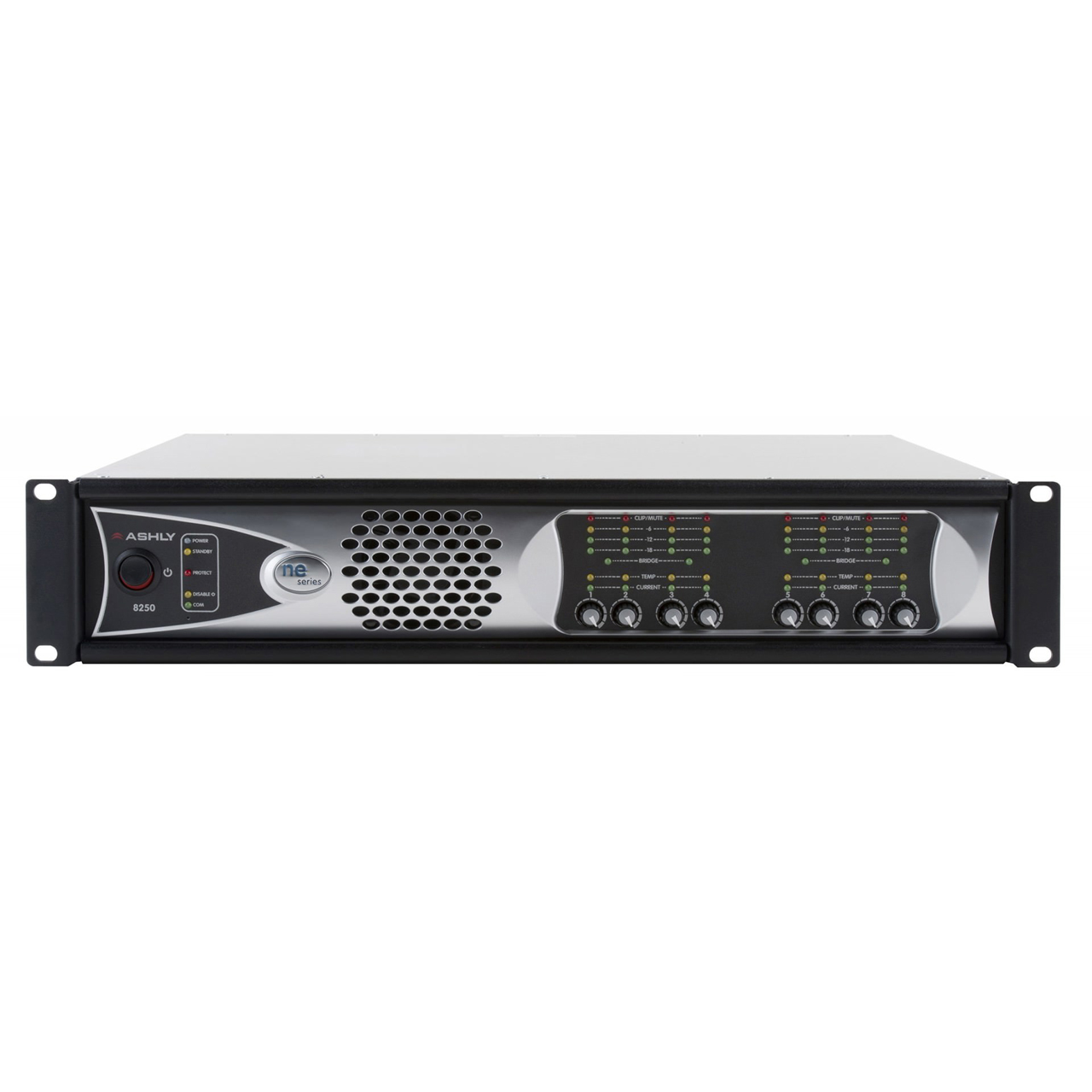

Ashly Audio NE8250.25 NE Series 250 Watt 8-Channel Network Power Amplifier - 25V at 4 Ohm

ITEM #: ASH-NE8250-25 MFG #: NE8250-25

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Ashly Audio
Free Shipping with $49 Minimum Order

List Price:

$3,249.00

Our Price:

$2,599.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NE8250-25 - Overview

Multi-Channel Network-Enabled Power Amplifier 8 x 250W @ 25V

The Ashly Audio NE8250.25 is an NE Series, 250 Watt, 8-Channel, Network Power Amplifier, 25V at 4 Ohm.

Ashly multi-channel ne (Networked-Enabled) Series Amplifiers are uniquely designed around an energy efficient Class-D platform with a switching power supply. Connecting and controlling an amplifier for networked systems has now been simplified with ne Amplifiers. This line offers ease of use, setup and control using standard 10/100 Ethernet protocol and Protea™ NE software. No special outboard control units are needed. Choose either the ne4250 (4-channel) or ne8250 (8-channel) packages rated at 250W per channel, with separate Hi-Z and Low-Z models. Each can be customized for installation with your choice of AES3 inputs, mic pre inputs*, CobraNet® or Dante® modules (sold separately).

*Remote control function is limited without Protea DSP installed in amplifier. See product manual for details.

  • Features:

    • 10/100 Ethernet comes standard for remote control and monitoring
    • FIR Filter capable (with DSP)
    • Low-Z, 25V, 70V, 100V models
    • Protea DSP, AES3, CobraNet® and Dante® input options
    • DC voltage remote gain control
    • Switched-mode power supply, Class-D output
    • Stepped, calibrated input attenuators
    • Remote power standby
    • Disable all front panel controls via software
    • Temperature sensitive variable speed fan with side-to-front airflow
    • Selectable HPF frequencies (80Hz, 400Hz, off) on 25V, 70V, and 100V models
    • 4-stage level meters
    • Output current and temp indicators
    • Safety/Compliance: TUV, CE, FCC, RoHS


  • Specifications:

    • Electrical
    • Note: 0dBu = 0.775 VRMS
    • Frequency Response: 20Hz - 20kHz, (unweighted) ±1dB
    • Input Impedance: 20kΩ, Balanced
    • Voltage Gain: 26dB (Low-Z), 32dB (70V), 35dB (100V)
    • Input Sensitivity:
      - 6.2dBu (Low-Z)
      - 4.2dBu (25V)
      - 7.2dBu (70V)
      - 7.2dBu (100V)
    • Maximum Input Level: +21dBu
    • Software Contolled Internal HPF (25V, 70V, 100V models):
      - 80Hz (12dB/oct)
      - 400Hz (6dB oct)
      - OFF
    • Signal to Noise (20-20k, Unweighted):
      - >107db (2450)
      - >107dB (8250)
    • Distortion (8Ω load):
      - (SMPTE) <0.5% typical
      - (THD-N) <0.5% typical (20Hz - 20kHz)
    • Damping Factor: (8Ω, 1kHz) >250
    • Output Circuitry: Class D
    • Amplifier/Load Protection:
      - Output Overcurrent
      - Main Supply
      - Rail Overvoltage
      - Chassis Temperature
      - Inrush Limiting
      - Mains Fuse

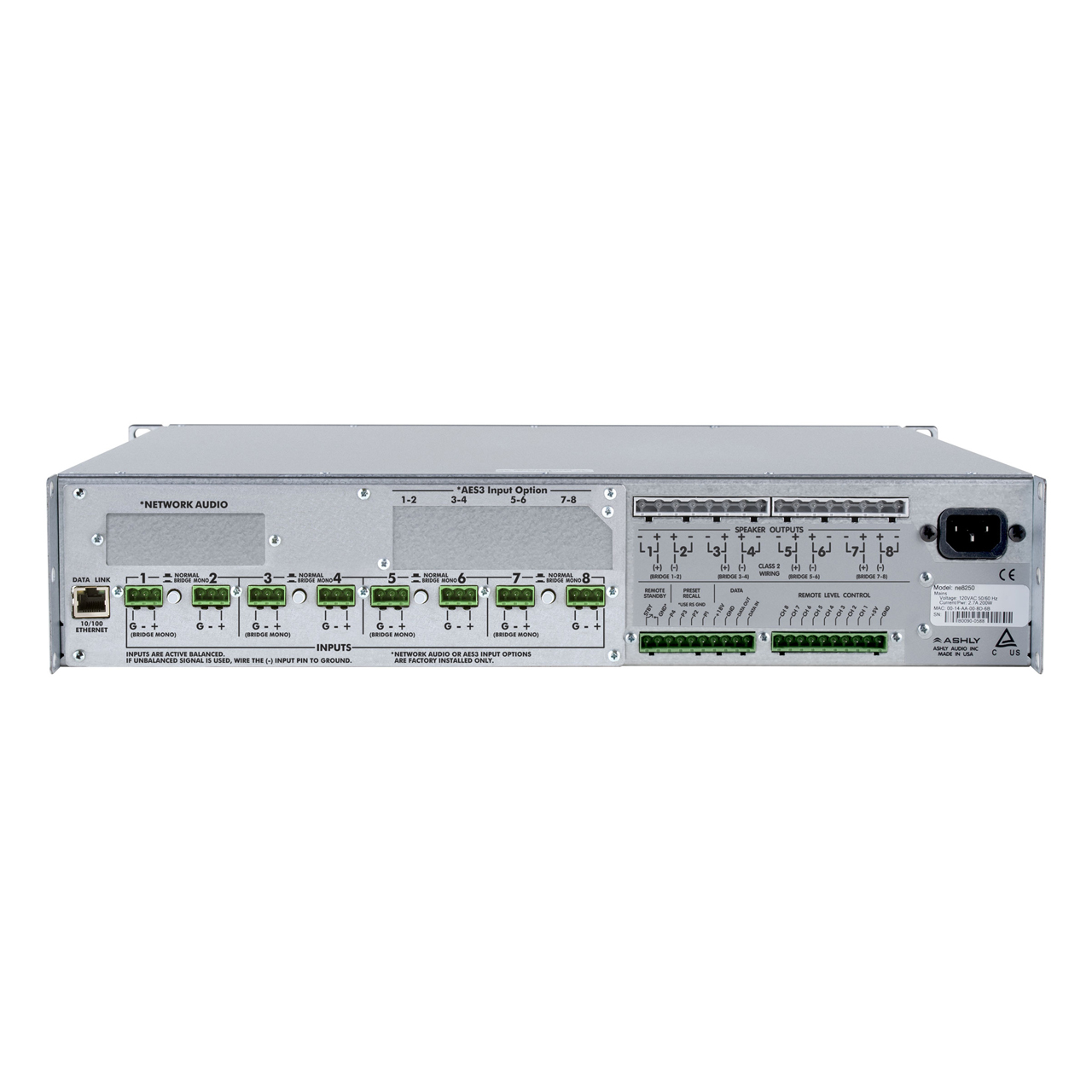

      Rear Panel
    • Controls:
      - Ethernet
      - Channel bridge switch (Low-Z only)
      - Remote standby
      - Preset recall (4)
      - Remote Level (8)
      - Remote Data

      Connectors (each channel)
    • Input: Euroblock
    • Output: Euroblock

      Power Requirements
    • AC Main: 120VAC or 240VAC ±10% (factory set) 50 - 60Hz
    • Power Cable Connector:
      - 15A Edison
      - 3-Prong IEC


  • Item Includes:

    • 1x NE8250.25 NE Series 8-Channel Network Power Amplifier with switching power supply


  • Warranty:

    • 5 Year Warranty


  • GTIN:

    0694970485457
