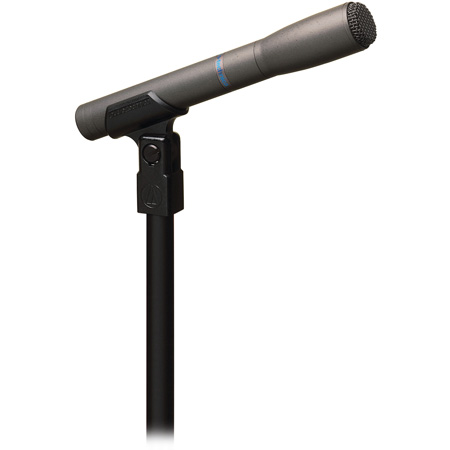

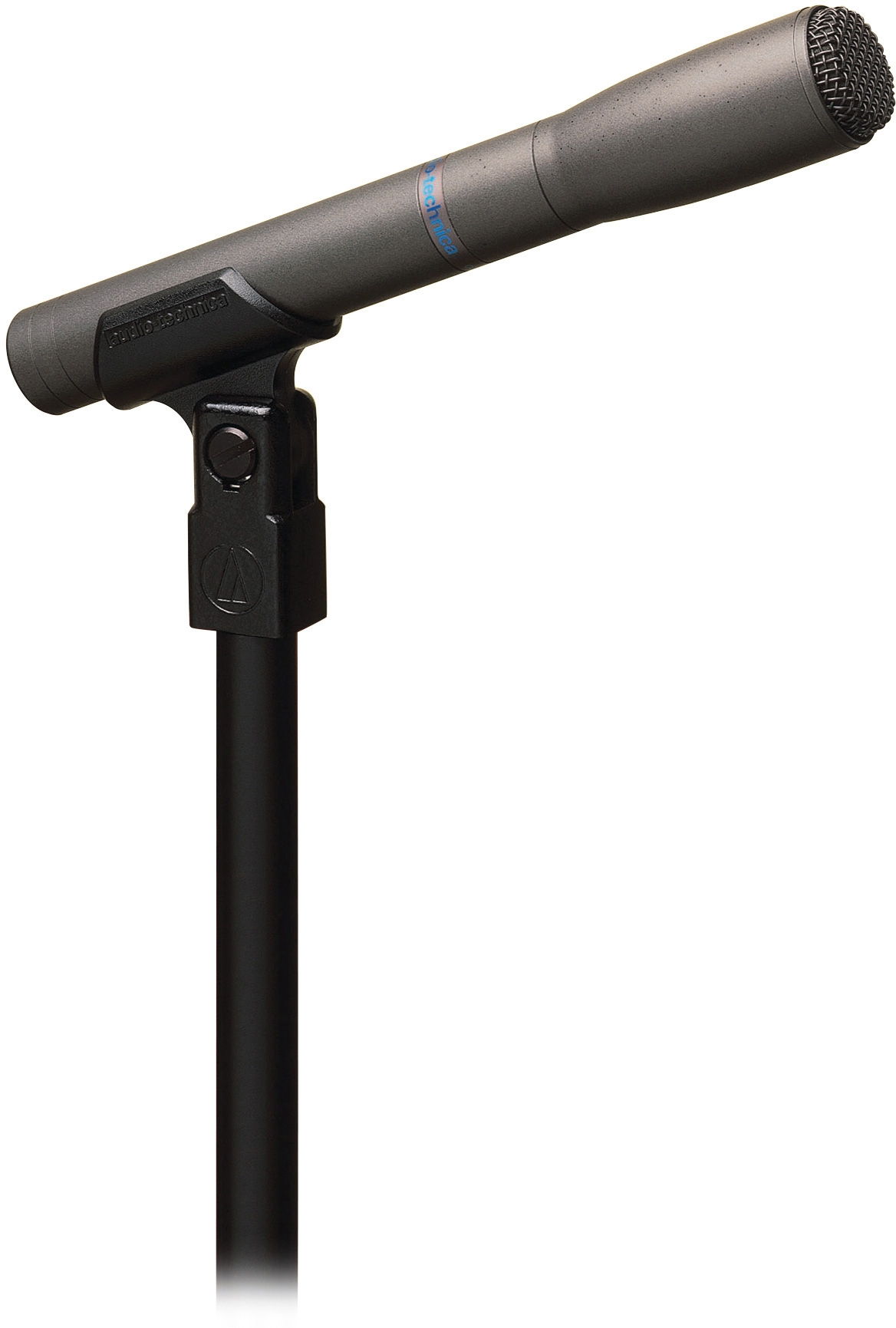

Audio-Technica AT8010 Omnidirectional Condenser Microphone

AT8010 - Overview

• Features:

  • Ideal for interviews, group vocals, strings, cymbal overheads, acoustic guitar and piano
  • Omnidirectional polar pattern provides maximum ambient pickup
  • Extremely smooth, extended response on- and off-axis
  • Low sensitivity to popping and overload
  • Operates on battery or phantom power
  • RoHS compliant-free from all substances specified in the EU directive on hazardous substances


• Specifications:

  • Element: Fixed-charge back plate permanently polarized condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20 - 20,000Hz
  • Low Frequency Roll-Off: 80Hz, 18dB/Octave
  • Open Circuit Sensitivity: Phantom: -44dB (6.3mV) re 1V @ 1Pa; Battery: -45dB (5.6mV) re 1V @ 1Pa
  • Impedance: Phantom: 250Ω; Battery: 300Ω
  • Maximum Input Sound Level: Phantom: 137dB SPL, 1kHz @ 1% T.H.D.; Battery: 123dB SPL, 1kHz @ 1% T.H.D.
  • Dynamic Range (typical): Phantom: 113dB, 1kHz @ Max SPL; Battery: 99dB, 1kHz @ Max SPL
  • Signal-To-Noise Ratio: 70dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 11 - 52V DC, 2mA typical
  • Battery Type: 1.5V AA/UM3
  • Battery Current/Life: 0.4mA/1200 hours typical (alkaline)
  • Switch: Flat, roll-off
  • Weight: 5.8oz
  • Dimensions: 7.01" long, 1.02" head diameter
  • Output Connector: Integral 3-pin XLRM-type
  • Audio-Technica Case Style: S4

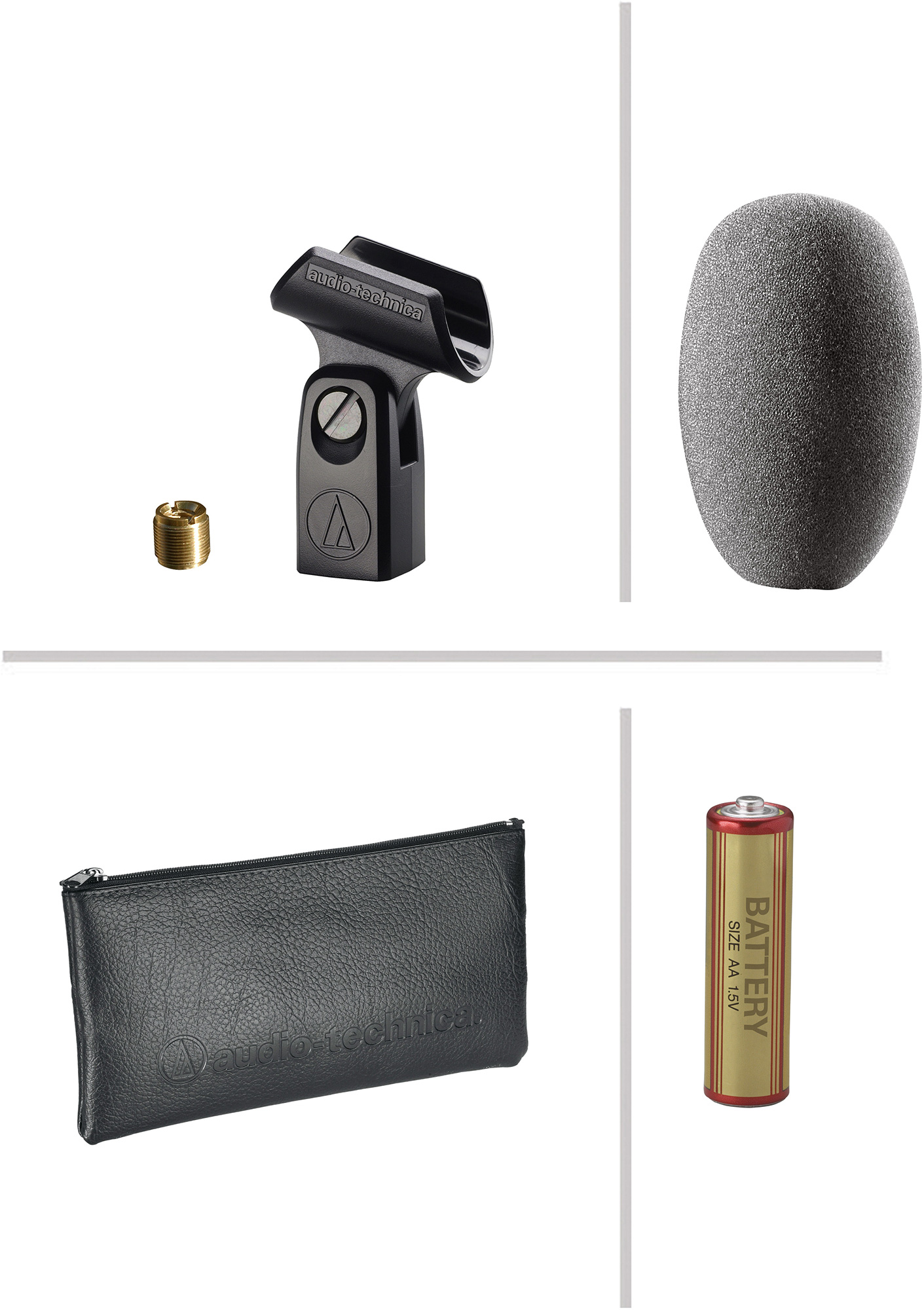

• Item Includes:

  • AT8405a stand clamp for 5/8"-27 threaded stands
  • 5/8"-27 to 3/8"-16 threaded adapter
  • AT8136 windscreen
  • Battery
  • Soft protective pouch


• Warranty:

  • 5 Year Limited End-User


• GTIN:

  4961310098261
