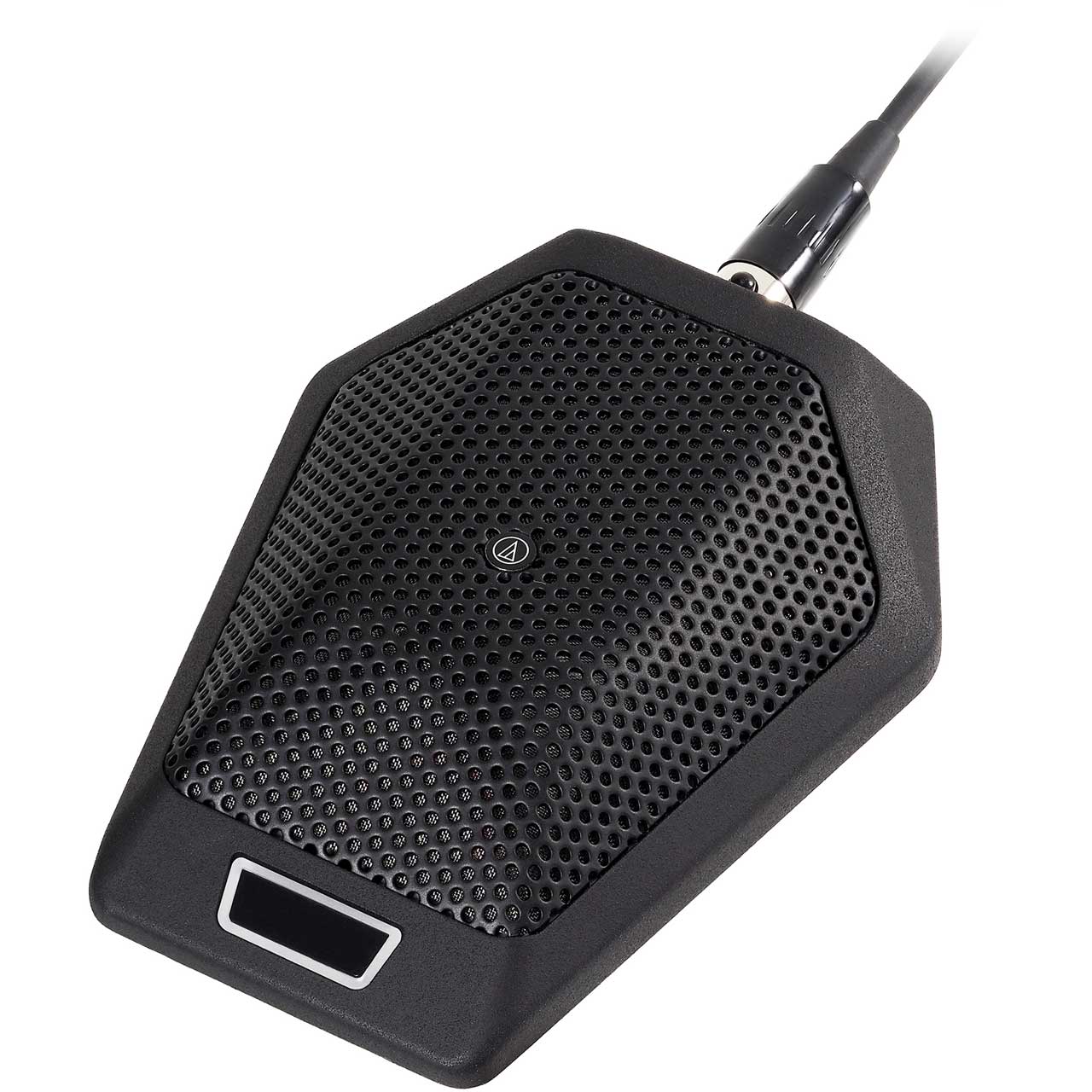

Audio-Technica U891Rb Cardioid Condenser Boundary Mic with Switch RGB LED & Integral Power Module - Phantom Power Only

U891RB - Overview

• Features:

  • Cardioid condenser boundary microphone with touch-sensitive capacitive-type user switch
  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • The capacitive touch switch can be set to any of three operating modes: touch on/off, touch to talk and touch to mute

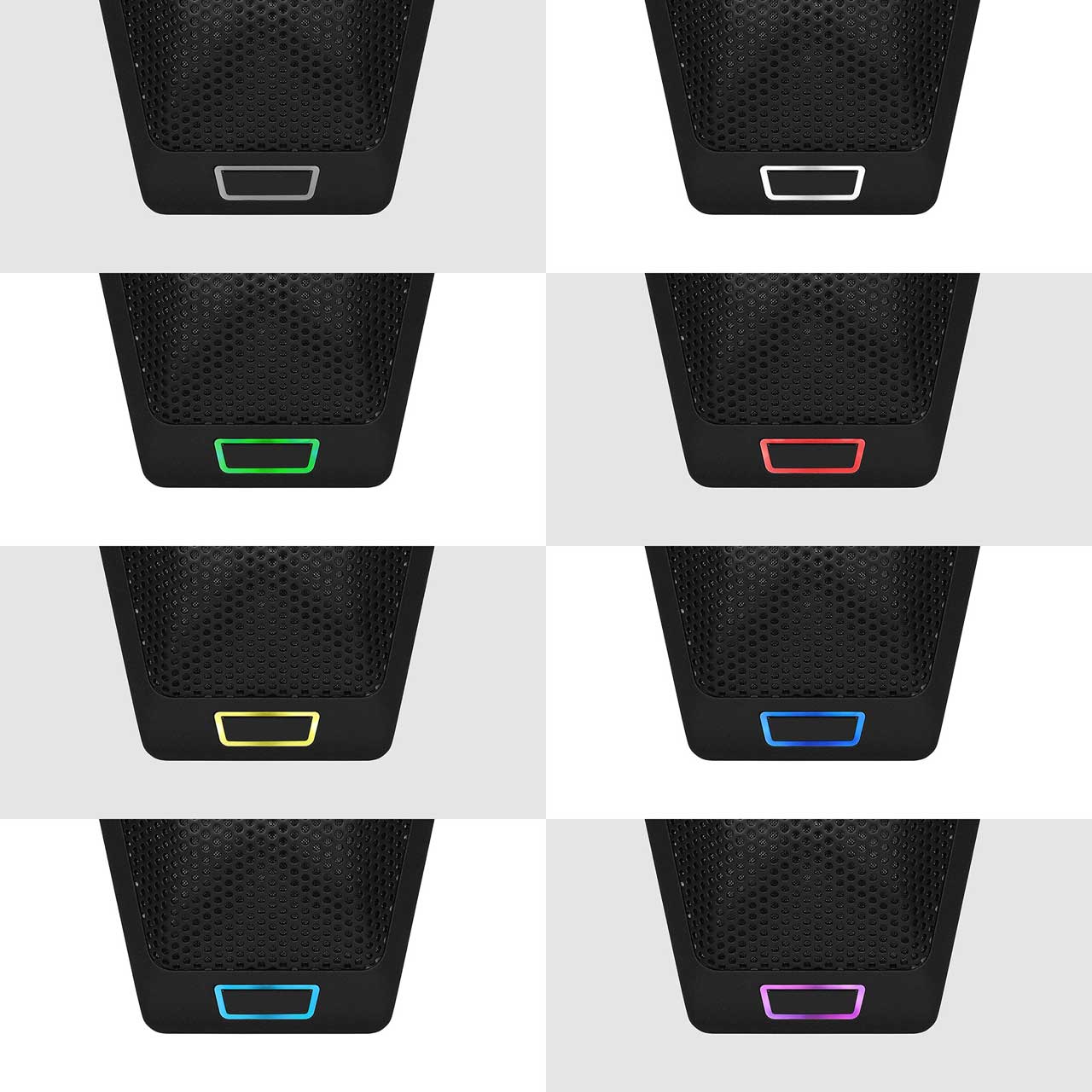

  • Integral, phantom-powered, two-state RGB LED indicator displays on/off status of microphone
  • Superior off-axis rejection for maximum gain before feedback
  • PivotPoint® rotating output connector allows cable to exit from either the rear or the bottom of the microphone
  • Small-diameter UniPoint® element near boundary eliminates phase distortion and delivers clear, high-output performance
  • Available interchangeable elements permit angle of acceptance from 100° to 360°
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility
  • Threaded inserts on bottom of microphone allow it to be mounted with screws for increased security


• Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 20 - 20,000Hz
  • Low Frequency Roll-Off: 80Hz, 18dB/octave
  • Open Circuit Sensitivity: -34dB (19.9mV) re 1V @ 1 Pa
  • Impedance: 50Ω
  • Maximum Input Sound Level: 130dB SPL, 1kHz @ 1% T.H.D.
  • Dynamic Range (Typical): 104dB, 1kHz @ Max SPL
  • Signal-To-Noise Ratio: 68dB, 1kHz @ 1 Pa, A-weighted
  • Phantom Power Requirements: 11 - 52V DC, 9.3mA

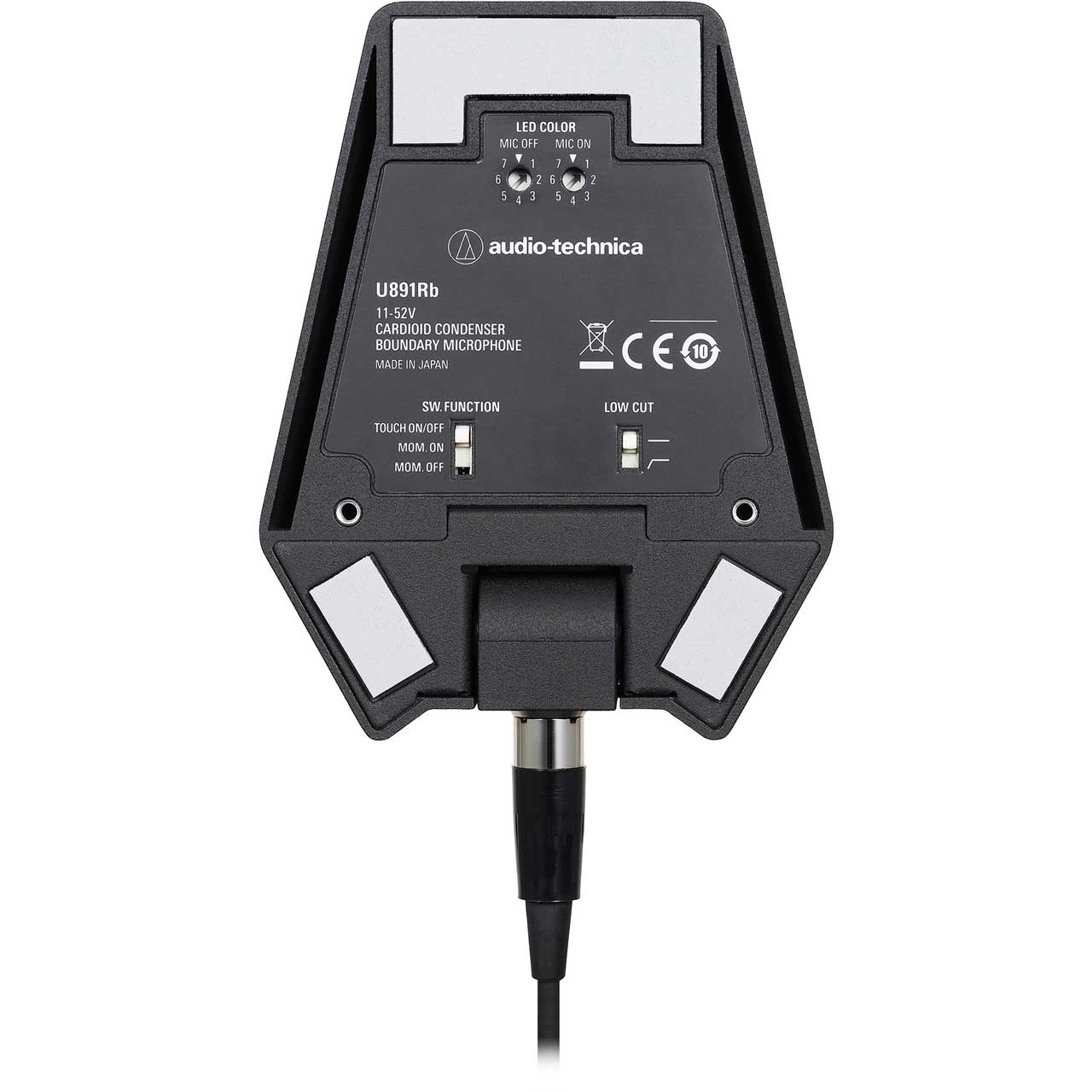

  • Switches:
    Activation: On/Off
    Switch Function: Touch On/Off, Momentary On, Momentary Off
    LED Color: Mic On, Mic Off
    Flat, roll-off
  • Weight: 8.9oz (253g)
  • Dimensions (HxWxD): 0.91" x 3.30" x 4.25" (23.0 mm x 83.9 mm x 108.0 mm)
  • Output Connector:
    Microphone: TB3M-type
    Cable: 3-pin XLRM-type
  • Cable: 25' (7.6m) long, 0.13" (3.2mm) diameter, 2-conductor, shielded cable with TA3F and XLRM connectors
  • Optional Interchangeable Elements:
    UE-H Hypercardioid (100°)
    UE-O Omnidirectional (360°)


• Item Includes:

  • 1x U891Rb Boundary Microphone
  • 1x 25' (7.6m) Black microphone cable (TA3F, XLRM)
  • 1x Soft pouch


• Warranty:

  • U.S. Two-Year Limited End-User Warranty


• GTIN:

  4961310146658
