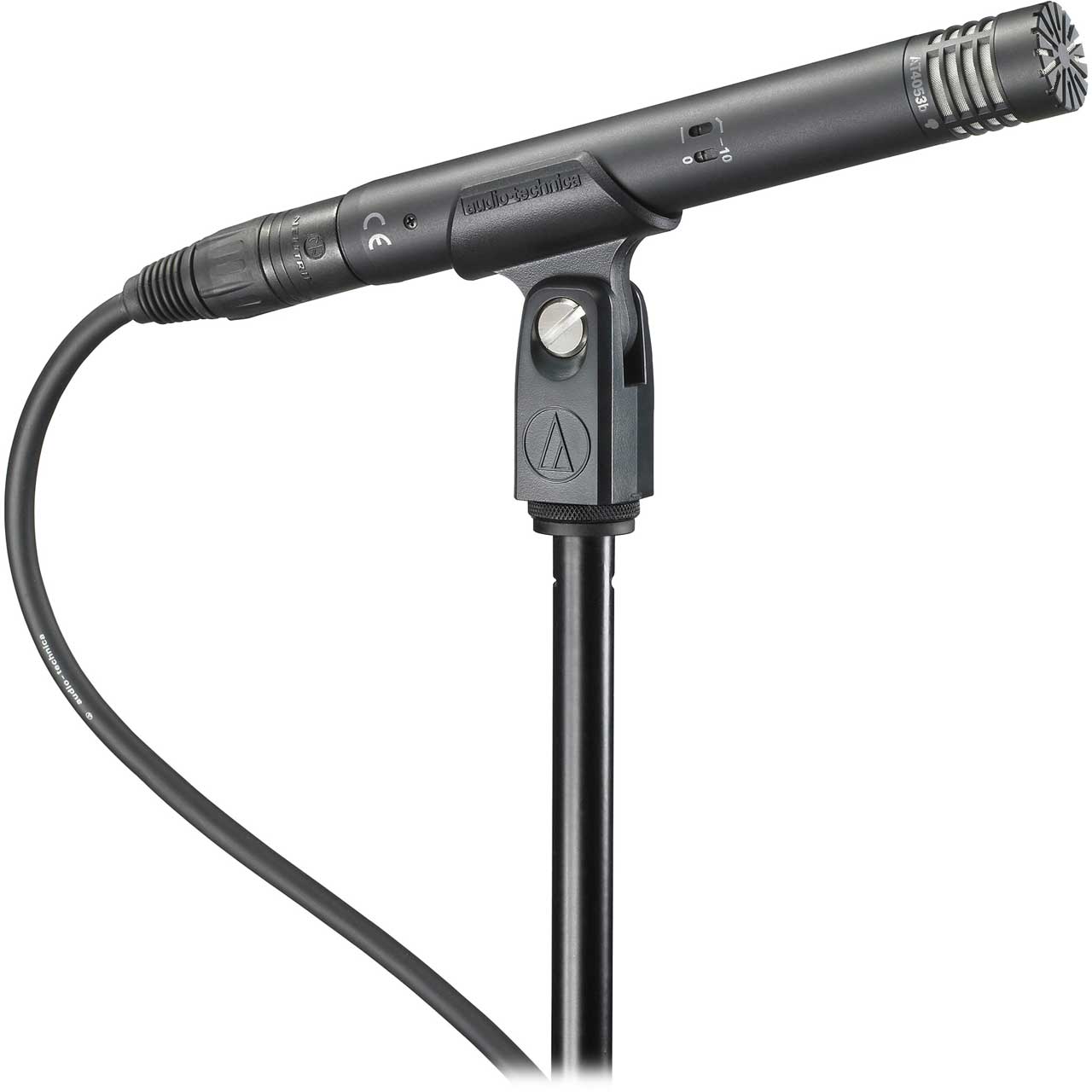

Audio-Technica AT4053b Hypercardioid Condenser Microphone

AT4053B - Overview

• Features:

  • Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
  • Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Direct-coupled, balanced output results in a clean signal even under high-output conditions
  • Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
  • Switchable 80Hz hi-pass filter and 10dB pad
  • Rugged turned-brass microphone housing for enduring dependability
  • State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
  • RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)


• Specifications:

  • Element: Externally polarized (DC bias) capacitor
  • Polar Pattern: Hypercardioid
  • Frequency Response: 20 - 20,000Hz
  • Low Frequency Roll-Off: 80Hz, 18dB/octave
  • Open Circuit Sensitivity: -34dB (19.9mV) re 1V @ 1Pa
  • Impedance: 50Ω
  • Maximum Input Sound Level: 145dB SPL, 1kHz @ 1% T.H.D.; 155dB SPL, with 10dB pad (nominal)
  • Noise: 16dB SPL
  • Dynamic Range (typical): 129dB, 1kHz @ Max SPL
  • Signal-To-Noise Ratio: 78 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 48V DC, 4.8mA typical
  • Switch: Flat, roll-off; 10dB pad (nominal)
  • Weight: 4.5oz
  • Dimensions: 6.10" long, 0.83" maximum body diameter
  • Output Connector: Integral 3-pin XLRM-type
  • Optional Interchangeable Elements: AT4049b-EL (omnidirectional); AT4051b-EL (cardioid)
  • Audio-Technica Case Style: S1


• Item Includes:

  • AT8405a stand clamp for 5/8"-27 threaded stands
  • Windscreen
  • Protective carrying case


• Warranty:

  • 5 Year Limited End-User


• GTIN:

  0042005156023
