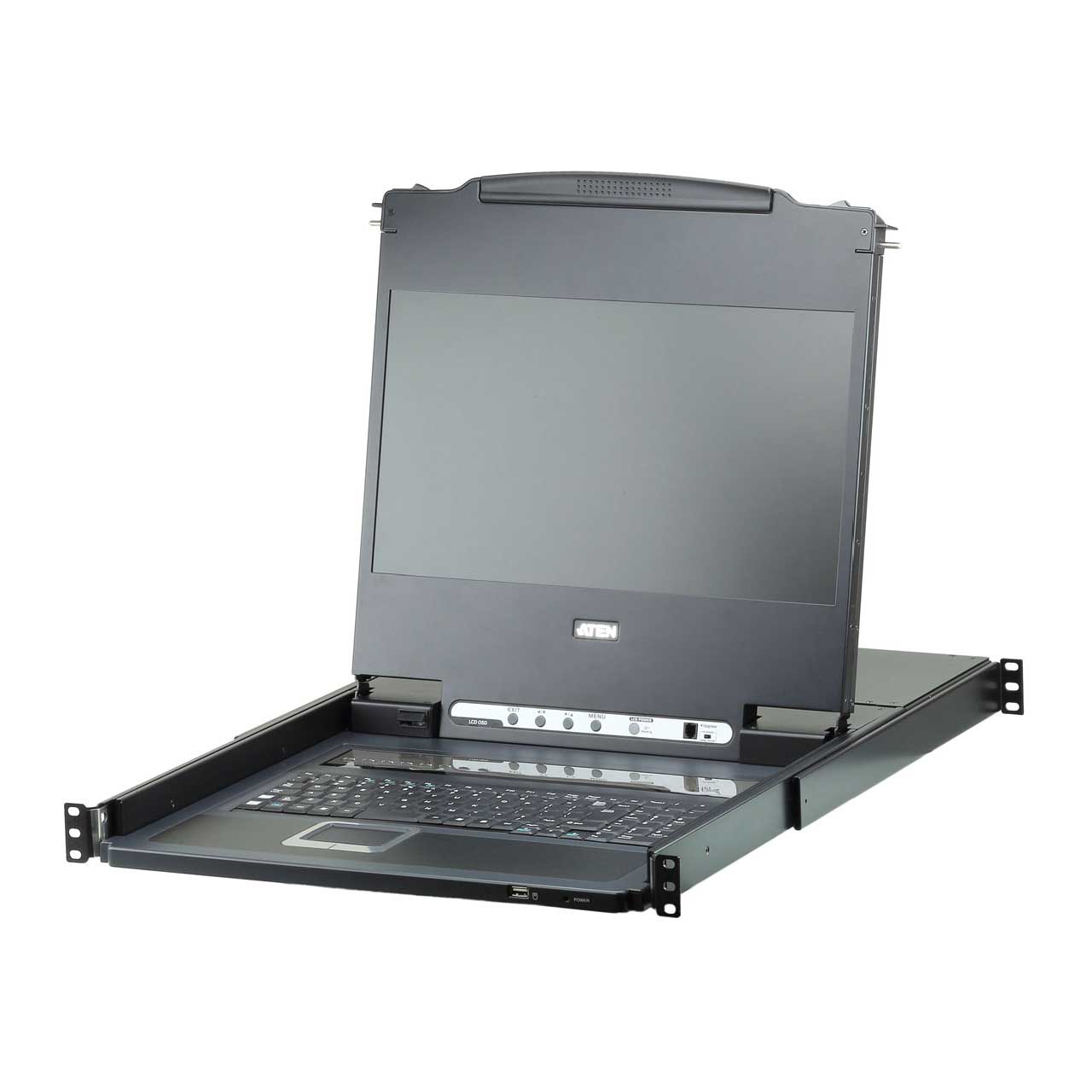

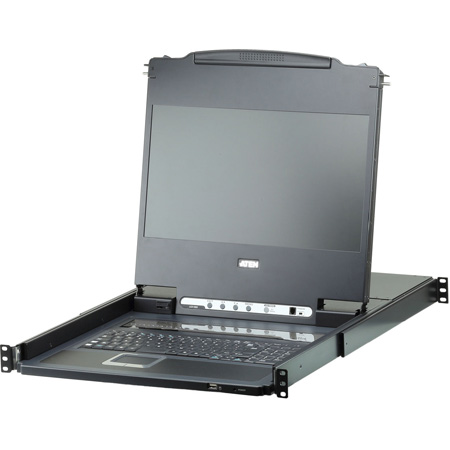

ATEN CL6708MW Single Rail 8-Port DVI Full HD LCD KVM Switch

CL6708MW - Overview

• Features:

  • Integrated KVM with a 17.3" Widescreen DVI Full HD LCD monitor
  • Single rail, sliding housing with top and bottom clearance for smooth operation in a 1U rack
  • Controls eight Single Link DVI computers
  • Supports an external console with DVI video port
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
  • KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches)
  • Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
  • Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously
  • Firmware upgradable
  • Supports YUV video format for greater compatibility
  • DVI monitor support - fully compliant with DVI specifications
  • Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes responsiveness when switching between ports
  • Note: Video DynaSync™ only works with digital video sources
  • HDCP-compatible for hassle-free content-protected media playback
  • Superior video quality - 1920 x 1080 @ 60Hz; DDC2B
  • Audio support for connecting speakers
  • Auto Scan Mode for monitoring all computers
  • Multiplatform support - Windows, Linux, Mac, Sun
  • Console lock - enables the console drawer to remain securely locked away in position when not in use


• Specifications:

  • Computer Connections
  • Direct: 8
  • Maximum: 64 (via Cascade)
  • Port Selection: OSD, Hotkey, Pushbutton

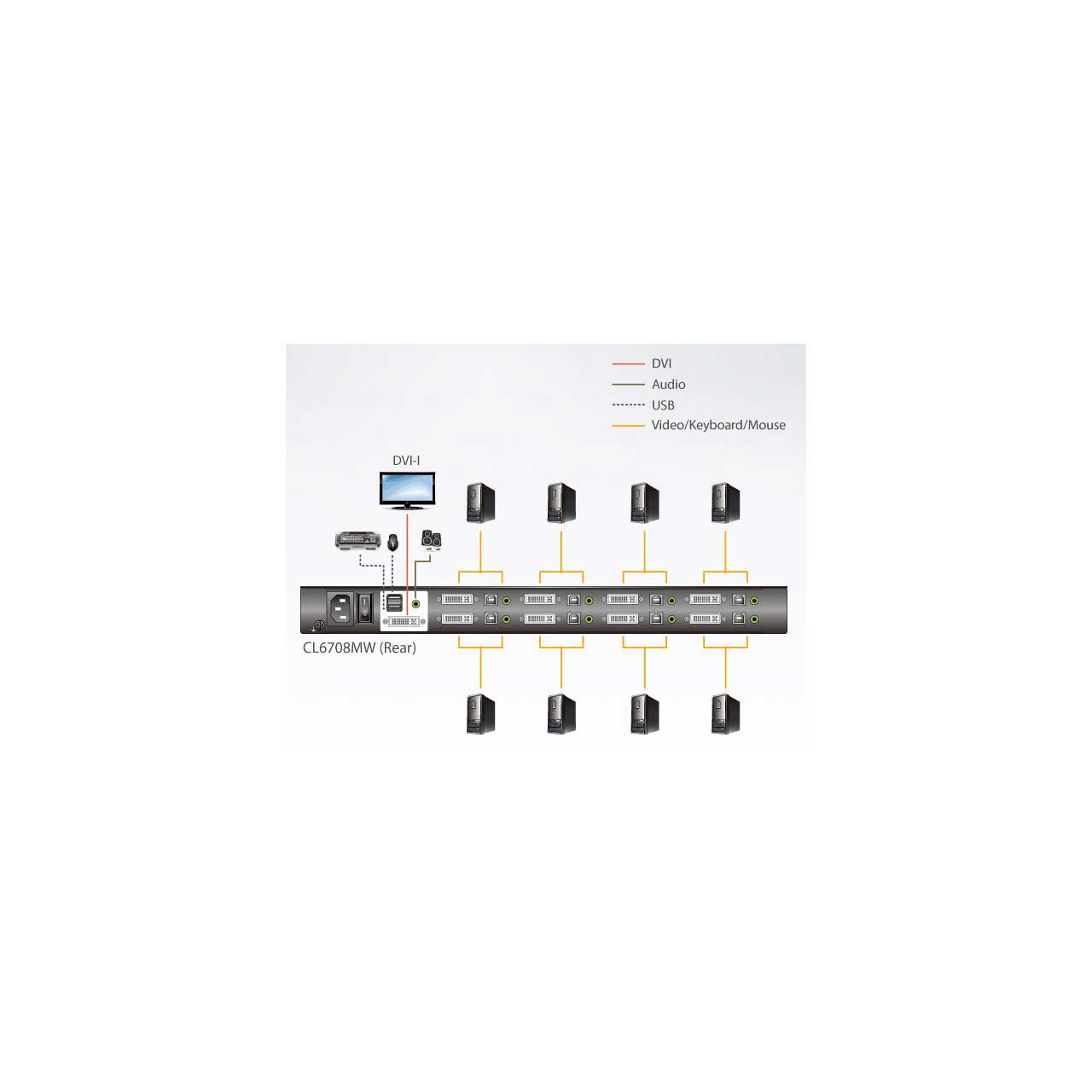

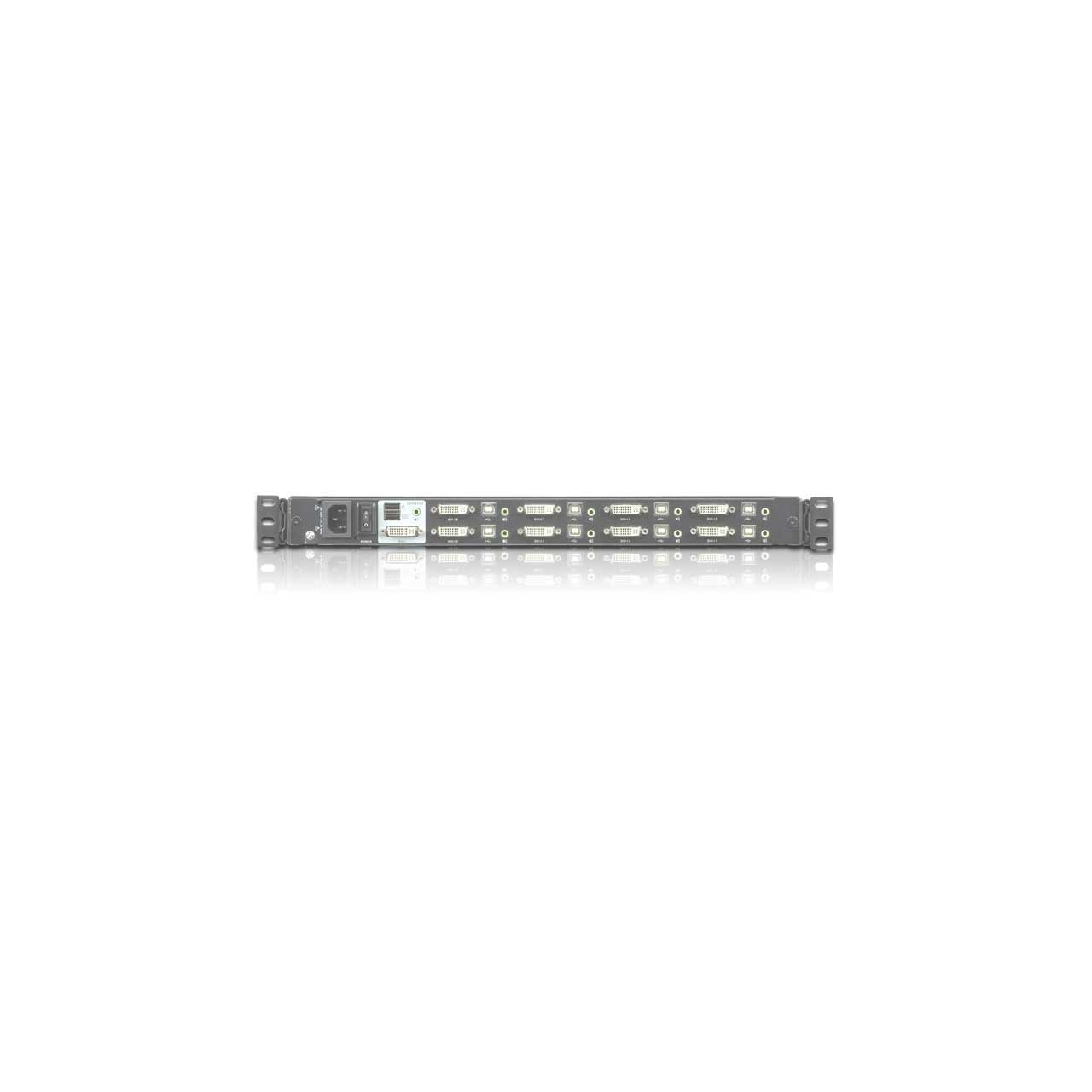

    Connectors
  • KVM Ports: 8 x DVI-I Female (White), 8 x USB Type B Female, 8 x 3.5mm Audio Jack Female (Green)
  • Firmware Upgrade: 1 x RJ-11 Female
  • Power: 1 x IEC 60320/C14
  • External Console Ports: 1 x DVI-I Female (White), 2 x USB Type A Female, 1 x 3.5mm Audio Jack Female (Green)
  • External Mouse / Peripheral: 1 x USB Type A Female (Front)

    Switches
  • Port Selection: 8 x Pushbutton
  • Reset: 1 x Semi-recessed Pushbutton
  • Firmware Upgrade: 1 x Slide Switch
  • Power: 1 x Rocker Switch
  • LCD Control: 4 x Pushbutton
  • LCD Power: 1 x LED Pushbutton

    LEDs
  • Online: 8 (Orange)
  • Selected: 8 (Green)
  • Power: 1 x KVM Power(Dark Green), 1 x LCD Power(Orange)
  • Lock: 1 x Num Lock (Green), 1 x Caps Lock (Green), 1 x Scroll Lock (Green)
  • LED Illumination Light: 1 x LED Illumination Light

    Panel Spec
  • LCD Module: 17.3" TFT-LCD
  • Resolution: 1920 x 1080 @ 60 Hz
  • Response time: 8 ms
  • Viewing Angle: 140° (H), 120° (V)
  • Pixel Pitch: 0.1989 mm x 0.1989 mm
  • Support Color: 262144 colors
  • Contrast Ratio: 650:1
  • Luminance: 300 cd/m²

    Video
  • Input Video Resolution: up to 1920 x 1200 @ 60 Hz; 1920 x 1080 @ 60 Hz, DDC2B
  • Scan Interval: 1-255 seconds

    Emulation
  • Keyboard / Mouse: USB
  • Maximum Input Power Rating: 100-240 V AC, 50/60 Hz, 1 A
  • Power Consumption: 110V/29.26W; 220V/28.82W

    Environmental
  • Operating Temperature: 0-40°C
  • Storage Temperature: -20-60°C
  • Humidity: 0-80% RH, Non-condensing

    Physical Properties
  • Housing: Metal + Plastic
  • Rail Type: Single Rail
  • Weight: 12.70 kg ( 27.97 lb )
  • Dimensions (L x W x H): 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)


• Item Includes:

  • 1x CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit
  • 1x Custom USB DVI KVM Cable Set
  • 1x Power Cord
  • 1x Firmware Upgrade Cable
  • 1x User Instructions*


• GTIN:

  0672792006845
