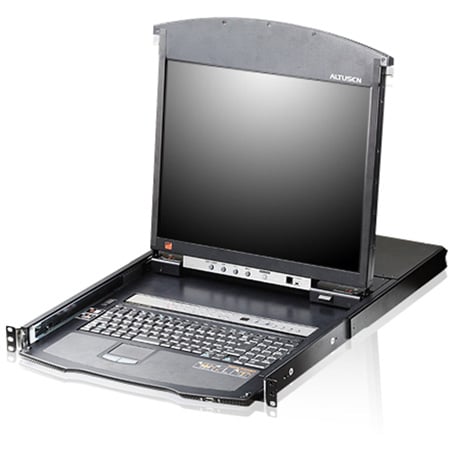

ATEN KL1516AiM 16-Port Cat 5 Dual Rail 17-Inch LCD KVM Over the Net Switch

PV3217 - Overview

• Features:

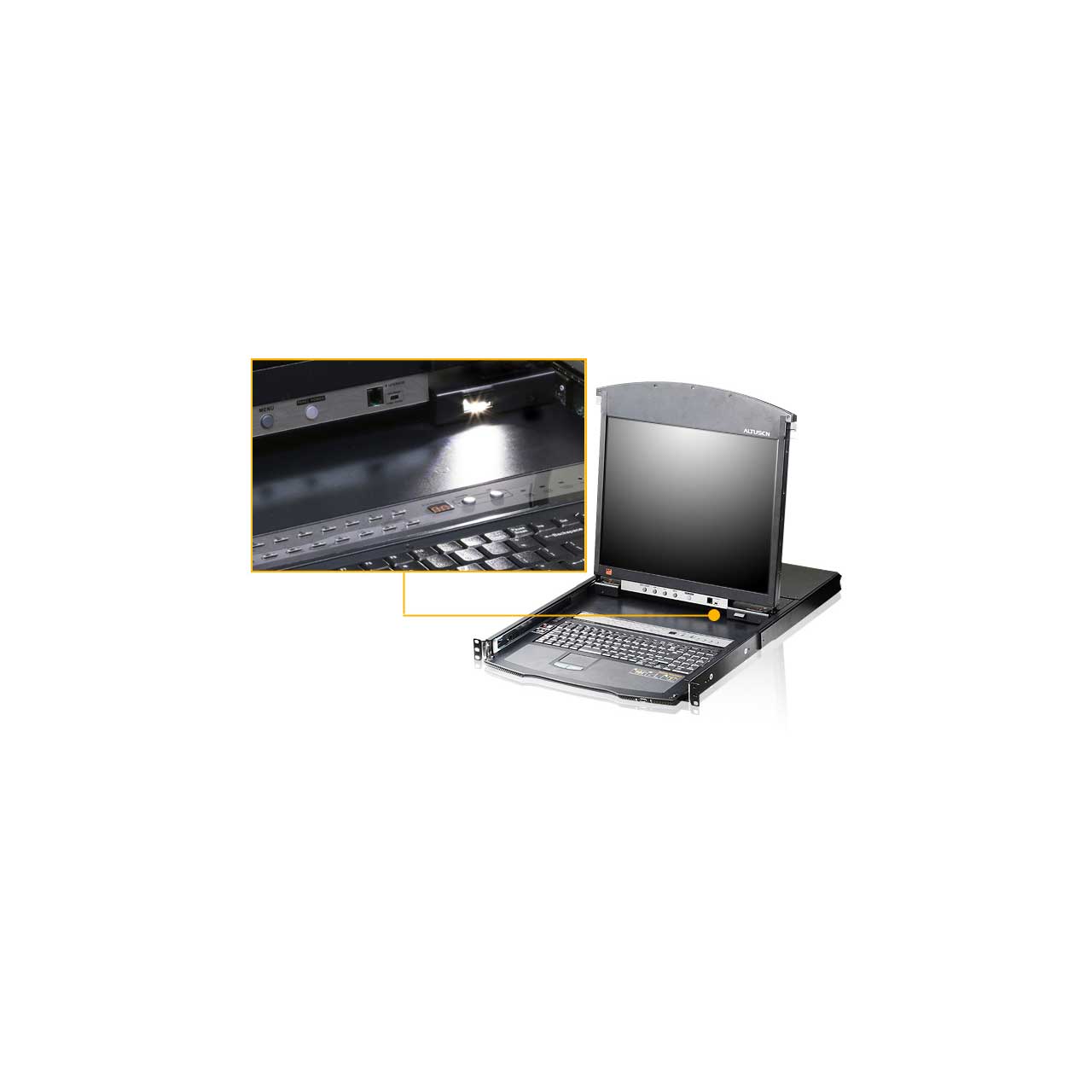

  • Exclusive LED illumination light - designed by ATEN to illuminate the
    keyboard and touchpad to allow visibility in low-light conditions

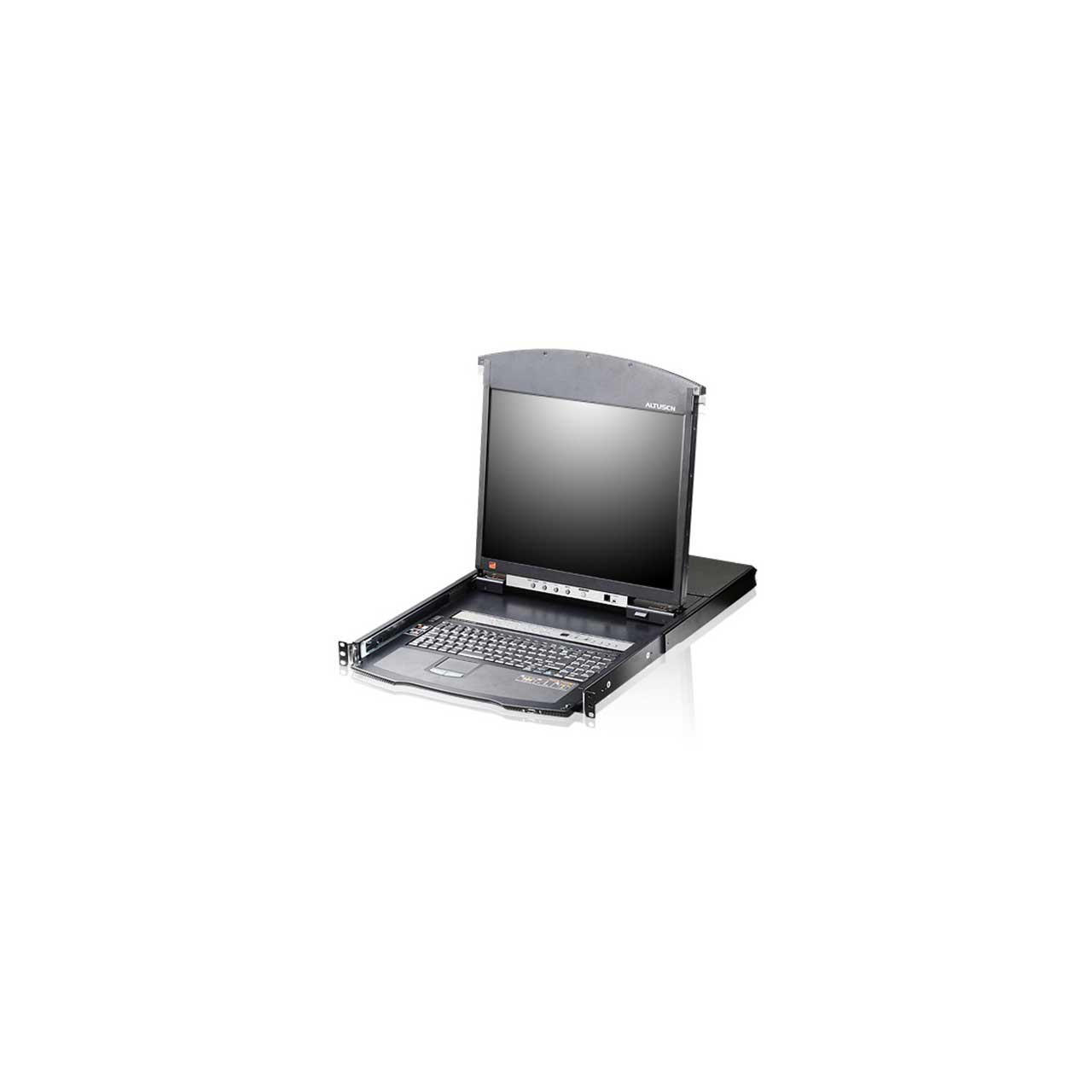

  • Dual Rail LCD monitor slides independently of the keyboard/touchpad

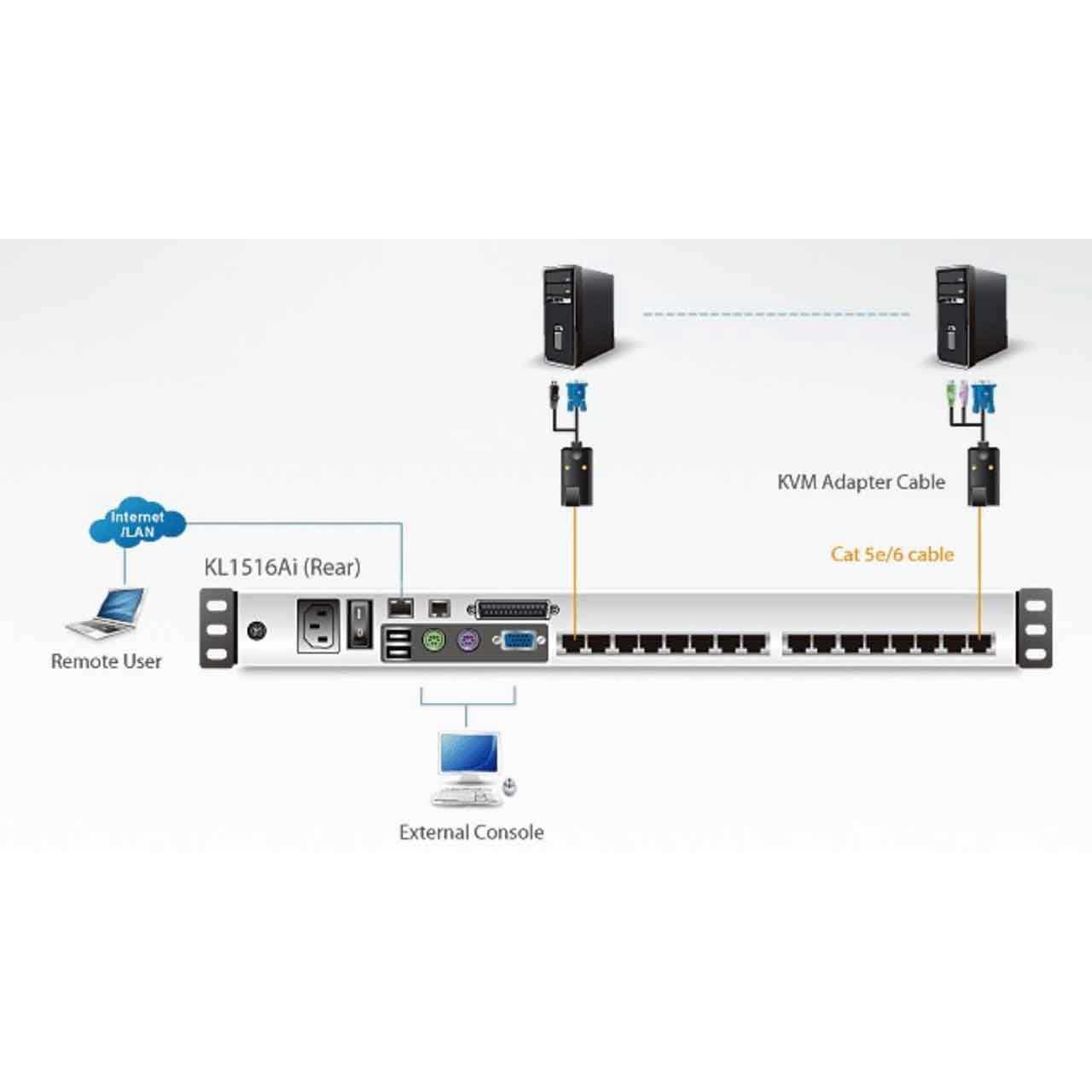

  • 1 remote bus for KVM over IP access-allowing IT administrators to remotely
    monitor and control upto 16 servers
  • Superior Video Quality supports input video resolutions up to 1920 x 1200 @
    60Hz** up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @
    75Hz up to 50 meters


• Specifications:

  • OS Compatibility:
  • Windows: NT (does not support USB), 2000, XP, 2003 Server, 2008 Server,
    Vista
  • Linux (Kernels below 2.6 do not support USB 2.0): RedHat 9.0, Fedora and up, RHEL AS 4, RHEL 5; SuSE 10 and up, OpenSUSE 10.2, SLES 10 SP1; Debian 3.1, 4.0; Ubuntu 7.04, 7.10
  • UNIX: IBM AIX 4.3, 5L (V5.2, V5.3), V6 (V6.1); FreeBSD 5.5, 6.1, 6.2
  • Novell: Netware 5.0 and up
  • Sun: Solaris 8, 9, 10
  • Mac: 9.0, 9.1, 10.1, 10.2, 10.3, 10.4, 10.5
  • DOS: 6.2 and up (does not support USB)

    Max Computer Connections
  • Direct: 16
  • Via daisy chain: 256

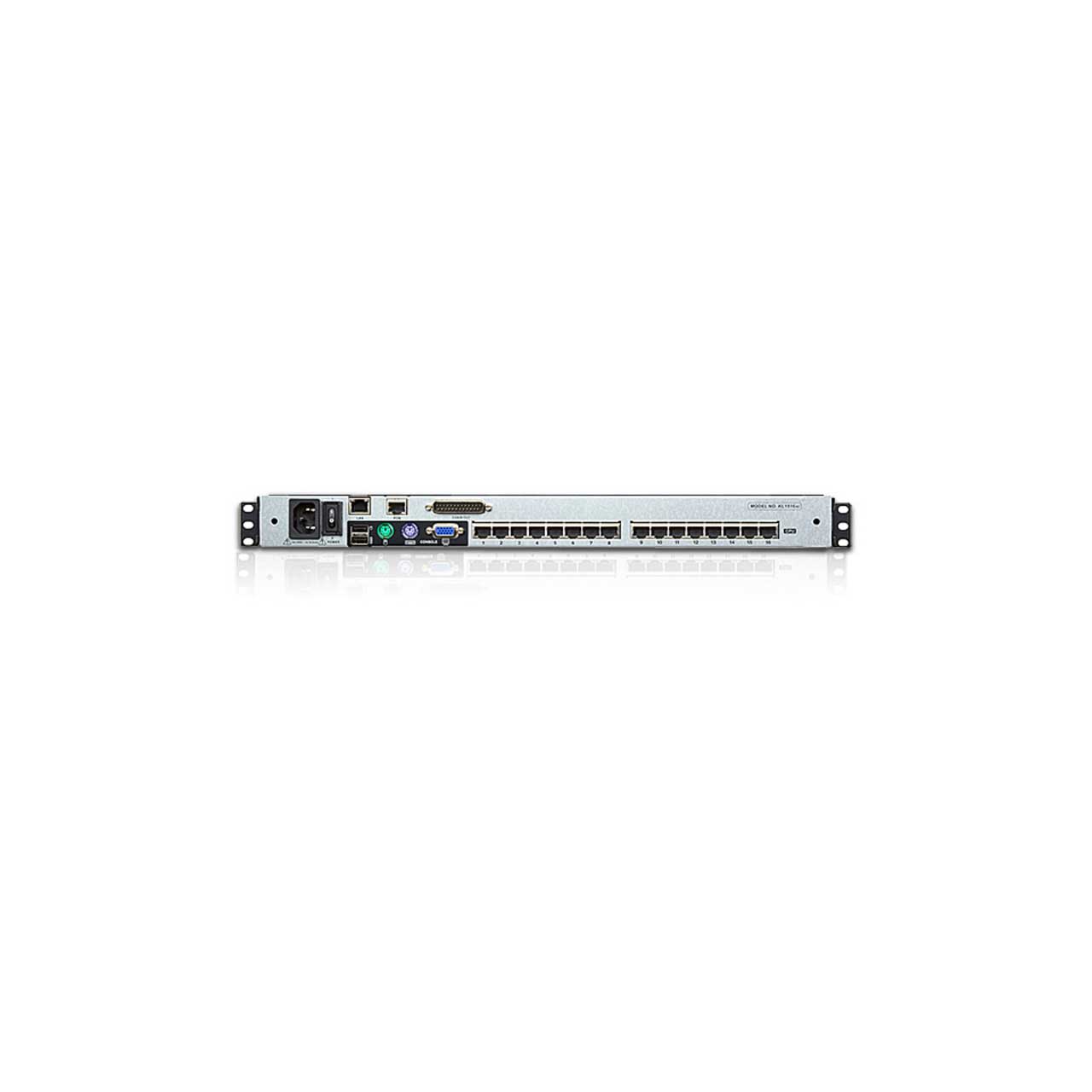

    Connectors
  • Keyboard: 1 x 6-pin mini-DIN female, 1 x USB Type A female
  • Video: 1 x HDB-15 female
  • Mouse: 1 x 6-pin mini-DIN female, 1 x USB Type A female
  • KVM ports: 16 x RJ-45 female
  • Daisy chain: 1 x DB-25 male
  • Firmware upgrade: 1 x RJ-11 female
  • External mouse: 1 x USB Type A female
  • LAN: 1 x RJ-45 female
  • PON: 1 x RJ-45 female

    Buttons or Switches
  • Power: 1 x rocker
  • LCD power: 1 x pushbutton
  • LCM adjustment: 4 x pushbutton
  • Port selection: 16 x pushbutton
  • Firmware upgrade: 1 x slide
  • KVM reset: 1 x semi-recessed pushbutton
  • Station: 2 x pushbutton

    Emulation
  • Keyboard, mouse: PS/2, USB

    LED Indicators
  • Station: 2 x 7 segments (orange)
  • Port - on line: 16 (green)
  • - Selected: 16 (orange)
  • Power: 1 (blue)
  • Number lock: 1 (green)
  • Caps lock: 1 (green)
  • Scroll lock: 1 (green)
  • Link: 1 (green)
  • 10/100 Mbps: 1 (orange/green)
  • LCD power: 1 (orange)


• GTIN:

  0672792401091
