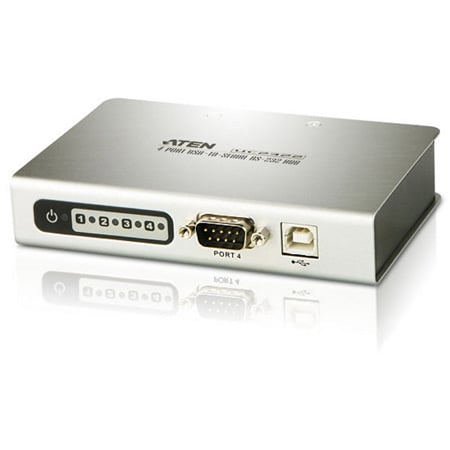

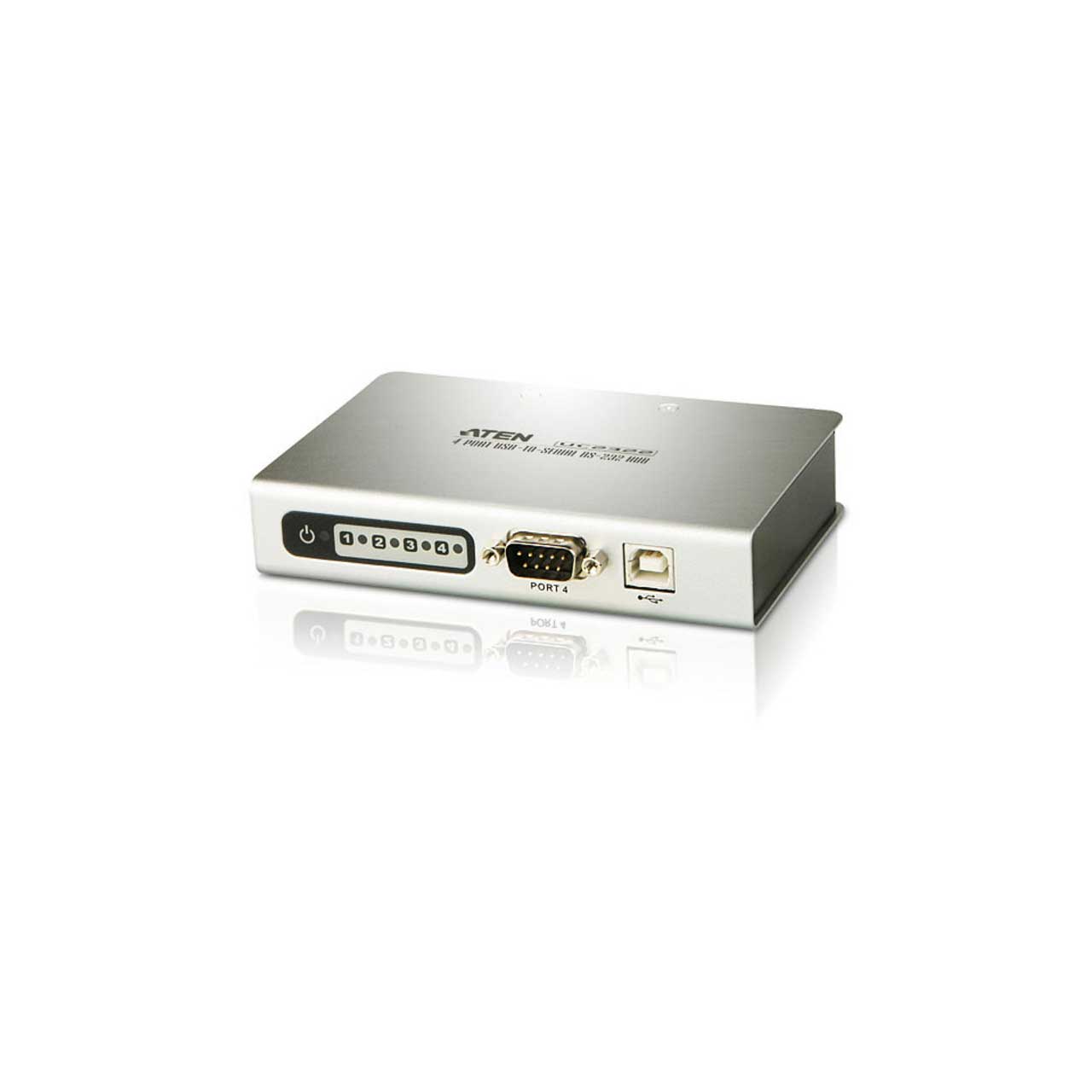

ATEN UC2324 4-port USB to Serial RS-232 Hub

UC2324 - Overview

• Features:

  • Easy way to add 4 RS-232 serial ports
  • Fully compliant with USB 1.1; USB 2.0 compatible
  • Supports RS-232 serial interface
  • Supports automatic handshake mode
  • Up to 115.2 Kbps data transfer rate for each serial port
  • Dual data buffers for each upstream and downstream data transfer
  • No IRQ, DMA, I/O address resources required
  • Supports hot-swapping and plug-and-play
  • Built-in 16KV ESD protection
  • Supports both bus power and external power

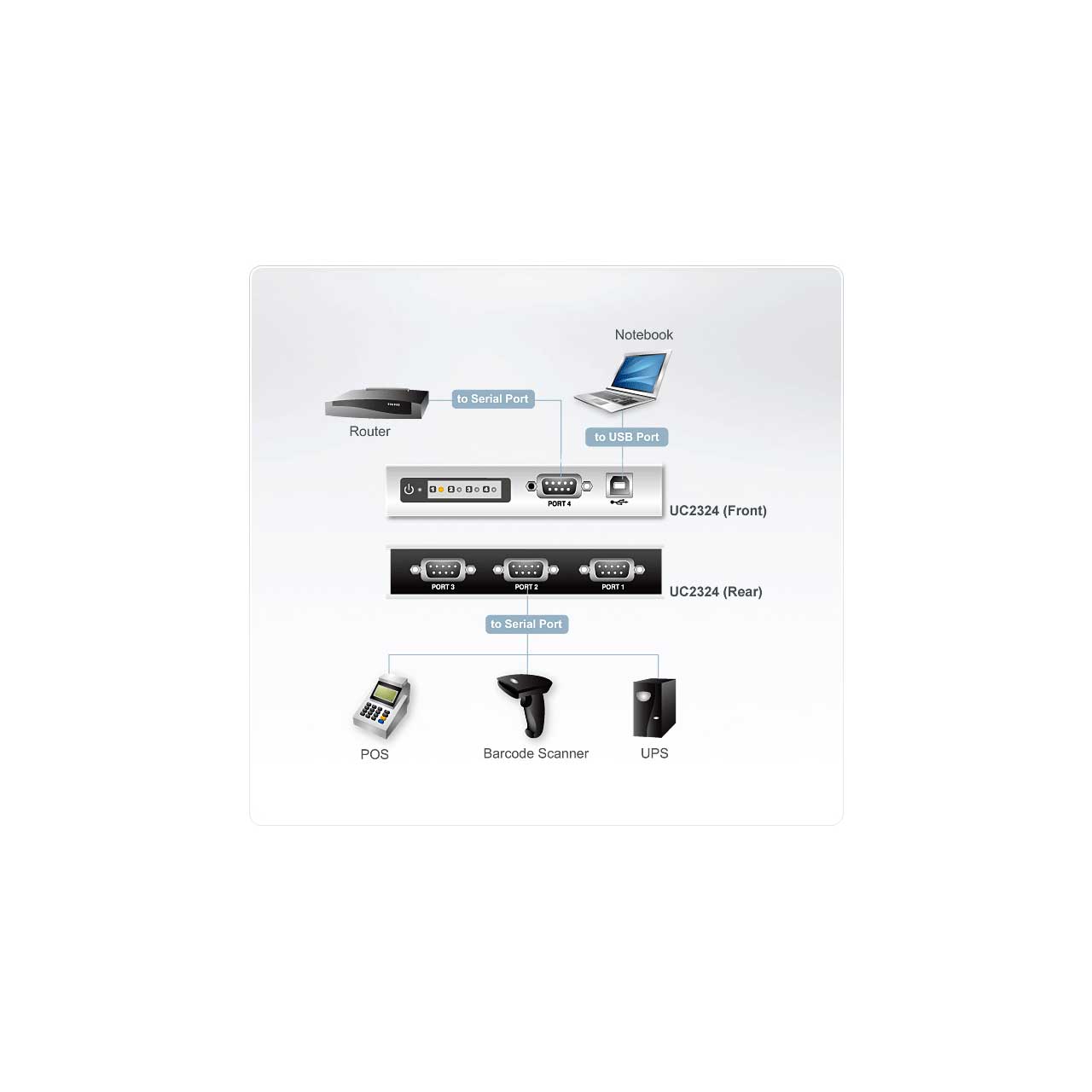

  • Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters
  • OS support - Windows 2000/2003/XP/NT


• Specifications:

  • LEDs
  • Power On 1 (Orange)
  • Port Status 4 (Green)
  • Power Consumption 0.5W
  • USB Specification USB 1.1 and USB 2.0 Compatible
  • Data Rate 115.2 Kbps(Max.)


  • Connectors
  • Power 1 x DC Jack
  • USB 1 x USB Type B Female

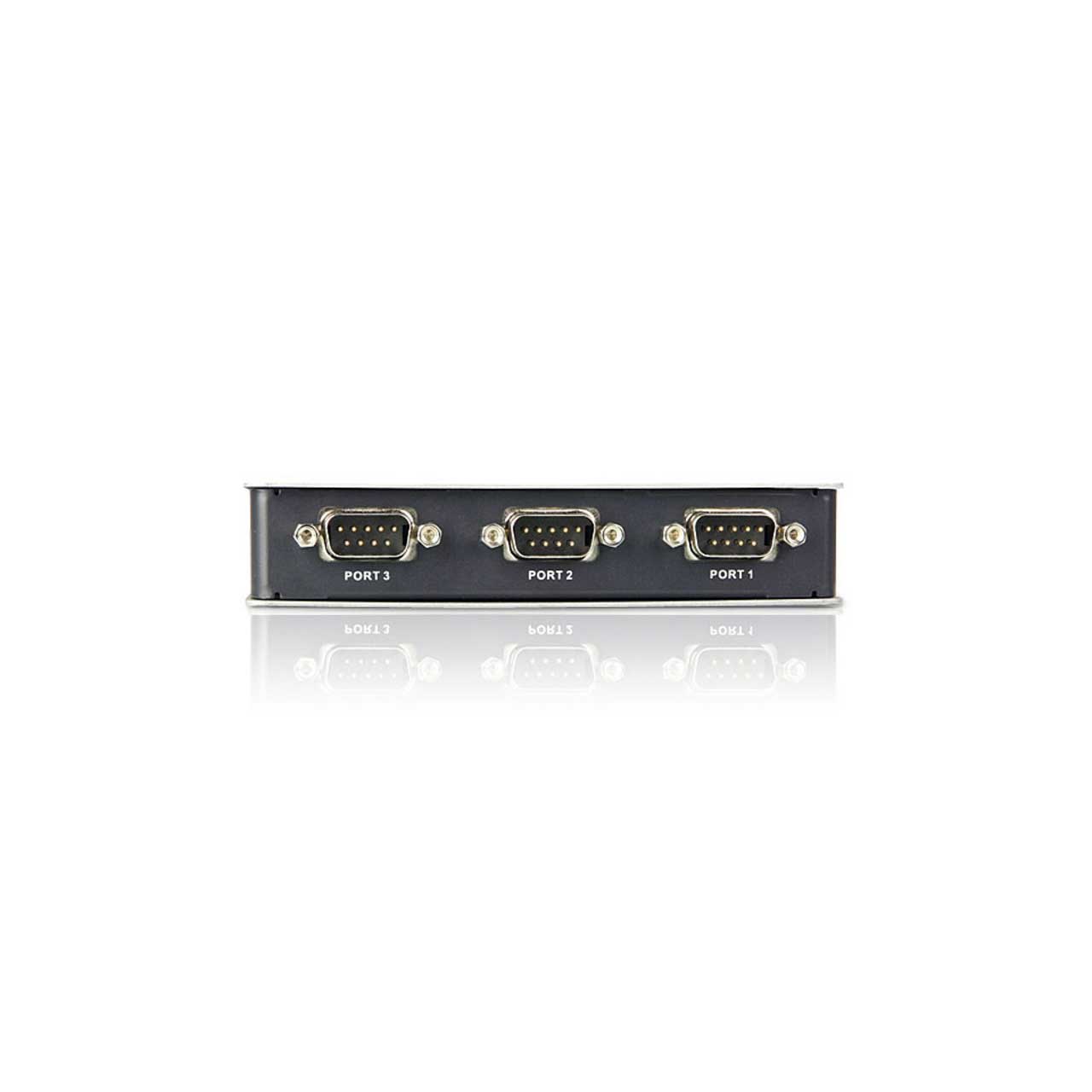

  • Serial 4 x DB-9 Male


  • Environment
  • Operation Temperature 32~122 F (0~50C)
  • Storage Temperature -4~140 F (-20~60C)
  • Humidity 0~80% RH, Non-condensing
  • Device Connection 4
  • FIFO 16 byte Hardware FIFO
  • RS-232 Signal TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI GND
  • Data Bit 5,6,7,8
  • Stop Bit 1, 1.5, 2
  • Power Mode Bus Powered(Power adapter is optional)


  • Weight
  • Unit Wt. w/accessories 1.6 lb. (0.7kg)
  • Unit Wt. 0.8 lb. (0.4 kg)
  • Physical Properties
  • Unit Weight .7 Lbs (.32 kg)
  • Housing Metal
  • Case Weight 34 lb. (15.5 kg)
  • Unit Weight with package .84Lbs (0.38kg)
  • Case Dimension 19 3/4 x 13 x 13 3/4 in. (50x 33x 35 cm)


• Item Includes:

  • 1x USB-to-Serial Hub
  • 1x USB Cable
  • 1x Installation Disk
  • 1x User Manual
  • 1x Quick Start Guide


• GTIN:

  0672792151682
