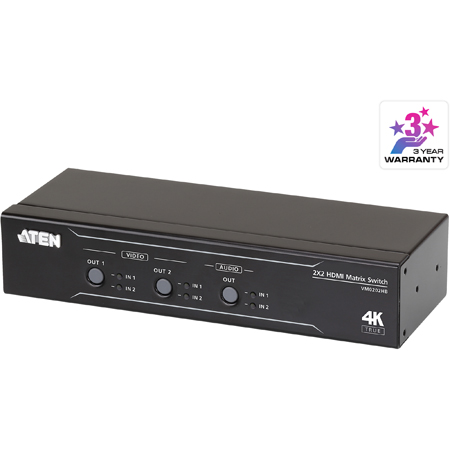

ATEN VM0202HB 2x2 True 4K HDMI Matrix Switch with Audio De-Embedder - 4096x2160 - Display - 2x HDMI Out

VM0202HB - Overview

• Features:

  • Connects 2 HDMI sources to any 2 HDMI displays
  • Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
  • Audio de-embedder - HDMI audio can be extracted to stereo or Lineout audio
  • Supports Dolby True HD and DTS HD Master Audio
  • Auto switching - automatically detects and switches to a new source once connected (Default: off)
  • Multiple Control Methods - system management via front-panel pushbuttons, IR remote, and RS-232 serial control
  • Long-distance transmission up to 5 meters
  • HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • EDID ExpertT - selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
  • Supports ATEN's Lock ProT HDMI cable lock for secure HDMI cable connections
  • All metal casing
  • Firmware upgradable
  • Rack mountable


• Specifications:

  • Video Input
  • Interfaces: 2 x HDMI Type A Female (Black)
  • Impedance: 100 Ω
  • Max. Distance: 5.0 m

    Video Output
  • Interfaces: 2 x HDMI Type A Female (Black)
  • Impedance: 100 Ω
  • Max. Distance: 5.0 m

    Video
  • Max. Data Rate: 18.0 Gbps (6.0 Gbps Per Lane)
  • Max. Pixel Clock: 600 MHz
  • Compliance: HDMI (3D, 4K, Deep Color), HDCP 2.2 Compatible, Consumer Electronics Control (CEC)
  • Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
  • Max. Distance: Up to 5.0 m

    Audio
  • Output: 1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole

    Control
  • USB: 1 x Micro USB, F/W upgrade
  • RS-232: Connector: 1 x DB-9 Female (Black), Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
  • IR: 1 x Mini Stereo Jack Female (Black)
  • EDID Settings: EDID Mode: Default / Port1 / Remix

    Connectors
  • Power: 1 x DC Jack (Black)
  • Power Consumption: DC5V:2.47W:11BTU

    Environmental
  • Operating Temperature: 0-40°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing

    Physical Properties
  • Housing: Metal
  • Weight: 1.32 lb
  • Dimensions: (L x W x H): 7.87 x 2.99 x 1.65 in
  • Carton Lot: 5 pcs

    Note: Please note that the standard physical dimensions of WxDxH may be expressed using a LxWxH format.


• Item Includes:

  • 1 VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
  • 1 3-pole Terminal Block
  • 1 Power Adapter
  • 1 IR Remote Control
  • 1 IR Receiver
  • 1 User Instructions
