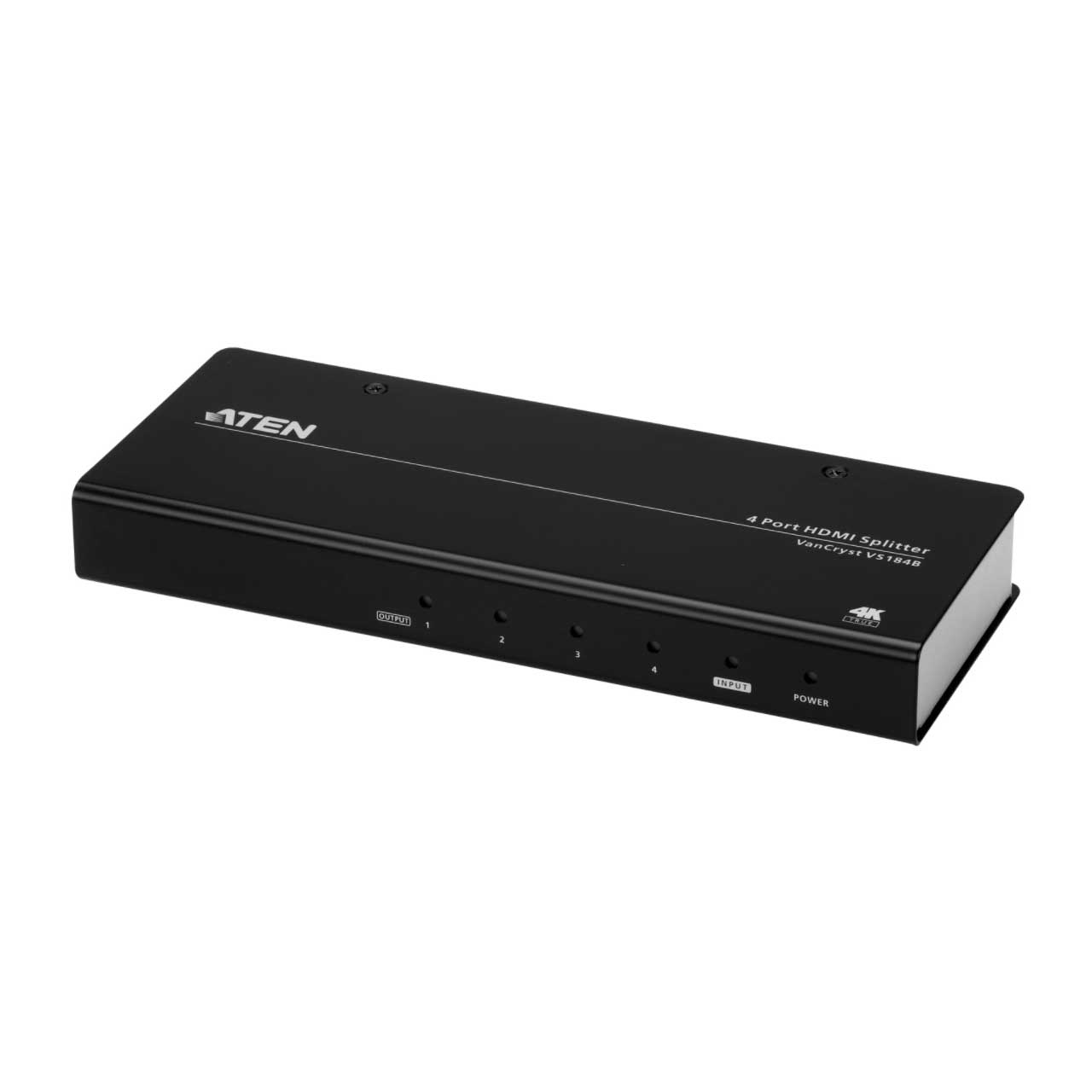

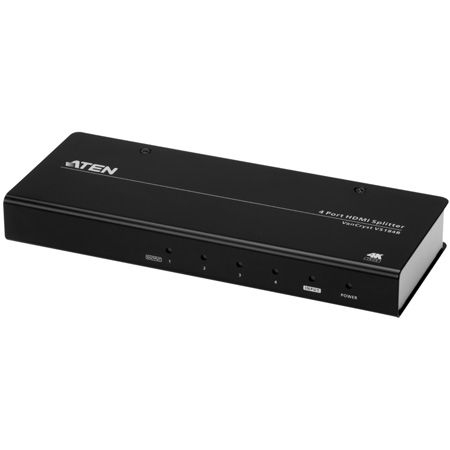

ATEN VS184B 18Gbps 4 Port True 4K HDMI Splitter with HDCP 2.2

VS184B - Overview

• Features:

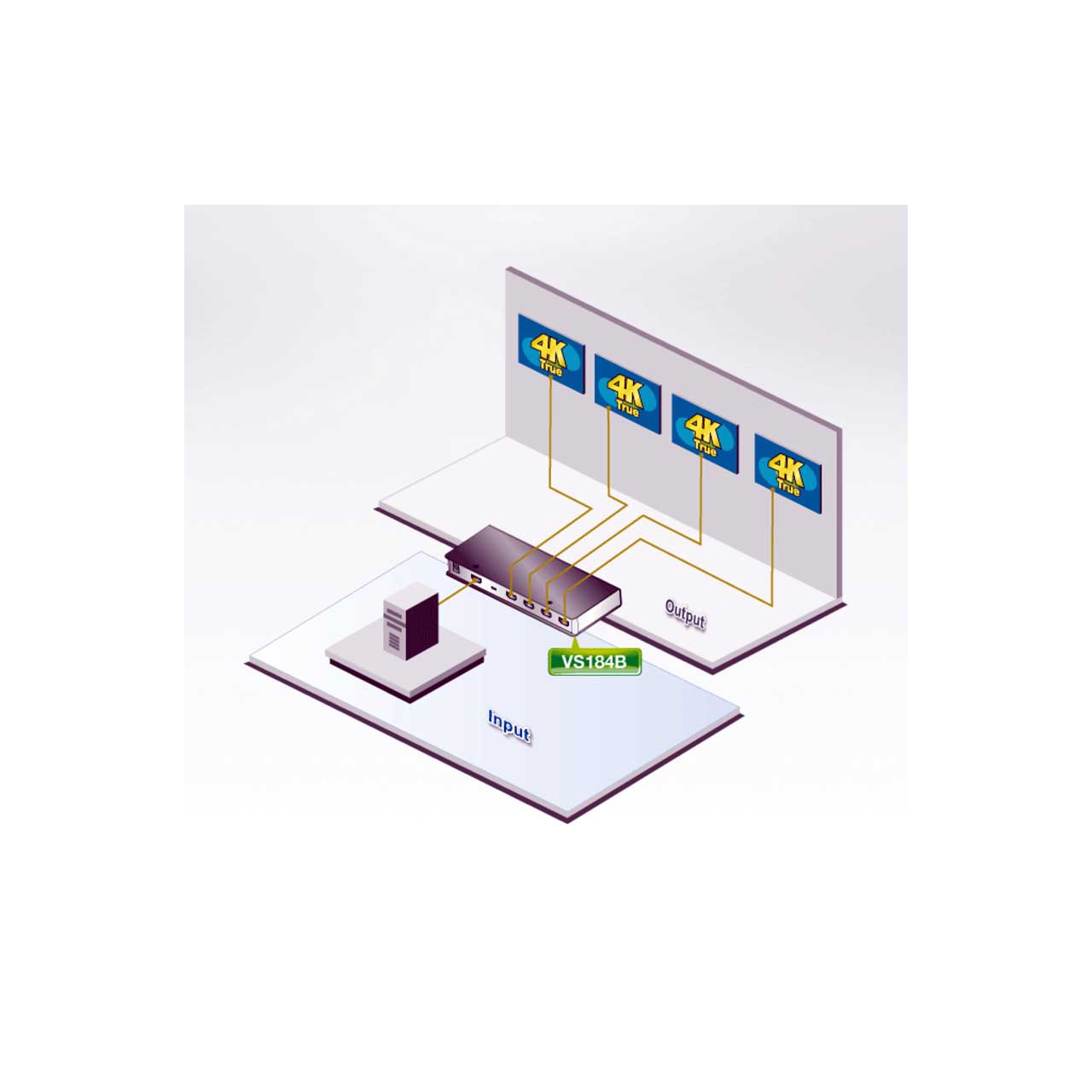

  • Connects one HDMI source to four HDMI displays at the same time
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
  • Supports HDR
  • Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
  • Long distance transmission- up to 15 m(1920x1200)/1.8m (True 4K)
  • Max pixel clock rate up to 600 MHz
  • Max data rate up to 18 Gbps (6 Gbps per lane)

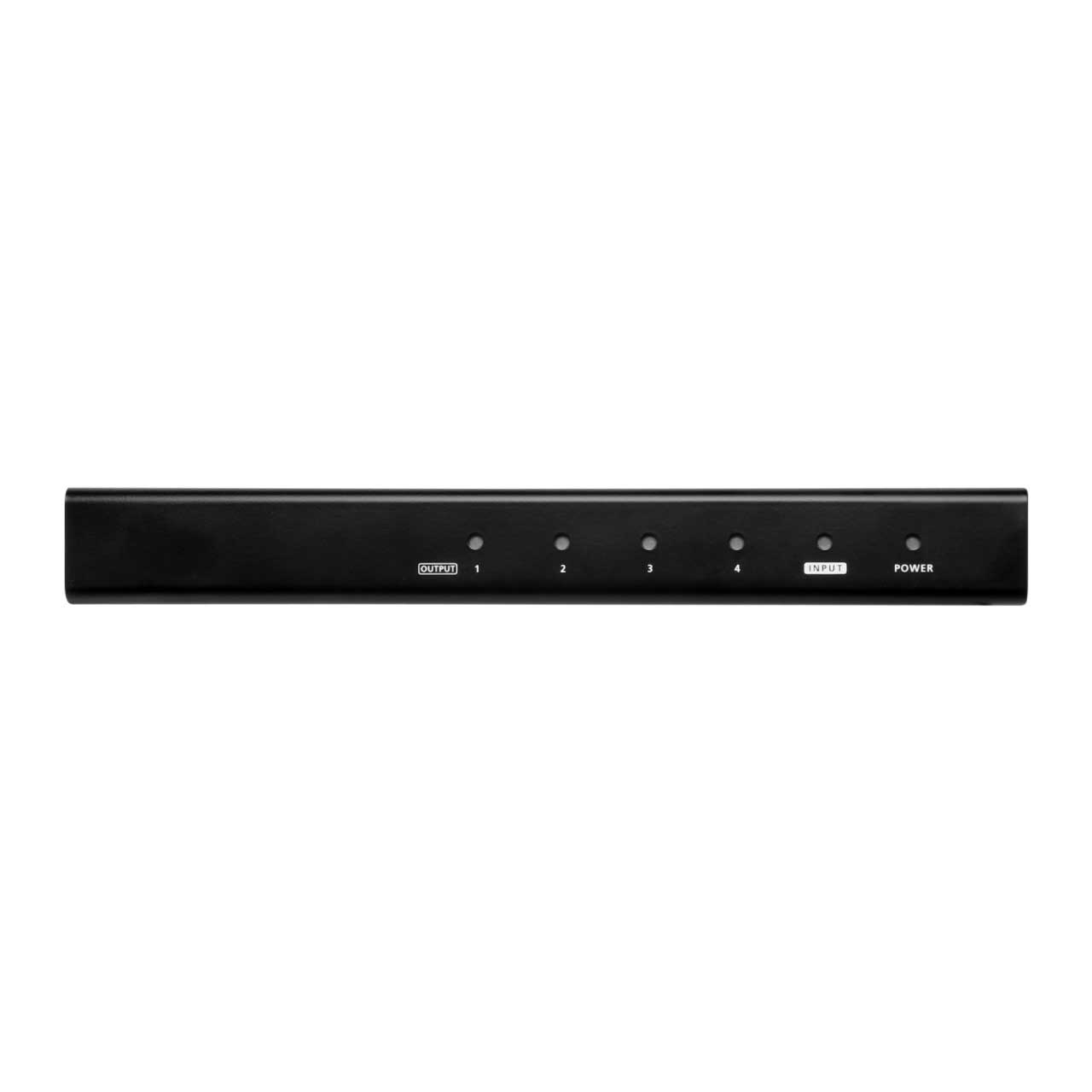

  • LED indication of power status and source devices
  • EDID Expert - Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
  • Plug-and-play - No software installation required


• Specifications:

  • Video Input: 1 x HDMI Type A Female (Black) - 100 Ω

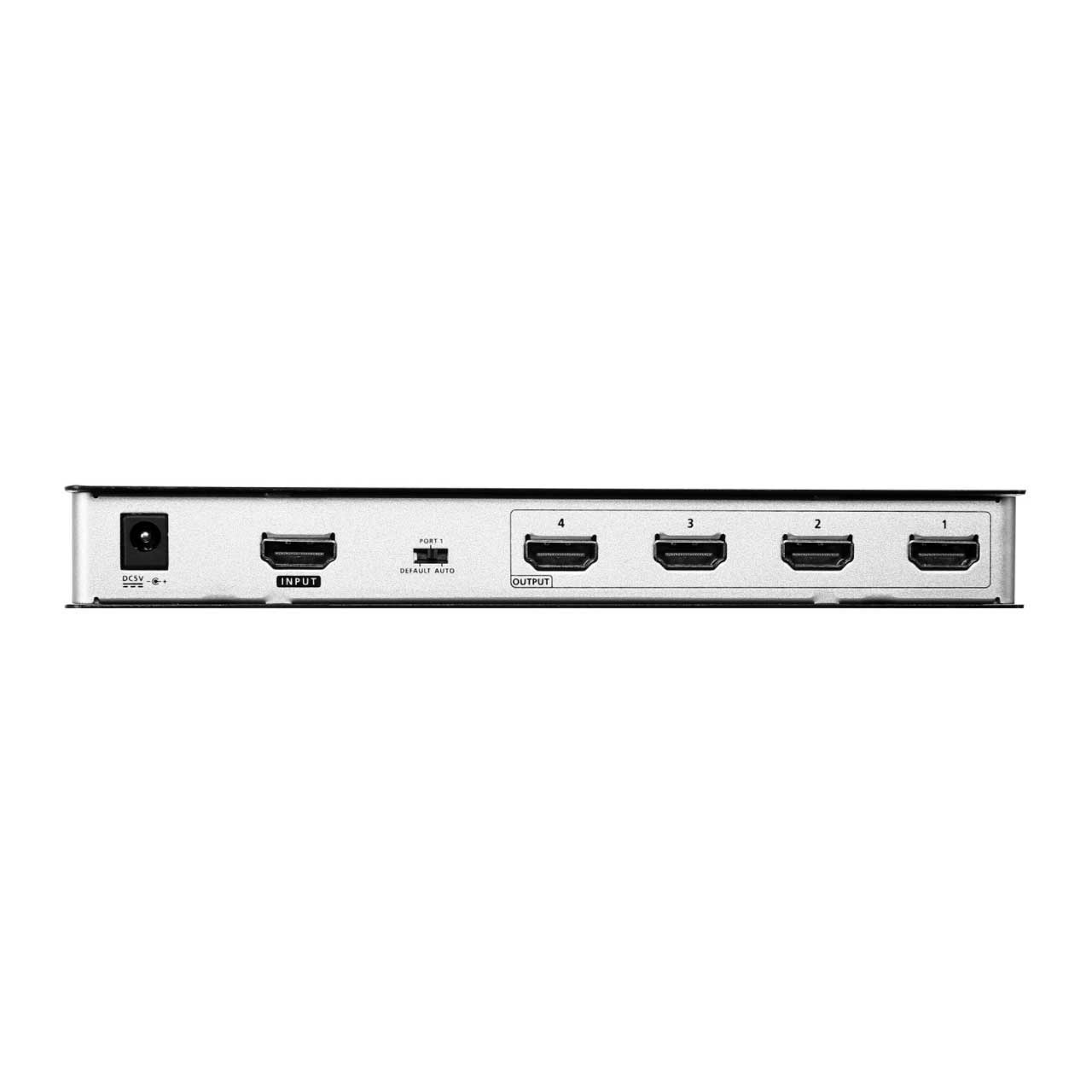

  • Video Output: 4 x HDMI Type A Female (Black) - 100 Ω
  • Maximum Video Distance: 1.8m / 4K@60Hz (4:4:4); 15m / 1920 x 1200
  • Maximum Data Rate: 18Gpbs (6 Gbps Per Lane)
  • Maximum Pixel Clock: 600 MHz
  • Compliance: HDMI (3D, Deep Color, 4K); HDCP Compatible
  • Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
  • Audio Input: 1 x HDMI Type A Female (Black)
  • Audio Output: 4 x HDMI Type A Female (Black)
  • Power Connectors: 1 x DC Jack
  • Power Consumption: 5 VDC, 4.84W
  • Operating Temperature: 0 - 40 °C
  • Storage Temperature: -20 - 60 °C
  • Humidity: 0 - 80% RH, Non-Condensing
  • Housing: Metal
  • Weight: 1.06 lb
  • Dimensions (L x W x H): 7.87 x 3.15 x 0.98 in.


• Item Includes:

  • 1 x VS184B 4-Port True 4K HDMI Splitter
  • 1 x Power adapter
  • 1 x HDMI cable
  • 1 x User Instructions


• GTIN:

  0672792007323
