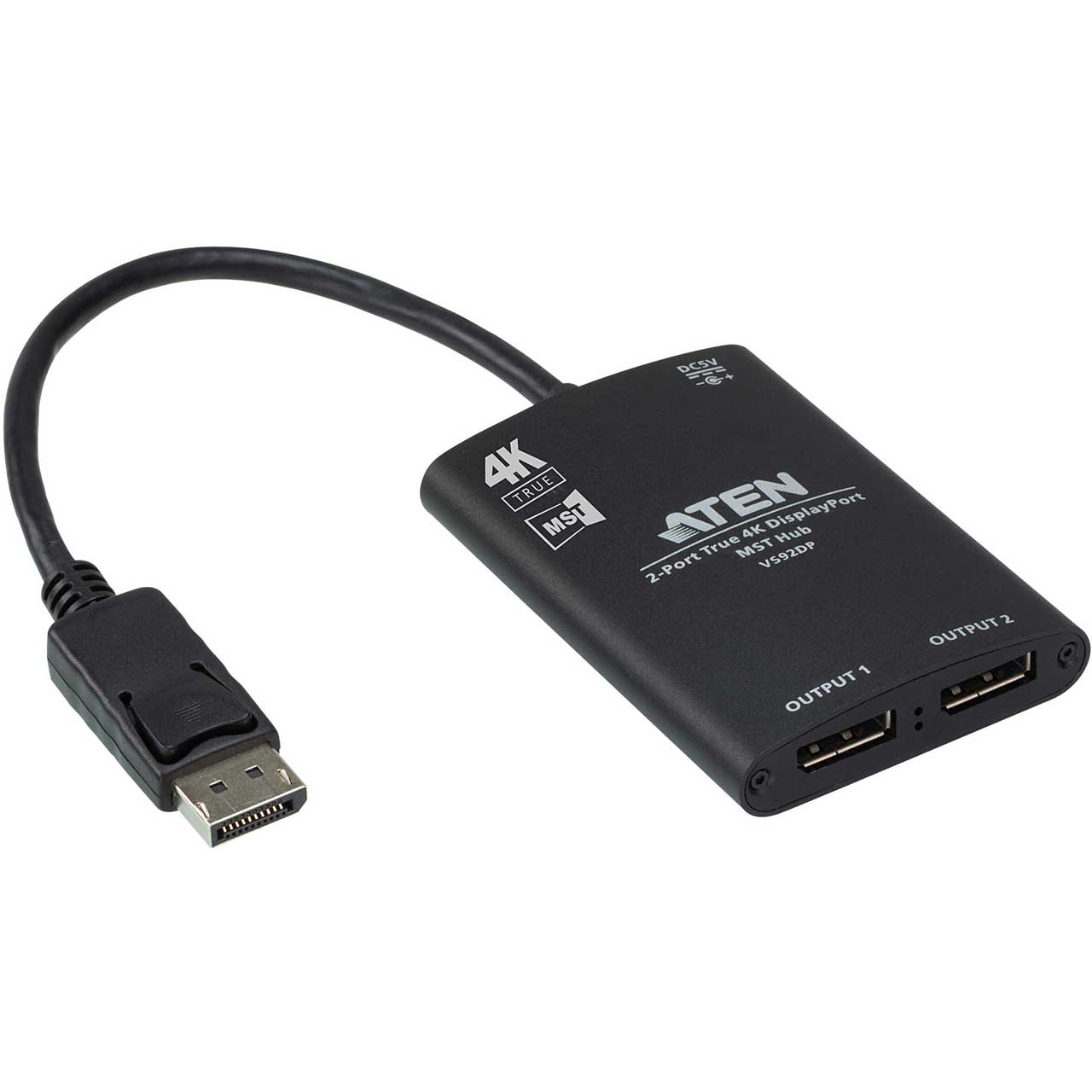

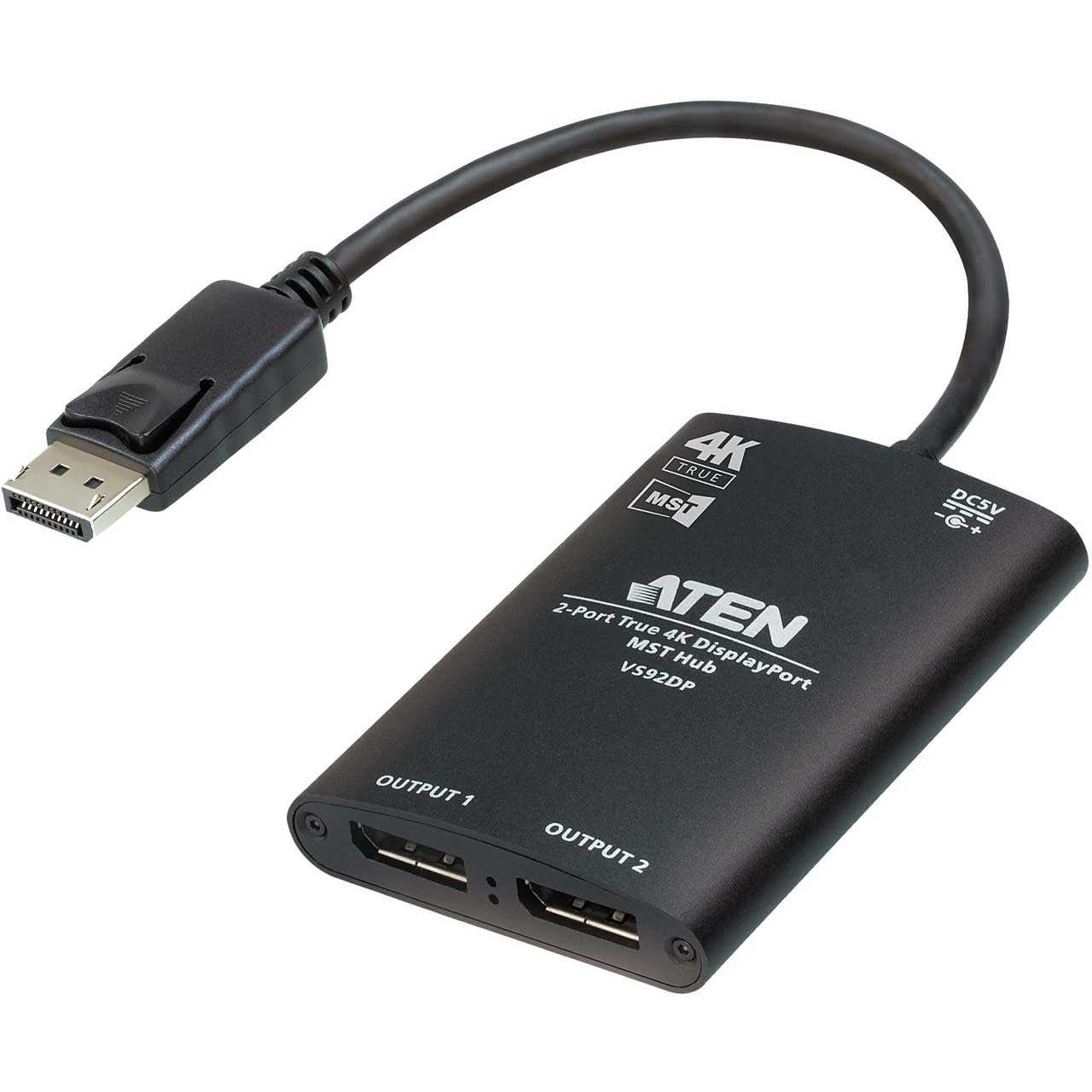

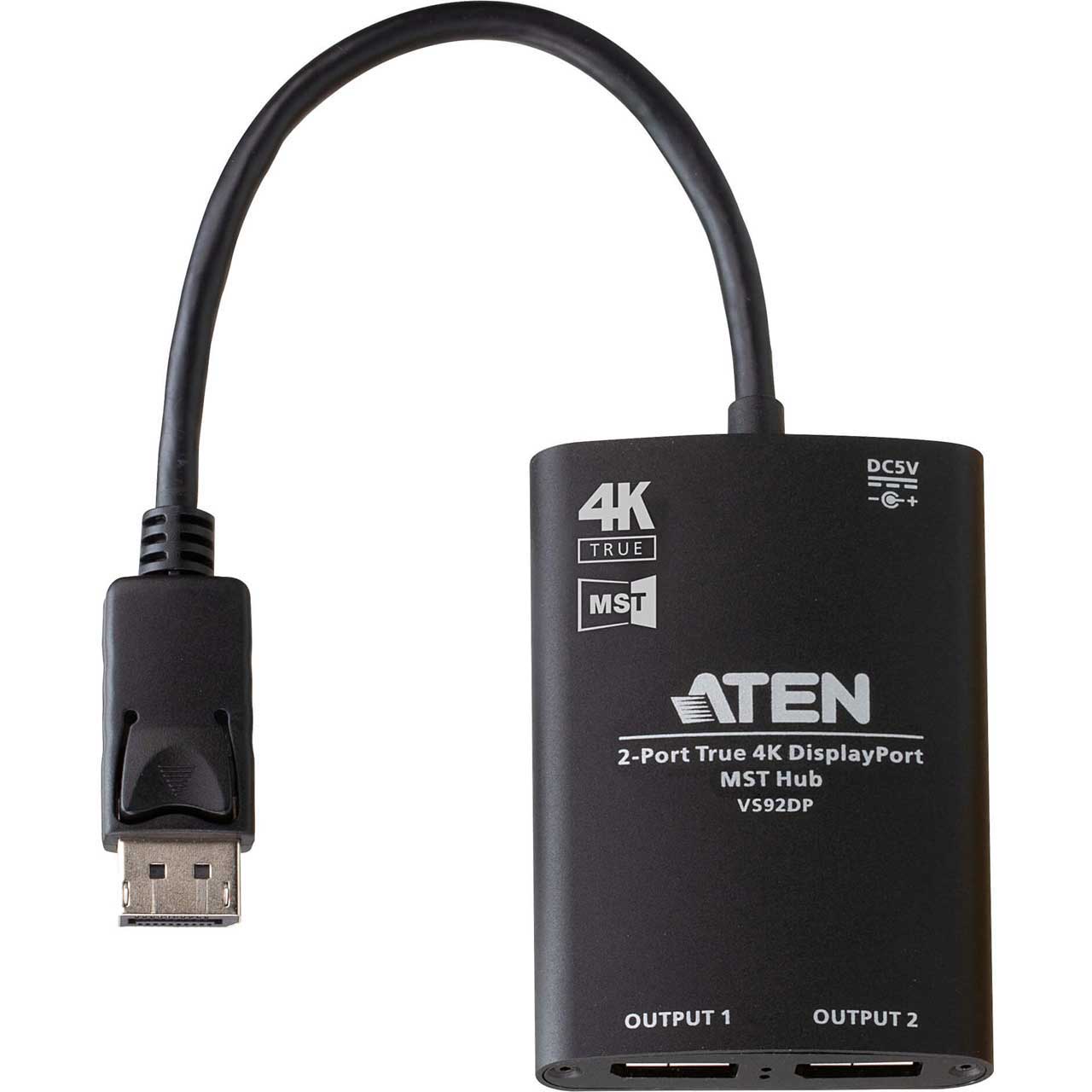

ATEN VS92DP 2-Port True 4K DisplayPort - Single/Multi-Stream Transport Hub

Name: ATEN VS92DP 2-Port True 4K DisplayPort - Single/Multi-Stream Transport Hub
Brand: ATEN
SKU: ATEN-VS92DP
Price: 95.00 USD
Availability: PreSale

ITEM #: ATEN-VS92DP MFG #: VS92DP

ATEN

List Price:

$100.00

Our Price:

$95.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VS92DP - Overview

ATEN VS92DP is designed with a cost effective, yet advanced DisplayPort MST solution in mind, the ATEN VS92DP 2-Port True 4K DisplayPort MST Hub allows the high-defi nition video to be transmitted to two different locations without losing quality. Productivity is enhanced with its feature that permits up to two displays to be connected to a Windows-based laptop / PC. Meanwhile, users can mirror the same image onto two displays or display independent content to each display for multitasking.

The VS92DP supports up to 4K@60Hz (4:4:4) video resolution, HDR Dolby TrueHD and DTS-HD Master Audio 7.1, ensuring distortionless and superb video / audio quality. It is ideal for home theater systems, commercial settings, educational centers, conference rooms, or any scenarios where high video quality is needed.

Features:
- Distributes one True 4K source to two DisplayPort displays at the same time
- Allows for Single Stream Transport (SST) or Multi-Stream Transport (MST) Mode
- Supports 4K resolution for dual output - up to 3840 x 2160@30Hz (4:4:4)
- DisplayPort 1.2; HDCP 1.3 compliant
- Provides Dolby TrueHD and DTS-HD Master 7.1 Audio channel
- High quality and durable aluminum enclosure
Specifications:
- LEDs
- Status: DisplayPort Output x 2 (Blue)
- Power Input x 1 (Blue)

  Video Input
- Interfaces: 1 x DisplayPort Male (Black)
- Max. Distance: 15cm

  Video Output
- Interfaces: 2 x DisplayPort Female (Black)
- Max. Distance: Max 3m at 3840x2160@60Hz (4:4:4) - Single output
- Max 3m at 3840x2160@30Hz (4:4:4) - Dual output (MST/SST mode)

  Video
- Max. Data Rate: 21.6Gbps (5.4Gbps per lane)
- Compliance: DisplayPort 1.2 / HDCP 1.3
- Max. Resolution: Up to 3840x2160@60Hz (4:4:4, 8 bits)

  Power Consumption
- 2WATT(MAX)BTU

  Connectors
- USB Port: USB Type Micro B x 1 (Firmware upgrade & power source)

  Environmental
- Operating Temperature: 0-40 °C
- Storage Temperature: -20 - 60 °C
- Humidity: 0 - 80% RH, Non-Condensing
- Physical Properties
- Housing: Metal (aluminum)
- Weight: 0.2 lb
- Dimensions (L x W x H): 3.46 x 2.36 x 5.91 in.
Item Includes:
- 1x VS92DP 2-Port True 4K DisplayPort MST Hub
- 1x USB Type-A to USB Micro-B cable
- 1x user instructions
GTIN:
0672792012280
