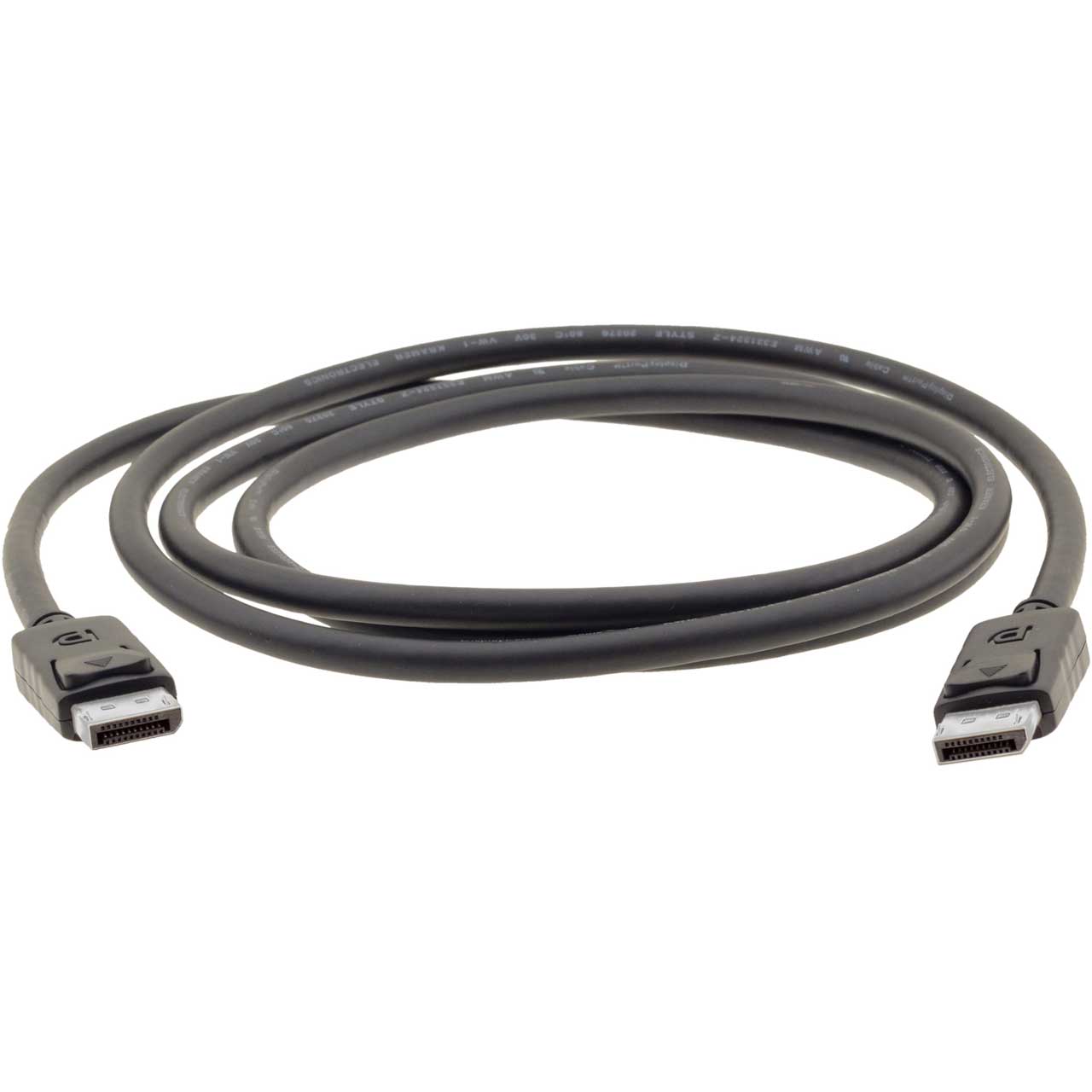

Kramer C-DP-10 Triple Shielded 4K DisplayPort 1.2 Cable with Latches - 10 Foot

C-DP-10 - Overview

• Features:

  • High-Performance Professional Cable - supports resolutions up to 4K@60Hz (4:4:4) and an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps.
  • Content Protection Support - DPCP (DisplayPort Content Protection) and HDCP 2.2.
  • Daisy Chain Multiple Monitors - With MST (Multi-Stream) support.
  • Secure Connections - Includes molded DisplayPort connectors with latches.
  • Quality Construction - Triple shielded for superior noise immunity.
  • Backward Compatibility - Compatible with DisplayPort 1.1.
  • Varied Selection of Lengths - Available in versions of 0.9 to 15.0m (3 to 50ft).


• Specifications:

  • Video
  • Resolutions: Supports all VESA resolutions up to 4K@60Hz (4:4:4)
  • Max. Data Rate: 21.6Gbps (5.4 Gbps per lane)

    Physical
  • Male DisplayPort Connectors: Gold plated pins-15u, Nickel Plated Shell

    Screening
  • Type: Triple Shielding (eliminates RF and EM interference)

    Conductors
  • 3-15' Lengths: 28AWG
  • 25-50' Lengths: 26AWG

    Jacket
  • Material: PVC
  • Diameter 3-15ft Lengths: 7.2 ±0.19mm
  • Diameter 25-50ft Lengths: 8.2 ±0.19mm
  • Average Thickness 3-15' Lengths: 0.96mm
  • Average Thickness 25-50' Lengths: 0.57mm
  • Color: Black

    Electrical
  • Voltage Rating: 30V
  • Temperature Rating: 176°F (80°C)
  • Dielectric Strength: AC - 750V/1sec MIN
  • Insulation Resistance: FOAM-SKIN-PE,PE:DC-500V 100 MΩ/KM MIN. at 68°F (20°C)
  • Conductor Resistance 28AWG: 237Ω/KMMAX. at 68°F (20°C)
  • Conductor Resistance 26AWG: 148Ω/KM MAX. at 68°F (20°C)
  • Differential Impedance: 100±5Ω
  • Intra Pair Skew: 50ps/2m
  • Inter Pair Skew: 4ns/2m

    Standards Compliance
  • Rating: VW-1
  • RoHS: 2011/65/EU


• Item Includes:

  • C-DP-10 Triple Shielded 4K DisplayPort 1.2 Cable


• Warranty:

  • Lifetime Warranty


• GTIN:

  7291063086749
