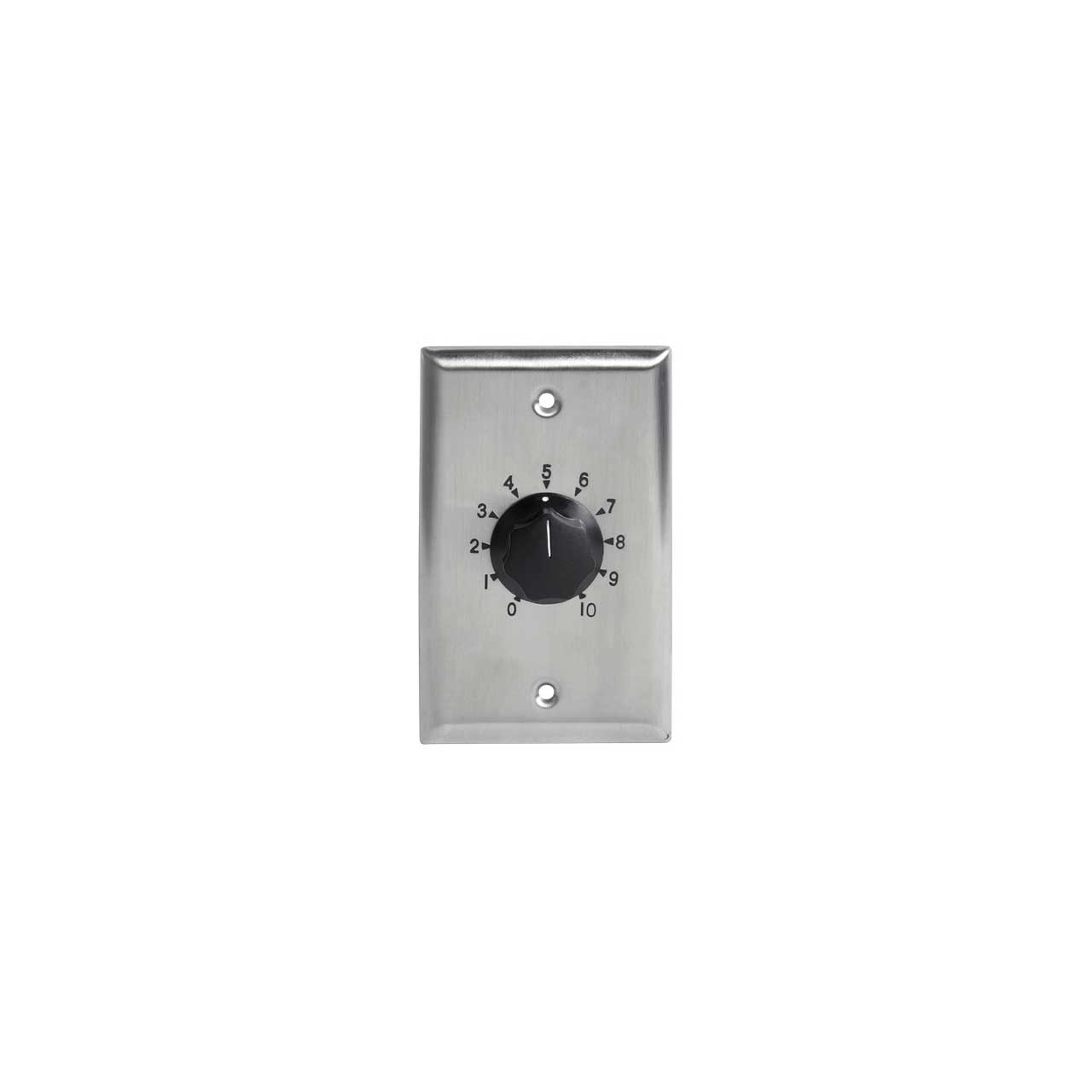

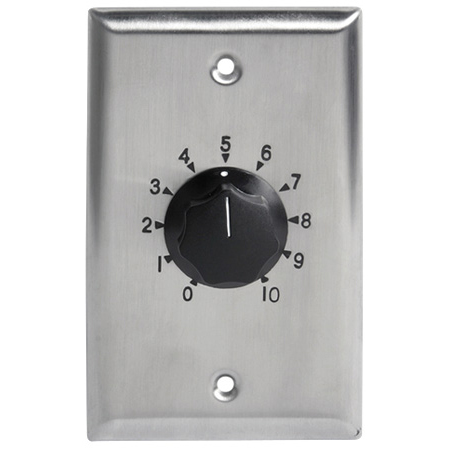

Atlas AT35-PA Deluxe Priority Plate Mounted 35W Attenuator W/Priority Relay 3dB Steps

ITEM #: ATL-AT35-PA MFG #: AT35-PA

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$63.99

Our Price:

$52.99

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AT35-PA - Overview

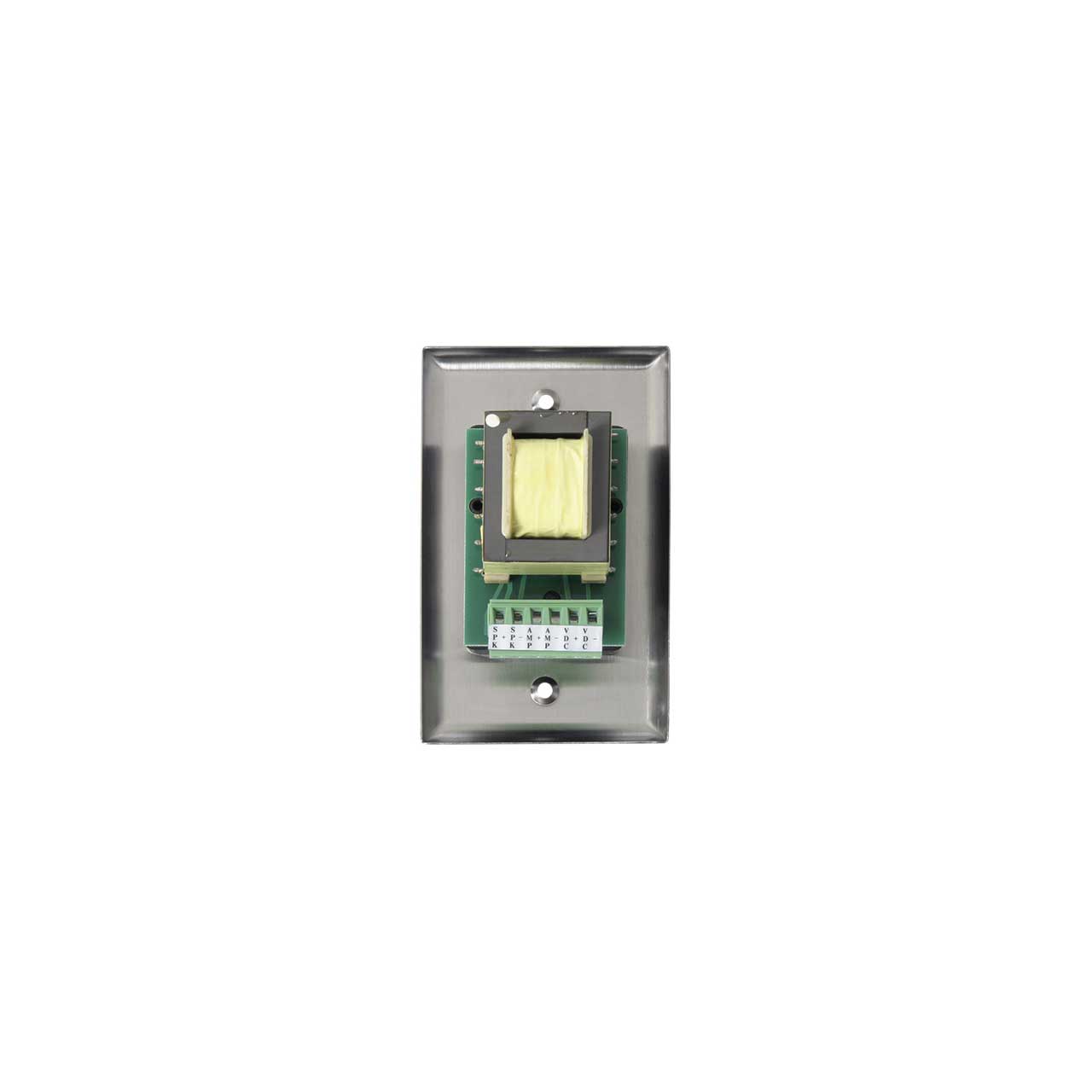

High-quality auto transformer AT35-PA provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob.

  • Features:

    • Mount into Most 1-Gang E.O. Boxes.
    • Priority paging feature by-passes the effect of the attenuator
    • The SPDT relay is operated with 24 VDC at 10mA
    • UL Listed
    • Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob

  • Specifications:

    • Height 4 1/2" (11.43 cm)
    • Width 2 3/4" (6.985 cm)
    • Depth 2 1/8" (5.3975 cm)
    • Shipping Weight 1.00 lb (0.45 kgs)
    • Plate Size 1 gang
    • Plate Type Stainless Steel
    • Power Rating 35W
    • Total Attenuation 27dB
    • UL Listed/Standard 813, 2043

  • GTIN:

    0612079179534
