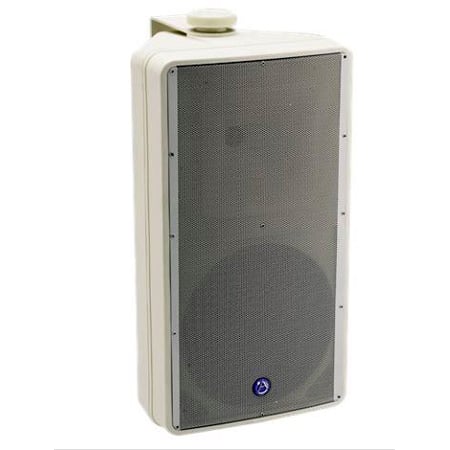

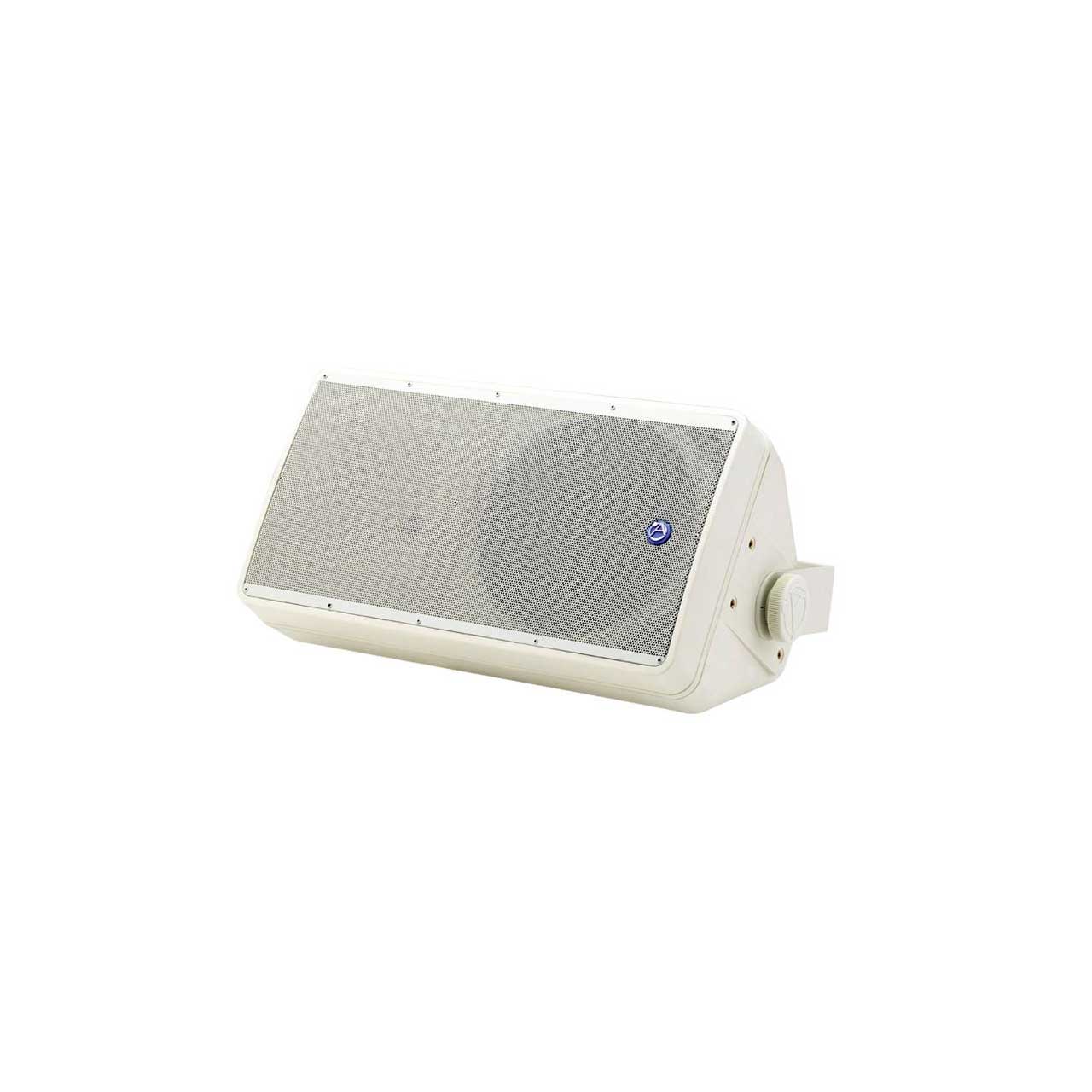

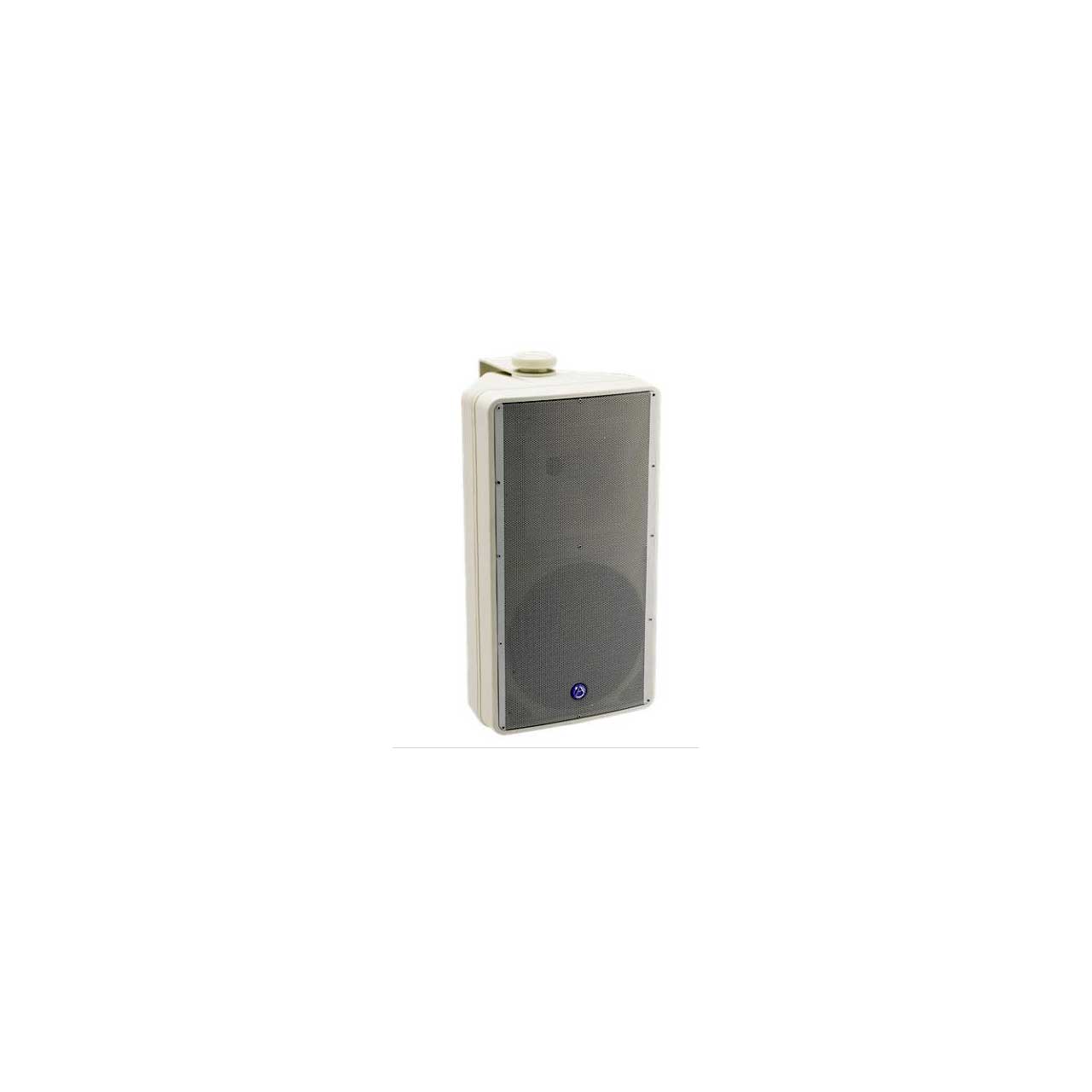

Atlas SM82T-W 8 inch 2-Way Weather Resistant Speaker System with 70.7V/100V-60W Transformer and 8Ohm Bypass - Pair-White

ITEM #: ATL-SM82T-PR-W MFG #: ATL-SM82T-W

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
AtlasIED
Free Shipping with $49 Minimum Order

List Price:

$817.98

Our Price:

$655.98

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ATL-SM82T-W - Overview

Environment-resistant SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure.

System components consist of a highly efficient woofer section and 1" exit compression driver frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the Atlas Sound TRX Control WaveGuide high frequency director. This design provides smooth, even sound coverage (65°H x 65°V). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the Atlas Sound PolyGuard protection circuit.

The SM82T includes an internally mounted 60 watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications and an 8O bypass.

  • Features:

    • Compact, 2-way Loudspeaker Systems for Exceptional Performance in Music and Sound Reinforcement Systems
    • Weather-Resistant Construction for Year-Round Indoor or Outdoor use: UV-Resistant, Talc Impregnated Polypropylene Injection Molded Enclosure, Powder Coated Aluminum Grilles and All Brass Hardware Inserts
    • Conforms to 100HR Salt Spray Test Per ASTM B117
    • Color Matched Heavy-Duty Zinc Chromate Plated and Powder Coated "C" Bracket (Included)
    • Highly Efficient 8" HYCONE Treated Woofer
    • 1" Exit Titanium High Frequency Compression Driver
    • Atlas Sound TRX WAVEGUIDE - A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, and Even High Frequency Coverage
    • Atlas Sound POLYGUARD High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
    • Screwdriver Adjustable 60 Watt 70.7V / 100V / 8? Transformer for Distributed Sound and Direct Coupled 8? Applications
    • All 1 ?4"-20 Hardware Inserts Allow Easy Integration of "Off-The-Shelf" Security Hardware
    • OMNIMOUNT 30 Series Compatible
    • Five-Year Warranty


  • Specifications:

    • Speaker Type: Surface Mount
    • Frequency Response: 65Hz - 20kHz
    • Power Taps: 1.9, 3.8, 7.5, 15, 30, 60 & 8O bypass
    • Sensitivity: 92dB
    • Height: 16 1/2" (41.9 cm)
    • Width: 9 1/16" (23.0 cm)
    • Depth: 8 7/16" (21.4 cm)
    • Shipping Weight: 20.00 lbs (9.07 kgs)


  • GTIN:

    0612079187232
