Atlas WPD-RISRL Wall Plate Selector Switch for AAPHD Series

ITEM #: ATL-WPD-RISRL MFG #: WPD-RISRL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$64.99

Our Price:

$54.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


WPD-RISRL - Overview

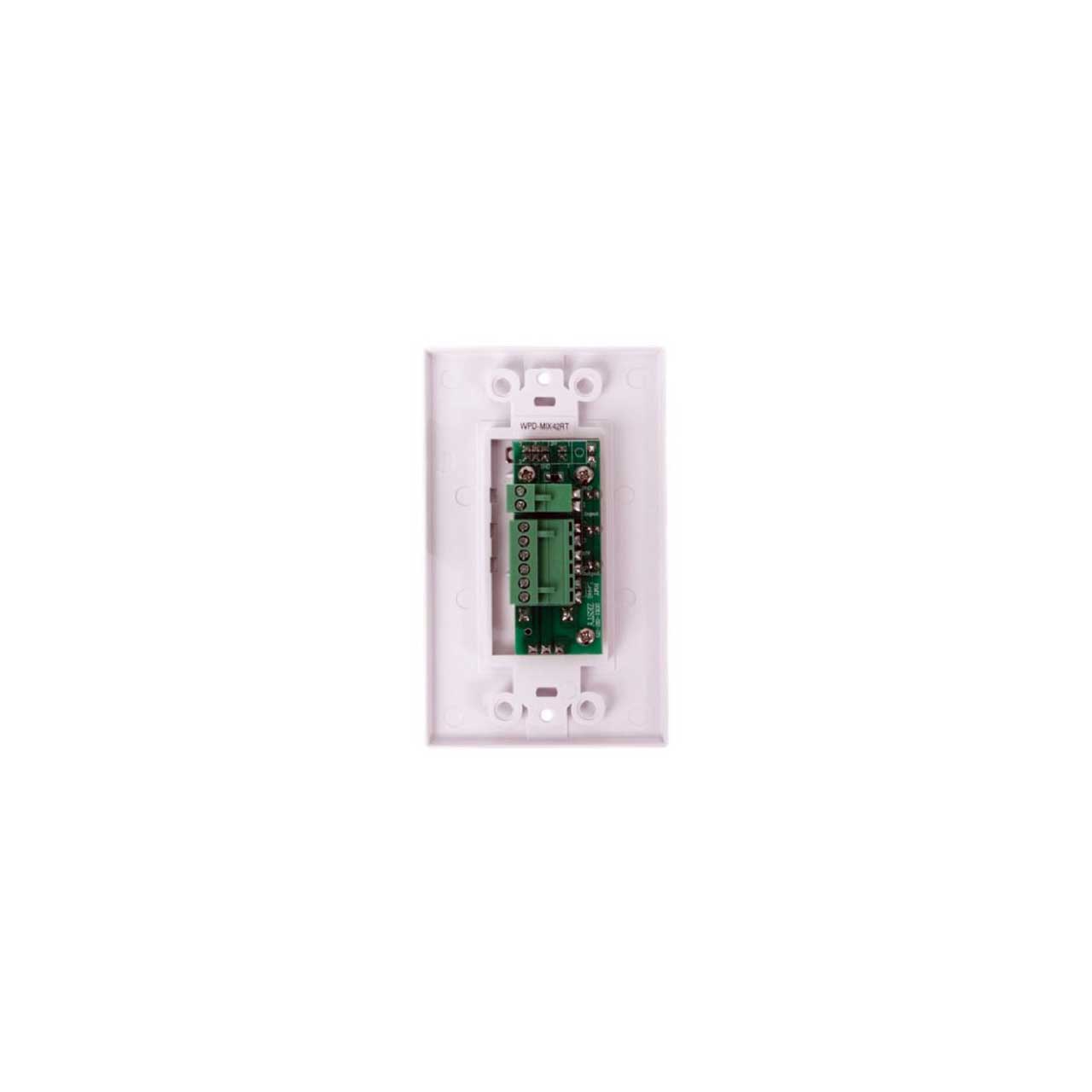

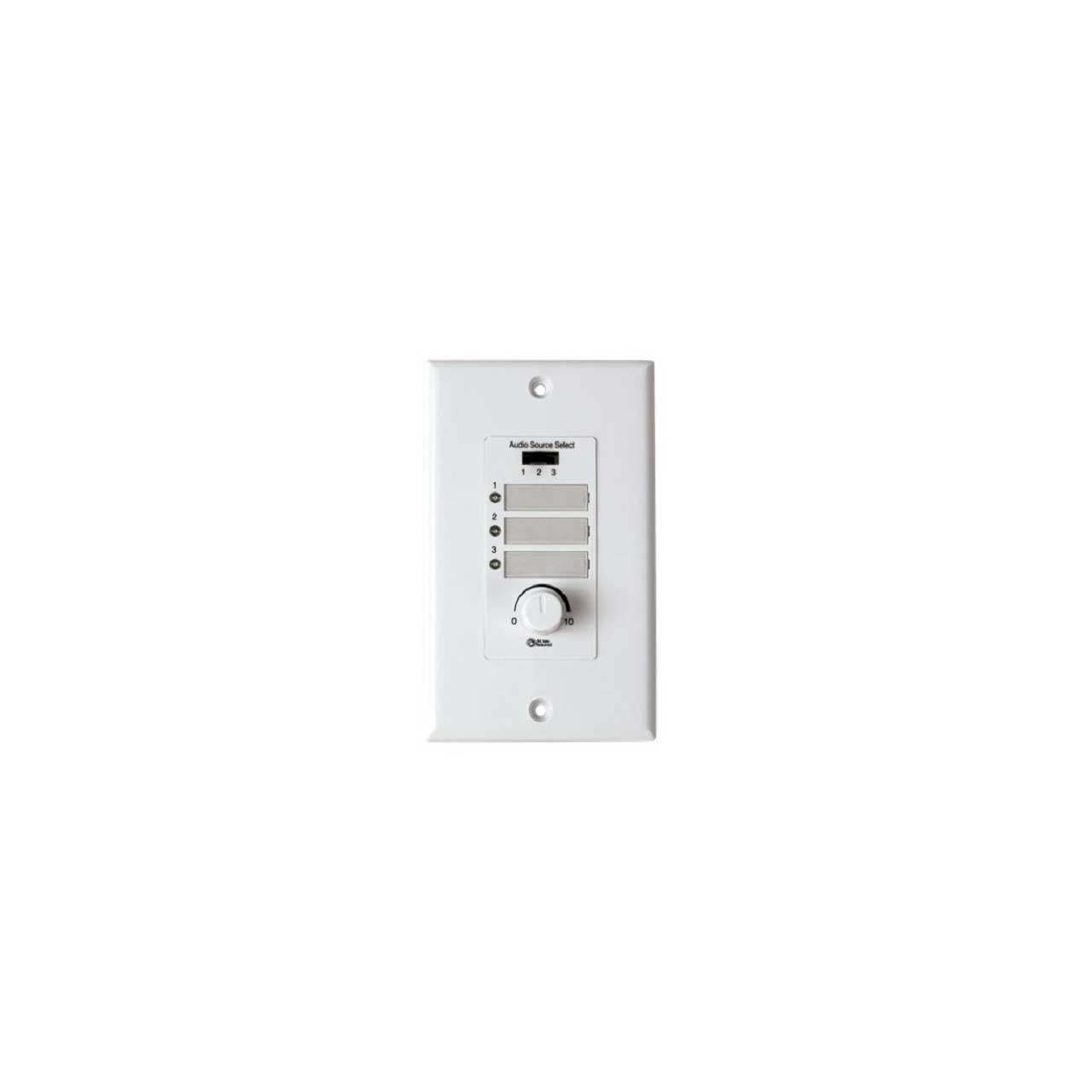

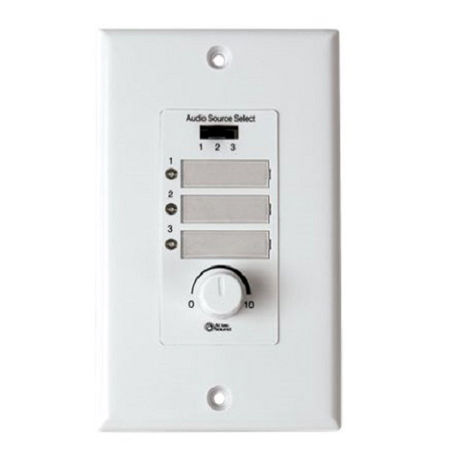

The WPD-RISRL is a decor style wall plate that is designed for use with the AA50PHD, AA100PHD, AA200PHD, or AA400PHD mixer amplifiers to use the remote input selection (RIS) feature. The WPD-RISRL features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the RIS output on an appropriate AAPHD amplifier, the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.

  • Features:

    • Designed for Remote Input Selection and Volume Adjustment Used with Select AAPHD Amplifiers
    • Input Select Slide Switch
    • Level Control Via On Board 10kO Potentiometer
    • System Status Indicator (Red)
    • 8-Conductor Interface Connection
    • Label Guard

  • Specifications:

    • Height 4.5" (114mm)
    • Width 2.5" (63mm)
    • Depth 0.24" (6.4mm)

  • GTIN:

    0612079190805
