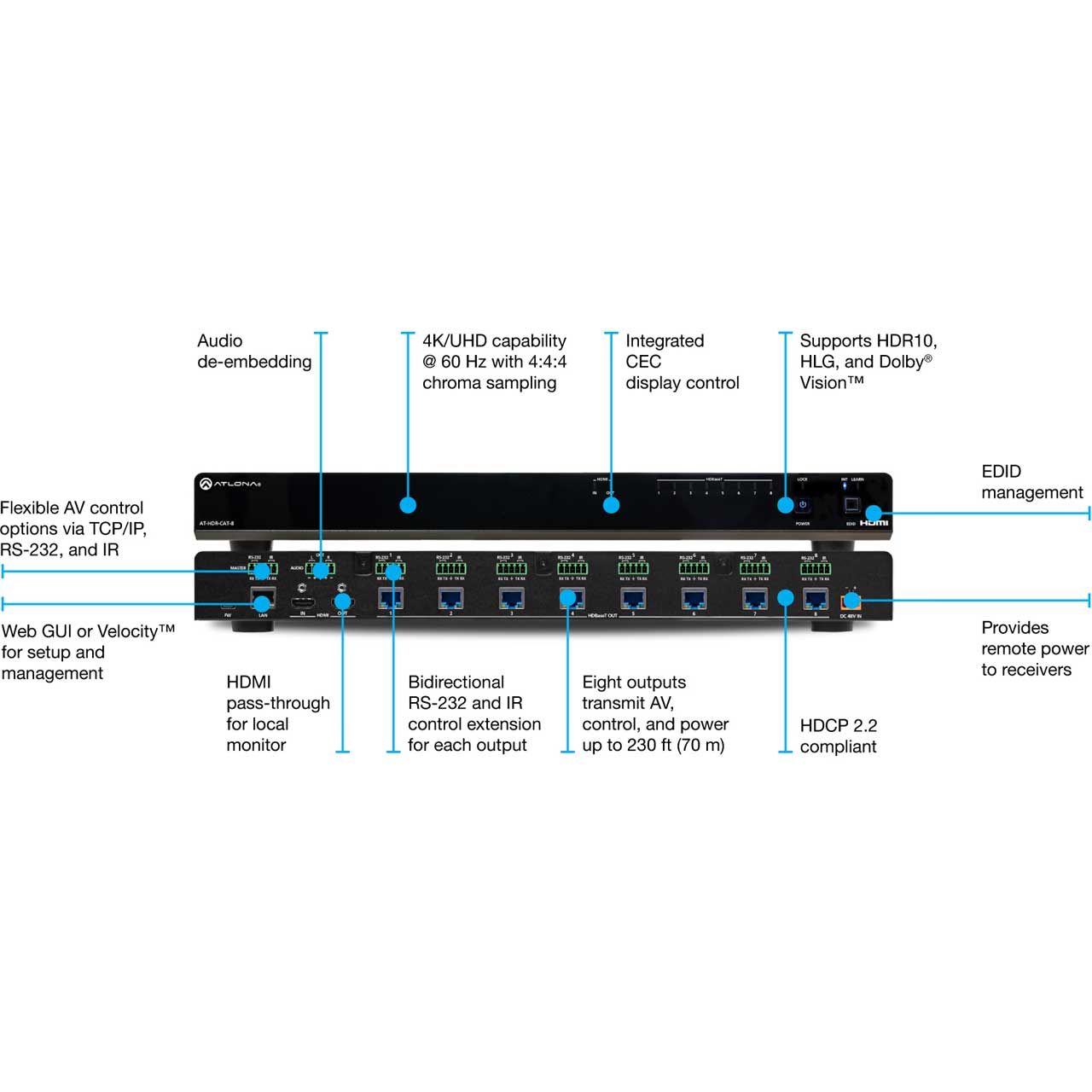

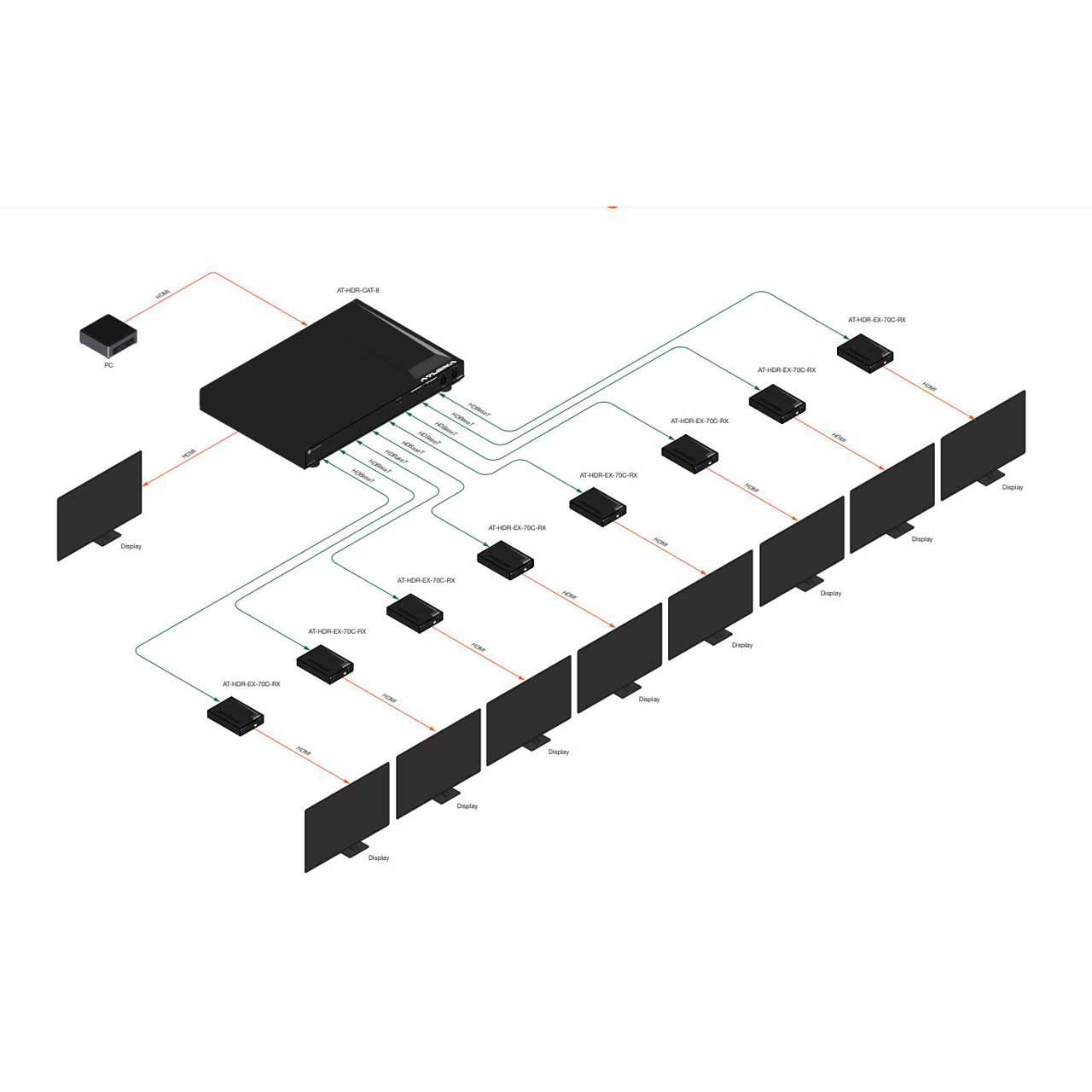

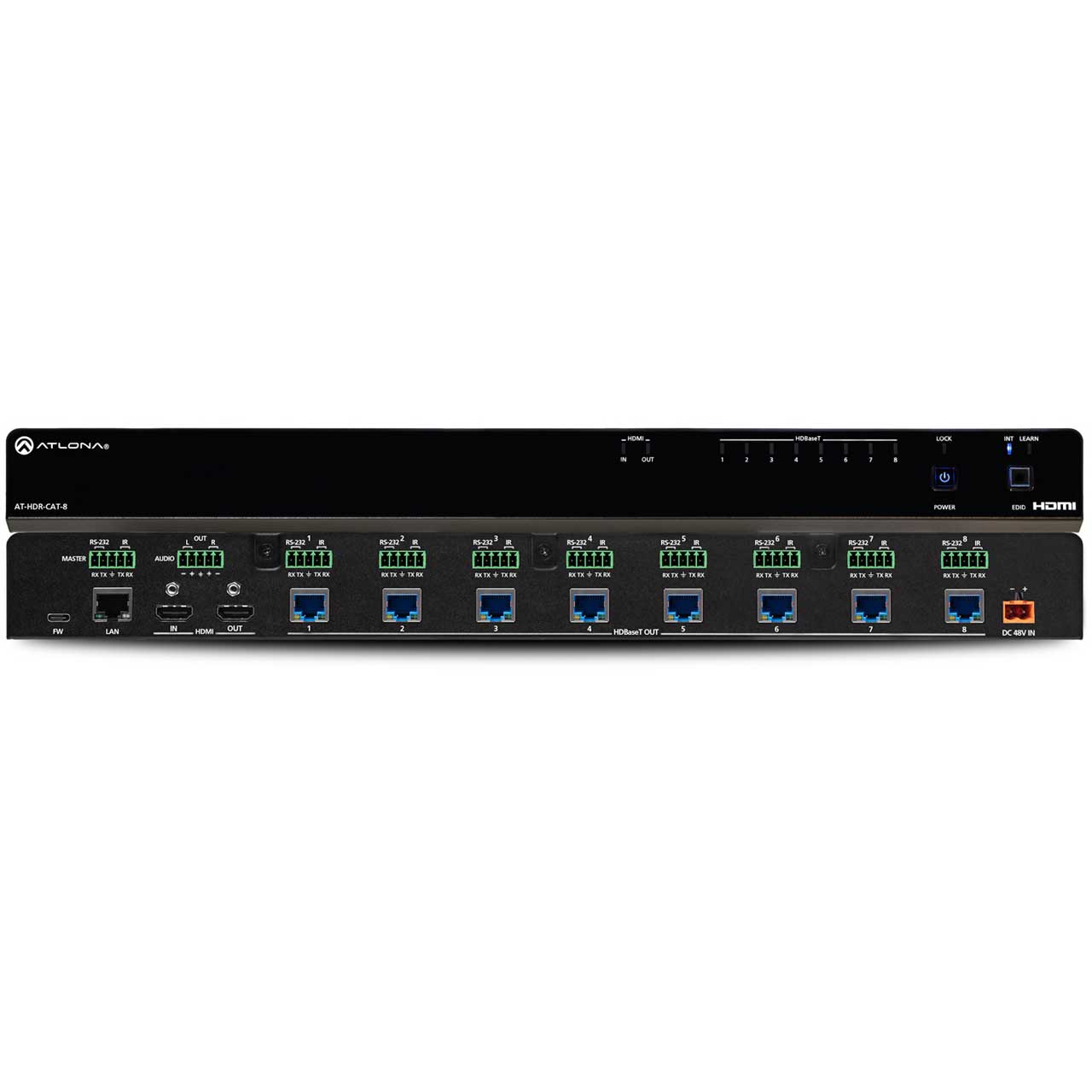

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-CAT-8 features sophisticated integration capabilities designed for commercial AV distribution applications including HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a 1U, full rack width enclosure with external universal power supply. The HDR-CAT-8 is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-70C-RX receivers.The HDR-CAT-8 is part of a family of 4K HDR HDMI to HDBaseT distribution amplifiers that also includes the HDR-CAT-2 two output, HDR-CAT-4 four output, and HDR-CAT-4ED four output extended distance models.
Applications Include:
Hospitality and Retail - ideal for hotel lobbies, malls, stores, and restaurants that need long distance signal extension of high-impact marketing content and program information
Commercial - Display company information on screens in reception areas or production and safety information on screens in the warehouse and manufacturing floor
Education - Complements lecture hall and auditorium AV systems by allowing presentation content to be distributed to repeater displays located throughout the space
Please Note! Transmitter only! Receivers sold separately.
