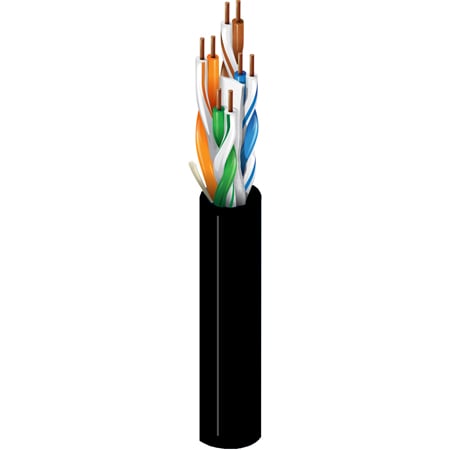

Belden 2413 Plenum/CMP 4-Pair Enhanced Cat 6+ 350MHz U/UTP Cable Solid/BC 23 AWG - Black - 1000 Foot

2413 0101000 - Overview

• Features:

  • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
  • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
  • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds

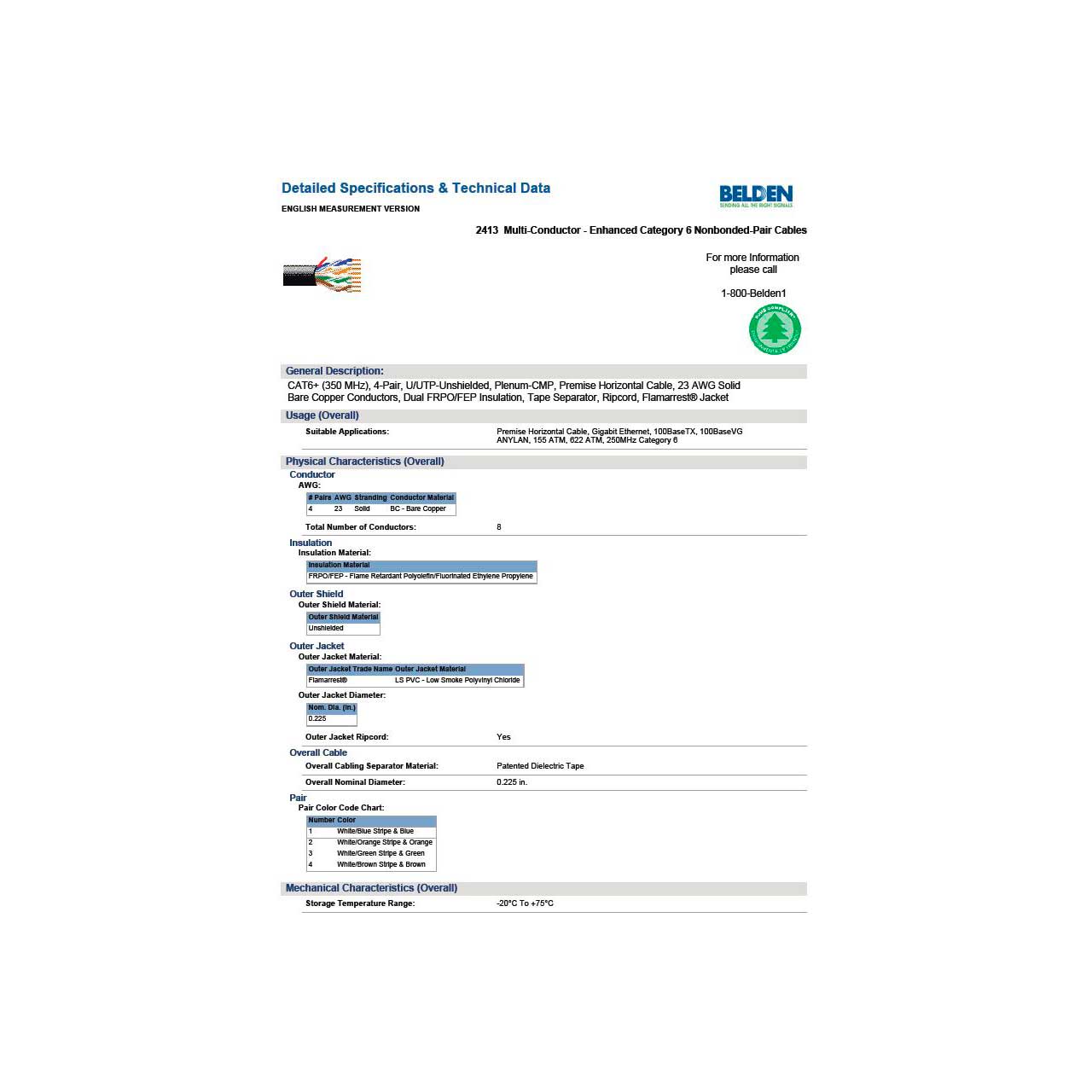

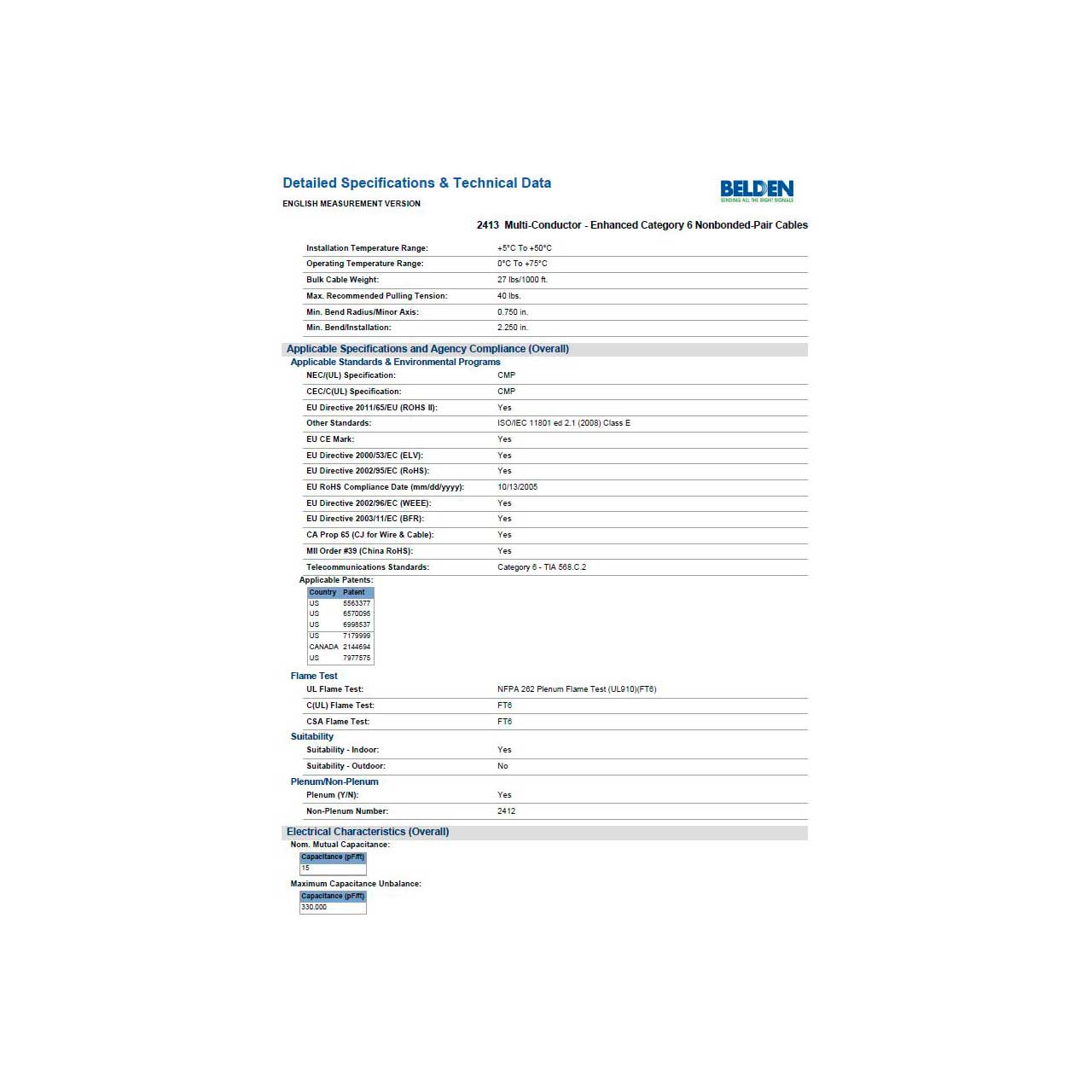

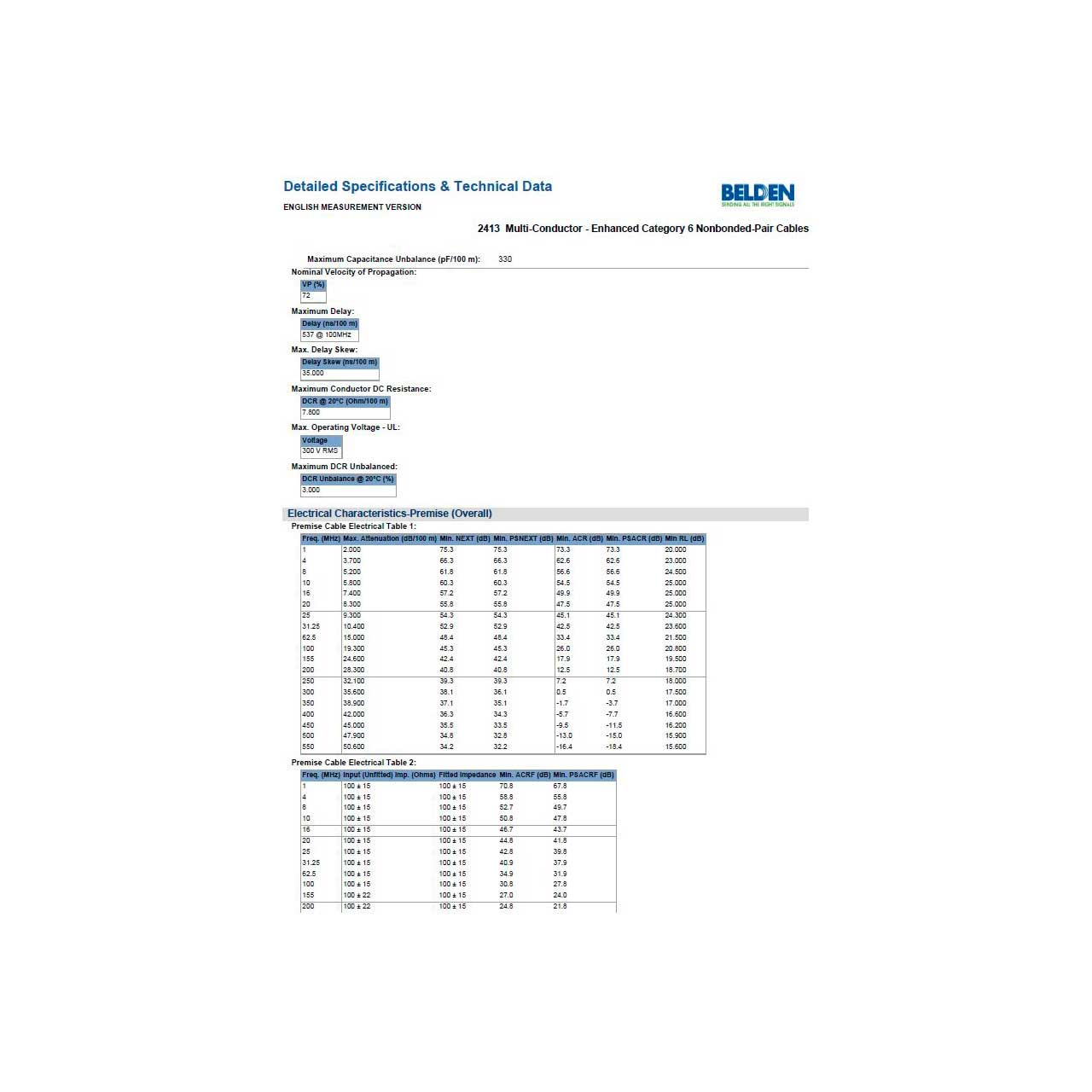

• Specifications:

  • Conductor AWG: 23
  • Conductor Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Conductor No. of Pairs: 4
  • Max. Conductor DCR: 78 Ohm/km
  • Max. Capacitance Unbalance Nom: 330 pF/100m
  • Insulation Material: PO+FEP - Polyolefin + Fluorinated Ethylene Propylene
  • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
  • Nom. Velocity of Prop: 72%
  • Frequency Delay [MHz]: 100 MHz
  • Max. Delay: 537.6 ns/100m
  • Max. Delay Skew: 35 ns/100m
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Diameter: 0.224 in (5.69 mm)
  • Overall Cable Diameter (Nominal): 0.224 in (5.69 mm)
  • Nom. Velocity of Propagation (VP) [%]: 72%
  • UL Voltage Rating: 300 V (CMP), 300 V (CL3P
  • UL Rating Temp: 90°C
  • Operating Temp: -20°C To +75°C
  • Installation Temp: 0°C To +50°C
  • Storage Temp: -20°C To +75°C
  • Max. Pull Tension: 25 lbs
  • Bulk Cable Weight: 26 lbs/1000ft
  • Environmental Suitability: Plenum, Indoor
  • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
  • Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2
  • NEC / UL Compliance: 800, CMP;CMP-LP (0.5A);CL3P-LP (0.5A)
  • CEC / C(UL) Compliance: CMP


• Item Includes:

  • 2413 Plenum/CMP 4-Pair Enhanced Cat 6+ Cable - Black - 1000 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825061762
